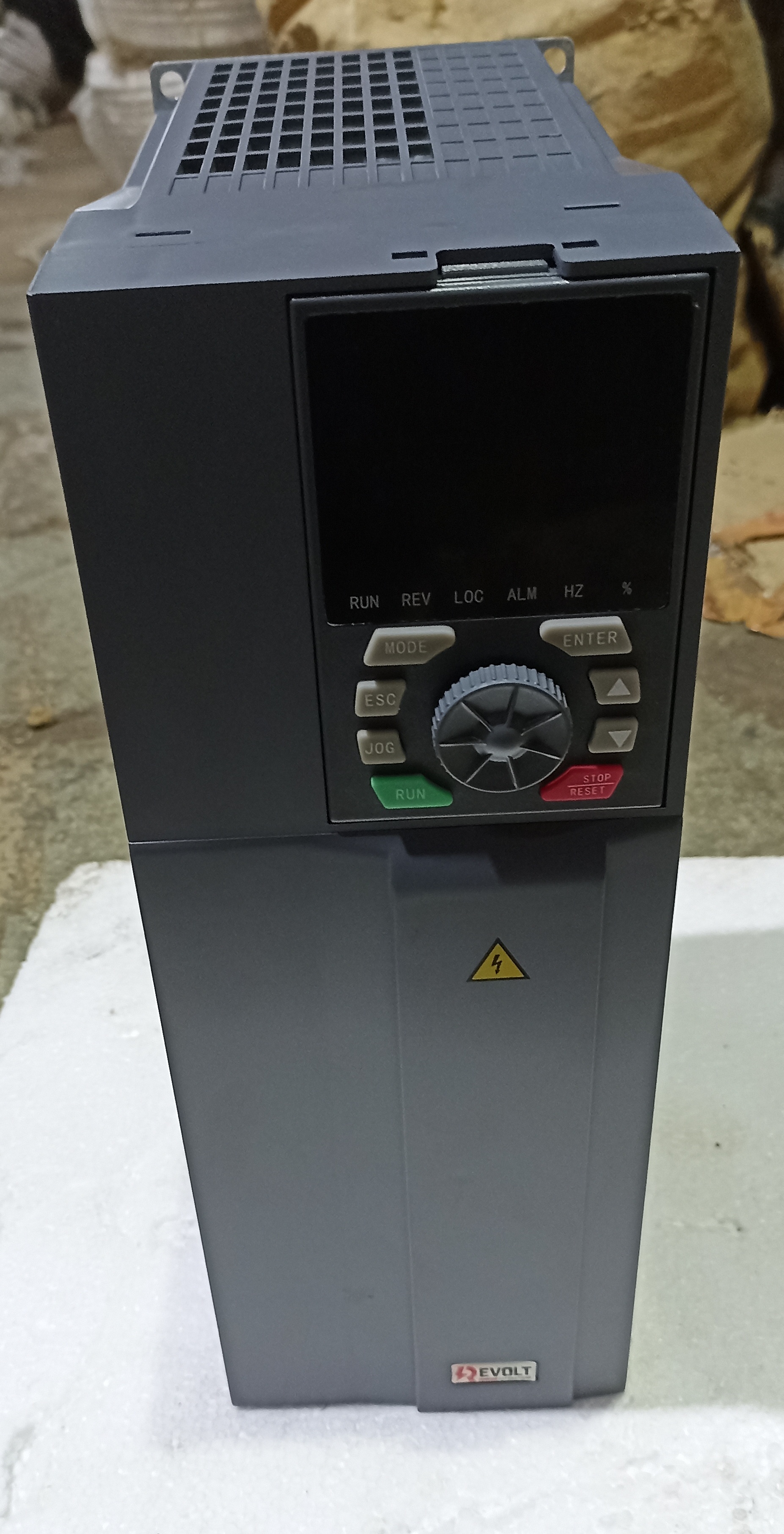

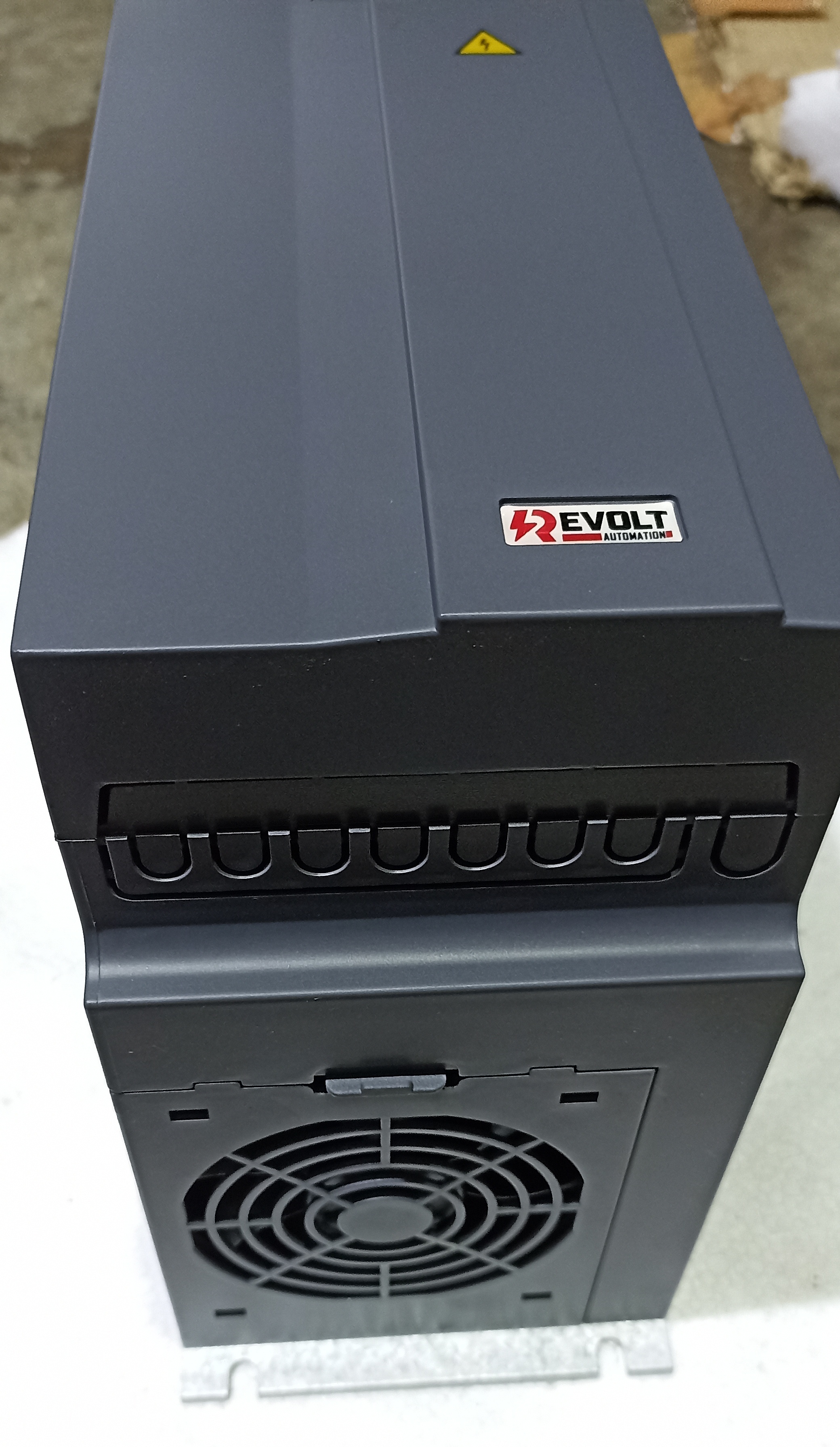

REVOLT 15-18.5 KW AC DRIVE

Get a Price/Quote

REVOLT 15-18.5 KW AC DRIVE Specification

Connector Type
Screw Terminal

Operating Temperature
-10C to +50C

Efficiency
98%

Surface Finish
Matte

Shape
Rectangular

Insulation Material
Thermoplastic

Power Factor
>0.95

Feature
Easy Parameter Setting, Built-in Cooling Fan, LCD Display

IP Rating
IP20

Mounting Type
Panel Mount

Humidity %
<95% non-condensing

Overheating Protection
YES

Product Type
AC Drive

Application
Industrial Automation for Motors, Pumps, Fans, Conveyors

Protection Level
Overload, Short Circuit, Overvoltage, Undervoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency, Low Energy Consumption

Output Type
Analog/Digital

Color
Black and Grey

Dimension (L*W*H)
250 x 150 x 210 mm

Weight
5.8 kg

Input Voltage
380-480 V AC

Phase
Three Phase

Size
Compact

Connection Type
Terminal Block

Material
Plastic and Metal

No Of Poles
3

Braking Unit
Built-in

Input Phase
Three Phase

Altitude
1000m without derating

Display Type
LED/LCD Digital

Programming Feature
User Programmable Logic

Standards Compliance
CE, ISO9001

Communication Port
RS485 Modbus

Noise Level
<60dB

Motor Output Capacity
15-18.5 kW (20-25 HP)

Control Panel
Keypad Detachable

Cooling Method
Forced Air

Control Method
V/F, Sensorless Vector Control

REVOLT 15-18.5 KW AC DRIVE Trade Information

Minimum Order Quantity
3 Number

Sample Available
Yes

Main Domestic Market
All India

About REVOLT 15-18.5 KW AC DRIVE

Revolt 20 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Brand :- Revolt

Hp :- 20 Hp

Kw :- 15 Kw

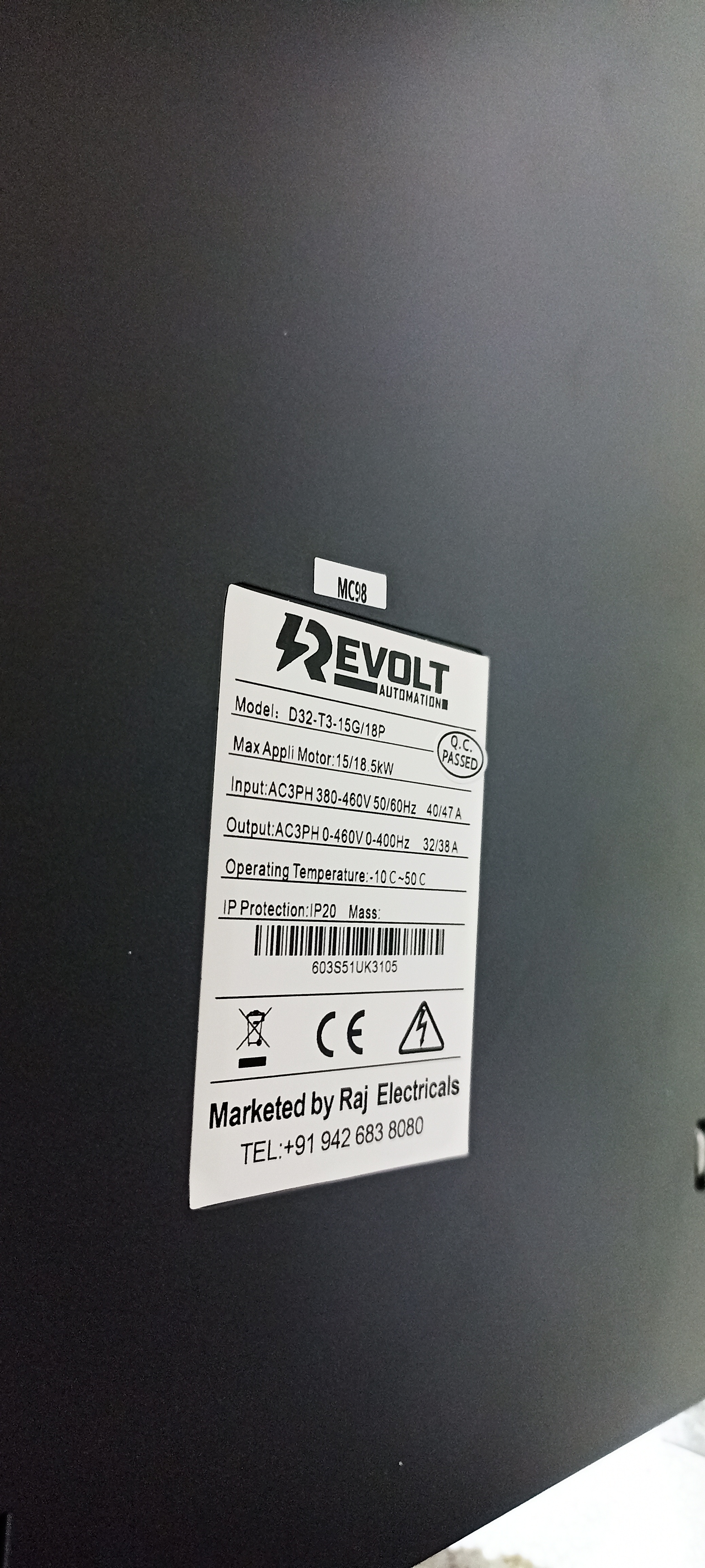

Model Number :- D32-T3-15G/18P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-440 V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Versatile Control and Efficiency

REVOLT AC Drive offers both V/F and sensorless vector control, ensuring precise speed and torque management across a wide range of industrial motors. With a motor output range of 15-18.5 kW, this drive maintains energy efficiency (98%) and low noise emissions, making it suitable for sensitive workspaces and rigorous industrial processes alike.

Reliable Performance and Safety

Engineered for robust industrial use, this drive operates efficiently under challenging conditions-up to 1000 meters altitude without derating, between -10C and +50C, and at humidities below 95%. The built-in cooling fan and multiple protection features safeguard motors and extend equipment lifespan.

Easy Integration and User-Friendly Design

With its compact panel mount design, detachable keypad, and support for RS485 Modbus communication, the drive simplifies both installation and daily operation. Parameter setting and monitoring are straightforward thanks to the LED/LCD display and intuitive interface. This makes it an excellent choice for manufacturers, exporters, and industrial operators in India.

FAQ's of REVOLT 15-18.5 KW AC DRIVE:

Q: How is the REVOLT 15-18.5 kW AC Drive installed and integrated into existing systems?

A: This AC drive is designed for panel mounting and uses terminal block connections with screw terminals, allowing for straightforward integration into existing three-phase industrial setups. It supports RS485 Modbus for seamless communication with PLCs and other automation equipment.

Q: What control methods are available for motor operation with this drive?

A: The drive features both V/F (voltage/frequency) control and sensorless vector control, providing flexibility for precision speed and torque control across various industrial applications involving pumps, fans, and conveyors.

Q: When is it necessary to use the built-in braking unit?

A: The built-in braking unit is essential during rapid deceleration or emergency stops. It helps quickly dissipate excess energy, protecting the drive and connected motor from possible overvoltage situations, especially in high-inertia applications.

Q: Where can this AC drive be used, and what are its main applications?

A: It is suitable for use in industrial automation, specifically for controlling motors, pumps, fans, and conveyors. Its robust construction and protection features make it ideal for factories, process plants, and similar industrial environments throughout India.

Q: What is the process for setting up and programming this AC drive?

A: Setup is user-friendly with easy parameter settings accessible via the detachable keypad and LED/LCD display. Users can also program custom logic using the user programmable logic feature for tailored operational sequences and automated control.

Q: What are the benefits of choosing REVOLT AC Drive for industrial automation?

A: Key advantages include high energy efficiency, low noise operation, comprehensive motor protection, user-friendly programming, and compact size. Its compliance with CE and ISO9001 ensures international quality and safety standards.
