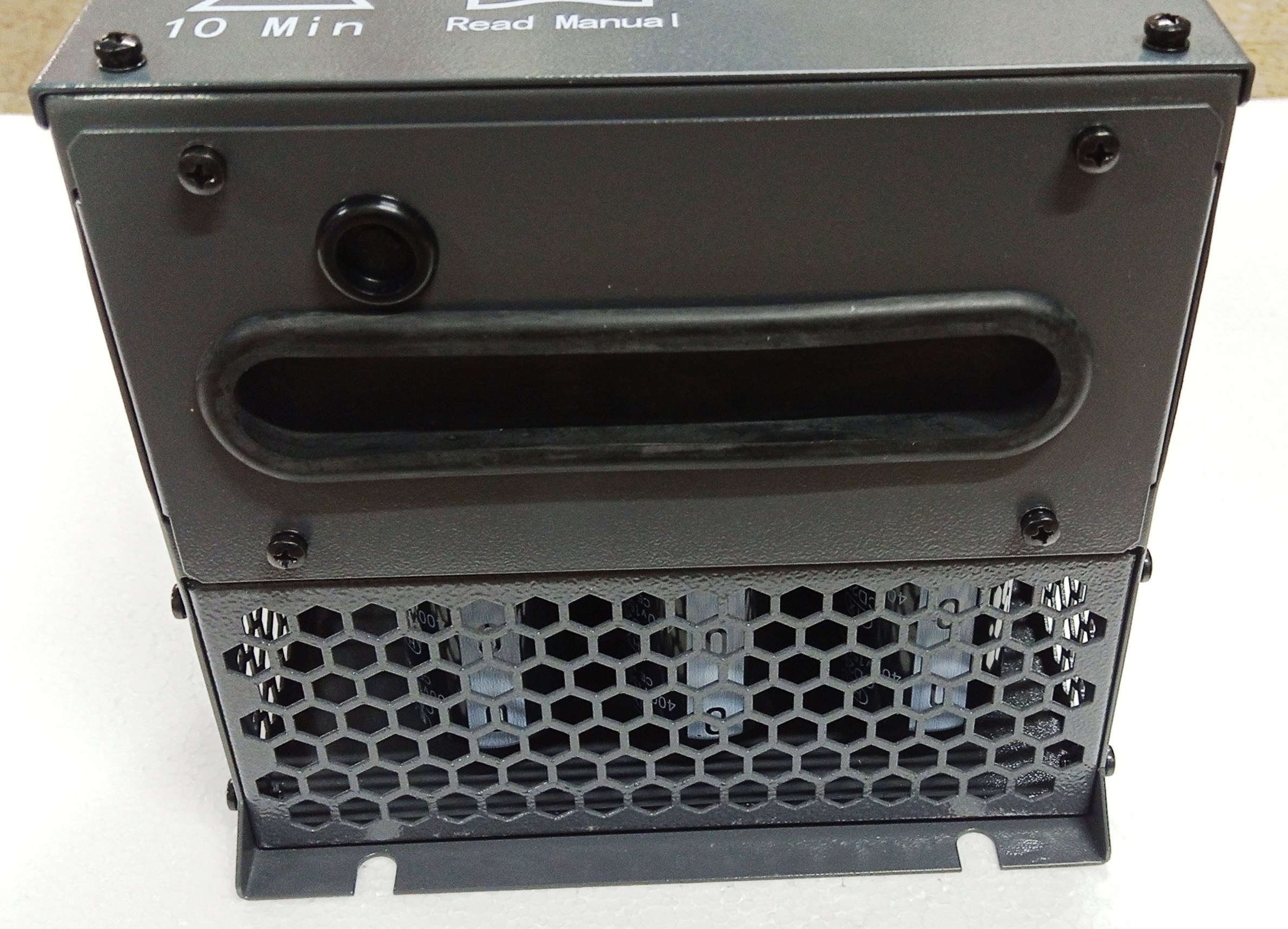

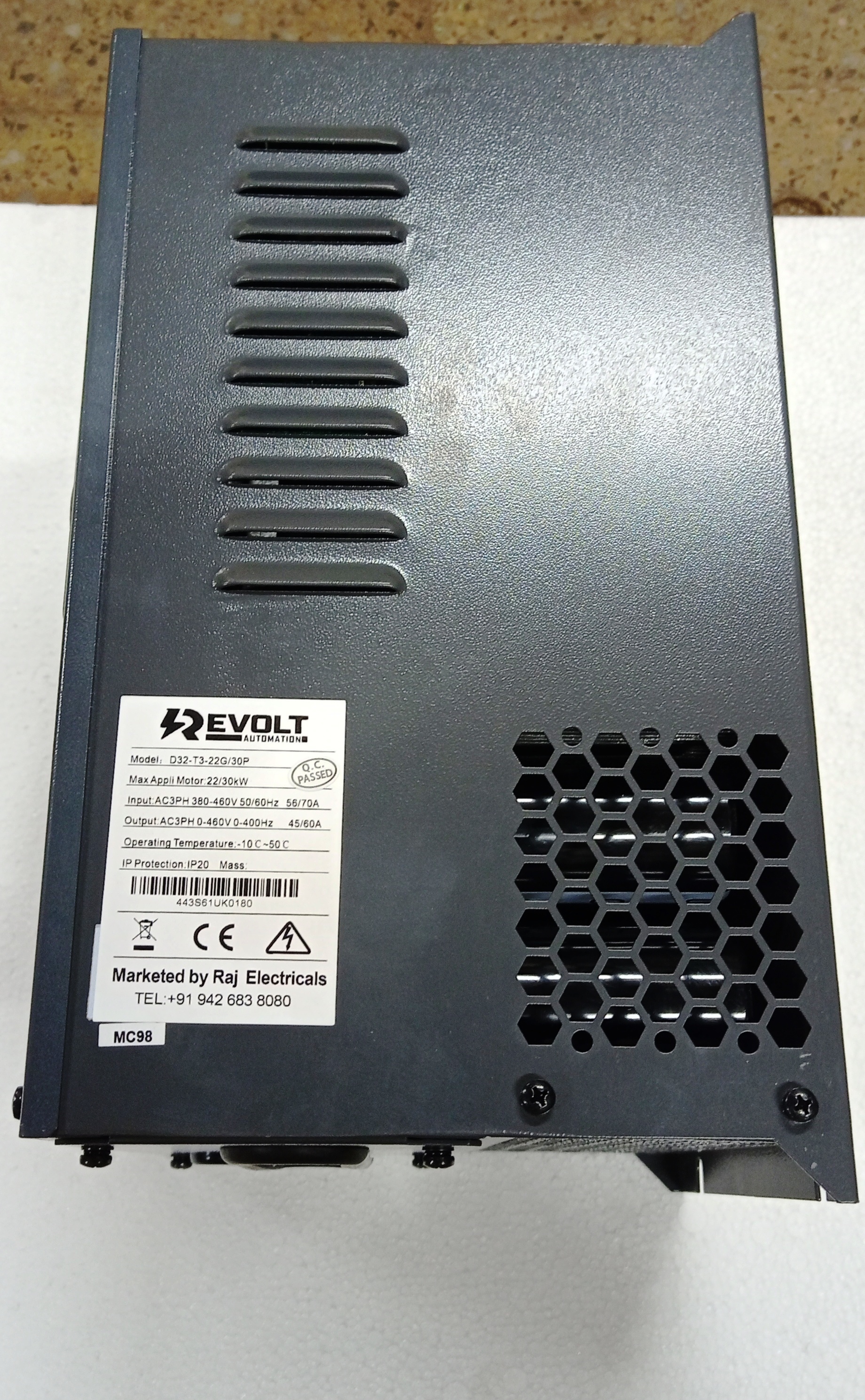

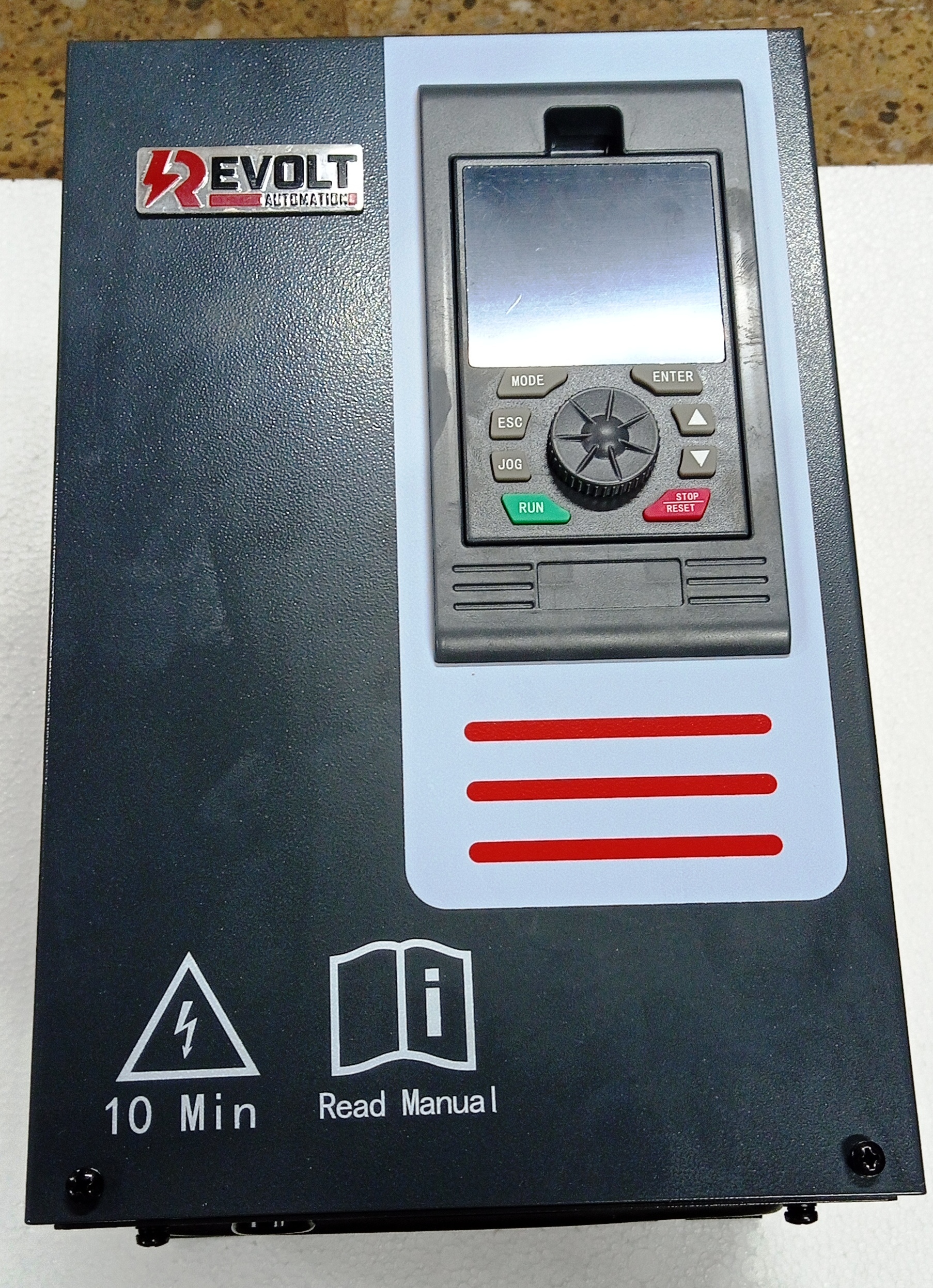

22-30 kw Revolt AC Drive

Get a Price/Quote

22-30 kw Revolt AC Drive Specification

Insulation Material
High Grade Polymer

Operating Temperature
-10C to 50C

Overheating Protection
Yes, Built-in Thermal Protection

Shape
Rectangular

Surface Finish
Powder Coated

Feature
Precise Motor Control, User-Friendly Interface, Digital Display

Efficiency
Up to 98%

Power Factor
>0.96

IP Rating
IP20

Connector Type
Screw Terminal

Mounting Type
Wall / Panel Mount

Humidity %
0-95% RH, Non-Condensing

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control

Protection Level
Overload, Overvoltage, Short Circuit, Undervoltage

Frequency (MHz)
50-60 Hz

Rated Voltage
380-480V AC

Energy Consumption
High Efficiency

Output Type
Variable Voltage and Frequency

Color
Grey

Dimension (L*W*H)
410 mm x 210 mm x 185 mm

Weight
18 kg

Input Voltage
380V-480V AC

Size
Standard

Phase
Three Phase

Material
ABS Plastic & Sheet Metal

No Of Poles
3

Connection Type
Panel Mount

Control Method
V/F Control, Sensorless Vector Control

Relay Output
Available

Communication Interface
RS485, MODBUS Supported

Output Frequency Range
0.1 to 400 Hz

Display Type
LED Digital Display

Noise Level
Less than 65 dB

Analog Input
2 Channels (0-10V, 4-20mA)

Start/Stop Control
Local/Remote

Digital Input
6 Channels

Cooling
Fan Cooled

EMI Filter
Integrated

Braking Unit
Built-in

Motor Compatibility
Induction & Synchronous Motors

22-30 kw Revolt AC Drive Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 22-30 kw Revolt AC Drive

Revolt 30 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Make :- Revolt

Hp :- 30 Hp

Kw :- 22 Kw

Model Number :- D32-T3-22G/30P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-440 V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com

Email: raj_electricals@hotmail.com

Advanced Motor Control Technology

Equipped with both V/F control and sensorless vector control, the Revolt AC Drive ensures accurate and reliable speed management for various three-phase motors. Its compatibility with induction and synchronous motors adds flexibility, making it an excellent choice for complex industrial processes.

User-Friendly Interface and Connectivity

The drive features an LED digital display, allowing operators to monitor parameters conveniently. Communication is seamless with RS485 and MODBUS support, enabling easy integration into existing automation systems. Dual analog and multiple digital input channels provide adaptable control options.

Built-In Safety and Efficiency

Integrated protections such as overload, overvoltage, and short circuit, combined with built-in thermal and braking units, enhance operational safety and reliability. The drive operates efficiently up to 98%, with a power factor above 0.96, significantly reducing energy costs in industrial facilities.

FAQ's of 22-30 kw Revolt AC Drive:

Q: How is the Revolt AC Drive installed, and where can it be mounted?

A: The Revolt AC Drive is designed for easy installation and supports wall or panel mounting using standard panel mount connections. Its robust ABS plastic and sheet metal enclosure ensures reliable operation in industrial environments.

Q: What control methods are available for motor speed regulation in this AC drive?

A: This AC drive offers both V/F control and sensorless vector control, enabling precise speed regulation and optimal motor performance across a variety of industrial applications.

Q: When should the built-in braking unit be utilized?

A: The built-in braking unit is especially useful during rapid deceleration or frequent start/stop operations, as it safely dissipates excess energy and prevents motor overrun, enhancing safety and equipment longevity.

Q: Where is the AC drive commonly used, and for what applications?

A: This drive is commonly used in industrial automation settings, particularly for motor speed control in processes such as conveyors, pumps, fans, and machinery requiring accurate variable speed control.

Q: What is the benefit of the integrated EMI filter and cooling system?

A: The integrated EMI filter ensures compliance with electromagnetic standards for cleaner operation, while the efficient fan cooling system maintains optimal drive temperature, extending the lifespan of internal components.

Q: How does the user interface improve operational efficiency?

A: The user-friendly LED digital display provides real-time monitoring and adjustment of parameters. It supports local and remote start/stop control, enhancing operational flexibility and reducing downtime.

Q: What protection features does the drive include to ensure safe operation?

A: The drive offers comprehensive protections, including overload, overvoltage, short circuit, and undervoltage detection, as well as built-in thermal and overheating safeguards, ensuring safe and reliable operation in demanding industrial conditions.
