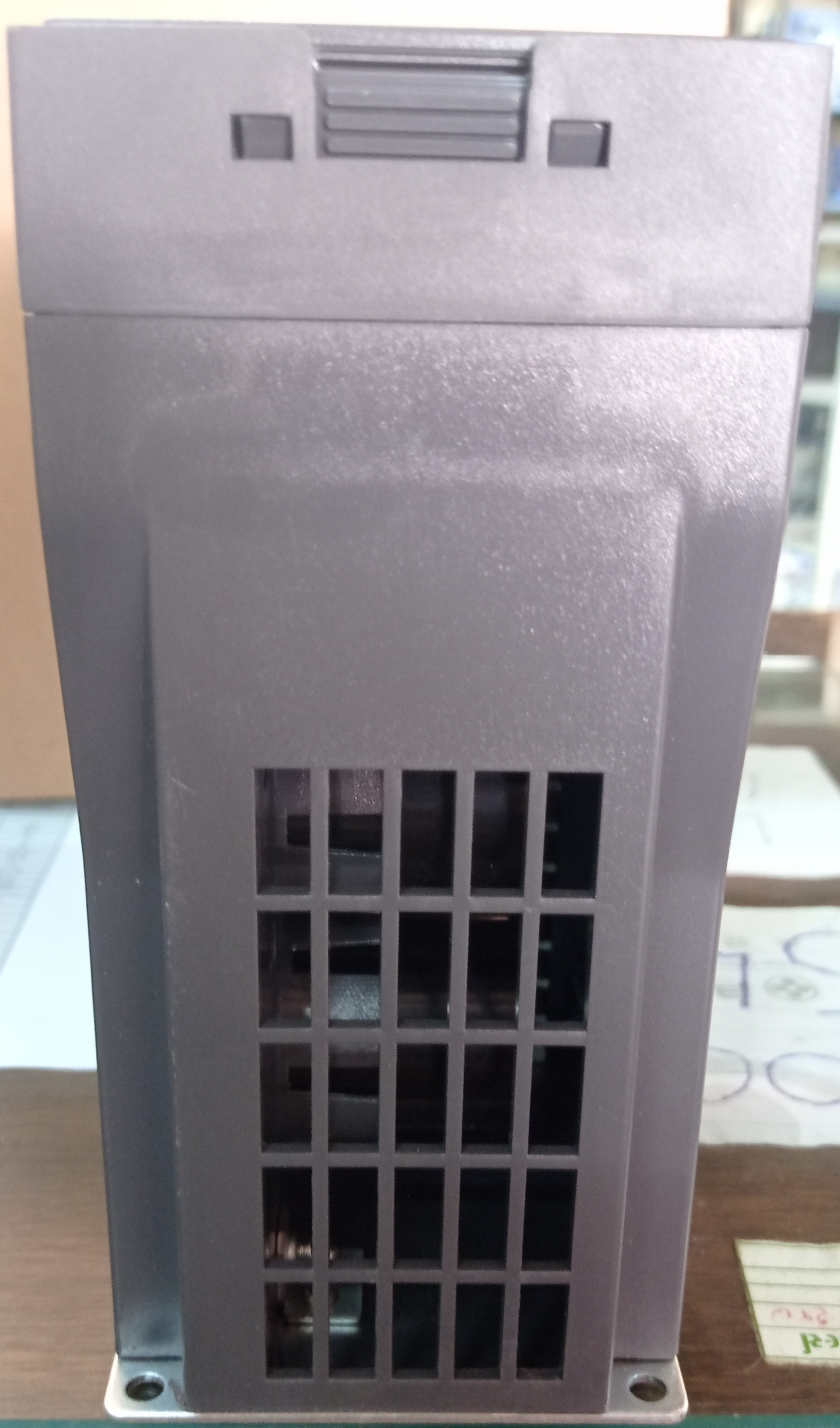

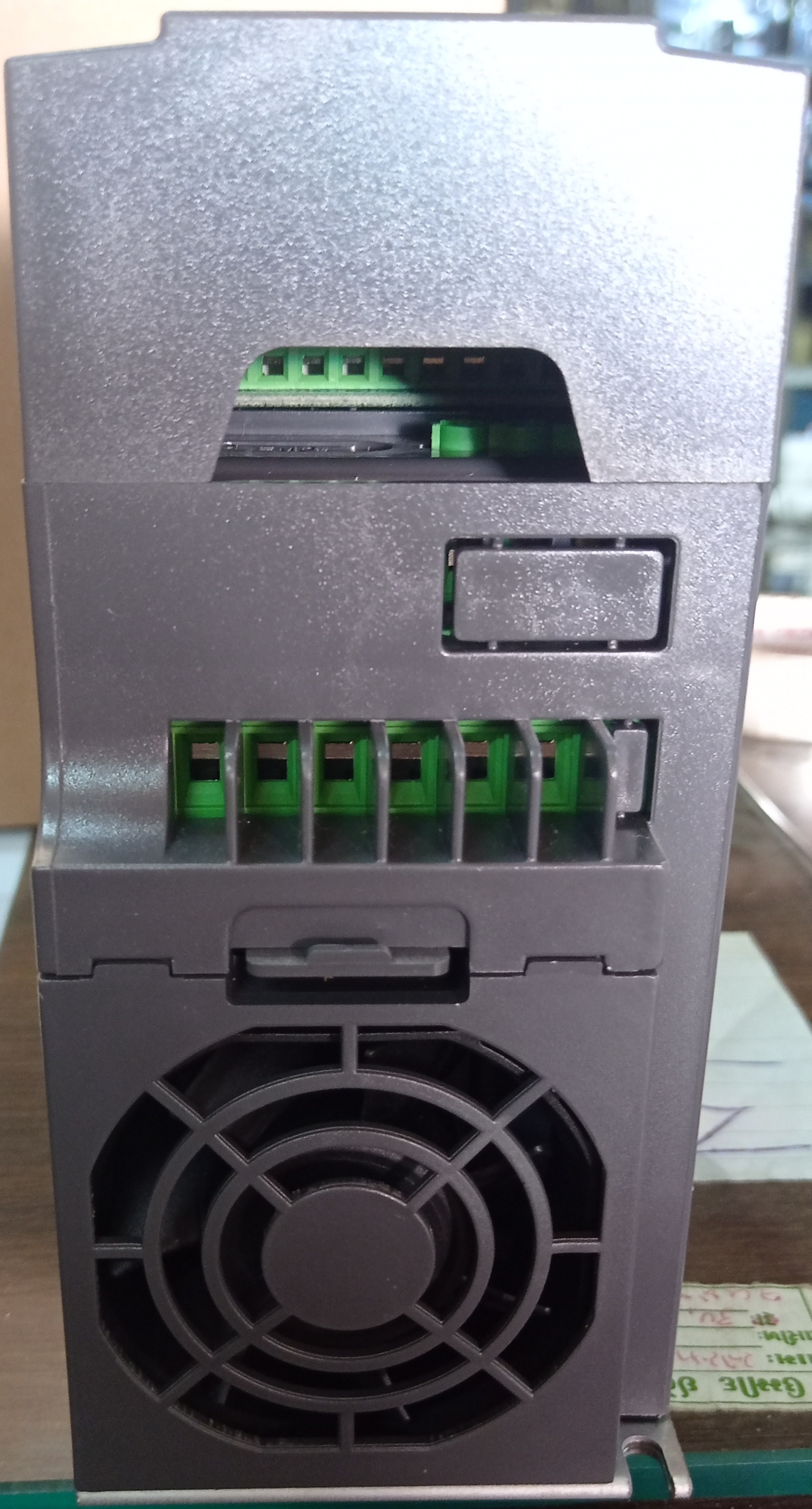

REVOLT 7.5 HP AC DRIVE

Get a Price/Quote

REVOLT 7.5 HP AC DRIVE Specification

Mounting Type
Panel Mount

Operating Temperature
-10C to +50C

Insulation Material
Polycarbonate

Shape
Rectangular

Surface Finish
Matte

Connector Type
Terminal Block

Feature
Low Noise, Compact Design, User Friendly Operation

Power Factor
>0.96

Efficiency
>96%

IP Rating
IP20

Overheating Protection
Yes (Auto Shutdown)

Humidity %
5% - 95% non-condensing

Product Type
AC Drive

Application
Industrial Motor Control

Protection Level
Overload, Short Circuit, Overvoltage, Undervoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency, Energy Saving

Output Type
Analog/Digital

Color
Grey & Black

Dimension (L*W*H)
260 mm x 165 mm x 150 mm

Weight
3.8 kg

Phase
Three Phase

Input Voltage
380-480 V AC

Size
Standard

No Of Poles
3

Material
ABS Plastic & Metal

Connection Type
Screw Terminal

EMC Filter
Integrated

Vibration Resistance
0.5G

Display Type
LED Digital Display

Storage Temperature
-20C to +60C

Control Method
V/F Control, Open Loop Vector Control

Communication Ports
RS485 Modbus

Set Frequency Range
0.1 - 400 Hz

Motor Compatibility
Induction & Synchronous Motors

Output Power
7.5 HP (5.5 kW)

Cooling Method
Forced Air Cooling

Braking Unit
Built-In

REVOLT 7.5 HP AC DRIVE Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About REVOLT 7.5 HP AC DRIVE

Revolt 7.5 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Make :- Revolt

Hp :- 7.5 Hp

Kw :- 5.5 Kw

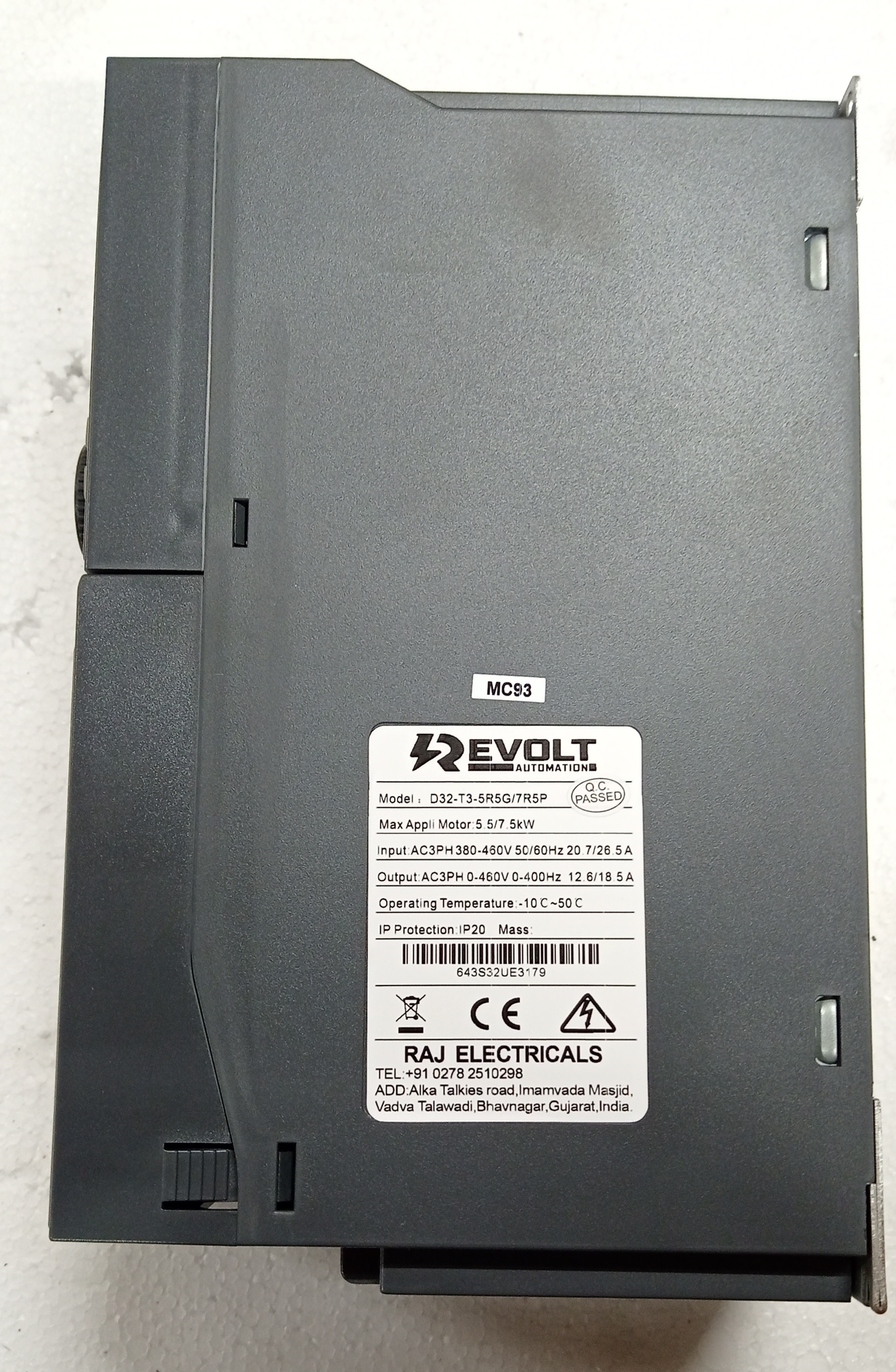

Model :- D32-T3-5R5G/7R5P

Condition :- New

Warrenty :- 6 Month From The Date Of Purchase

Voltage :- 380-460V AC

Frequency :- 50/60 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Advanced Motor Compatibility

The REVOLT AC Drive seamlessly manages both induction and synchronous motors, optimizing their performance in diverse industrial setups. Its multi-control modes-V/F control and open loop vector control-enable efficient handling of varied load conditions. Companies can transition effortlessly between motor types, reducing downtime and supporting flexible operations.

Integrated Safety and Protection

Safety is central to the REVOLT AC Drive, with built-in protection against overload, short circuit, overvoltage, undervoltage, and overheating (auto shutdown). The integrated EMC filter minimizes electrical interference, and its sturdy ABS plastic and metal construction coupled with IP20-rated panel mount design ensures longevity in factory environments.

User-Centric Design and Connectivity

Featuring a clear LED digital display for monitoring and configuration, the drive is operated via intuitive screw terminal and terminal block connections. RS485 Modbus communication enables remote management in complex automation setups. Its compact size and matte finish allow for hassle-free installation and maintenance, adding value to the user experience.

FAQ's of REVOLT 7.5 HP AC DRIVE:

Q: How does the REVOLT 7.5 HP AC Drive improve industrial motor efficiency?

A: This drive utilizes advanced V/F and open loop vector control methods, delivering precise speed and torque regulation for induction and synchronous motors. Its high power factor (>0.96) and efficiency (>96%) greatly reduce energy consumption, resulting in significant operating cost savings.

Q: What safety features are integrated in the REVOLT AC Drive for industrial use?

A: The REVOLT AC Drive includes multiple protection mechanisms such as overload, short circuit, overvoltage, undervoltage, and automatic shutdown on overheating. The built-in EMC filter also ensures electrical noise reduction, enhancing reliability and operational safety.

Q: Where can the REVOLT 7.5 HP AC Drive be installed?

A: Designed for industrial motor control, this drive is suitable for panel mounting in manufacturing plants, factories, and automation setups. Its rugged construction and IP20 rating make it ideal for controlled indoor environments across India.

Q: What is the process for connecting the REVOLT AC Drive to a motor?

A: Installation involves securing the unit on a panel and wiring using standard screw terminal and terminal block connectors. Motor compatibility (induction or synchronous) should be verified, and operational settings adjusted via the LED digital display for frequency, voltage, and protection parameters.

Q: When is it beneficial to use the built-in braking unit of the REVOLT AC Drive?

A: The integrated braking unit is valuable during rapid stop operations or when handling heavy loads, as it effectively dissipates the motor's rotational energy and prevents back-drive. This facilitates safer and more controlled motor stoppages in demanding processes.

Q: How does the drive support remote communication and monitoring?

A: The RS485 Modbus port allows users to integrate the drive into automation networks, enabling remote management, diagnostics, and parameter adjustments from control rooms or centralized systems, streamlining processes and enhancing productivity.
