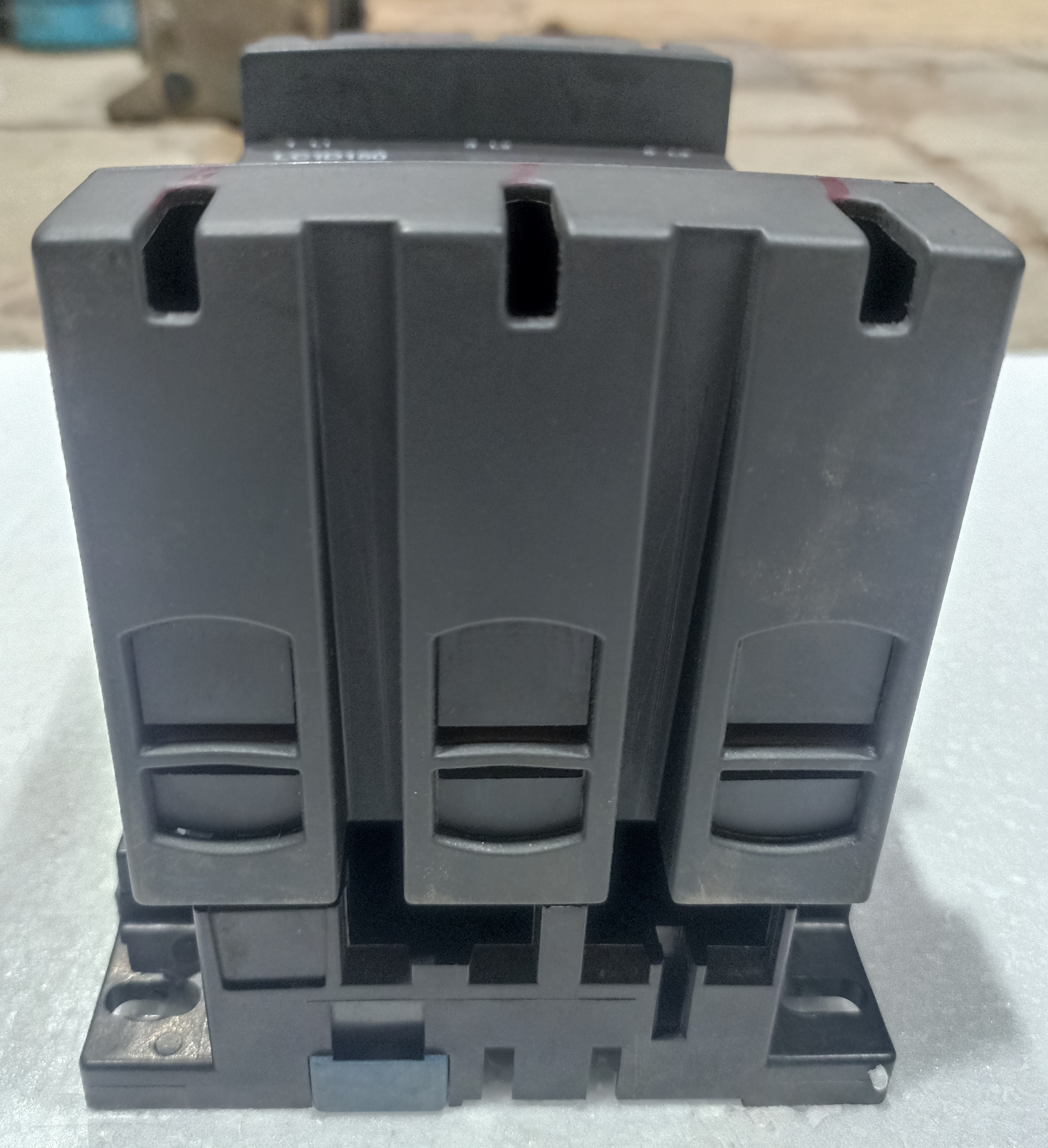

TELEMECANIQUE LC1D150 (BLACK MODEL) CONTACTOR

Name: TELEMECANIQUE LC1D150 (BLACK MODEL) CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 3 Pieces

TELEMECANIQUE LC1D150 (BLACK MODEL) CONTACTOR Specification

Mounting Type
DIN Rail or Panel Mount

Overheating Protection
Not integrated; external required

Shape
Rectangular

Feature
High breaking capacity, Durable Contacts

Efficiency
High

Power Factor
up to 0.95

Surface Finish
Matte

Operating Temperature
-5C to +60C

IP Rating
IP20

Insulation Material
Thermoplastic

Humidity %
5% to 95% RH (non-condensing)

Connector Type
Screw / Lug

Product Type
Power Contactor

Application
Motor Control, Power Distribution

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
15 VA (coils)

Output Type
Normally Open (NO) / Normally Closed (NC)

Color
Black

Dimension (L*W*H)
154 x 170 x 163 mm

Weight
5.2 kg

Input Voltage
220/230V AC Coil

Size
Standard Frame D150

Phase
Three Phase

No Of Poles
3

Material
Thermoplastic & Copper

Connection Type
Screw Terminal

Coil Consumption
AC: 190 VA Inrush, 15 VA Holding

Auxiliary Contacts
1 NO + 1 NC (integrated)

Mechanical Life
10 million operations

Electrical Life
1 million cycles

Rated Operational Current (Ie)
250A (AC3 at 440V)

Ambient Altitude
Up to 3000 m

Standards
IEC 60947-4-1, EN 60947-4-1

Vibration Resistance
Up to 5 gn

Short Circuit Protection
Fuse 355A gG

TELEMECANIQUE LC1D150 (BLACK MODEL) CONTACTOR Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TELEMECANIQUE LC1D150 (BLACK MODEL) CONTACTOR

TELEMECANIQUE LC1D150 CONTACTOR Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

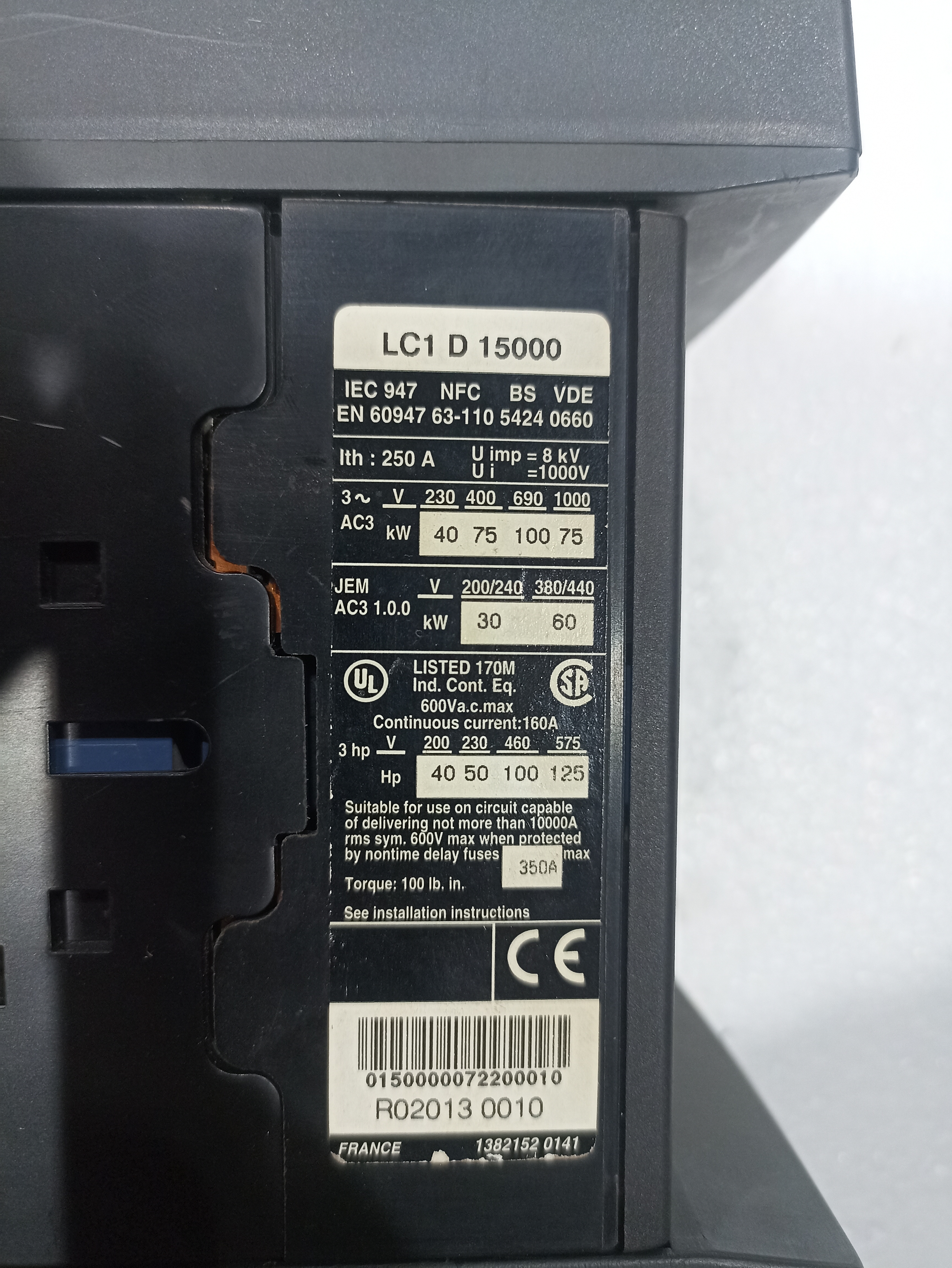

Product Specification :-

Type :- Electric Contactor

Make :- Telemecanique

Ith :- 250A

Pole :- 3P

Model :- LC1D 150

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable High-Current Motor Control

The LC1D150 contactor is designed to handle demanding industrial environments, supporting up to 250A at 440V AC3. Whether it's heavy-duty power distribution or precise motor control, its integrated contacts and robust thermoplastic build ensure both efficiency and endurance. The device offers operational versatility with normally open and closed auxiliary contacts, making it adaptable for varied automation and control setups.

Adaptable Installation & Robust Protection

Featuring screw terminal connections and compatibility with either DIN rail or panel mounting, the LC1D150 adapts effortlessly to diverse panel designs. Short circuit risks are minimized with a 355A gG fuse, while the IP20 protection and chemical-resistant surface finish ensure safe, reliable operation in harsh industrial settings.

Durability & Maintenance Benefits

With an impressive electrical life of up to 1 million cycles and a mechanical endurance of 10 million operations, the LC1D150 minimizes downtime and maintenance. External overheating protection is recommended for enhanced safety. Its efficient design, high power factor, and non-condensing humidity tolerance (5-95% RH) make it a dependable choice for controlling motors and automation systems.

FAQ's of TELEMECANIQUE LC1D150 (BLACK MODEL) CONTACTOR:

Q: How do I install the TELEMECANIQUE LC1D150 contactor in my control panel?

A: The LC1D150 can be installed using either DIN rail or direct panel mounting. Ensure the standard D150 frame fits your panel. Use screw or lug connections for secure terminations. Make sure to follow wiring diagrams and safety procedures specified in the manual.

Q: What applications is the LC1D150 contactor best suited for?

A: This contactor is ideal for motor control and power distribution in industries such as manufacturing, HVAC, and utilities. Its high breaking capacity and durable contacts suit demanding applications requiring frequent switching and reliability.

Q: When should external overheating protection be used with this contactor?

A: External overheating protection is necessary since the LC1D150 does not have integrated thermal protection. Install an appropriate overload relay or temperature monitoring system in your control circuit to protect connected motors and wiring.

Q: What are the benefits of the LC1D150's construction and integrated features?

A: Constructed with high-quality thermoplastic and copper, the LC1D150 offers durability and safety. Integrated auxiliary contacts (1 NO + 1 NC) provide flexible control options. The IP20 rating and up to 3000m altitude operation enhance its reliability in diverse environments.

Q: How does the LC1D150 handle short circuit and vibration resistance?

A: The contactor is designed for robust industrial use, with short circuit protection achieved via an external 355A gG fuse. It also withstands vibrations up to 5 gn, ensuring stable performance even in challenging installation conditions.

Q: Where can I source the TELEMECANIQUE LC1D150 contactor in India?

A: This model is available through authorized exporters, manufacturers, suppliers, and traders across India. Contact your nearest industrial automation distributor or reach out to Schneider Electric partners for availability.

Q: What process should I follow for routine maintenance of the LC1D150 contactor?

A: Periodically inspect contact surfaces for wear, ensure terminals remain tight, and maintain clean, dust-free housing. Check external protection devices and replace auxiliary contacts if they show signs of excessive wear for optimal performance.
