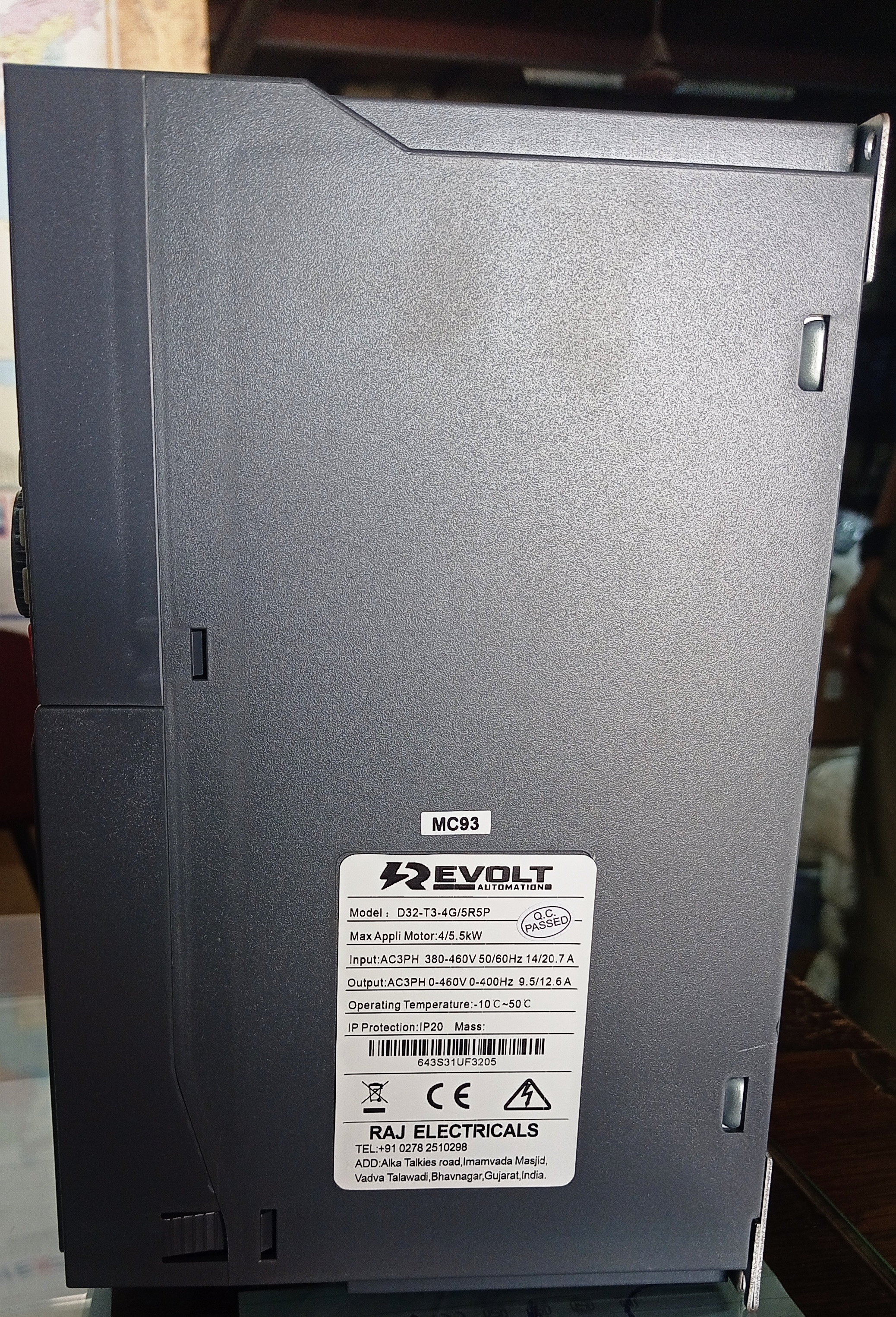

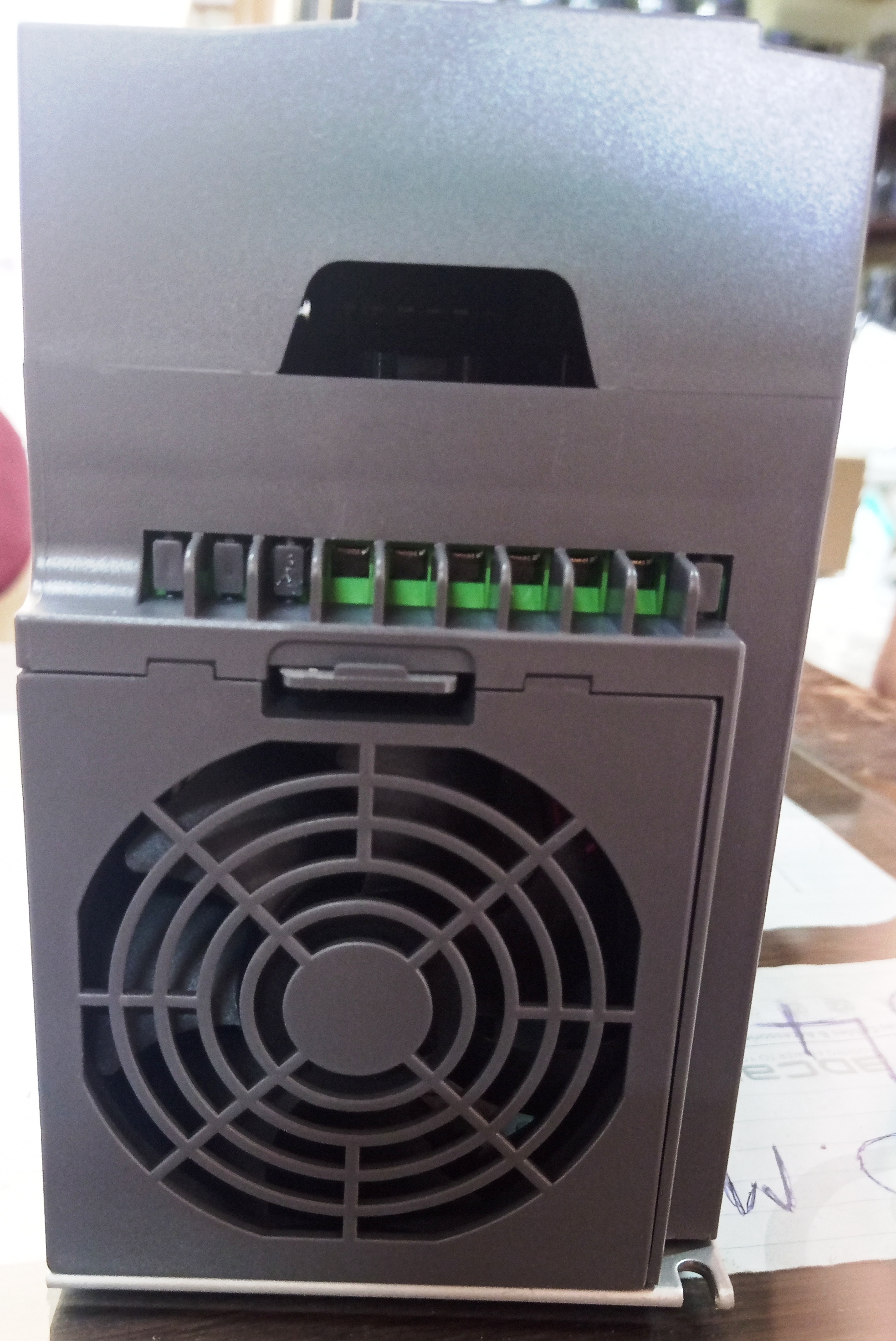

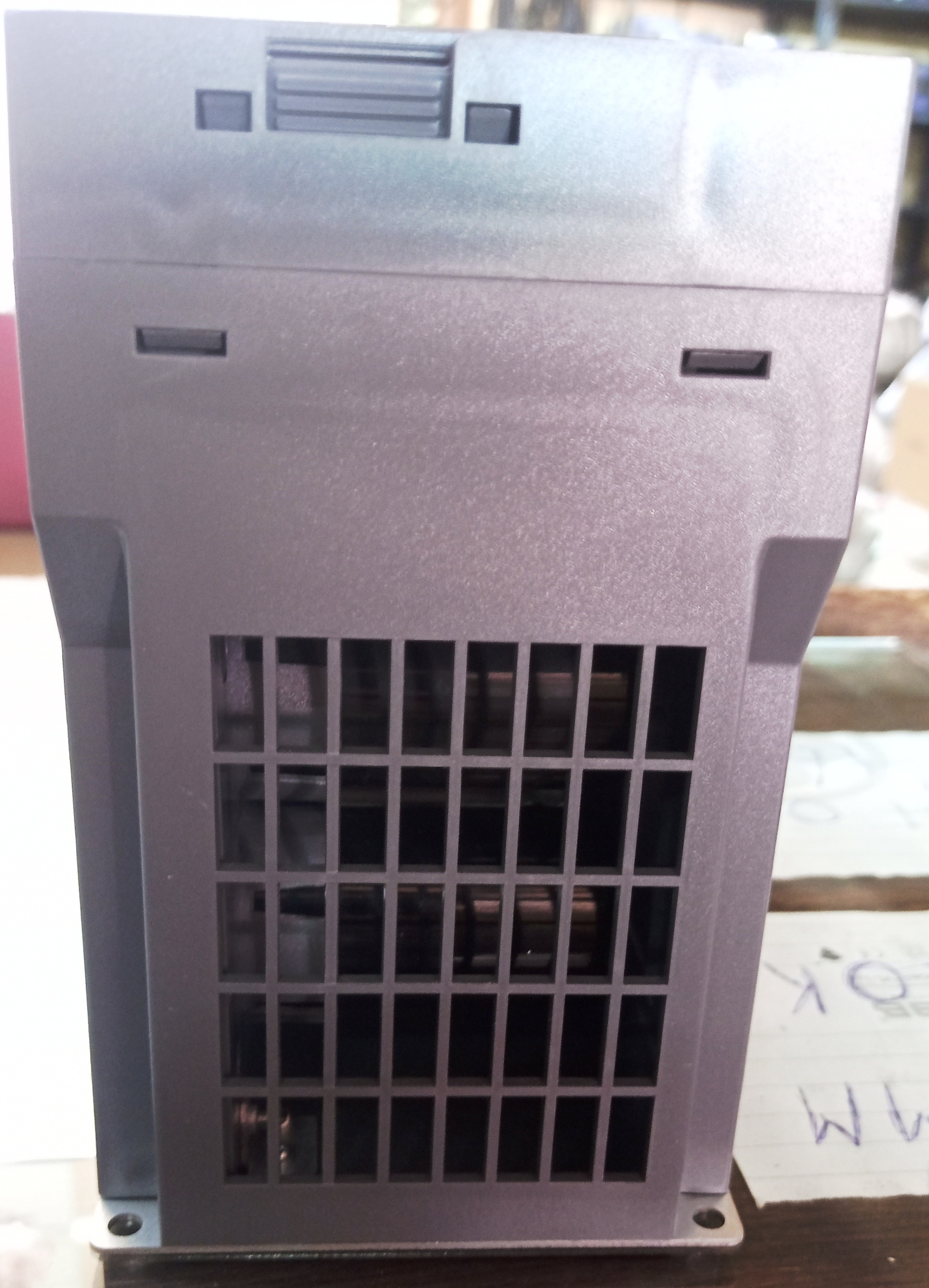

4-5.5kw Revolt AC Drive

Get a Price/Quote

4-5.5kw Revolt AC Drive Specification

Surface Finish
Matte

Humidity %
595% (non-condensing)

Feature
Compact Design, Energy Saving, Overload Protection

Efficiency
97%

Shape
Rectangular

Power Factor
0.98

Operating Temperature
-10C to +50C

Connector Type
Screw Terminal

Overheating Protection
YES

Mounting Type
Panel Mount

IP Rating
IP20

Insulation Material
ABS Plastic

Product Type
AC Drive (VFD)

Application
Industrial Motor Control

Protection Level
Overload, Overvoltage, Short Circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
Low Power Consumption

Output Type
Analog / Digital

Color
Gray

Dimension (L*W*H)
150 mm x 100 mm x 180 mm

Weight
2.8 kg

Size
Standard

Phase
Three Phase

Input Voltage
380-480V AC

Material
ABS Plastic & Metal

No Of Poles
3

Connection Type
Terminal Block

Output Frequency Range
0.1 to 400 Hz

Acceleration/Deceleration Time
0.16000 sec

Motor Power Range
4 kW 5.5 kW

Altitude
Up to 1000 m without derating

Standards
IEC 61800-5-1, CE Certified

Start/Stop Method
Keypad / External Signal

Torque Boost
Manual/Automatic

Cooling Method
Forced Air Cooling

Braking Unit
Built-in

Noise Level
<65 dB

Display Type
LED Digital

Programmable Inputs/Outputs
3 Digital Inputs, 2 Relay Outputs

Communication Interface
RS485

Remote Operation
Supported

Control Method
V/F Control, Sensorless Vector Control

4-5.5kw Revolt AC Drive Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 4-5.5kw Revolt AC Drive

Raj Electricals Offering Revolt 5 Hp Ac Drive At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Brand :- Revolt

Hp :- 5 Hp

Kw :- 4/5.5 Kw

Model Number :- D32-T34G/5R5P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-460V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Control Performance

Engineered with both V/F and sensorless vector control methods, the Revolt AC Drive ensures precise motor management across demanding industrial settings. The built-in braking unit and torque boost (manual/automatic) allow enhanced control, high efficiency, and smooth operation, whether used for process automation or energy-saving applications.

User-Friendly Interface and Connectivity

A clear LED digital display, keypad or external signal start/stop options, and RS485 communication interface make configuring and monitoring the drive simple. The programmable digital inputs and relay outputs offer flexibility for integration into new or existing industrial networks, supporting remote management functionality as required.

Durable, Safe, and Versatile Design

Constructed from ABS plastic and metal with a matte finish, the Revolt AC Drive provides reliable operation under tough conditions. Its compact, panel mount form factor, wide operating temperature range, and built-in overload, overvoltage, short-circuit, and overheating protection ensure enduring, safe motor control in a variety of environments.

FAQ's of 4-5.5kw Revolt AC Drive:

Q: How do I operate the Revolt AC Drive for motor startup and stop?

A: You can start and stop the Revolt AC Drive either through its keypad directly or by applying an external signal. Remote operation is also supported, offering flexibility for integration with automated systems.

Q: What are the advantages of the built-in braking unit in this AC Drive?

A: The built-in braking unit enables rapid motor deceleration, improving control and safety during emergency stops or load changes, while eliminating the need for an external braking resistor for most applications.

Q: Where can the Revolt AC Drive be installed and what is its mounting type?

A: This drive is intended for industrial environments and features panel mount installation, making it suitable for control cabinets or machinery panels within manufacturing facilities.

Q: What process should be followed for integrating this drive into an industrial control network?

A: Integration involves connecting the drive through its terminal block using screw terminals, setting up communication via RS485 if needed, and configuring programmable inputs/outputs to interface with your existing automation equipment.

Q: What are the usage benefits of the energy-saving features of the Revolt AC Drive?

A: Advanced control methods and high efficiency (97%) minimize energy consumption, helping reduce operational costs while maintaining optimal motor performance in applications such as pumps, conveyors, and HVAC systems.

Q: How does the Revolt AC Drive ensure protection and safety during operation?

A: The drive includes built-in protections against overload, overvoltage, short circuit, and overheating, as well as compliance with IEC 61800-5-1 and CE standards, ensuring safe and continuous operation under varying conditions.
