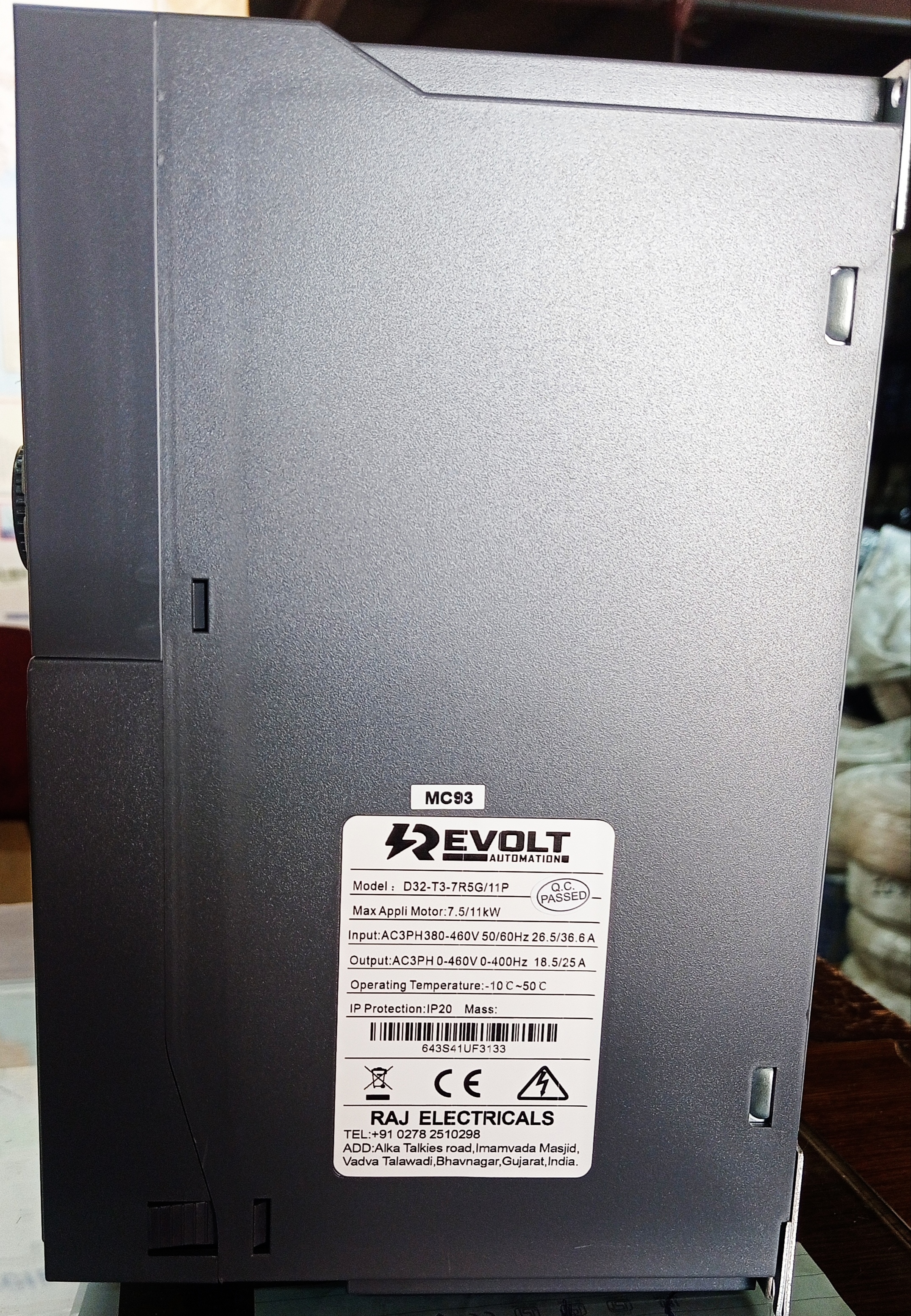

7.5-11 kw Revolt AC Drive

Get a Price/Quote

7.5-11 kw Revolt AC Drive Specification

Overheating Protection
YES

Insulation Material
ABS Plastic

Feature
Built-in keypad, Digital Display, Parameter Setting, Energy Saving

Operating Temperature
-10C to 50C

Shape
Rectangular

Surface Finish
Matte

Power Factor
>0.95

Mounting Type
Panel Mount

IP Rating
IP20

Humidity %
0-95% (Non-condensing)

Connector Type
Terminal Block

Efficiency
98%

Product Type
Variable Frequency Drive (VFD)

Application
Industrial Motor Speed Control

Protection Level
Overload, Short Circuit, Overvoltage, Under Voltage

Frequency (MHz)
0 - 400 Hz

Rated Voltage
380-480V AC

Energy Consumption
Low

Output Type
AC Three Phase Output

Color
Grey

Dimension (L*W*H)
190 mm x 140 mm x 160 mm

Weight
3.8 - 5.2 kg

Phase
Three Phase

Input Voltage
380-480V AC

Size
Standard

Connection Type
Screw Terminal

Material
ABS & Metal

No Of Poles
3

7.5-11 kw Revolt AC Drive Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 7.5-11 kw Revolt AC Drive

Raj Electricals Offering Revolt 10 Hp Ac Drive At Bhavnagar, Gujarat, India,

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Brand :- Revolt

Hp :- 10 Hp

Kw :- 7.5 Kw

Model Number :- D32-T3-7R5G/11P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-440 V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Advanced Motor Control and Protection

Revolt AC Drive employs advanced V/F and Vector Control technology, granting operators accurate speed regulation even at low frequencies (delivering up to 180% torque at 0.5 Hz). Its comprehensive motor protections, including stall, overcurrent, phase loss, overload, and overheating safeguards, ensure durability and reliability during continuous industrial use.

Versatile Connectivity and User-Friendly Operation

With a clear LED digital display, a built-in keypad, parameter setting capabilities, and support for RS485 Modbus communication, this AC drive offers an accessible user interface. The drive provides flexible I/O with multiple analog/digital inputs and relay outputs, making integration and operation seamless in a wide range of automation environments.

FAQ's of 7.5-11 kw Revolt AC Drive:

Q: How is the 7.5-11 kW Revolt AC Drive installed?

A: Installation is straightforward thanks to its panel mount design with standard screw terminal and terminal block connectors. Ensure the drive is mounted vertically in a location with adequate airflow and is connected to a 380-480V AC three-phase power source as specified in the manual.

Q: What types of motors are compatible with this AC drive?

A: This AC drive is specifically engineered for asynchronous (induction) motors, commonly found in industrial applications requiring precise speed and torque control.

Q: When should I use the Vector Control method instead of V/F Control?

A: Vector Control is ideal when high starting torque or precise speed regulation at low frequencies is required. V/F Control is suitable for applications where simpler speed control suffices. Choose the method based on your process's torque and precision needs.

Q: Where can this drive be used in industrial settings?

A: It is designed for various industrial motor speed control applications, including conveyors, pumps, fans, and manufacturing automation, making it a versatile solution for factories, plants, and facilities across India.

Q: What process does the drive use to protect motors?

A: The drive continuously monitors operating parameters, such as current, voltage, and temperature, and is equipped with built-in protections against overload, short circuit, overcurrent, stall, phase loss, overheating, and overvoltage, ensuring reliable and safe operation.

Q: How do the digital and analog I/O benefit my system?

A: The drive offers five digital inputs, two analog inputs (0-10V/4-20mA), one analog output (0-10V), and a relay output for integration with automation systems, sensors, and status monitoring, offering flexible control and feedback for process customization.

Q: What are the main advantages of using this AC drive?

A: Key benefits include high energy efficiency (98%), easy operation via a digital display and built-in keypad, integrated protections, flexible control methods, durable IP20-rated construction, and reliable communication through RS485 Modbus.
