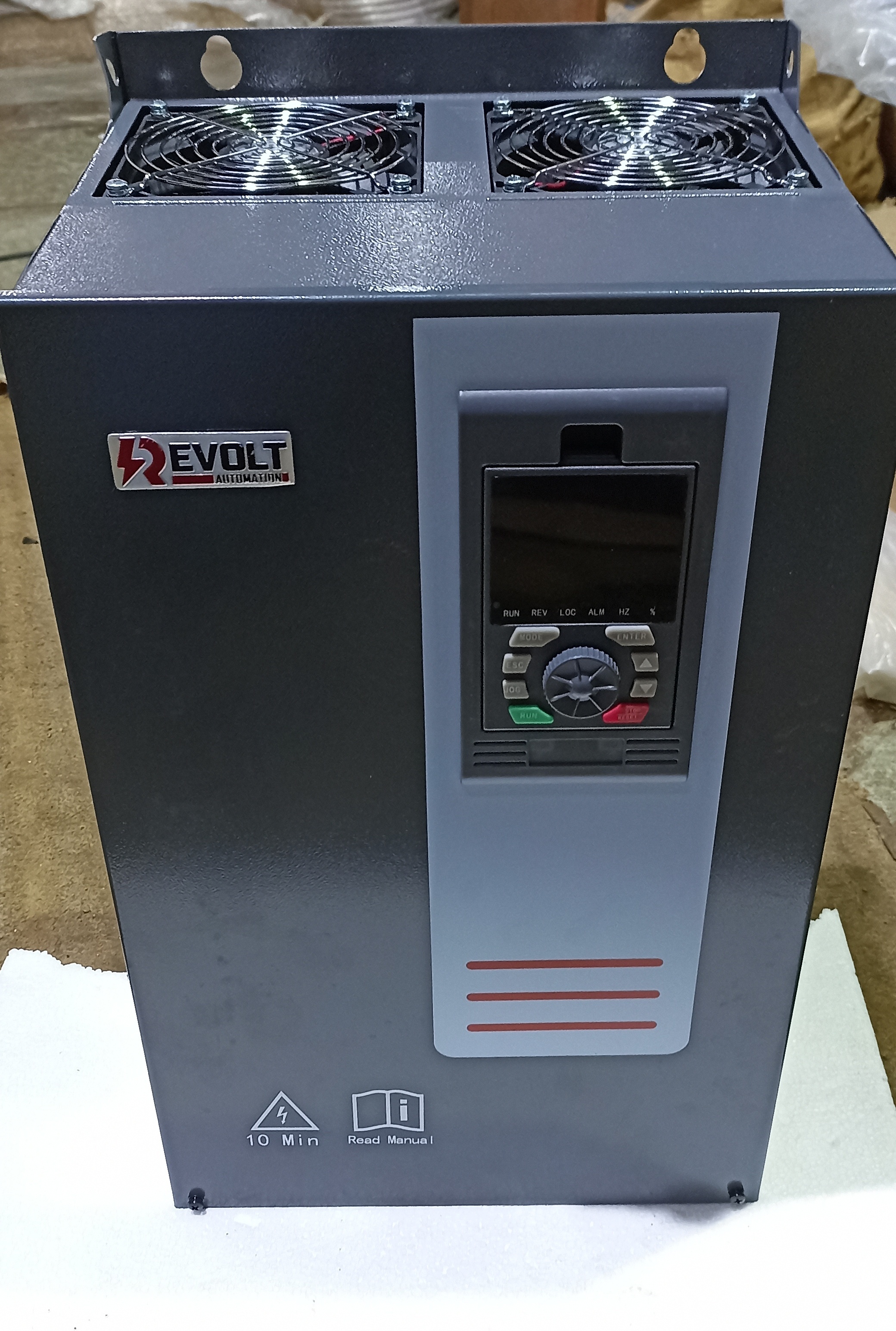

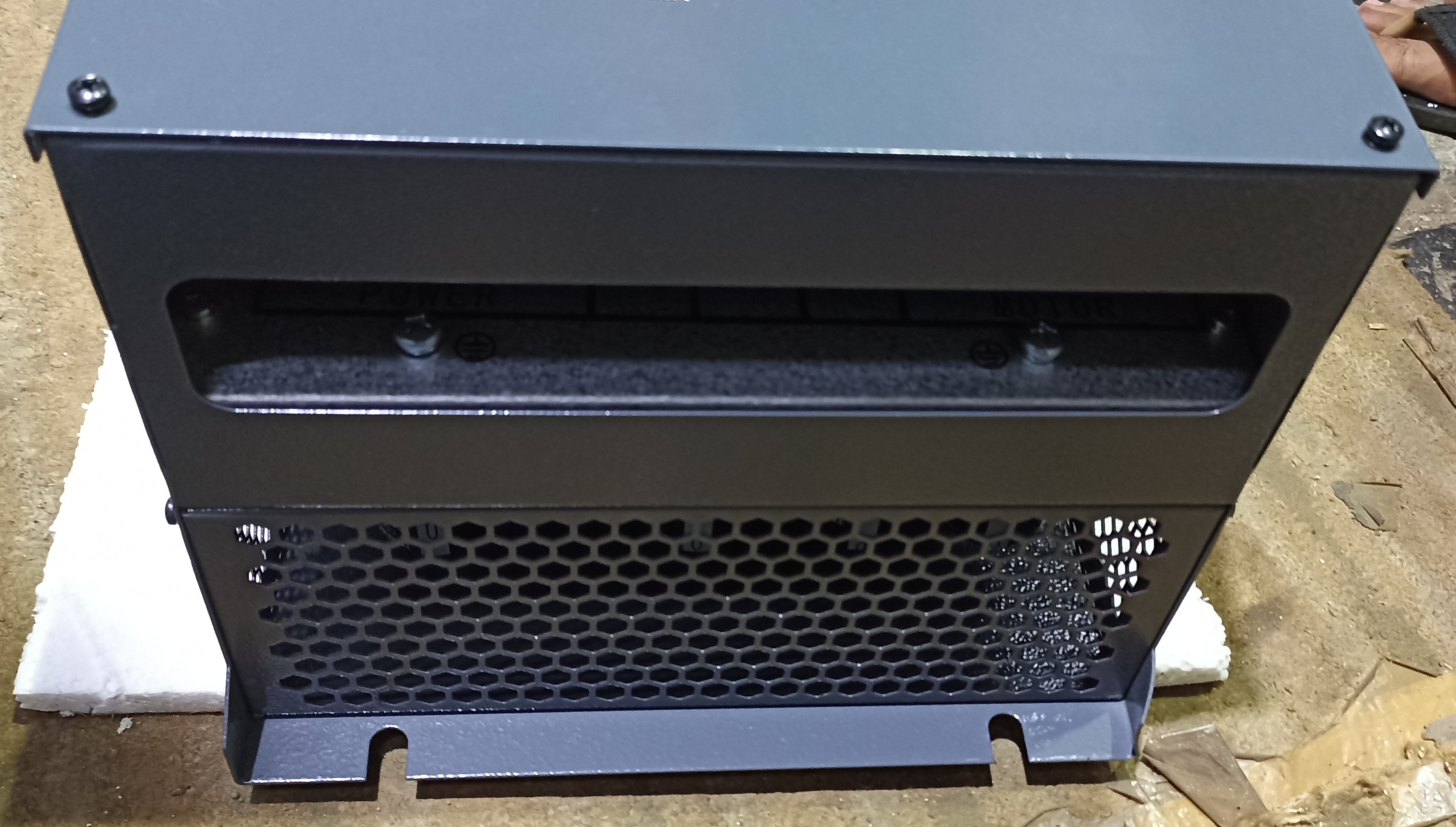

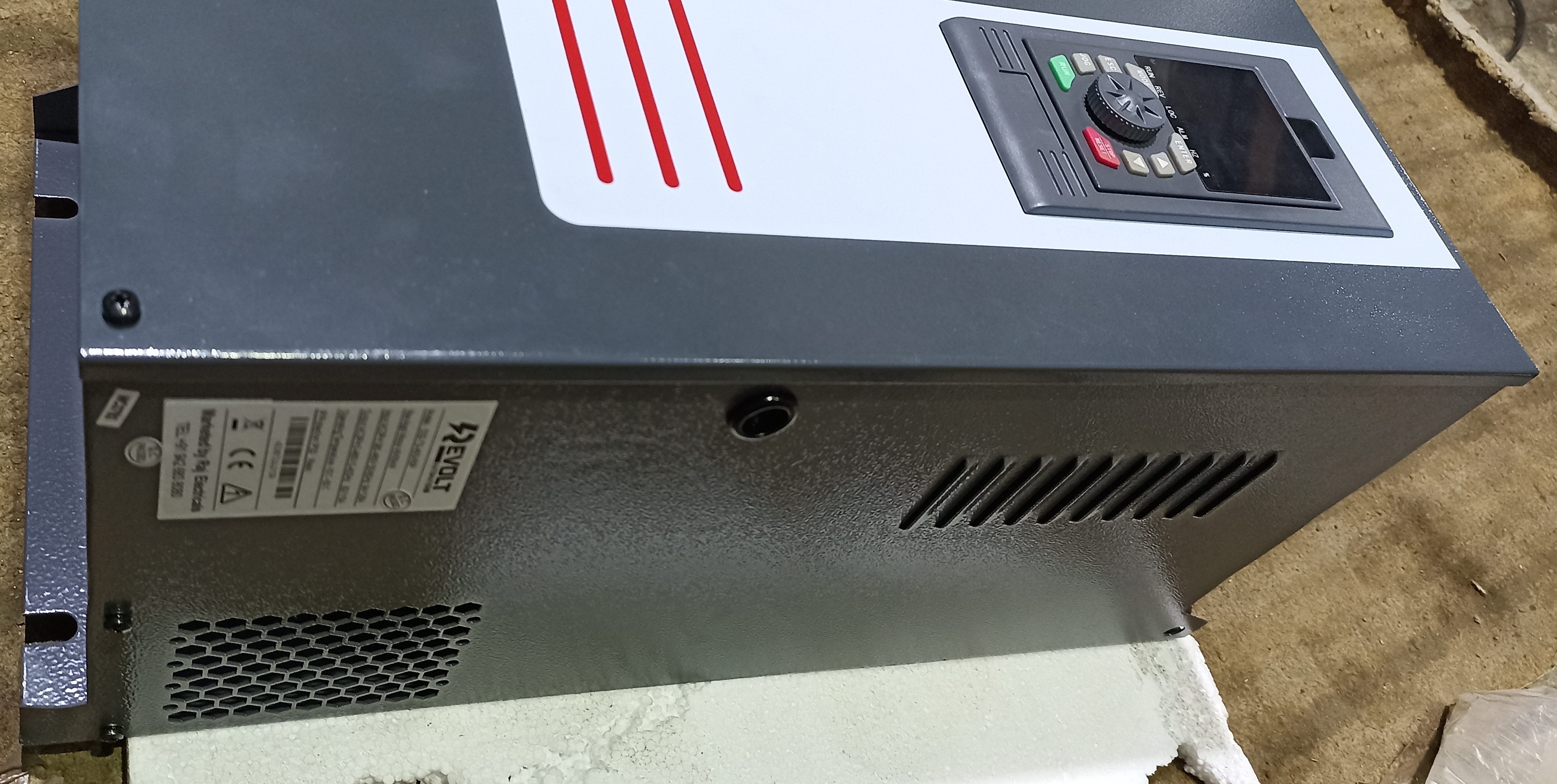

REVOLT 45-55 KW AC DRIVE

Get a Price/Quote

REVOLT 45-55 KW AC DRIVE Specification

Insulation Material
Flame Retardant ABS, Polycarbonate

Shape
Rectangular

Connector Type
Screw Terminal

Operating Temperature
-10C to 45C

Overheating Protection
YES

Power Factor
0.98

Efficiency
95%

Feature
Digital Display, Easy Programming, Soft Start, Vector Control

IP Rating
IP20

Surface Finish
Matte Finish

Humidity %
95% (Non-Condensing)

Mounting Type
Wall Mounted

Product Type
AC Drive

Application
Industrial Automation, Pump & Fan Control

Protection Level
Overload, Short Circuit, Overcurrent, Earth Fault

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
High efficiency, energy saving

Output Type
Three Phase Output

Color
Grey & Black

Dimension (L*W*H)
480 mm x 320 mm x 226 mm

Weight
28 kg

Input Voltage
380-480V AC

Phase
Three Phase

Size
Standard

Material
ABS Plastic & Metal

Connection Type
Terminal Block

No Of Poles
3

Programmable Inputs
6 Digital, 2 Analog

Acoustic Noise Level
<65 dB

Display Type
Built-in LED Display Panel

Motor Compatibility
Induction & Synchronous Motors

Altitude
1000m without Derating

Programmable Outputs
3 Relay, 2 Analog

Input Current
95A

Capacity
45-55 kW

Storage Temperature
-20C to 60C

Communication Interface
RS485 / Modbus

Braking Unit
Built-in DC Braking Unit

Control Method
V/F Control, Sensorless Vector Control

Cooling Method
Forced Air Cooling

Output Frequency Range
0-400 Hz

REVOLT 45-55 KW AC DRIVE Trade Information

Minimum Order Quantity
2 Number

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About REVOLT 45-55 KW AC DRIVE

Revolt 60 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Brand :- Revolt

Hp :- 60 Hp

Kw :- 45 Kw

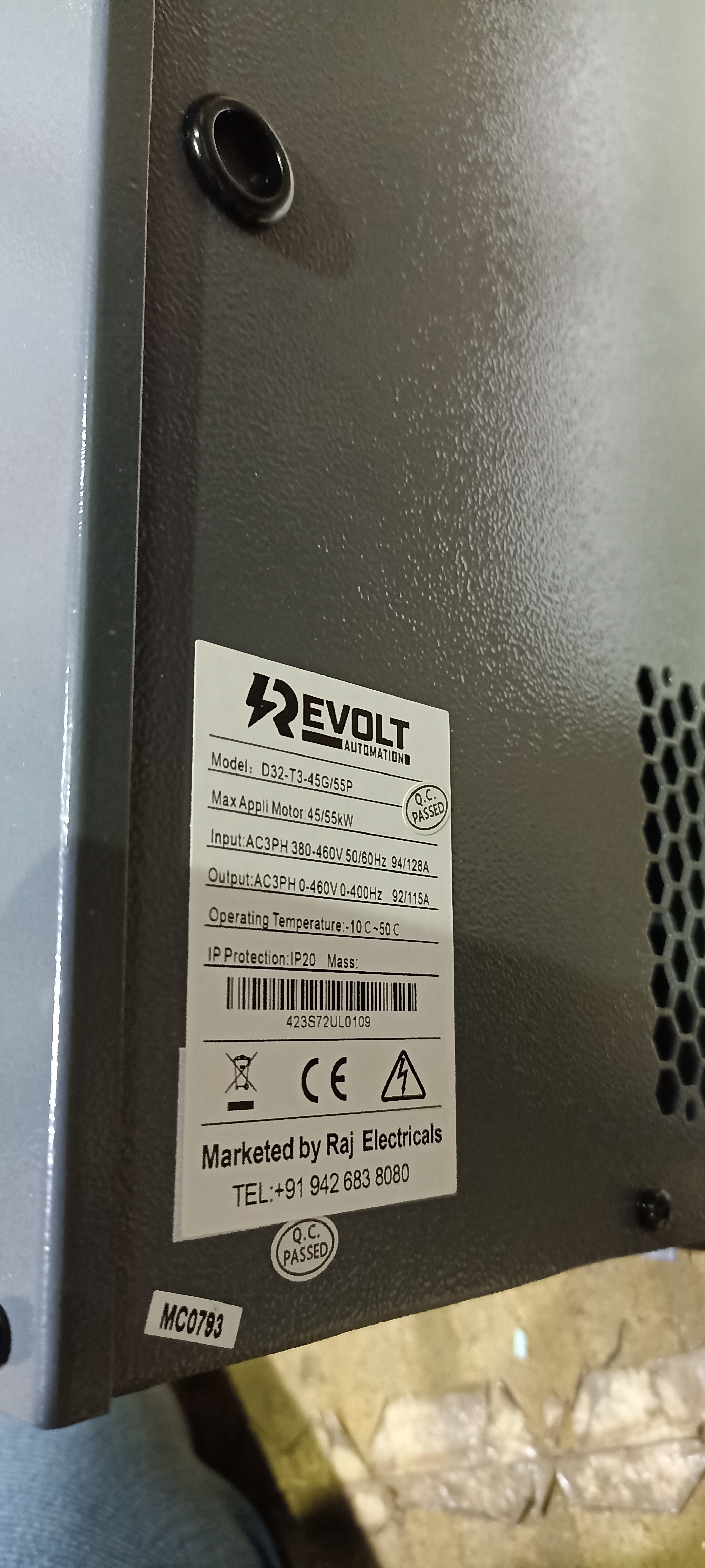

Model Number :- D32-T3-45G/55P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-440 V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Motor Control Technology

Utilizing V/F Control and Sensorless Vector Control, the REVOLT AC Drive ensures precise speed and torque regulation for induction and synchronous motors. This results in improved efficiency and stability for industrial applications, making the drive ideal for heavy-duty automation, pump, and fan operations.

Easy Monitoring and Programming

The built-in LED Display Panel offers a clear interface for real-time data viewing and intuitive parameter adjustment. With 6 programmable digital inputs, 2 analog inputs, and user-friendly programming, users can tailor performance for specific needs, streamlining setup and ongoing management.

Robust Safety and Energy Efficiency

Equipped with protection features against overload, overcurrent, earth fault, and short circuit, the drive enhances operational safety. High efficiency (95%) and integrated energy-saving capabilities make it a cost-effective solution for long-term industrial use, ensuring consistent performance at reduced operational costs.

FAQ's of REVOLT 45-55 KW AC DRIVE:

Q: How does the REVOLT 45-55 kW AC Drive benefit industrial automation applications?

A: The drive provides reliable motor control with both V/F and Sensorless Vector Control methods, optimizing efficiency and process stability in industrial automation, pump, and fan control systems. Its robust safety features and high energy efficiency reduce downtime and operational costs.

Q: What are the main usage areas for this AC drive?

A: This drive is primarily used in industrial automation settings, including pump and fan control, where precise speed and torque management for induction or synchronous motors are essential for smooth and efficient operation.

Q: When should I use the built-in braking unit function?

A: The integrated DC braking unit should be used during applications that require rapid motor stopping or controlled deceleration, such as conveyor systems or critical process stops, ensuring enhanced safety and reduced wear on mechanical components.

Q: Where should the REVOLT AC Drive be installed for optimal performance?

A: Mount the drive on a wall in a ventilated indoor environment, where the ambient temperature ranges between -10C and 45C, and the altitude does not exceed 1000m without derating. Ensure the location is protected from direct moisture and excessive dust.

Q: What is the process for programming the drive parameters?

A: Programming is accomplished through the built-in LED Display Panel. Users can set various operational parameters using easy navigation buttons and assign the 6 digital inputs and 2 analog inputs/outputs according to their specific control requirements.

Q: How does the drive connect with external systems?

A: The REVOLT AC Drive supports RS485 / Modbus communication, allowing seamless integration with industrial PLCs or automation systems. It features terminal block screw connectors for secure, stable wiring.

Q: What safety protections are included in this AC drive?

A: The drive incorporates comprehensive safety features such as overload, short circuit, overcurrent, and earth fault protection. Additionally, its built-in overheating protection and IP20 rating safeguard both the device and connected equipment during operation.
