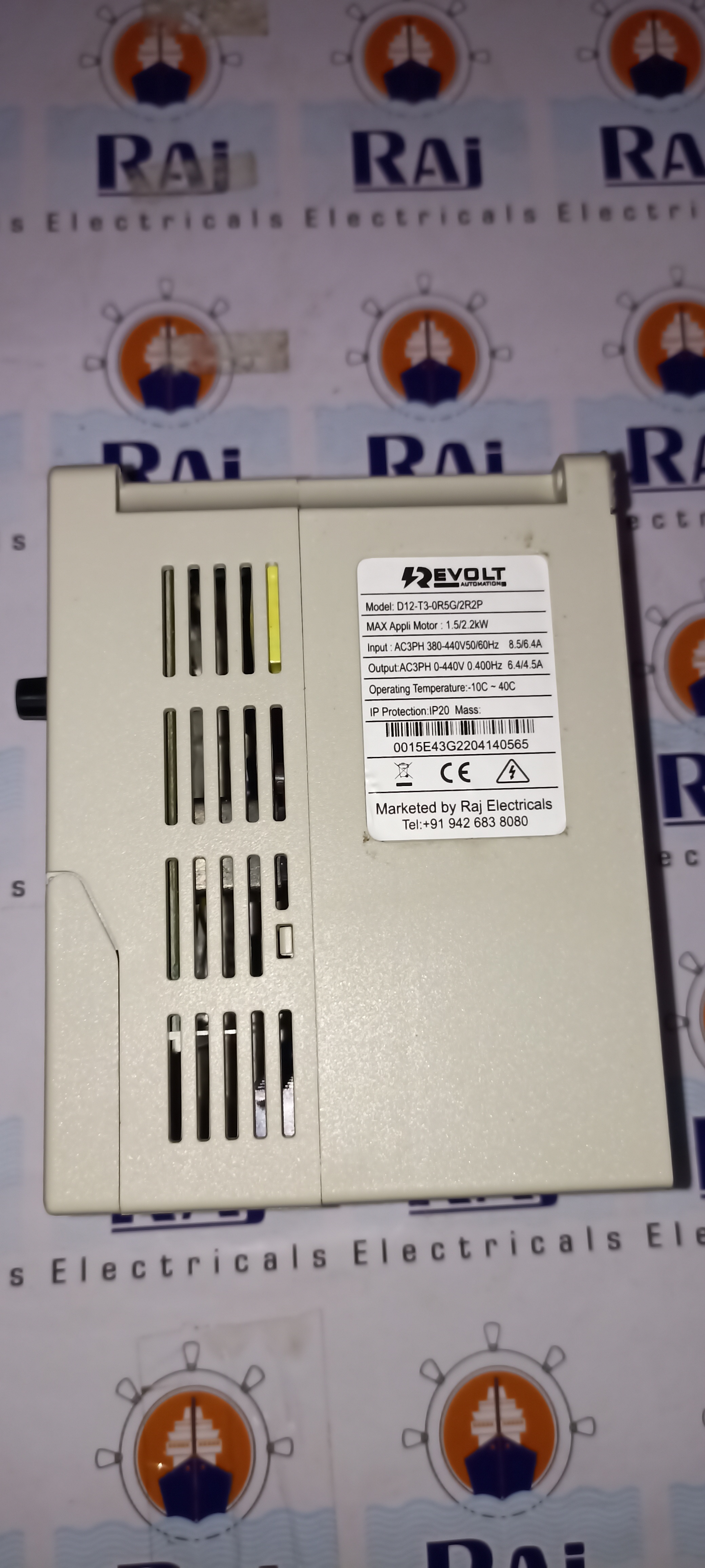

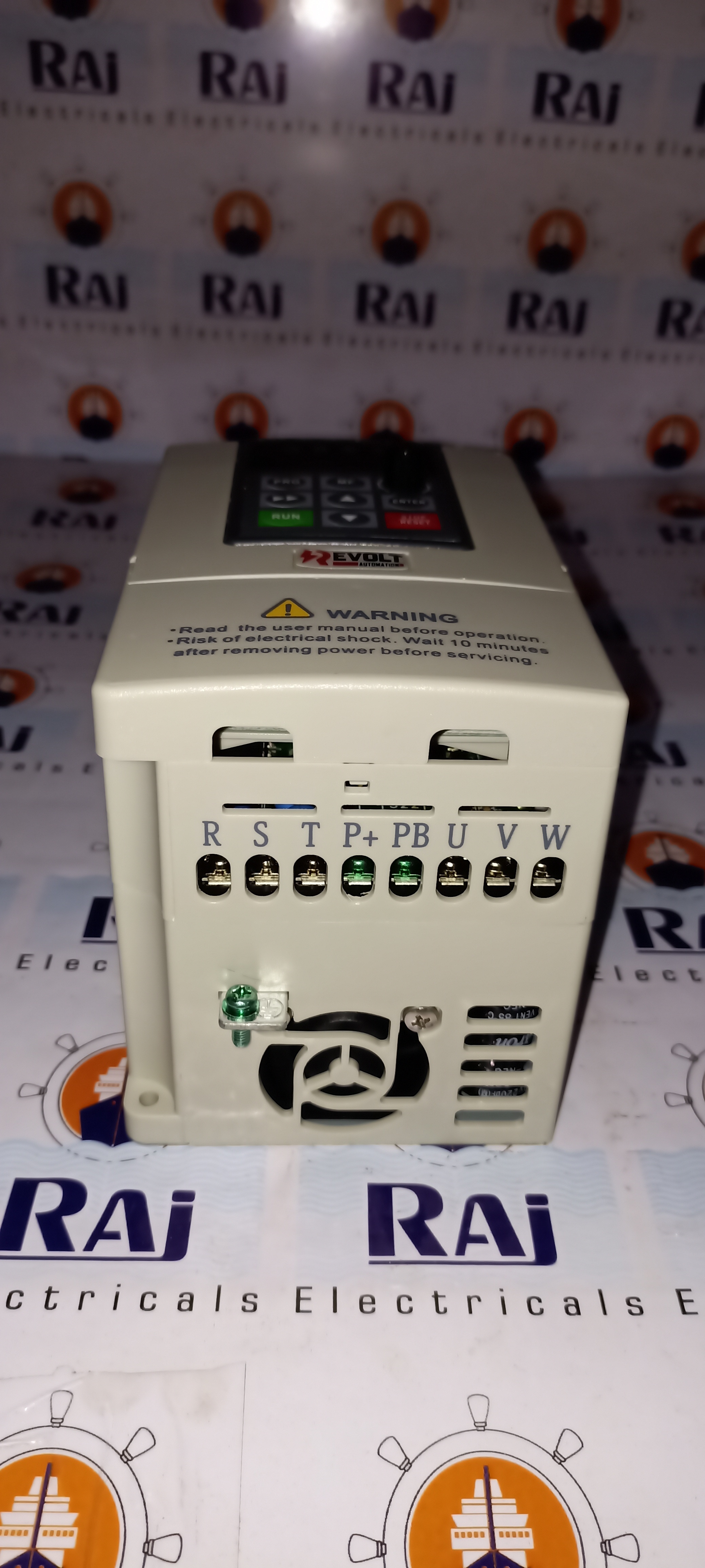

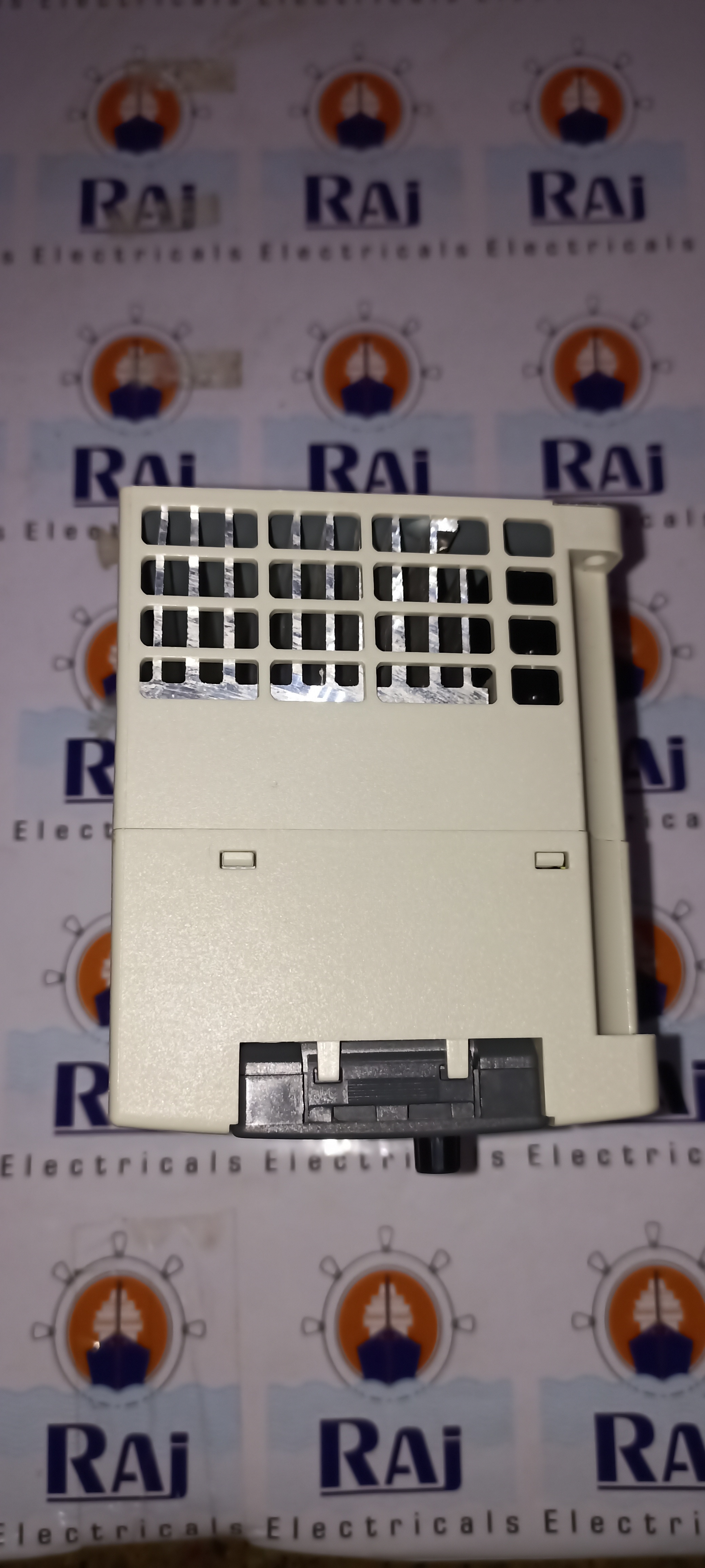

REVOLT 2 HP AC DRIVE

Get a Price/Quote

REVOLT 2 HP AC DRIVE Specification

Operating Temperature
-10C to +50C

Feature
Compact Size, High Reliability, Easy Installation

Efficiency
Over 93%

IP Rating
IP20

Connector Type
Screw Terminal Blocks

Insulation Material
Plastic

Humidity %
5-95% RH (non-condensing)

Overheating Protection
YES

Shape
Rectangular

Power Factor
0.98

Surface Finish
Matte

Mounting Type
Panel Mounting

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50-60 Hz

Rated Voltage
220-240 V

Energy Consumption
Low

Output Type
Digital

Color
Black & Grey

Dimension (L*W*H)
235 x 155 x 120 mm

Weight
2.3 kg

Size
Standard

Input Voltage
220 V AC

Phase
Three Phase

Material
ABS Plastic

No Of Poles
3

Connection Type
Panel Mount

Alarm Function
Overload, Overcurrent, Overvoltage, Undervoltage, Short Circuit

Speed Regulation
1:100

Cooling Method
Forced Air Cooling

Communication Interface
RS485 (Modbus)

Control Method
V/F Control, Sensorless Vector Control

Motor Power
2 HP (1.5 kW)

Input Phase
Single/Three Phase

Braking Unit
Built-in

Display
7-segment LED Digital Display

REVOLT 2 HP AC DRIVE Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About REVOLT 2 HP AC DRIVE

Revolt 2 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Brand :- Revolt

Hp :- 2 Hp

Kw :- 1.5 Kw

Model Number :- D12-T3-0R5G/2R2P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-440 V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Control Methods for Precision

Leveraging both V/F Control and Sensorless Vector Control, the REVOLT AC Drive delivers exceptional speed and torque regulation. This dual-control approach enables optimized performance and adaptability for a wide range of industrial motors, ensuring smooth operation and precise process management in automation applications.

Reliable Operation in Demanding Environments

Designed for reliability, the REVOLT drive is equipped with comprehensive protections such as overload, overcurrent, overvoltage, undervoltage, and short circuit alarms. The IP20 rating and high-efficiency forced air cooling ensure stable, long-term operation from -10C to +50C and in humid conditions (5-95% RH, non-condensing).

User-Friendly Features and Easy Integration

Installation and monitoring are simplified thanks to the compact design, screw terminal blocks, and clear 7-segment LED display. The integrated RS485 (Modbus) interface allows seamless communication with control systems, enhancing productivity for industrial processes and automation projects.

FAQ's of REVOLT 2 HP AC DRIVE:

Q: How do I install the REVOLT 2 HP AC Drive in my industrial setup?

A: The REVOLT AC Drive is designed for panel mounting using screw terminal blocks. Ensure the power supply matches the rated input voltage of 220 V AC and follow the provided wiring diagram for both single-phase and three-phase inputs. Proper ventilation and adherence to IP20 standards are recommended during installation.

Q: What are the main benefits of using V/F Control and Sensorless Vector Control in this AC drive?

A: V/F Control provides stable motor operation with simple frequency/voltage adjustment, while Sensorless Vector Control offers improved dynamic performance and precision without needing an external sensor. This allows for versatile, reliable operation suitable for a variety of industrial automation tasks.

Q: When should I use the built-in braking unit feature?

A: The built-in braking unit is particularly useful during rapid deceleration or in applications that require quick motor stops, such as high-inertia machinery. It helps safely dissipate the excess energy generated during braking, protecting the drive and motor from potential damage.

Q: Where is the REVOLT 2 HP AC Drive typically used?

A: This AC drive is ideal for industrial automation environments, including manufacturing lines, conveyors, pumps, and fans. Its robust design and advanced features make it suitable for installations in factories, process plants, and other automated systems.

Q: What alarm functions does the drive provide for system protection?

A: The drive includes comprehensive alarm functions for overload, overcurrent, overvoltage, undervoltage, and short circuit conditions. These alerts help ensure operational safety and prevent equipment damage by prompting timely responses to abnormal conditions.

Q: How does the drive's communication interface benefit my automation project?

A: Equipped with an RS485 (Modbus) communication interface, the drive enables easy integration with PLCs and SCADA systems, allowing for real-time monitoring, remote control, and improved data exchange in automated applications.

Q: What is the recommended operating environment for this AC drive?

A: The drive performs optimally in temperatures ranging from -10C to +50C and humidity levels of 5%-95% RH (non-condensing). Ensure the installation environment is clean, and complies with the IP20 protection standard to maximize reliability and lifespan.
