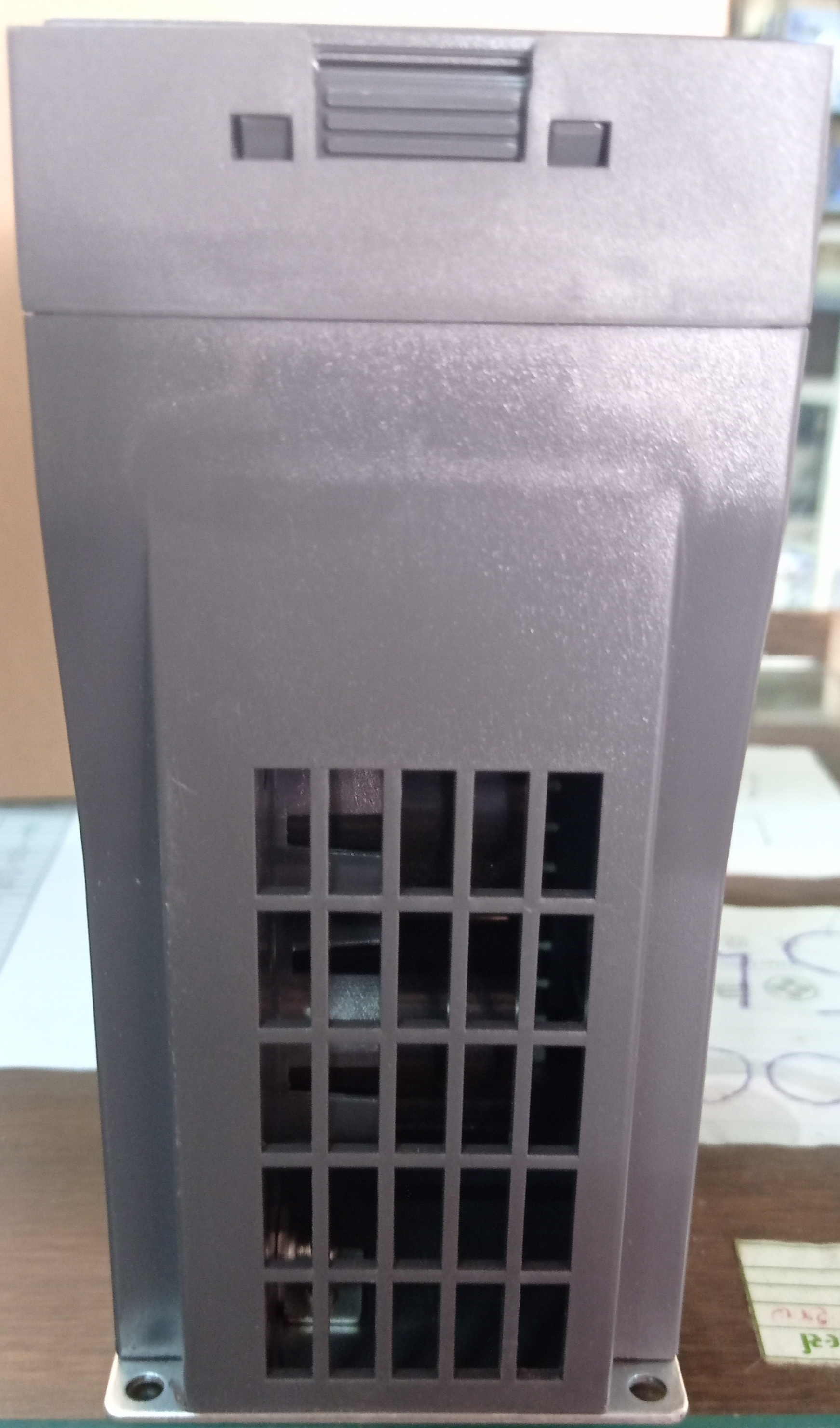

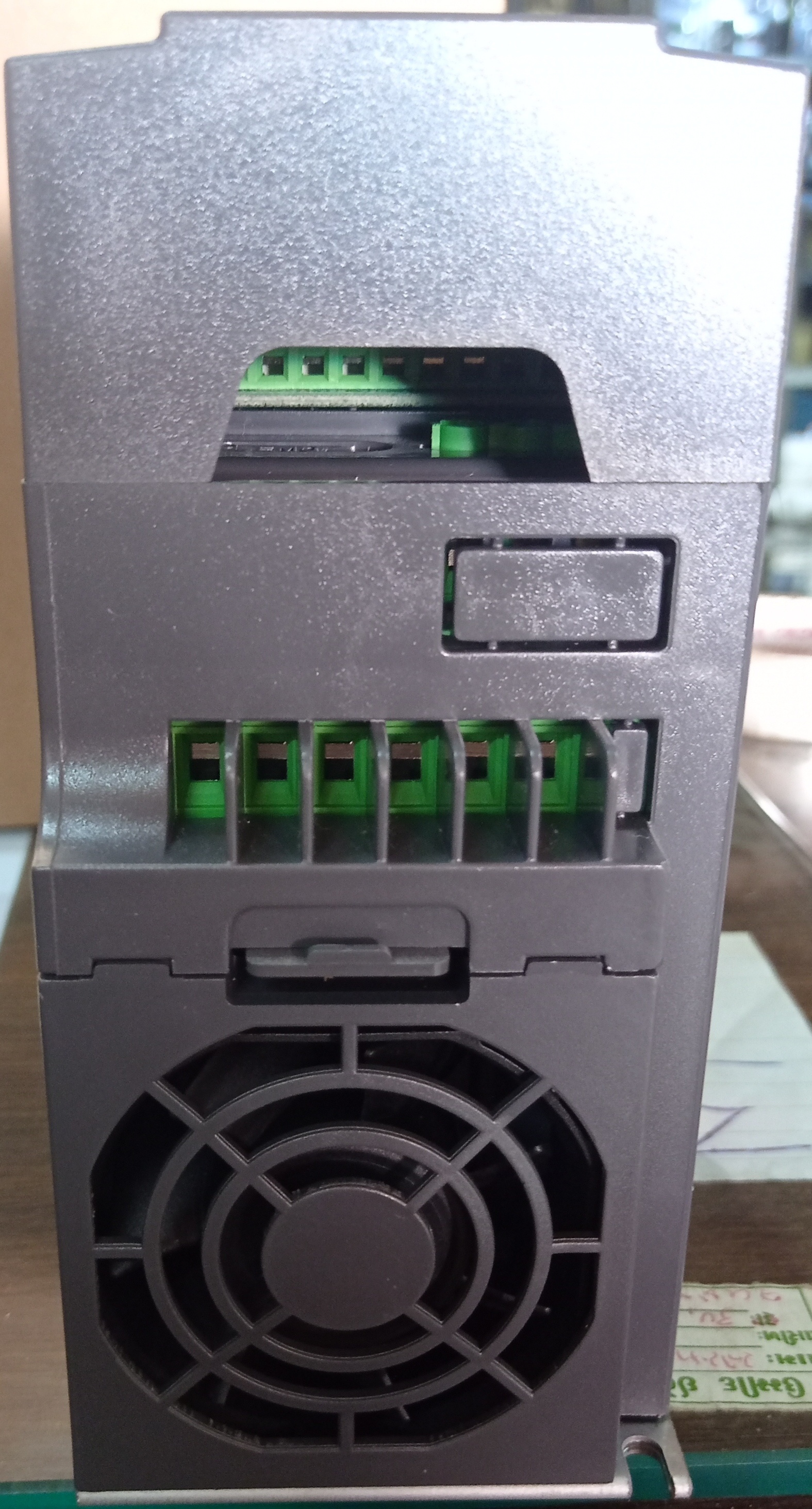

2.2-3 kw Revolt AC Drive

Get a Price/Quote

2.2-3 kw Revolt AC Drive Specification

IP Rating
IP20

Overheating Protection
YES

Feature
Digital Display, Compact Design, Easy Installation

Mounting Type
Panel Mount

Connector Type
Terminal Block

Power Factor
>0.98

Operating Temperature
-10C to +50C

Efficiency
96%

Insulation Material
Polycarbonate

Shape
Rectangular

Surface Finish
Matte

Humidity %
0-90% RH (non-condensing)

Product Type
AC Drive

Application
Motor Speed Control, Industrial Automation

Protection Level
Overload, Short Circuit, Over-voltage

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
High Efficiency (Low Power Loss)

Output Type
Variable Frequency

Color
Gray

Dimension (L*W*H)
180 x 125 x 150 mm

Weight
2.5 kg

Size
Standard

Input Voltage
380-480 V AC

Phase
Three Phase

Connection Type
Screw Terminal

No Of Poles
3

Material
ABS Plastic & Metal

2.2-3 kw Revolt AC Drive Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 2.2-3 kw Revolt AC Drive

Revolt 3 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Frequency Ac Drive

Brand :- Revolt

Hp :- 3 Hp

Kw :- 2.2-3 Kw

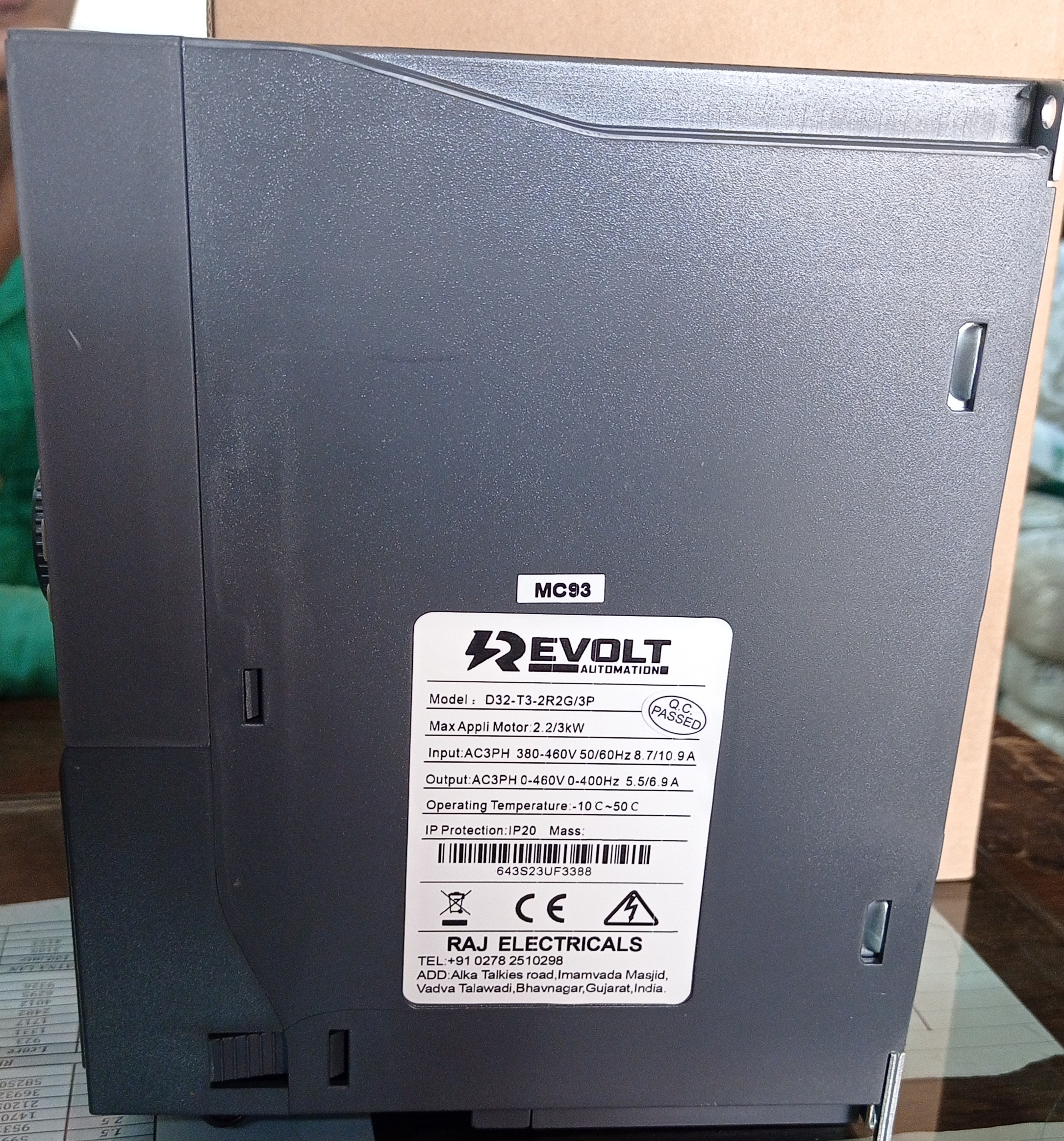

Model Number :- D32-T3-2R2G/3P

Condition :- New

Warranty :- 6 Month From The Date Of Purchase

Voltage :- 380-460V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Motor Speed Control

Revolt AC Drive leverages V/F Control and Sensorless Vector Control, allowing users to precisely adjust motor speed in varied industrial applications. The drive is optimized for three-phase motors and can deliver startup torque up to 150% at 1 Hz, accommodating demanding load conditions. Its digital display provides clear feedback for operational status and programming.

Built-In Safety and Efficiency

Safety features such as overload, short-circuit, over-voltage, and overheating protection are integrated, providing secure operation for extended periods. The unit's high efficiency-rated at 96%-ensures low energy consumption with minimized power loss, contributing to cost savings and sustainability. Its RoHS-compliant materials guarantee minimal environmental impact.

User-Friendly Design and Installation

Revolt AC Drive boasts a compact, rectangular shape with a matte finish and panel-mount capability, allowing for simple setup and integration into control systems. The LED digital panel, screw terminal connections, and user-programmable parameters facilitate straightforward configuration and monitoring, enhancing overall usability.

FAQ's of 2.2-3 kw Revolt AC Drive:

Q: How does the Revolt AC Drive benefit industrial motor speed control applications?

A: The Revolt AC Drive enables precise control of motor speed using advanced V/F Control and Sensorless Vector Control methods, making it ideal for automated industrial systems. This increases process efficiency, improves equipment lifespan, and reduces energy consumption due to its high operational efficiency.

Q: What is the process for installing the Revolt AC Drive?

A: Installation is streamlined thanks to its compact, panel-mount design and screw terminal connections. Users simply secure the drive to the panel, connect three-phase input and output wires using the terminal block, and configure the desired parameters via the LED digital display.

Q: When should the built-in braking chopper be used during operation?

A: The built-in braking chopper is automatically activated during rapid deceleration or high-inertia load stops. It safely dissipates excess energy, preventing damage to the system and ensuring reliable motor braking under demanding operational conditions.

Q: Where can the Revolt AC Drive be used without derating its performance?

A: The drive is designed for operating altitudes up to 1000 meters above sea level without any reduction in performance, making it versatile for use in diverse industrial locations across India.

Q: What protection features are included to enhance the safety of operations?

A: Safety is assured through integrated overload, short-circuit, over-voltage, and overheating protection. These features help prevent operational failures and electrical damage, even during extended heavy-duty usage.

Q: How can users program and monitor the Revolt AC Drive?

A: Users access programmable parameters through the intuitive LED digital panel, enabling adjustments to control settings, motor operation profiles, and diagnostic information for ongoing monitoring and configuration.

Q: What is the expected service life and maintenance requirement of the drive?

A: Under normal operating conditions, the Revolt AC Drive has a service life exceeding 10 years. Periodic inspection for dust and secure connections is recommended, supported by its robust forced air cooling and durable construction.
