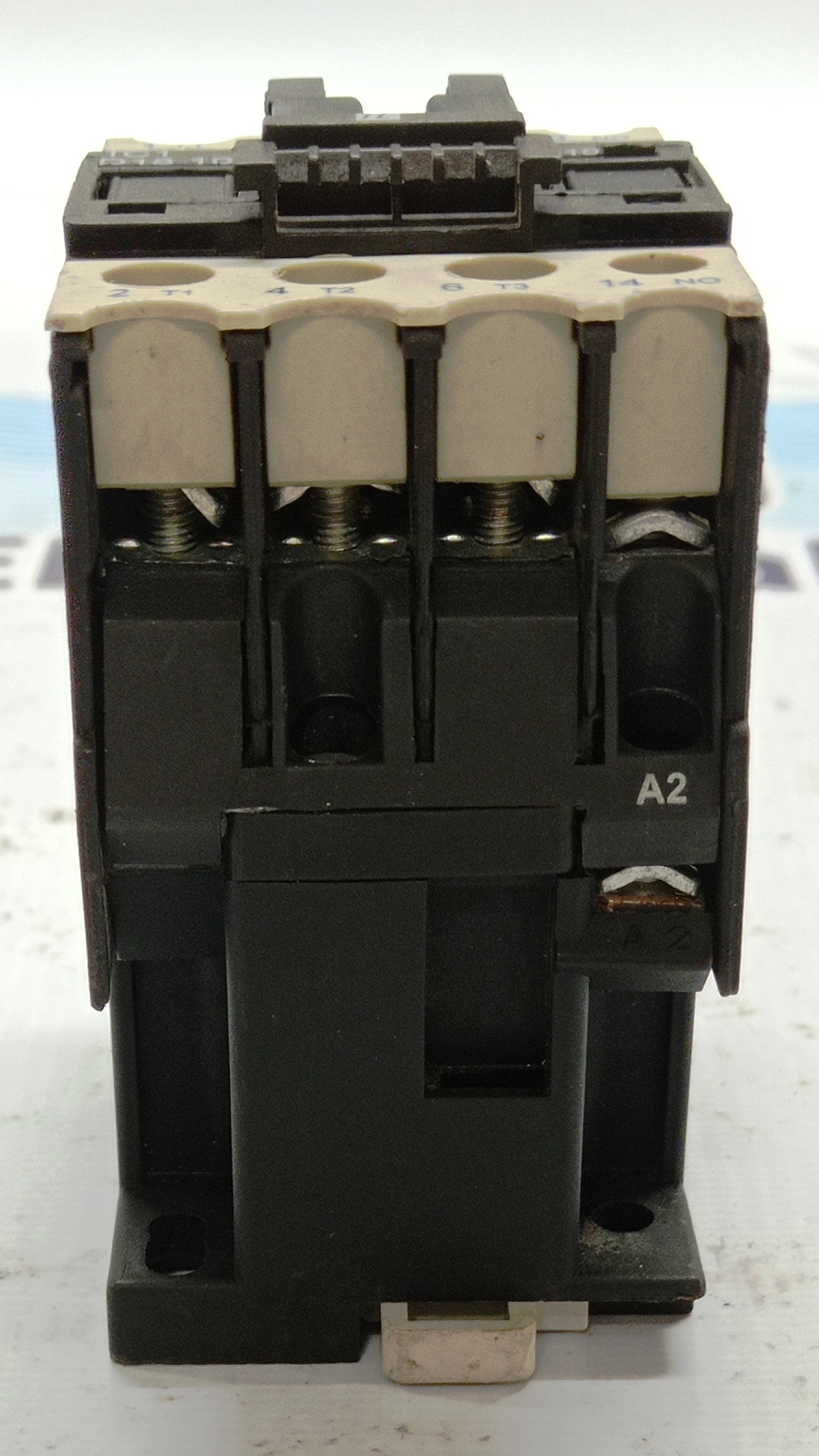

TELEMECANIQUE TC1D 1810 CONTACTOR

Get a Price/Quote

TELEMECANIQUE TC1D 1810 CONTACTOR Specification

Connector Type
Screw Type

Humidity %
≤ 95% RH

Insulation Material
Thermoplastic

Overheating Protection
NO

Shape
Rectangular

Efficiency
High

Power Factor
0.75

Feature
Reliable Performance, Long Mechanical Life, Easy Mounting

Mounting Type
DIN Rail / Panel Mount

Operating Temperature
-5°C to +40°C

Surface Finish
Matte

IP Rating
IP20

Product Type
AC Contactor

Application
Motor Control, Switching Circuits, Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
220V AC (Coil Voltage), 690V AC (Max Rated Voltage)

Energy Consumption
9 VA (Hold) / 70 VA (Pick-up)

Output Type
Switching

Color
Grey & Blue

Dimension (L*W*H)
81 x 45 x 80 mm (Approx.)

Weight
425 g

Input Voltage
220V AC

Phase
Three Phase

Size
18A

Connection Type
Screw Terminal

Material
Plastic & Metal

No Of Poles
3P + 1NO (Three Poles + One Normally Open Aux. Contact)

Electrical Life
1 Million Operations

Control Voltage
220V AC

Alternate Code
LC1D1810 (Equivalent)

Auxiliary Contacts
1 NO

Rated Current
18A

Type
TC1D 1810

Mechanical Life
10 Million Operations

TELEMECANIQUE TC1D 1810 CONTACTOR Trade Information

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About TELEMECANIQUE TC1D 1810 CONTACTOR

A contactor is an electrical device which is used for switching an electrical circuit on or off. ... These contacts are in most cases normally open and provide operating power to the load when the contactor coil is energized. Contactors are most commonly used for controlling electric motors.

Enhanced Motor Control and Switching

The TC1D 1810 contactor is crafted to control motors and switch electrical circuits seamlessly. With a high electrical life and efficiency, it's widely adopted for industrial automation systems. Its excellent hold and pick-up energy levels contribute to reliable daily operations while reducing maintenance needs.

Durable and Safe Construction

Constructed using high-quality thermoplastic insulation and a blend of plastic and metal, this contactor ensures long service life and mechanical strength. It boasts a protection level of IP20, safeguarding against dust and accidental touches, making it safe for industrial use. Its operating temperature range supports reliability across diverse environments.

FAQ's of TELEMECANIQUE TC1D 1810 CONTACTOR:

Q: How do I install the TELEMECANIQUE TC1D 1810 contactor in my system?

A: The TC1D 1810 contactor supports both DIN rail and panel mounting methods. To install, securely fasten it to your chosen mounting surface using appropriate screws and connect wiring via the screw terminals, following electrical safety guidelines and wiring diagrams.

Q: What are the benefits of using the TC1D 1810 contactor for industrial automation?

A: Using this contactor ensures prolonged mechanical and electrical life, with up to 10 million and 1 million operations, respectively. It provides reliable motor control, high efficiency, and low energy consumption, making it ideal for industrial automation applications.

Q: When should I replace the TC1D 1810 contactor?

A: Replacement is recommended if operational performance declines, if there is visible damage, or after reaching the mechanical or electrical life limits as outlined by the manufacturer (10 million mechanical or 1 million electrical operations).

Q: What are the main applications of the TC1D 1810 contactor?

A: The TC1D 1810 is primarily used for motor control, switching circuits, and automation tasks in industrial settings. Its robust design and reliable auxiliary contact make it suitable for controlling three-phase motors and other heavy loads.

Q: Where can I use the TC1D 1810 contactor and in which environments is it most effective?

A: This contactor is ideal for use in manufacturing, automation panels, and industrial control systems. Its ability to operate within a wide temperature range (-5C to +40C) and tolerate humidity up to 95% RH enhances its versatility and reliability.

Q: What protection features does the TC1D 1810 contactor offer during operation?

A: The device offers IP20 protection, ensuring safety from dust and accidental contact. However, it does not come with built-in overheating protection-external thermal or overload protection should be used for enhanced system safety.
