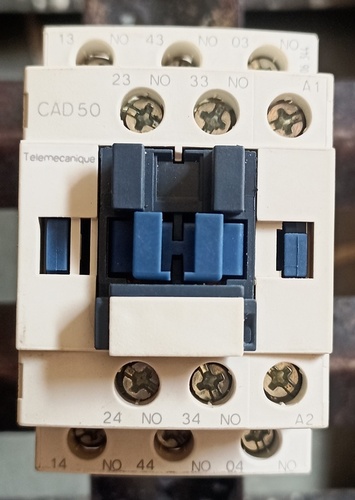

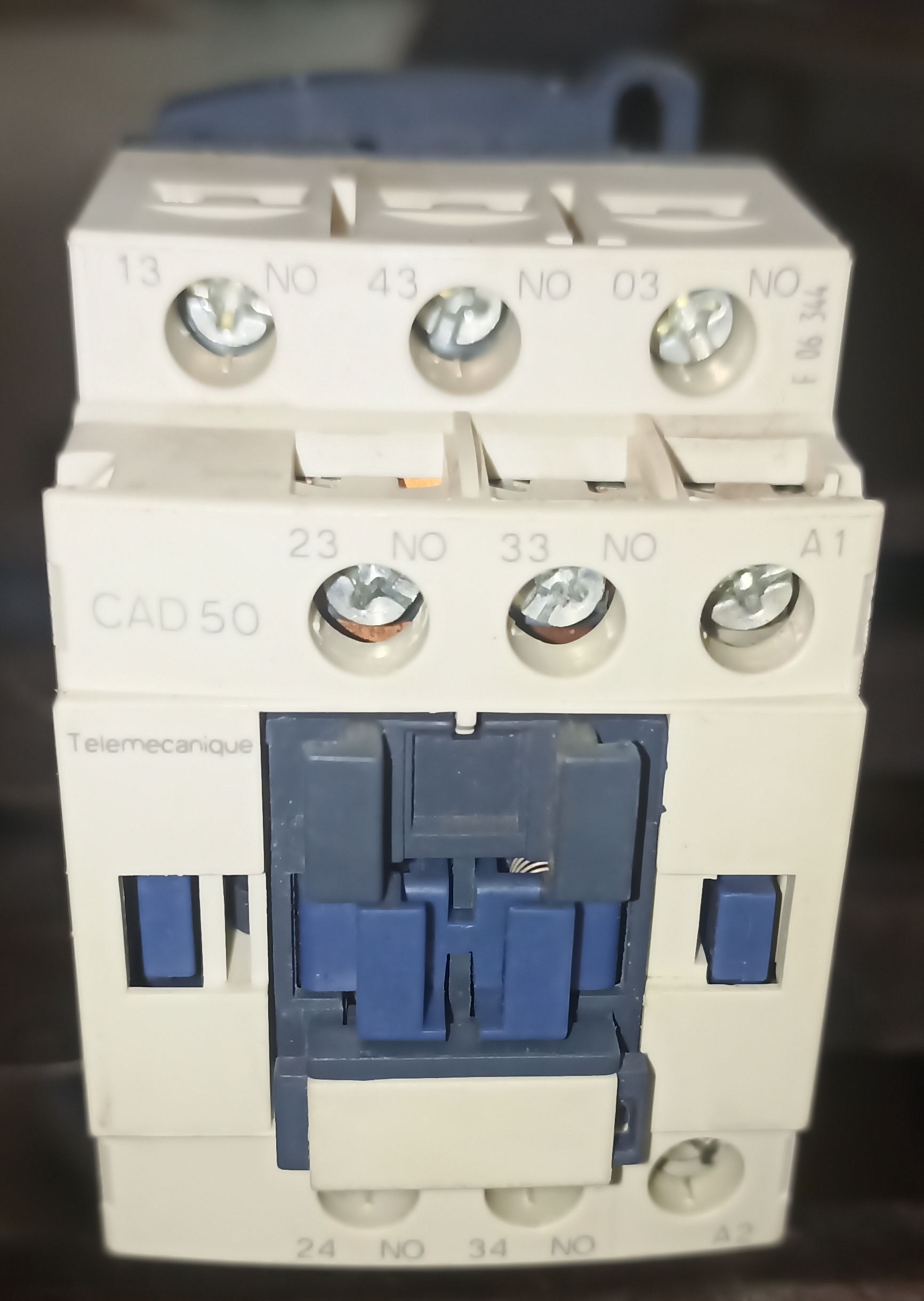

TELEMECANIQUE CAD-50 CONTACTOR

Name: TELEMECANIQUE CAD-50 CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

TELEMECANIQUE CAD-50 CONTACTOR Specification

Connector Type
Screw Clamp

Humidity %
Up to 93% RH (non-condensing)

Power Factor
0.7 (coil circuit)

Mounting Type
DIN Rail or Panel Mount

Shape
Rectangular

Operating Temperature
-5C to +60C

Efficiency
High

Insulation Material
Thermoplastic

Feature
Auxiliary Contact Included, Shock & Vibration Resistant

Overheating Protection
No, Requires External Protection

Surface Finish
Matte Plastic

IP Rating
IP20

Product Type
AC Contactor

Application
Motor Control, Industrial Automation

Protection Level
IP2x (terminals)

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC Max

Energy Consumption
9 VA (coil)

Output Type
Switching Relay Output

Color
Grey/Blue

Dimension (L*W*H)
80 x 85 x 86 mm

Weight
510 g

Phase
Three Phase

Input Voltage
24V, 48V, 110V, 230V, or 415V AC (coil options)

Size
Standard

Connection Type
Screw Terminal

No Of Poles
3 Pole + 1 NO Auxiliary

Material
Plastic with Silver Alloy Contacts

Suitability for Isolation
Yes

Mechanical Durability
10 Million Operating Cycles

Standards Compliance
IEC 60947-4-1

Max Cable Size
2 x 6 mm2 (Power Terminals)

Storage Temperature
-40C to +80C

Nominal Current
50A AC-3 (at 440V)

Short-circuit Protection
Fuse 100A gG type

Coil Consumption
9 VA Hold / 80 VA Inrush

Frame Size
S2

Auxiliary Contacts
1 Normally Open (1 NO)

Electrical Durability
1 Million Operations

TELEMECANIQUE CAD-50 CONTACTOR Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TELEMECANIQUE CAD-50 CONTACTOR

Telemecanique CAD-50 Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

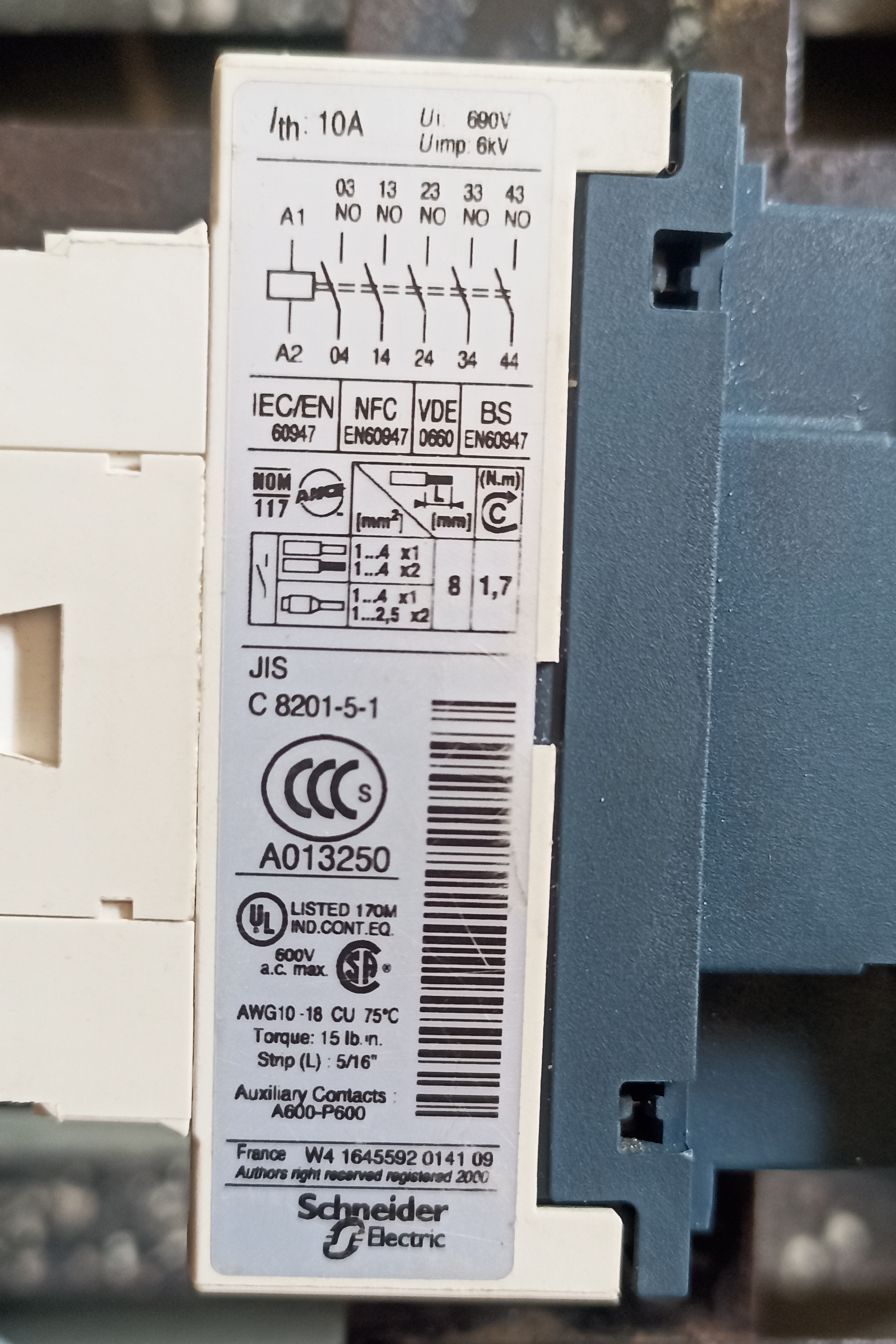

Product Specification :-

Type :- Electrical Contactor

Make :- Telemecanique

Ith :- 10A

Pole Contact Composition :- 5 NO

Model :- CAD 50

Condition :- Refurbished

Ui :- 690V

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Engineered for Robust Industrial Performance

The CAD-50 Contactor stands out with its high operational durability, supporting 10 million mechanical cycles and 1 million electrical cycles. Its shock and vibration-resistant construction ensures long-term reliability in heavy-duty settings like motor control and industrial automation. The rectangular, sturdy frame features silver alloy contacts and IP2x terminal protection, making it suitable for challenging environments.

Flexible Installation and Connection Options

Designed for convenience, the CAD-50 can be mounted on both DIN rail and panels, with screw-clamp terminals for secure wiring. The contactor's power terminals accept up to 2 x 6 mm2 cables, and its compact footprint (80 x 85 x 86 mm) makes it easy to fit into standard control panels. Auxiliary contact and multiple coil voltage options (from 24V to 415V AC) enhance its versatility for integration.

Certified Safety and Compliance

Certified to IEC 60947-4-1 standards and featuring IP20 and IP2x protection levels, this contactor ensures safety and reliability. The inclusion of short-circuit protection guidance (100A gG-type fuse) and suitability for isolation gives peace of mind for compliance and secure system integration in diverse industrial scenarios.

FAQ's of TELEMECANIQUE CAD-50 CONTACTOR:

Q: How is the TELEMECANIQUE CAD-50 contactor installed and wired?

A: The CAD-50 contactor supports both DIN rail and panel mounting for installation flexibility. It features screw-clamp terminals to securely accommodate up to 2 x 6 mm2 cables at the power terminals. Ensure correct coil voltage selection during wiring (24V, 48V, 110V, 230V, or 415V AC options) for proper operation.

Q: What benefits does the CAD-50 contactor offer in industrial automation?

A: Engineered for robust motor control, the CAD-50 offers high mechanical (10 million cycles) and electrical durability (1 million cycles), auxiliary contact integration, and shock/vibration resistance. These features ensure long-term, reliable switching in automation systems, reducing downtime and maintenance costs.

Q: Where can this contactor be used for optimal performance?

A: The CAD-50 is ideal for motor control, industrial automation, and other heavy-duty switching applications. Its high current rating, wide operating temperature range (-5C to +60C), and protection features make it suitable for factories, manufacturing lines, and other demanding industrial environments.

Q: What external protections are necessary during operation?

A: Although the CAD-50 is built for durability, it does not have inherent overheating protection. It requires external short-circuit protection, typically a 100A gG-type fuse, to prevent equipment damage and ensure safe operation as recommended by standards.

Q: How does the auxiliary contact enhance usage flexibility?

A: The included 1 NO (normally open) auxiliary contact allows external circuit signaling or interlocking, enabling more complex control schemes and better integration into safety or monitoring systems. This makes the contactor more adaptable to automation requirements.

Q: What is the process for maintaining the CAD-50 contactor?

A: Periodic maintenance involves checking terminal tightness, verifying the condition of the contacts, and ensuring the external protection device (like the fuse) is functional. Regular inspection extends device lifespan and maintains high operational reliability in industrial setups.
