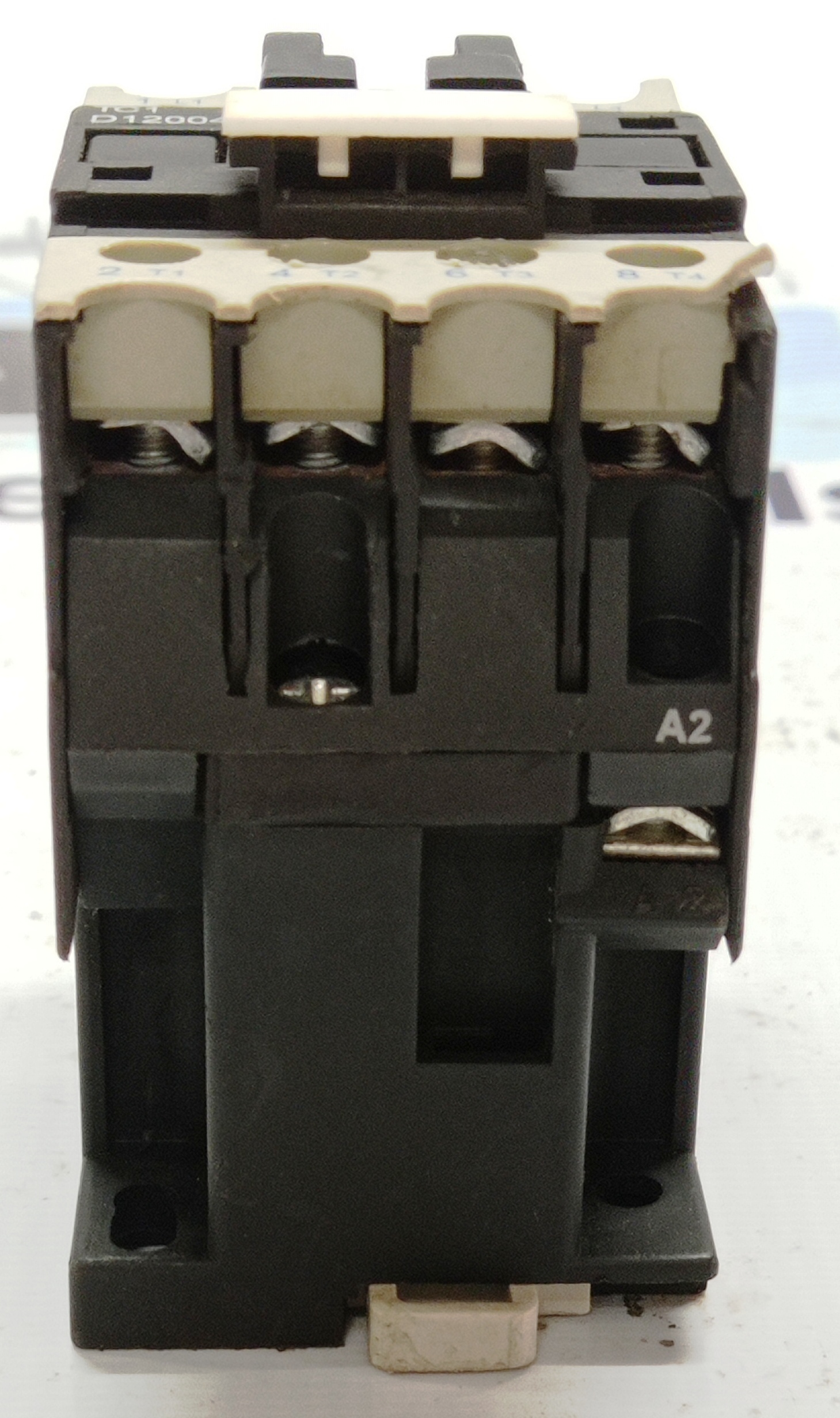

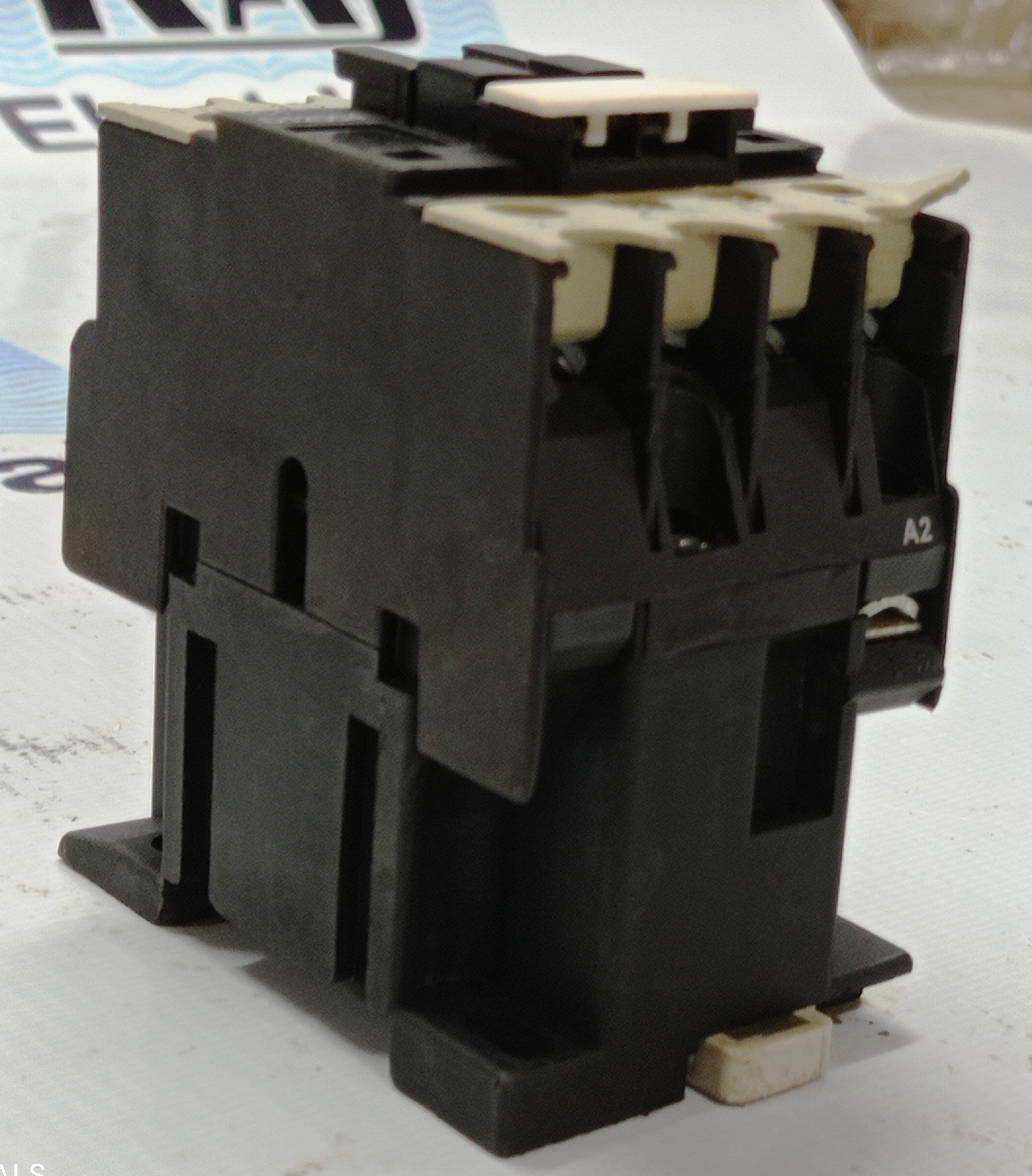

TELEMECANIQUE TC1D12004 CONTACTOR

Get a Price/Quote

TELEMECANIQUE TC1D12004 CONTACTOR Specification

Connector Type
Screw Type

Mounting Type
DIN Rail / Panel Mount

Feature
Compact size, reliable performance, long mechanical life

Insulation Material
Plastic/Resin

Efficiency
High switching efficiency

Overheating Protection
Available through overload relay (optional)

Shape
Rectangular

Operating Temperature
-5°C to +60°C

IP Rating
IP20

Surface Finish
Matte

Humidity %
5% to 95% RH, non-condensing

Power Factor
0.8

Product Type
AC Contactor

Application
Motor control, industrial automation, switching circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
2.3 W (AC coil)

Output Type
NO & NC (1 NO + 1 NC Auxiliary Contacts)

Color
Grey/Blue

Dimension (L*W*H)
45 mm x 77 mm x 82 mm

Weight
430 g

Size
Standard (TC1D12 series)

Input Voltage
220-240 V AC coil

Phase
Three Phase

No Of Poles
3

Connection Type
Screw Terminal

Material
High grade plastic and metal

Pollution Degree
3

RoHS Compliant
Yes

Electrical Life
Over 1 Million Operations

Standards Compliance
IEC 60947-4-1

Shock Resistance
15g

Auxiliary Contacts
1NO + 1NC

Coil Resistance
1200 Ohm (Approx.)

Operating Altitude
Up to 2000m without derating

Vibration Resistance
5g (5-300Hz)

Mechanical Life
Over 10 Million Operations

Rated Current
12A

Model Number
TC1D12004

TELEMECANIQUE TC1D12004 CONTACTOR Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About TELEMECANIQUE TC1D12004 CONTACTOR

A contactor is an electrical device which is used for switching an electrical circuit on or off. ... These contacts are in most cases normally open and provide operating power to the load when the contactor coil is energized. Contactors are most commonly used for controlling electric motors.

Reliable Performance for Industrial Automation

The TC1D12004 Contactor delivers consistent, efficient switching for motor control and various automation applications. With rugged construction and long mechanical and electrical lifespan, its built to endure heavy use in demanding environments. Its compact design makes integration straightforward in control panels, ensuring reliable operation and minimal downtime.

Easy Installation and Versatile Mounting Options

Equipped with screw terminals and standard dimensions, the TC1D12004 allows for effortless installation on DIN rails or via panel mounting. This flexibility suits diverse industrial setups, making it convenient for new projects or replacements. The contactor is optimized for three-phase use at 415 V AC and includes both NO and NC auxiliary contacts for versatile circuit configurations.

FAQs of TELEMECANIQUE TC1D12004 CONTACTOR:

Q: How is the TELEMECANIQUE TC1D12004 Contactor typically used in industrial settings?

A: The TC1D12004 Contactor is widely used for motor control, switching circuits, and automation in various industrial environments. Its reliable switching ensures smooth operation and safety in three-phase systems.

Q: What are the main benefits of choosing this contactor for motor control applications?

A: With a long mechanical life exceeding 10 million operations and electrical life over 1 million operations, the TC1D12004 offers durability, energy efficiency, and consistent performance, reducing maintenance needs and operational interruptions.

Q: Where can this contactor be installed, and what mounting options are available?

A: It supports both DIN rail and panel mounting, allowing easy integration into standard industrial control panels or directly onto machinery as needed.

Q: When should overload protection be considered with this contactor?

A: Overheating protection is available via an optional overload relay. It is recommended to use this feature when operating motors or circuits that may experience excessive loads or fluctuating power conditions.

Q: What is the typical process for connecting this contactor in an electrical circuit?

A: Simply connect supply and load wires to the screw terminals, ensure proper coil voltage (220-240 V AC), and utilize the auxiliary contacts for signaling or interlocking as needed. Follow all safety and IEC 60947-4-1 compliance guidelines during installation.

Q: How does this contactor perform under harsh conditions such as high humidity or vibration?

A: The TC1D12004 is designed for high resilience, operating reliably in environments with humidity up to 95% RH (non-condensing) and withstanding vibrations up to 5g and shocks up to 15g.

Q: What standards and certifications does the TC1D12004 meet?

A: It complies with IEC 60947-4-1 standards, has an IP20 protection rating, and is certified RoHS compliant, ensuring quality, safety, and environmental responsibility.
