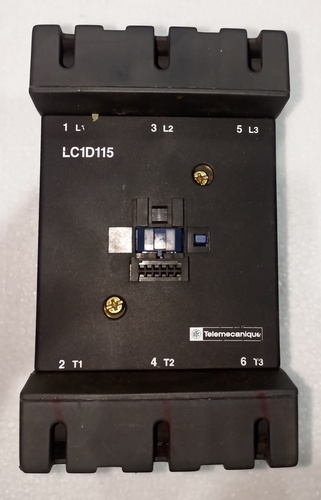

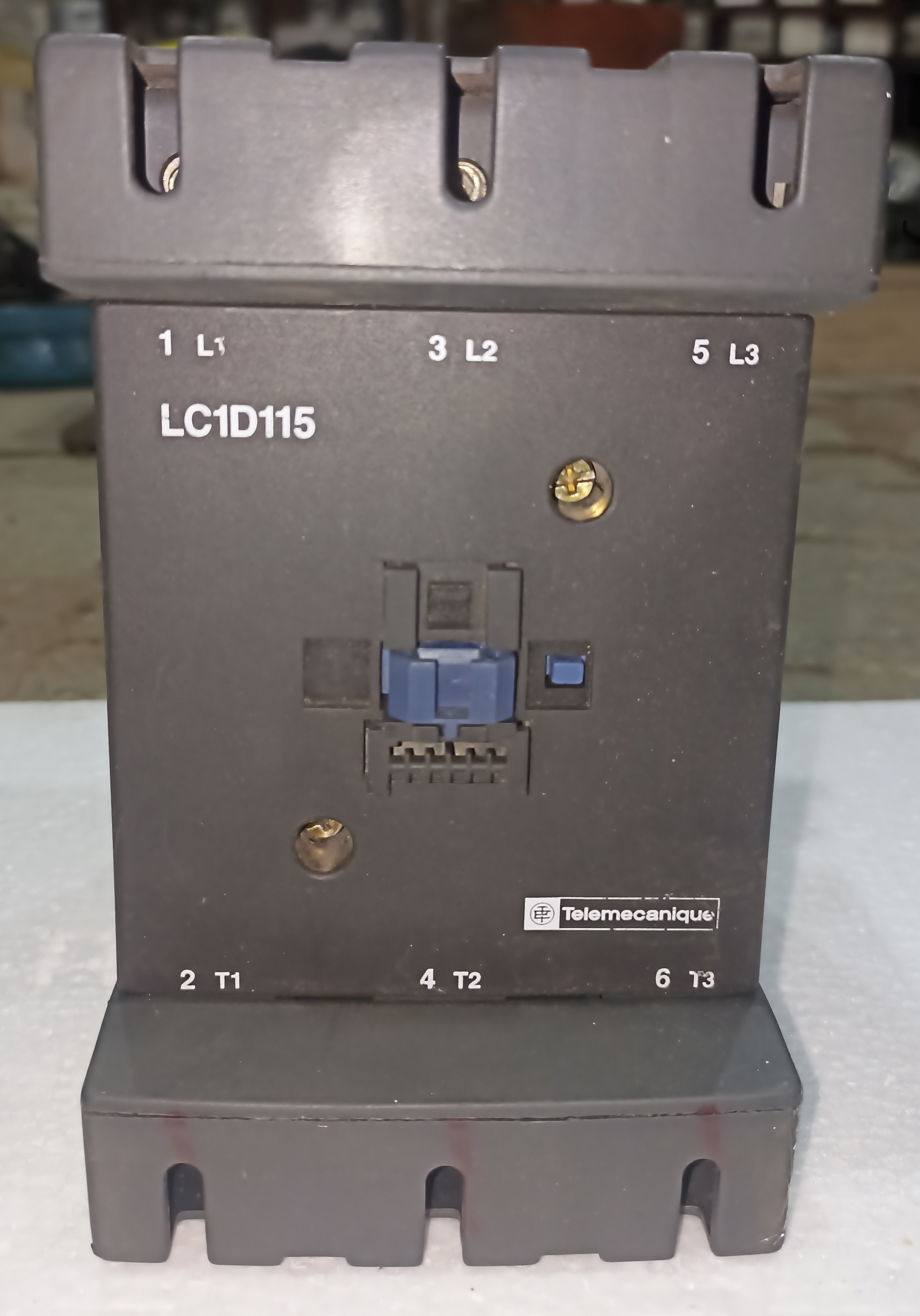

TELEMECANIQUE LC1D115 (BLACK MODEL) CONTACTOR

Name: TELEMECANIQUE LC1D115 (BLACK MODEL) CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 3 Pieces

TELEMECANIQUE LC1D115 (BLACK MODEL) CONTACTOR Specification

Connector Type
Screw type

Insulation Material
Plastic

Overheating Protection
Available with Thermal Overload Relay (Optional)

IP Rating
IP20

Feature
High Breaking Capacity, Shock Proof, Flame Retardant Housing

Efficiency
98%

Shape
Rectangular

Humidity %
5 - 95% RH (non-condensing)

Power Factor
0.8

Operating Temperature
-5C to +60C

Surface Finish
Matte

Mounting Type
DIN Rail / Panel Mount

Product Type
Power Contactor

Application
Industrial Motor Control, Power Switching, Control Panels

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC

Energy Consumption
15 VA (Holding) at 50 Hz

Output Type
NO/NC Contacts

Color
Black

Dimension (L*W*H)
140 x 129 x 150 mm

Weight
3.6 kg

Size
Compact

Input Voltage
220-240V AC (Control Circuit)

Phase
Three Phase

No Of Poles
3 Pole

Connection Type
Screw Terminal

Material
High Impact Plastic and Copper

Operating Position
Any Position

Coil Consumption (Pick-up)
~95 VA

Suitable For
AC-3 duty for motor loads up to 55kW (400V)

Min. Switching Capacity
5 mA at 17V

Mechanical Durability
10 Million Operations

Electrical Durability
1 Million Operations

Auxiliary Contacts
1 NO + 1 NC (Standard)

Rated Operational Current (AC-3)
115A

Standards Compliance
IEC 60947, EN 60947, VDE 0660

Storage Temperature
-40C to +70C

Short Circuit Protection
With external device (as per IEC 60947)

Coil Voltage Options
Available (110V, 220-240V AC, 24V DC, 48V DC depending on model)

TELEMECANIQUE LC1D115 (BLACK MODEL) CONTACTOR Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TELEMECANIQUE LC1D115 (BLACK MODEL) CONTACTOR

Raj Electricals Offering TELEMECANIQUE LC1D115 CONTACTOR At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Telemecanique

AC1 :- 250A

Model :- LC1D115

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Exceptional Durability and Reliability

Boasting 10 million mechanical and 1 million electrical operations, the LC1D115 ensures dependable long-term performance in demanding industrial environments. With premium materials and adherence to globally recognized standards, this contactor maintains stable operation and safety for any motor control application.

Flexible and Safe Motor Control Solution

Engineered for versatility, the LC1D115 serves a wide range of control requirements with multiple coil voltage options and both DIN rail and panel mount configurations. Its IP20 protection, shock-proof and flame-retardant housing, and optional thermal overload relay provide enhanced safety and operational assurance for users.

High Efficiency and User-Friendly Design

The LC1D115 features a compact form factor, screw-type terminals for secure connections, and a matte surface finish for durability. Supporting operation in any position and across broad temperature and humidity ranges, it enables straightforward installation and maintenance in varying industrial settings.

FAQ's of TELEMECANIQUE LC1D115 (BLACK MODEL) CONTACTOR:

Q: How is the TELEMECANIQUE LC1D115 contactor typically installed?

A: The LC1D115 contactor can be installed using either DIN rail mounting or panel mounting, making it suitable for a variety of control panels and industrial setups.

Q: What are the key benefits of using the LC1D115 for motor control?

A: This contactor delivers high breaking capacity, excellent mechanical and electrical durability, flame-retardant housing, superior safety features, and application flexibility for three-phase AC-3 duty motor loads up to 55kW at 400V.

Q: When should an external short circuit protection device be used with this contactor?

A: External short circuit protection must always be provided as per IEC 60947 standards, as the LC1D115 itself does not offer built-in short circuit protection.

Q: Where is the LC1D115 most effectively employed?

A: It is ideally suited for industrial environments, particularly for controlling and switching motors in machinery, power distribution boards, automated production systems, and control panels.

Q: What is the process for choosing the correct coil voltage model?

A: Select a model based on your control circuit voltage; the LC1D115 offers options such as 110V, 220-240V AC, or 24V/48V DC. Always verify compatibility with your system before installation.

Q: How does the auxiliary contact configuration enhance usage?

A: With 1 normally open (NO) and 1 normally closed (NC) auxiliary contact as standard, the LC1D115 allows for flexible control circuit designs, supporting signaling, interlocks, or feedback functions.

Q: What protection features are available with the LC1D115 contactor?

A: In addition to IP20 ingress protection and flame-retardant housing, the contactor can be equipped with a thermal overload relay (optional) for effective overheating protection of connected motors.
