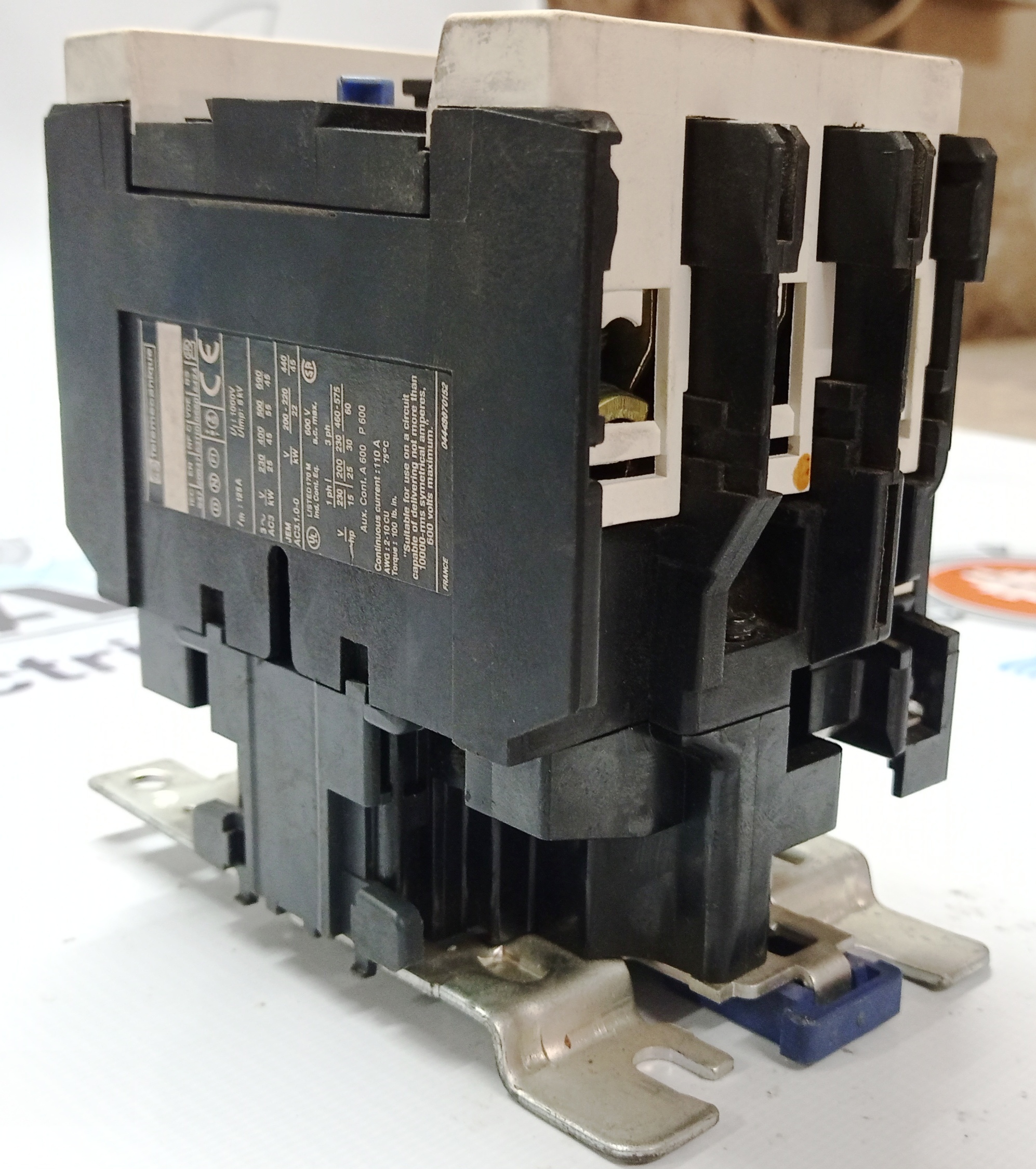

TELEMECANIQUE LC1D9511 CONTACTOR

Get a Price/Quote

TELEMECANIQUE LC1D9511 CONTACTOR Specification

Shape
Rectangular

Surface Finish
Matte

Overheating Protection
Available with proper relay

Power Factor
0.8 min

Mounting Type
DIN Rail / Panel Mounting

Connector Type
Screw Connector

Feature
Long Electrical Life, High Endurance

Humidity %
5% to 95% RH (non-condensing)

IP Rating
IP20

Operating Temperature
-5°C to +60°C

Insulation Material
Thermoplastic

Efficiency
High Efficiency Switching

Product Type
Contactor

Application
Industrial Motor Control, Power Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
10.5 VA (Hold) / 230 VA (Inrush)

Output Type
NO+NC (1NO+1NC) Auxiliary Contacts

Color
Black and White

Dimension (L*W*H)
120 mm x 129 mm x 135 mm

Weight
2.45 kg

Phase
Three Phase

Size
D95 size

Input Voltage
110V/220V/380V AC (coil voltage depending on variant)

Material
High Grade Plastic and Metal

Connection Type
Screw Terminal

No Of Poles
3

Suitable For
AC3, AC4 Duty

Auxiliary Contacts
1 NO + 1 NC built-in

Coil Consumption
230 VA (Inrush), 10.5 VA (Sealed)

Rated Current
95A

Electrical Durability
1 Million Operations

Mechanical Durability
10 Million Operations

Response Time
20 ms

Short Circuit Protection
Through Proper Circuit Breaker

TELEMECANIQUE LC1D9511 CONTACTOR Trade Information

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About TELEMECANIQUE LC1D9511 CONTACTOR

A contactor is an electrical device which is used for switching an electrical circuit on or off. ... These contacts are in most cases normally open and provide operating power to the load when the contactor coil is energized. Contactors are most commonly used for controlling electric motors.

Exceptional Durability and Reliability

Engineered for longevity, the LC1D9511 contactor provides a mechanical endurance of 10 million operations and electrical durability of 1 million operations, making it ideal for intensive industrial applications. Its use of high-grade plastic and metal ensures consistent performance in demanding environments. Overheating protection and robust auxiliary contacts boost operational safety.

Efficient Motor Control for Industrial Applications

Specifically designed for industrial motor control, the LC1D9511 supports AC3 and AC4 duty cycles with a rated voltage of up to 690V AC. Its quick response time and high switching efficiency meet the rigorous requirements of power circuits in manufacturing, processing, and infrastructure. Flexible DIN rail and panel mounting streamline installation.

FAQs of TELEMECANIQUE LC1D9511 CONTACTOR:

Q: How is the TELEMECANIQUE LC1D9511 contactor installed?

A: The LC1D9511 contactor can be conveniently installed on a DIN rail or directly onto a panel, using its screw terminal connections for secure wiring. Always ensure correct mounting to maintain protection level and operational reliability.

Q: What applications is this contactor best suited for?

A: It is ideal for industrial motor control, power circuits, and switching operations in three-phase systems. Its high durability and reliability make it suitable for manufacturing, processing plants, and automation projects.

Q: When should auxiliary contacts (1 NO + 1 NC) be used?

A: The built-in auxiliary contacts are used for signaling, control, and interlocking functions within automation systems. They provide additional flexibility for feedback and operational status monitoring.

Q: Where can the LC1D9511 contactor be used considering its protection level?

A: With its IP20 protection rating, the contactor should be installed in enclosures or areas free from direct exposure to dust, moisture, or accidental contact, maintaining safe operational conditions in industrial environments.

Q: What process ensures short circuit protection for this contactor?

A: Short circuit protection is achieved by incorporating a proper circuit breaker in the system. This safeguards the contactor and connected equipment in case of electrical faults or overloads.

Q: How does using this contactor benefit industrial operations?

A: Its long electrical and mechanical life, high efficiency switching, and fast response time contribute to reduced downtime and increased productivity. Enhanced safety features and reliable performance result in cost-effective and secure motor control.
