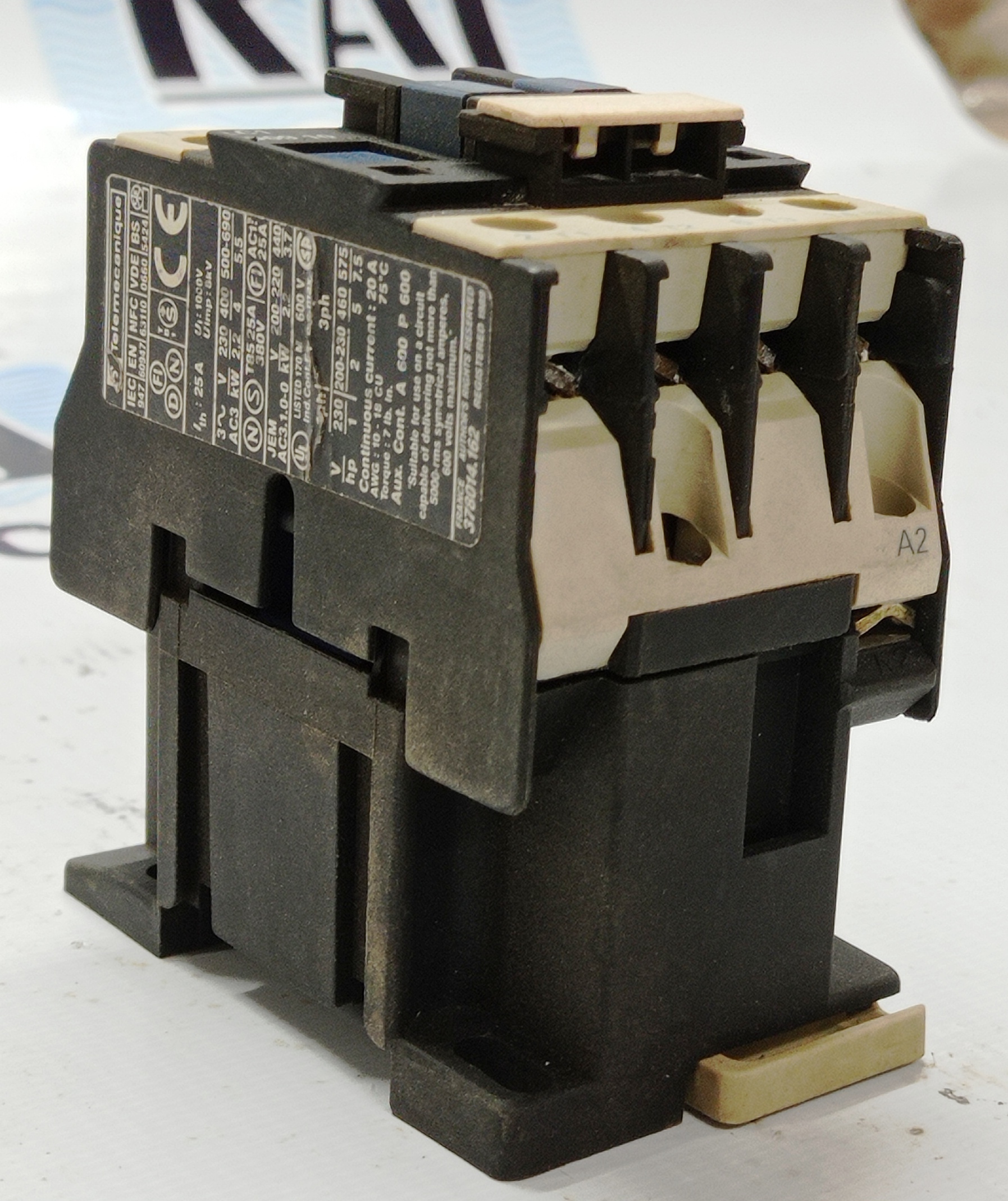

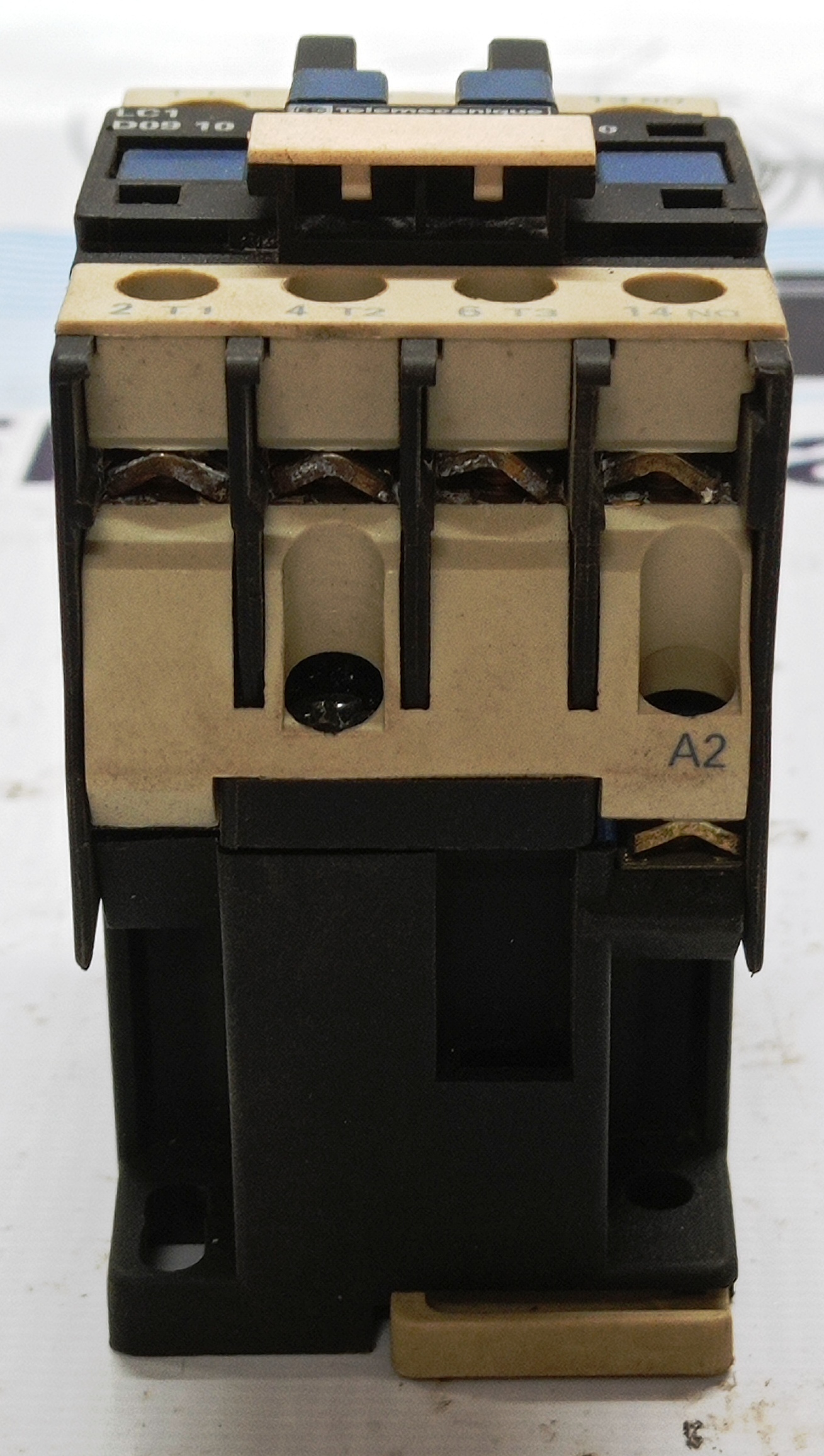

TELEMECANIQUE LC1D09 CONTACTOR

Get a Price/Quote

TELEMECANIQUE LC1D09 CONTACTOR Specification

Power Factor
0.8

Humidity %
5% - 95% RH

Mounting Type
DIN Rail / Screw Mount

Surface Finish
Molded

Efficiency
High

Insulation Material
Thermoplastic

Operating Temperature
-5°C to +60°C

Connector Type
Screw Clamp

Overheating Protection
Yes (with appropriate relay)

IP Rating
IP20

Shape
Rectangular

Feature
Compact design, high reliability, long mechanical and electrical life

Product Type
AC Contactor

Application
Motor control and automation circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC

Energy Consumption
3.5 VA (hold) / 50 VA (inrush at 50 Hz)

Output Type
NO+NC

Color
Grey-Black

Dimension (L*W*H)
45 x 77 x 85 mm

Weight
235 g

Input Voltage
24V/48V/110V/220V AC coil options

Size
Standard

Phase
Three Phase

Material
Plastic and Metal

No Of Poles
3

Connection Type
Screw Terminal

Coil Consumption
50/60 Hz: 50 VA (inrush), 3.5 VA (hold)

Response Time
20 ms (closing), 18 ms (opening)

Rated Operational Current
9A at AC-3 (440V)

Mechanical Endurance
10 Million Cycles

Short-circuit Protection
10A gG Fuse

Number of Auxiliary Contacts
1 NO + 1 NC

Standards
IEC 60947-4-1, VDE 0660

Electrical Endurance
1.2 Million Cycles

Altitude
Up to 3000 m without derating

TELEMECANIQUE LC1D09 CONTACTOR Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About TELEMECANIQUE LC1D09 CONTACTOR

A contactor is an electrical device which is used for switching an electrical circuit on or off. ... These contacts are in most cases normally open and provide operating power to the load when the contactor coil is energized. Contactors are most commonly used for controlling electric motors.

Compact and Reliable Motor Control

The LC1D09 contactor boasts a compact, rectangular design, making it easy to install in tight control panels. Its high reliability, with a mechanical endurance of 10 million cycles and electrical endurance of 1.2 million cycles, ensures consistent performance. The standard size, combined with DIN rail or screw mounting options, supports versatile installation for distributors, manufacturers, and suppliers.

Versatile Application and Robust Protection

Suitable for motor control and automation circuits, this contactor supports up to 9A operational current at 440V AC-3. With IP20 protection and molded surface finish, it withstands industrial environments. Its thermoplastic insulation and integrated overheating protection, when paired with the right relay, add to its safety and longevity, even at altitudes up to 3000 meters.

Efficient Operation and Flexible Connectivity

The LC1D09 features low energy consumption (3.5 VA hold, 50 VA inrush at 50/60 Hz) and fast response times (20 ms closing, 18 ms opening). The device accommodates a range of AC coil voltages (24V/48V/110V/220V) and includes screw clamp terminals for secure, straightforward connections. Its three-phase compatibility and auxiliary contacts (1 NO + 1 NC) enhance system integration.

FAQ's of TELEMECANIQUE LC1D09 CONTACTOR:

Q: How is the TELEMECANIQUE LC1D09 contactor typically used in industrial settings?

A: The LC1D09 is used for controlling and switching three-phase motors and automation circuits, providing efficient and reliable operation in industrial systems such as manufacturing, processing plants, and automation panels.

Q: What are the main advantages of the LC1D09 contactor's compact design?

A: Its compact, rectangular shape (45 x 77 x 85 mm) allows installation in limited spaces, enabling efficient control panel layouts while maintaining high mechanical and electrical durability.

Q: When should I use the different coil voltage options available with the LC1D09?

A: Select coil voltage (24V, 48V, 110V, 220V AC) based on your system's control circuit voltage. This flexibility ensures compatibility with various industrial setups and control schemes.

Q: Where is it best to install the LC1D09 contactor for optimal performance?

A: Install the contactor on standard DIN rails or with screws inside motor control centers or automation enclosures, ensuring the environment stays within -5C to +60C and relative humidity of 5%-95% for optimal performance.

Q: What process should be followed to connect the LC1D09?

A: Use the screw clamp terminals for secure connections to power, control, and auxiliary circuits. Always ensure power is off during installation, and follow wiring diagrams for correct terminal assignments and fuse protection.

Q: How does the LC1D09 ensure safety and protect against overheating?

A: It provides IP20 protection and, when paired with an appropriate relay, offers overheating protection. This prevents thermal damage and extends operable life even under high loads.

Q: What benefits does the LC1D09 offer in terms of endurance?

A: The LC1D09 boasts a mechanical endurance of 10 million cycles and an electrical endurance of 1.2 million cycles, ensuring long-lasting operation and reduced maintenance in demanding environments.
