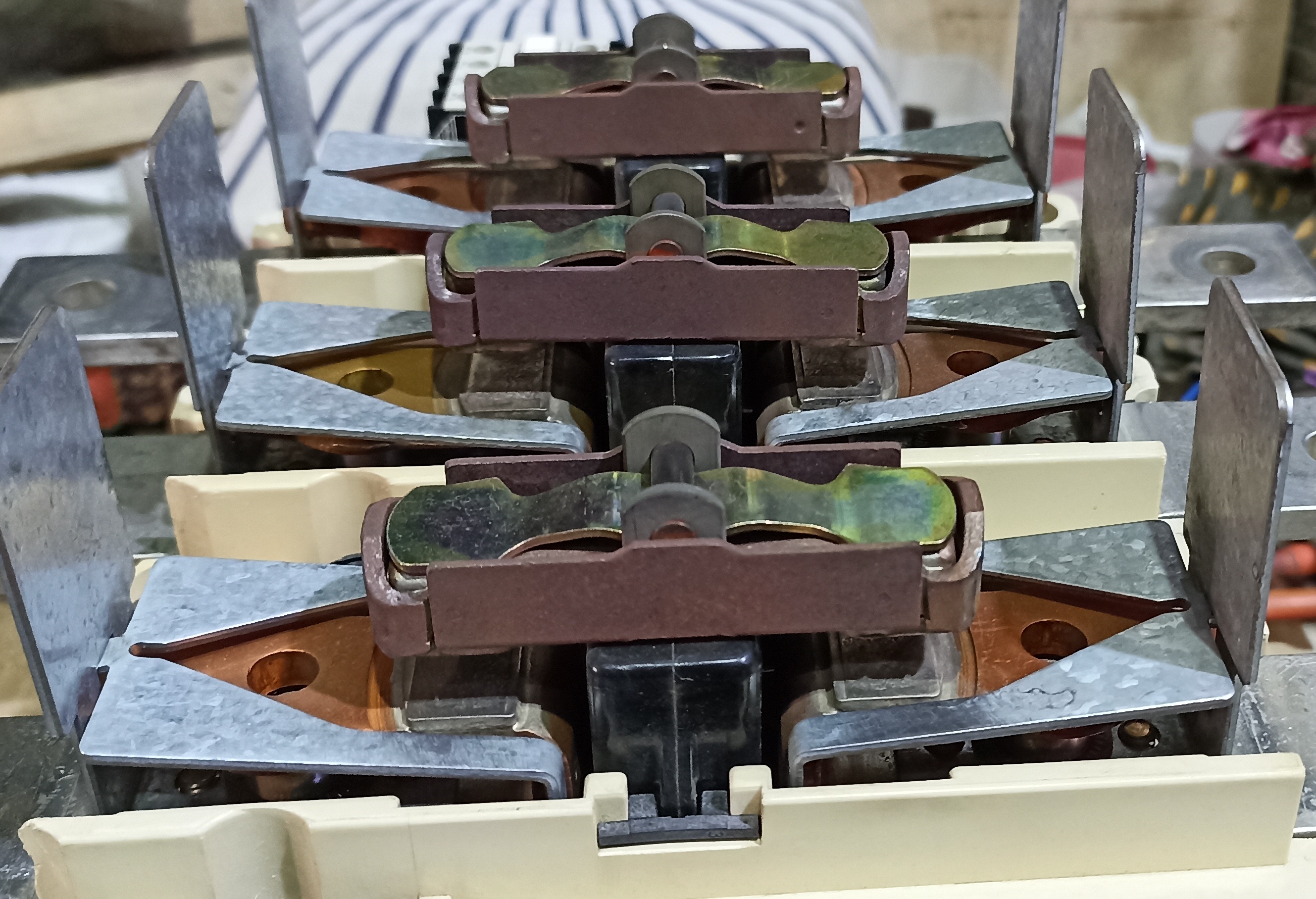

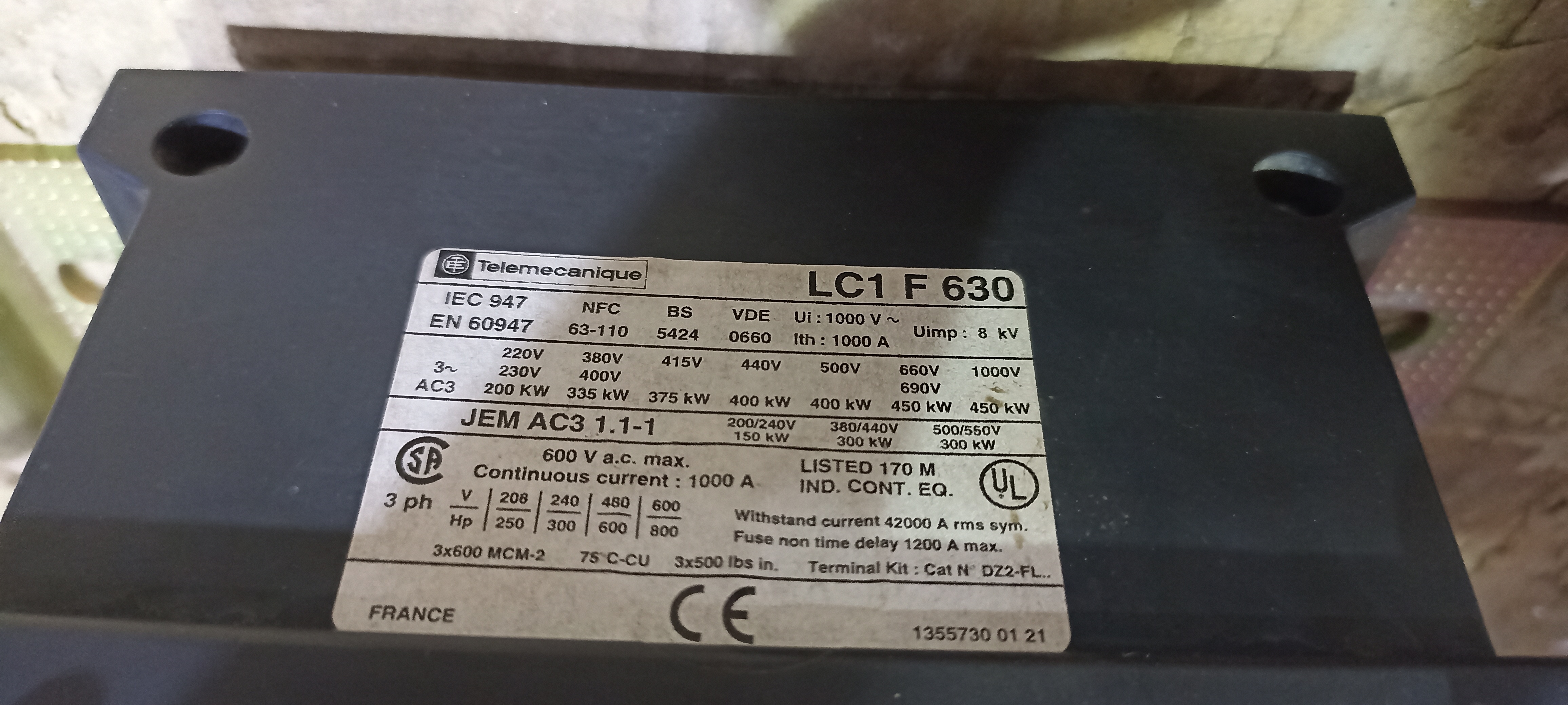

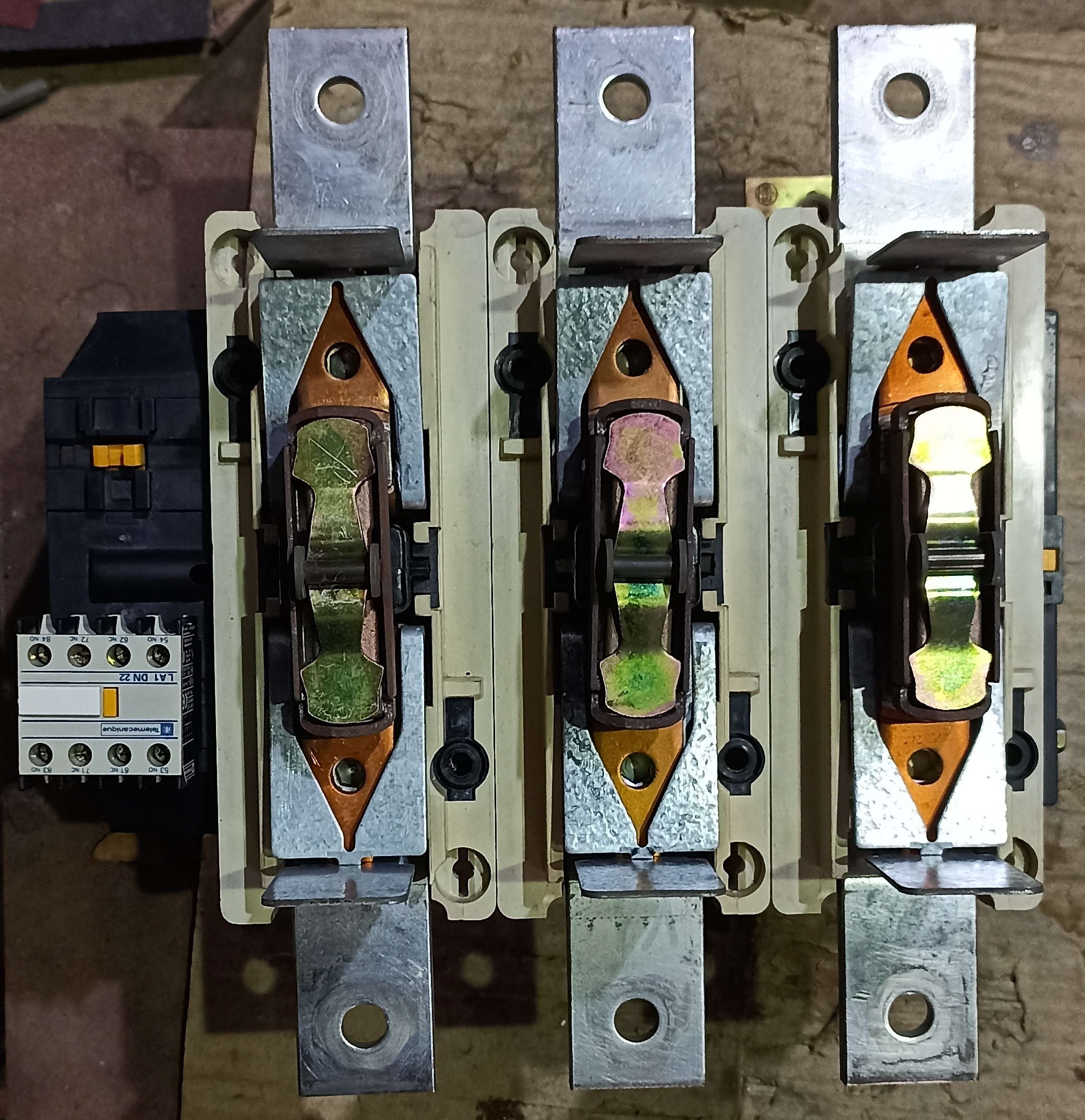

TELEMECANIQUE LC1F 630 CONTACTOR

Name: TELEMECANIQUE LC1F 630 CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Number

TELEMECANIQUE LC1F 630 CONTACTOR Specification

Insulation Material
Thermoplastic

Humidity %
5% to 95% RH

Power Factor
0.8

Mounting Type
Panel/Surface Mount

Efficiency
High Efficiency

Shape
Rectangular

Feature
High Withstand Voltage, Robust Construction, Easy Maintenance

Surface Finish
Matte

Overheating Protection
With Auxiliary Thermal Overload Relay (Optional)

IP Rating
IP20

Connector Type
Screw Type

Operating Temperature
-25°C to +60°C

Product Type
AC Contactor

Application
Industrial Control Panels, Motor Protection, Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
1000 V AC

Energy Consumption
26 VA (AC-3, 400 V)

Output Type
Mechanical

Color
Black & Grey

Dimension (L*W*H)
308 x 274 x 240 mm

Weight
36 kg

Size
Size F

Phase
Three Phase

Input Voltage
220-240 V AC (Coil Voltage)

Material
High grade plastic & Electroplated Copper

No Of Poles
3 Pole

Connection Type
Screw Terminal

Electrical Endurance
200,000 Operations (AC-3)

Auxiliary Contacts
1 NO + 1 NC (Expandable)

Rated Operational Current (AC-3, 400 V)
630A

Standards
IEC 60947-4-1

Short Circuit Protection
Required type 2 Coordination (with suitable fuses or circuit breakers)

Mechanical Endurance
3 Million Operations

Coil Consumption
200 VA (Inrush), 20 VA (Holding)

TELEMECANIQUE LC1F 630 CONTACTOR Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
South America, Western Europe, North America, Middle East, Eastern Europe, Asia, Central America, Australia, Africa

Main Domestic Market
All India

About TELEMECANIQUE LC1F 630 CONTACTOR

Telemecanique LC1F 630 Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Telemecanique

Ith :- 1000A

Pole :- 3P

Model :- LC1F 630

Condition :- Refurbished

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

High Durability and Performance

Built for intensive use, the LC1F 630 contactor ensures up to 3 million mechanical and 200,000 electrical operations, making it suitable for rigorous industrial settings. Its high-grade materials and robust construction allow it to deliver reliable performance even in challenging conditions.

Safety and Compliance

Conforming to IEC 60947-4-1 standards, this contactor integrates IP20 protection and supports Type 2 short circuit coordination with suitable fuses or breakers. Optional auxiliary thermal overload relay enhances motor protection, providing peace of mind for automated systems.

Versatile and Easy to Install

The LC1F 630 is adaptable for use in various industrial control panels. Its screw terminal connections, panel or surface mounting capability, and expandable auxiliary contacts simplify installation and maintenance, ensuring flexibility in system design.

FAQ's of TELEMECANIQUE LC1F 630 CONTACTOR:

Q: How is the TELEMECANIQUE LC1F 630 contactor installed within industrial control panels?

A: The LC1F 630 contactor is designed for panel or surface mounting using screw terminals, facilitating straightforward integration into industrial control panels. Its rectangular footprint and clear terminal labeling allow for easy and secure connections.

Q: What short circuit protection is required for this contactor?

A: For optimal operation and compliance, the contactor requires Type 2 short circuit coordination using suitable fuses or circuit breakers appropriate for the 630A rated current at 400 V AC. This ensures effective protection and reliability in the event of a fault.

Q: When should auxiliary contacts be expanded on the LC1F 630 contactor?

A: Auxiliary contacts (1 NO + 1 NC, expandable) should be added when additional signaling or interlocking functions are needed in your automation or control system. Expansion is straightforward, thanks to the user-friendly design of the contactor.

Q: Where is the TELEMECANIQUE LC1F 630 commonly used?

A: This heavy-duty contactor is typically found in motor control centers, automation systems, and industrial control panels where high current capacity, precise control, and motor protection are essential.

Q: What process should be followed for overheating protection with this contactor?

A: For overheating protection, the LC1F 630 can be fitted with an auxiliary thermal overload relay. This optional device detects overcurrent conditions and disconnects the circuit to prevent heat damage to motors and equipment.

Q: How does the contactor benefit industrial systems?

A: The LC1F 630 provides high operational efficiency, reliable safety mechanisms, and easy maintenance. Its robust construction and long mechanical and electrical life minimize downtime and maintenance requirements, enhancing productivity in industrial environments.
