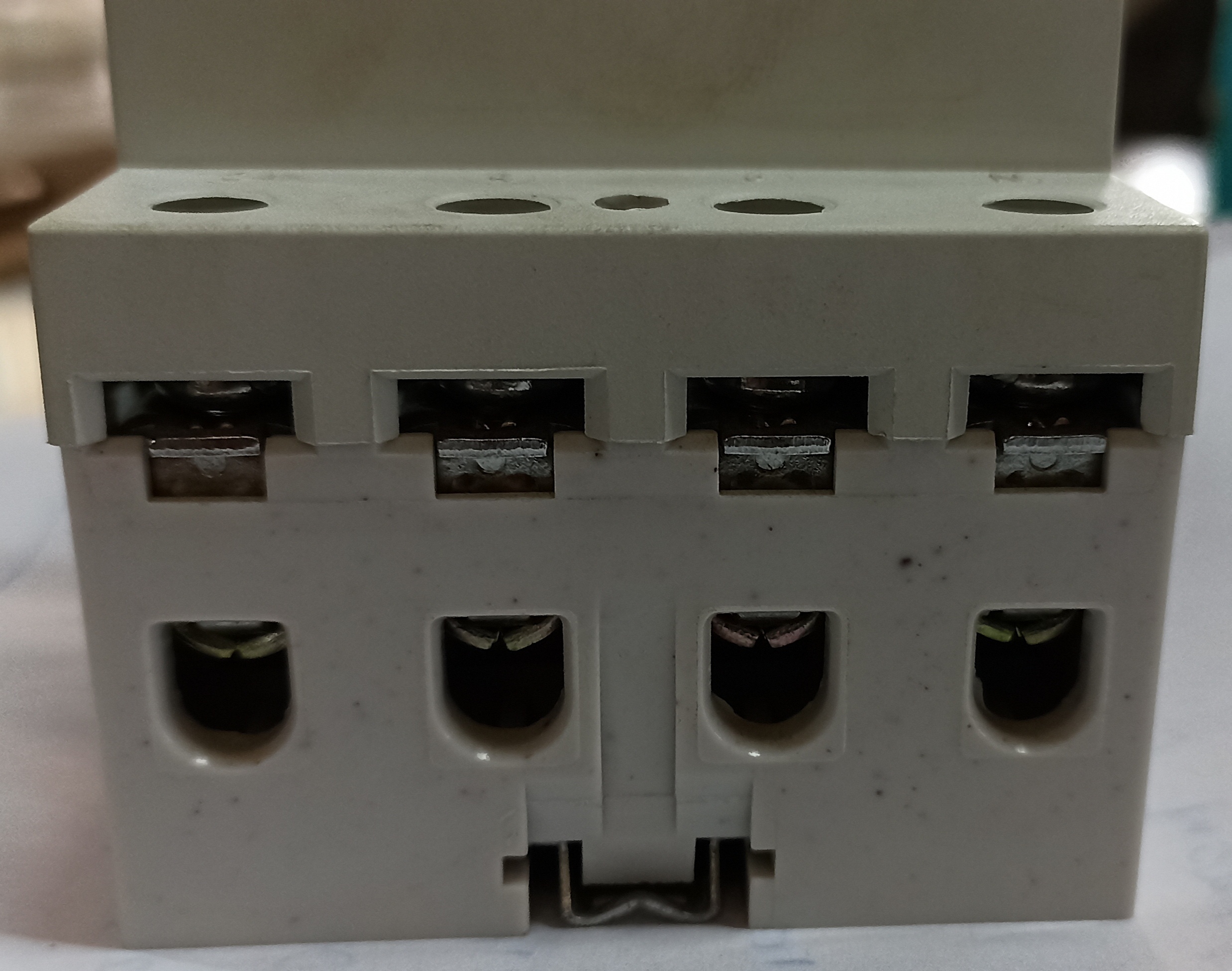

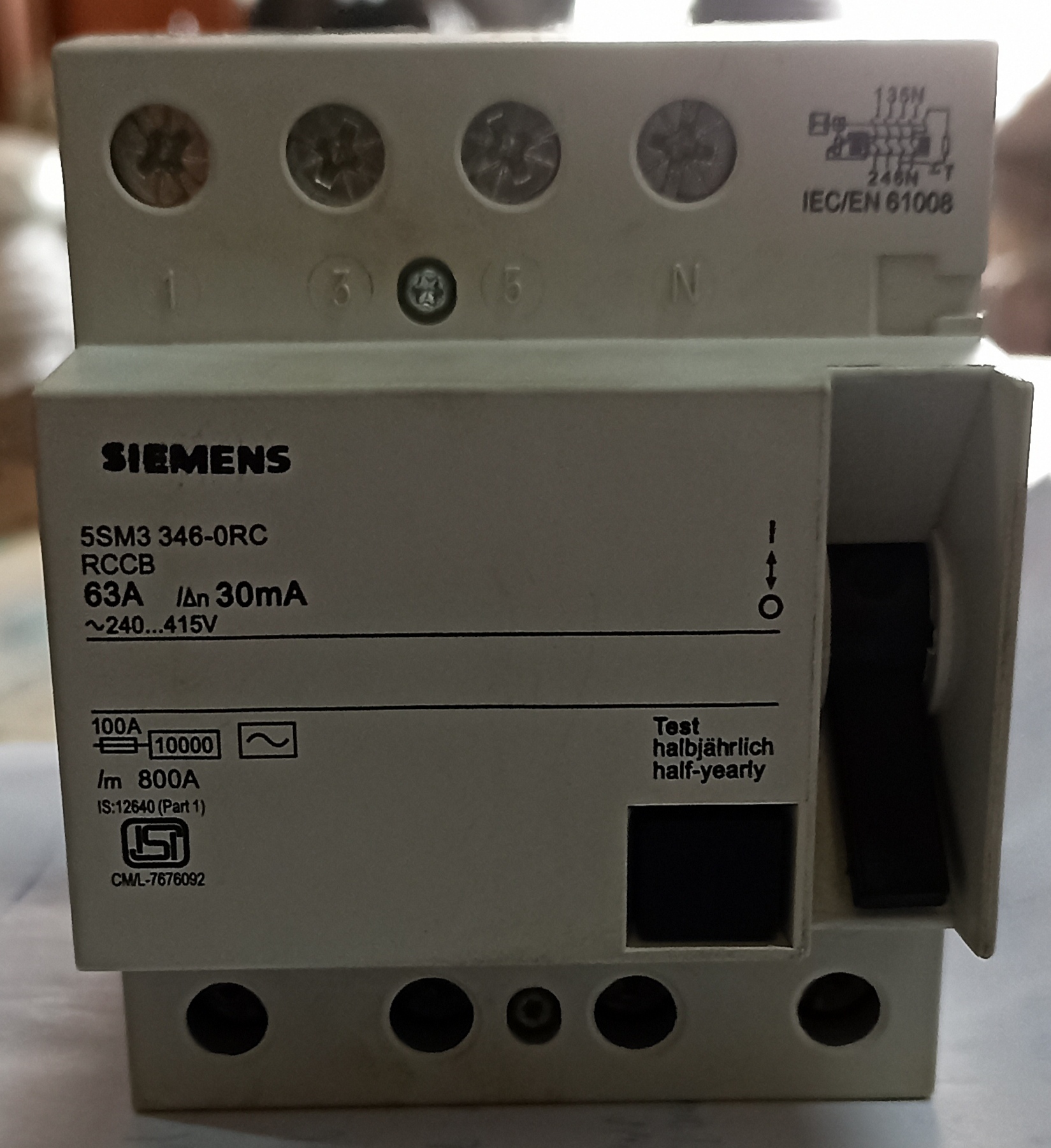

SIEMENS 63A 4P RCCB

Get a Price/Quote

SIEMENS 63A 4P RCCB Specification

Mounting Type
DIN Rail Mounting

Efficiency
High

Shape
Rectangular

Power Factor
>0.95

Insulation Material
High Grade Plastic

Surface Finish
Smooth

Feature
Trip Indicator Window, Dual Terminal, Safe Touch

Humidity %
95%

Operating Temperature
-5C to +40C

Overheating Protection
YES

Connector Type
Screw Type Terminal

IP Rating
IP20

Product Type
Residual Current Circuit Breaker (RCCB)

Application
Electrical Protection in Power Distribution

Protection Level
30 mA Sensitivity

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
4P Output

Color
White & Green

Dimension (L*W*H)
76 mm x 72 mm x 68 mm

Weight
390 g

Phase
Three Phase

Input Voltage
415 V AC

Size
Standard DIN Rail

No Of Poles
4 Pole

Connection Type
Screw Terminal

Material
High Grade Plastic Housing

Dielectric Strength
2.5 kV

Tripping Class
AC Type

Breaking Capacity
10 kA

Tightening Torque
2.5 Nm

Safety Marking
CE Marked

Rated Current
63A

Terminal Capacity
35 mm² Cu/Al

Electrical Life
10,000 Operations

Mechanical Life
20,000 Operations

Resistance to Short Circuit
Yes

Operating Position
Any Position

SIEMENS 63A 4P RCCB Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About SIEMENS 63A 4P RCCB

SIEMENS 63A 4P RCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Residual Current Circuit Breaker (RCCB)

Make :- Siemens

Ampere :- 63A

Number Of Pole :- 4P

In :- 30 mA

Im :- 800A

Voltage :- 240 / 415V AC

Frequency :- 50 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Advanced Electrical Protection

Engineered for superior safety, the SIEMENS 63A 4P RCCB responds to leakage currents, providing 30 mA sensitivity to minimize electrical hazards. Its robust mechanical and electrical life cycles ensure long-term reliability, while the 4-pole design is ideal for comprehensive protection in three-phase installations.

Versatile Mounting and Connectivity

This RCCB fits standard DIN rail mounting and supports screw-type terminals for secure connections. Its terminal capacity accommodates cables up to 35 mm2 Cu/Al, making installation flexible for diverse electrical setups. The device operates efficiently across a wide temperature range and high humidity conditions.

Efficient and Safe Operation

With a high dielectric strength of 2.5 kV, excellent power factor, and low energy consumption, this RCCB delivers efficient performance. The trip indicator window and safe touch finish enhance user safety, while CE marking guarantees compliance with international safety standards.

FAQ's of SIEMENS 63A 4P RCCB:

Q: How does the SIEMENS 63A 4P RCCB enhance electrical safety in power distribution systems?

A: The RCCB detects leakage currents above 30 mA and trips the circuit to prevent electrical shock and fire hazards, ensuring comprehensive protection for three-phase power distribution.

Q: What is the correct process for mounting and connecting this RCCB in an electrical panel?

A: The device is designed for standard DIN rail mounting; connect cables up to 35 mm2 Cu/Al using the screw terminals, and tighten them to 2.5 Nm for secure installation. Ensure input voltage is 415 V AC and observe the trip indicator window for operation status.

Q: When should this RCCB be used in electrical installations?

A: It is recommended for use in residential, commercial, or industrial setups requiring protection against earth leakage, overheating, and short circuits, especially in three-phase systems with a 415 V AC supply.

Q: Where can this SIEMENS RCCB be installed for optimal protection?

A: The RCCB can be installed in any operational position within power distribution boards, thanks to its adaptable design and IP20-rated enclosure, ensuring safety in environments such as homes, offices, factories, and public buildings.

Q: What are the key benefits of using a 4-pole RCCB with a 63A rating?

A: It offers extensive protection across all phases in three-phase electrical systems, high breaking capacity (10 kA), and resistance to short circuits, enhancing the overall safety and reliability of the electrical infrastructure.

Q: How does the trip indicator window assist in the usage of the RCCB?

A: The trip indicator window visually alerts users to circuit trips, simplifying maintenance and quickly identifying fault conditions, thereby minimizing downtime and ensuring continual safety.
