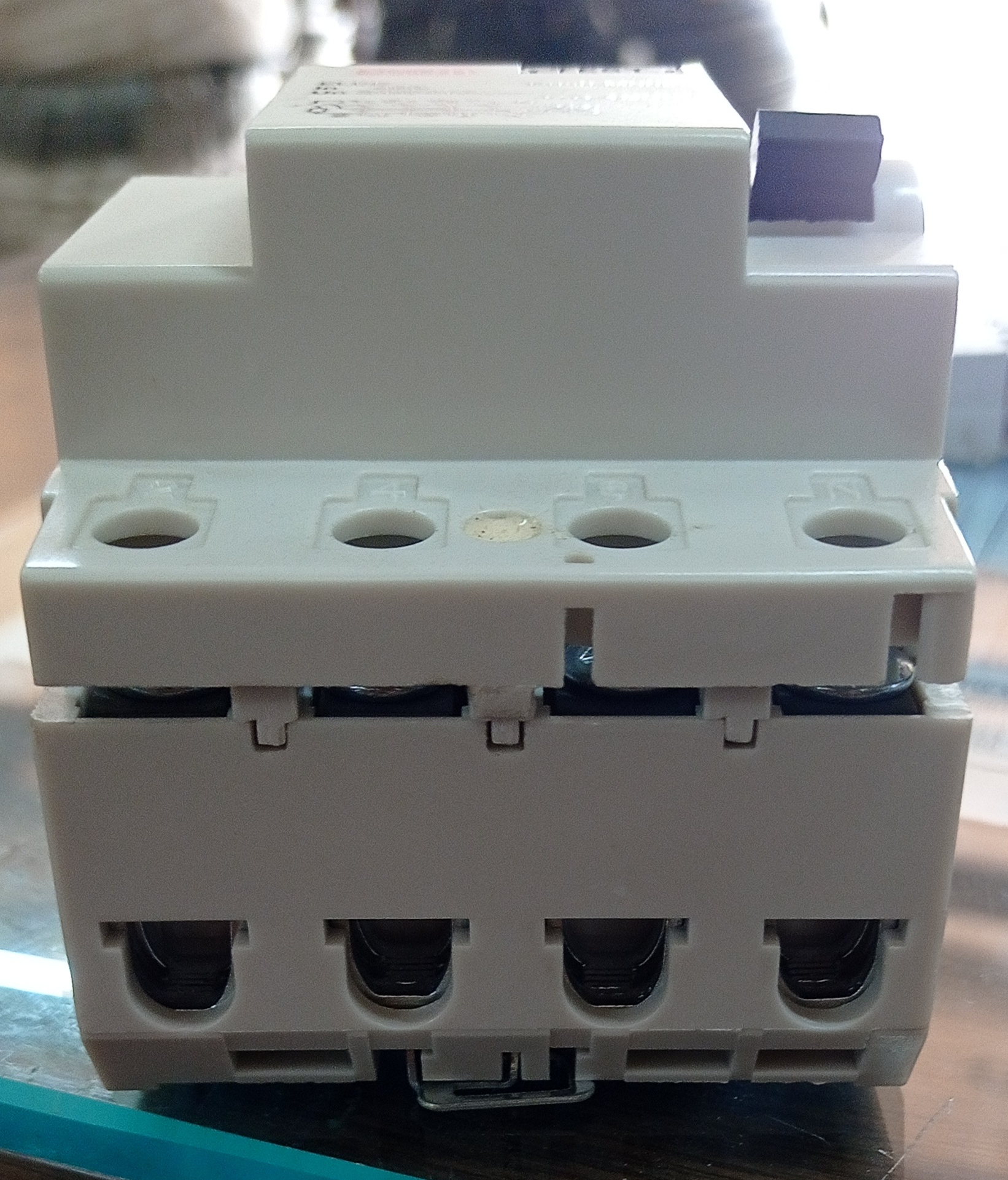

ABB 40A FP RCCB

Get a Price/Quote

ABB 40A FP RCCB Specification

Surface Finish
Matte Finish

Humidity %
95% RH (non-condensing)

Shape
Rectangular

IP Rating
IP20

Overheating Protection
YES

Mounting Type
DIN Rail Mounting

Insulation Material
Thermoplastic

Connector Type
Screw Connector

Feature
High Breaking Capacity, Compact Design, Easy Installation, Reliable Operation

Operating Temperature
-5C to +40C

Efficiency
High

Product Type
Residual Current Circuit Breaker (RCCB)

Application
Protection against leakage current, electric shock & fire in electrical circuits

Protection Level
30 mA Sensitivity, Leakage Protection

Frequency (MHz)
50 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Manual Reset

Color
White with Grey Toggle

Dimension (L*W*H)
81 x 72 x 36 mm

Weight
390 g

Input Voltage
415 V AC

Phase
Three Phase + Neutral

Size
Standard

Connection Type
Screw Terminal

Material
High Quality Plastic and Metal

No Of Poles
Four Pole (4P)

Tripping Time
<0.1 sec at rated residual current

Rated Conditional Short-Circuit Current
10 kA

RoHS Compliance
Yes

Ambient Storage Temperature
-25°C to +70°C

Mechanical Life
> 20,000 operations

Rated Current
40 Ampere

Electrical Life
> 10,000 operations

Vibration Resistance
Yes, as per IEC 60068-2-6

Tightening Torque
2 Nm

Operating Mechanism
Toggle Lever

Pollution Degree
2

ABB 40A FP RCCB Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ABB 40A FP RCCB

ABB 40A 4P RCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- RCCB (Residual Current Circuit Breaker)

Make :- ABB

Ampere :- 40A

Number Of Pole :- 4P

In :- 100 mA

Un :- 240 / 415V AC

Frequency :- 50 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Comprehensive Leakage and Shock Protection

This RCCB delivers high-performance safety against electric shock and leakage current, with a sensitivity of 30 mA, ensuring rapid disconnection within 0.1 seconds when hazardous conditions arise. It provides peace of mind in electrical circuits by minimizing fire and accident risks.

Robust Construction and Long Life

Engineered for durability, the ABB 40A FP RCCB features a mechanical life of over 20,000 operations and an electrical life exceeding 10,000 cycles. Its rugged design withstands harsh environmental factors thanks to excellent vibration resistance and a wide operating temperature range.

Easy Installation and Reliable Operation

The compact, rectangular device is designed for convenient DIN rail mounting with secure screw terminals. Its toggle lever mechanism simplifies manual reset and operation. The matte finish and clearly indicated grey toggle enhance usability and visual appeal in any electrical panel.

FAQ's of ABB 40A FP RCCB:

Q: How does the ABB 40A FP RCCB protect against electric shock and fire?

A: The ABB 40A FP RCCB detects leakage currents above 30 mA and disconnects the circuit within 0.1 seconds, preventing electric shocks and reducing the risk of fire caused by earth faults.

Q: What is the installation process for this RCCB?

A: This RCCB is designed for easy DIN rail mounting and features screw terminals for secure electrical connections, making installation straightforward for qualified electricians.

Q: Where can the ABB 40A FP RCCB be used?

A: It is suitable for residential, commercial, and industrial environments requiring three-phase plus neutral protection at 415V AC, making it versatile for various applications in India.

Q: When should I replace or reset the RCCB?

A: You should reset the device via the toggle lever after any trip event. Replacement is recommended if the RCCB fails to reset or shows signs of mechanical wear after extensive use (over 10,000-20,000 operations).

Q: What are the environmental limits for safe operation and storage?

A: The RCCB operates reliably between -5C to +40C, stores safely from -25C to +70C, and maintains performance in up to 95% non-condensing relative humidity.

Q: What benefits does this product offer over standard circuit breakers?

A: Unlike conventional breakers, this RCCB provides sensitive leakage current detection and rapid response, high reliability, compact design, and compliance with IEC and RoHS standards, ensuring both user safety and environmental responsibility.
