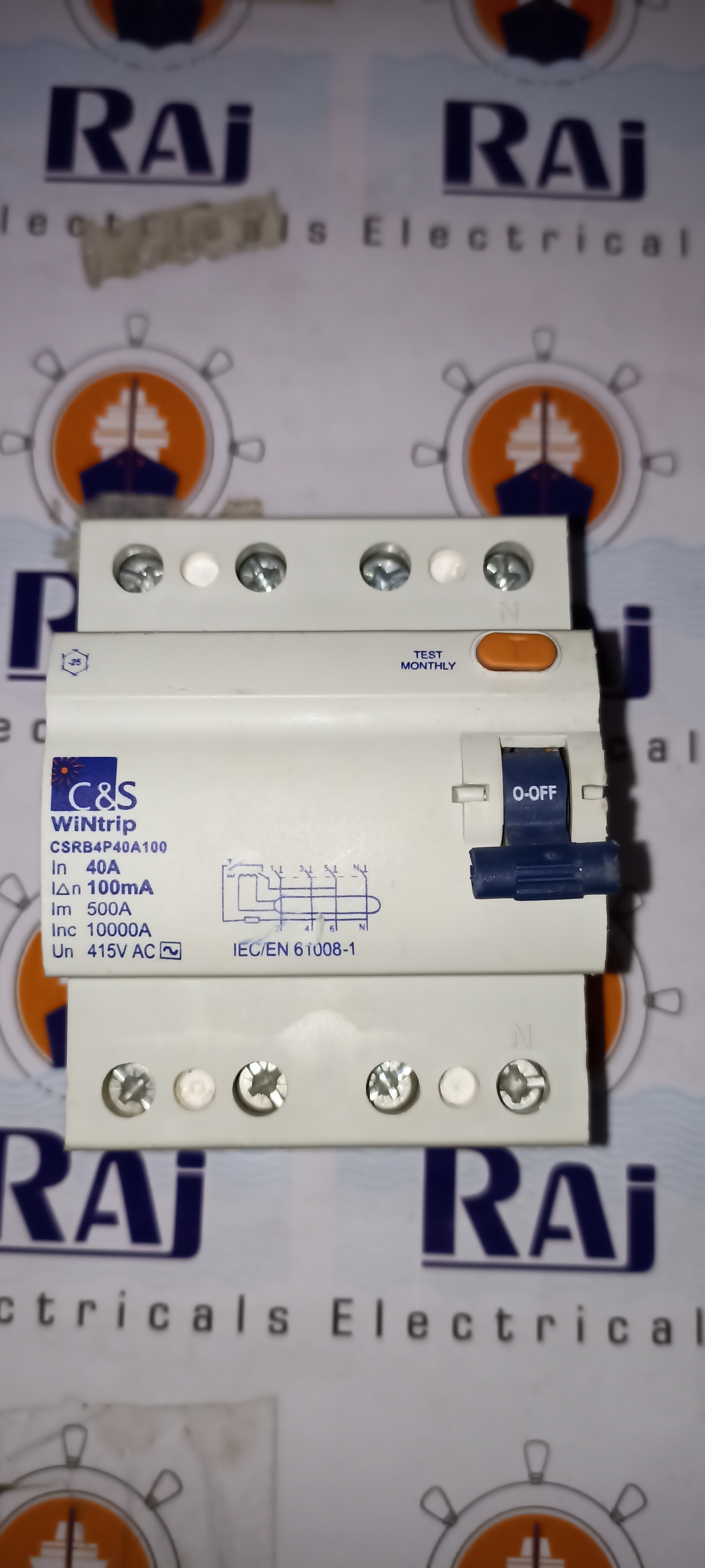

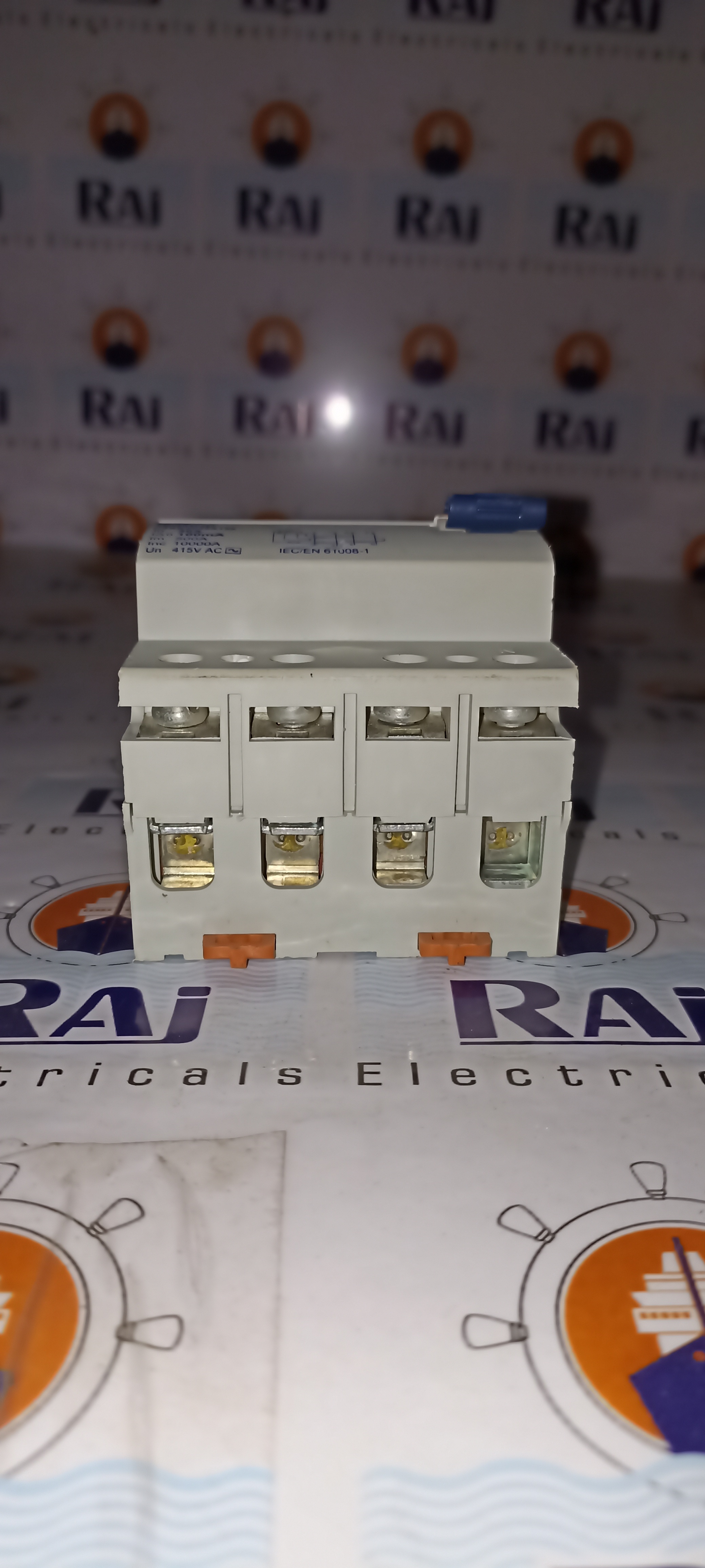

CandS 40A 4P RCCB

Get a Price/Quote

CandS 40A 4P RCCB Specification

IP Rating
IP20

Surface Finish
Glossy

Humidity %
Up to 95% RH

Feature
Trip indication, Fast operation, Reliable performance

Shape
Rectangular

Overheating Protection
YES

Operating Temperature
-5C to +40C

Insulation Material
Flame retardant plastic

Connector Type
Screw terminal connectors

Mounting Type
DIN Rail Mounting

Efficiency
High

Product Type
RCCB (Residual Current Circuit Breaker)

Application
Residential, Commercial, Industrial Electrical Panels

Protection Level
30 mA Sensitivity for Earth Leakage protection

Frequency (MHz)
50 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Manual reset type

Color
White & Orange

Dimension (L*W*H)
approx. 80 mm x 70 mm x 36 mm

Weight
420 g

Size
Standard modular

Phase
Three Phase

Input Voltage
415 V

Material
High grade plastic & copper

No Of Poles
4 Pole

Connection Type
Screw Terminal

Response Time
Less than 30 ms

Breaking Capacity
10 kA

Rated Current
40 Amp

Sensitivity (mA)
30 mA

Mechanical Endurance
10,000 Operations

Test Button
Provided for regular testing

Electrical Endurance
4,000 Cycles

Type
Electro-mechanical

Recommended Cable Size
Up to 16 sq.mm

CandS 40A 4P RCCB Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About CandS 40A 4P RCCB

Raj Electricals Offering C&S 40A 4P RCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- RCCB (Residual Current Circuit Breaker)

Make :- C&S

Ampere :- 40A

Number Of Pole :- 4P

Earth Leakage Sensitiity :- 100mA

Voltage :- 415V AC

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Reliable Earth Leakage Protection

Engineered for superior safety, the CandS 40A 4P RCCB delivers fast and accurate earth leakage detection with 30 mA sensitivity and a rapid response time of less than 30 ms. It is ideal for installation in residential, commercial, and industrial panels requiring dependable protection against electric shock and fire hazards. The product's mechanical and electrical endurance ensures minimal maintenance and long operational life.

User-Friendly and Durable Design

The RCCB comes with a conveniently located test button for routine maintenance and trip indication for clear status monitoring. Designed with flame-retardant high-grade plastic, a glossy finish, and screw terminal connectors, it offers both durability and ease of installation. Its standard modular size ensures compatibility with a range of electrical panels, while the sturdy construction withstands demanding environments.

Versatile Applications and Simple Installation

Supporting cable sizes up to 16 sq.mm and rated for 415 V AC, this RCCB is suitable for three-phase systems found in various applications. The screw terminal design facilitates secure connections, while the DIN rail mounting enables quick integration into existing setups. Energy-efficient operation and low energy consumption make it a sustainable choice for diverse installation needs.

FAQ's of CandS 40A 4P RCCB:

Q: How does the CandS 40A 4P RCCB help protect electrical systems?

A: This RCCB rapidly detects earth leakage currents above 30 mA and disconnects the circuit within 30 ms, helping to prevent electric shock and minimize fire risks in residential, commercial, and industrial setups.

Q: What cable size should I use with the CandS 40A 4P RCCB?

A: The recommended cable size for this RCCB is up to 16 sq.mm, ensuring both safety and optimal performance. Using the correct cable size helps maintain the device's rated current capability of 40 Amps.

Q: When should I use the test button on the RCCB?

A: It is advisable to use the test button at least once a month. Regular testing ensures that the RCCB is functioning properly and will reliably trip in case of a real earth leakage event.

Q: Where can I install this RCCB?

A: This device can be installed in residential, commercial, or industrial electrical panels. Its standard DIN rail mounting makes it suitable for most modern electrical distribution boards supporting three-phase systems.

Q: What is the process to reset the RCCB after it trips?

A: After the RCCB trips, first ensure the cause of the fault is resolved. Then, manually reset the RCCB by switching the reset lever back to the 'ON' position to restore power safely.

Q: What are the benefits of the CandS 40A 4P RCCB's generous endurance ratings?

A: With mechanical endurance of 10,000 operations and electrical endurance of 4,000 cycles, the RCCB provides long-lasting reliability and minimizes maintenance frequency over its service life.
