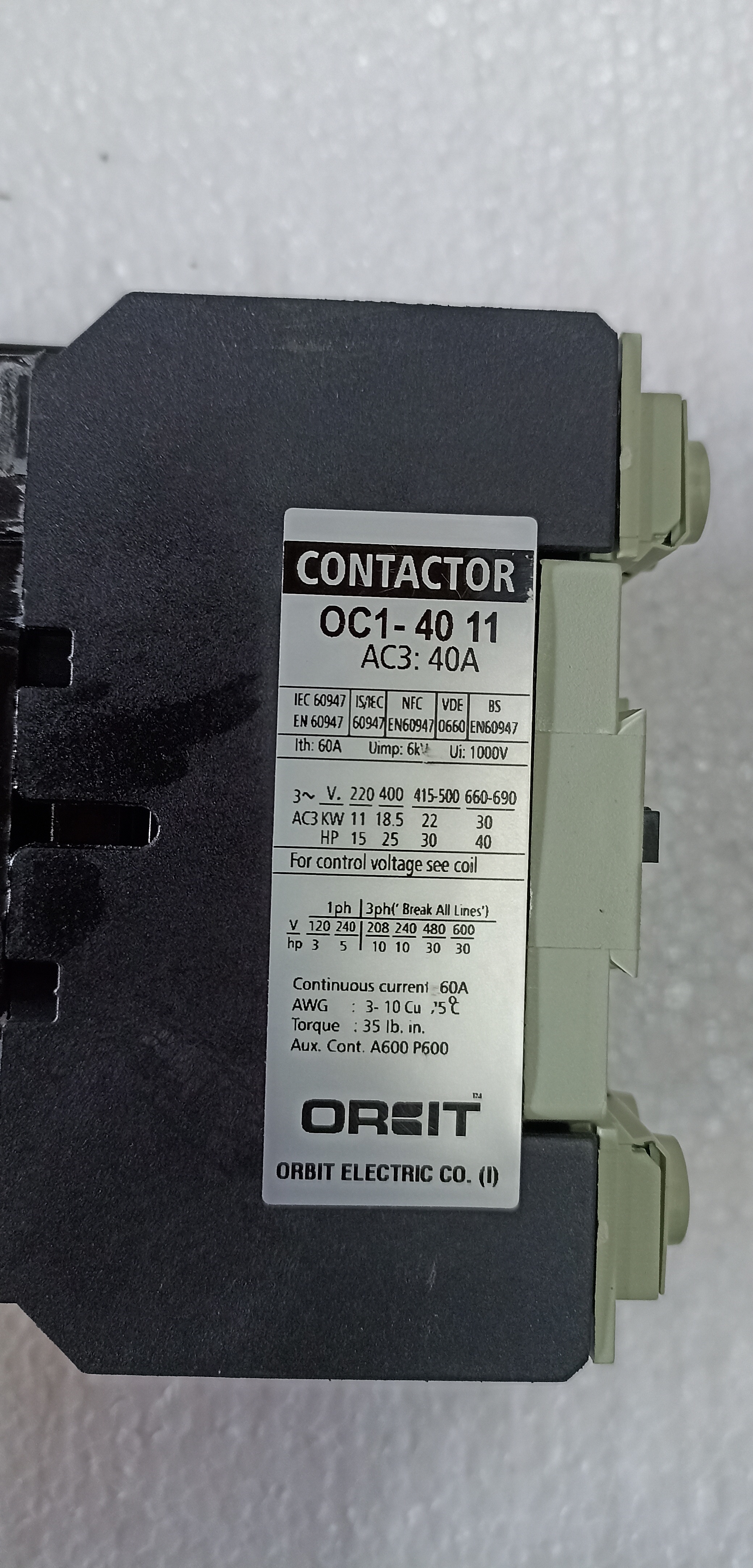

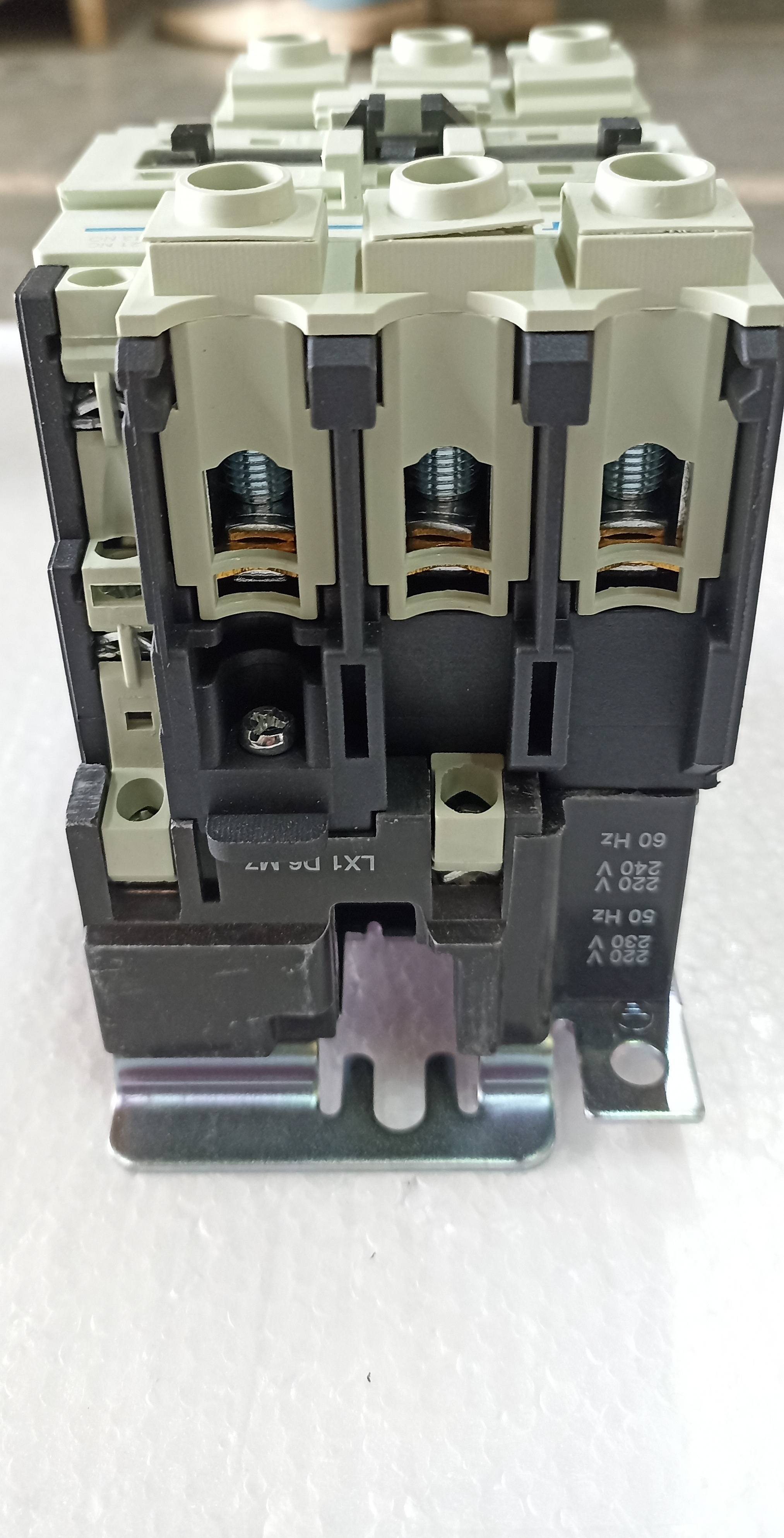

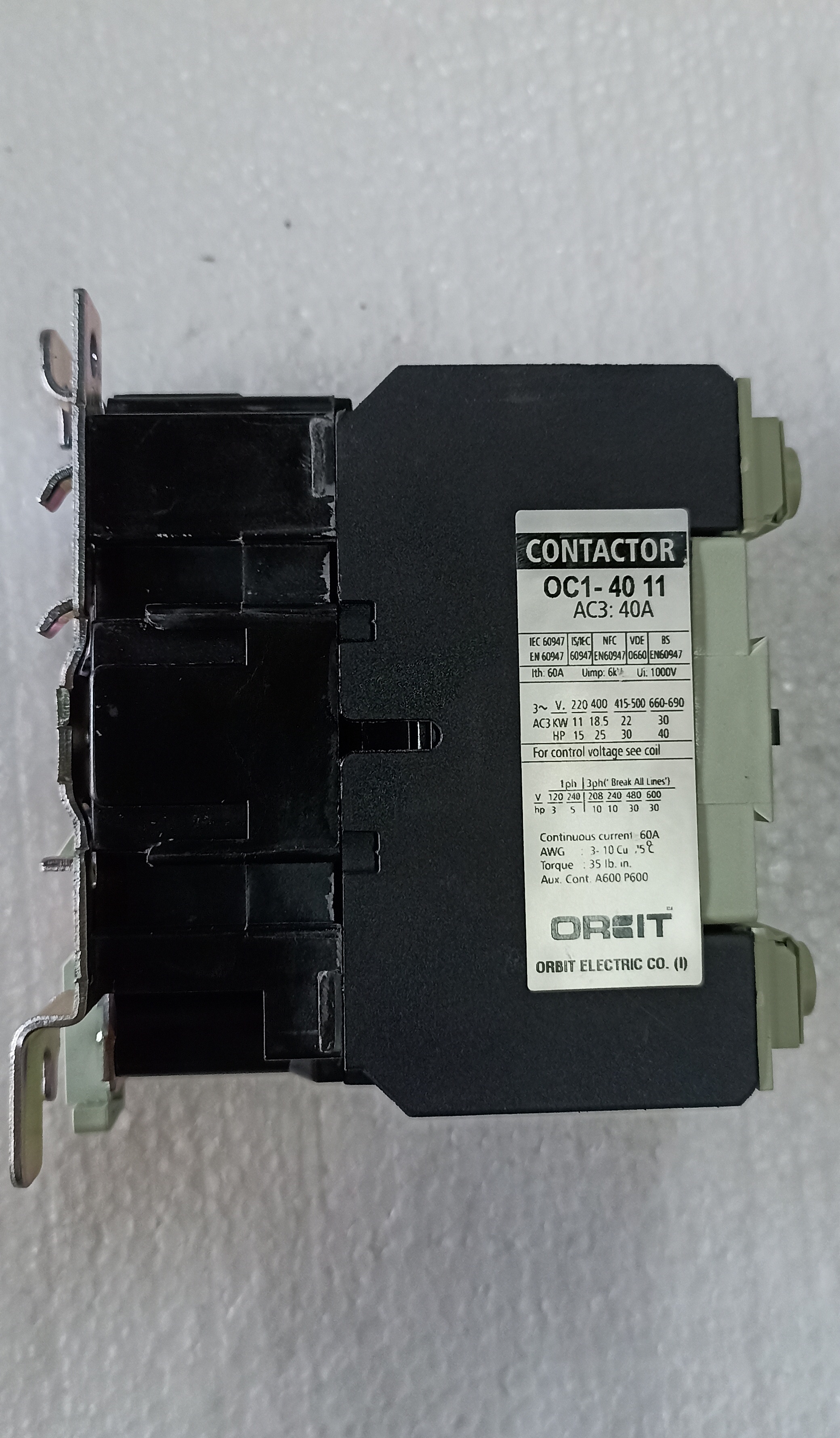

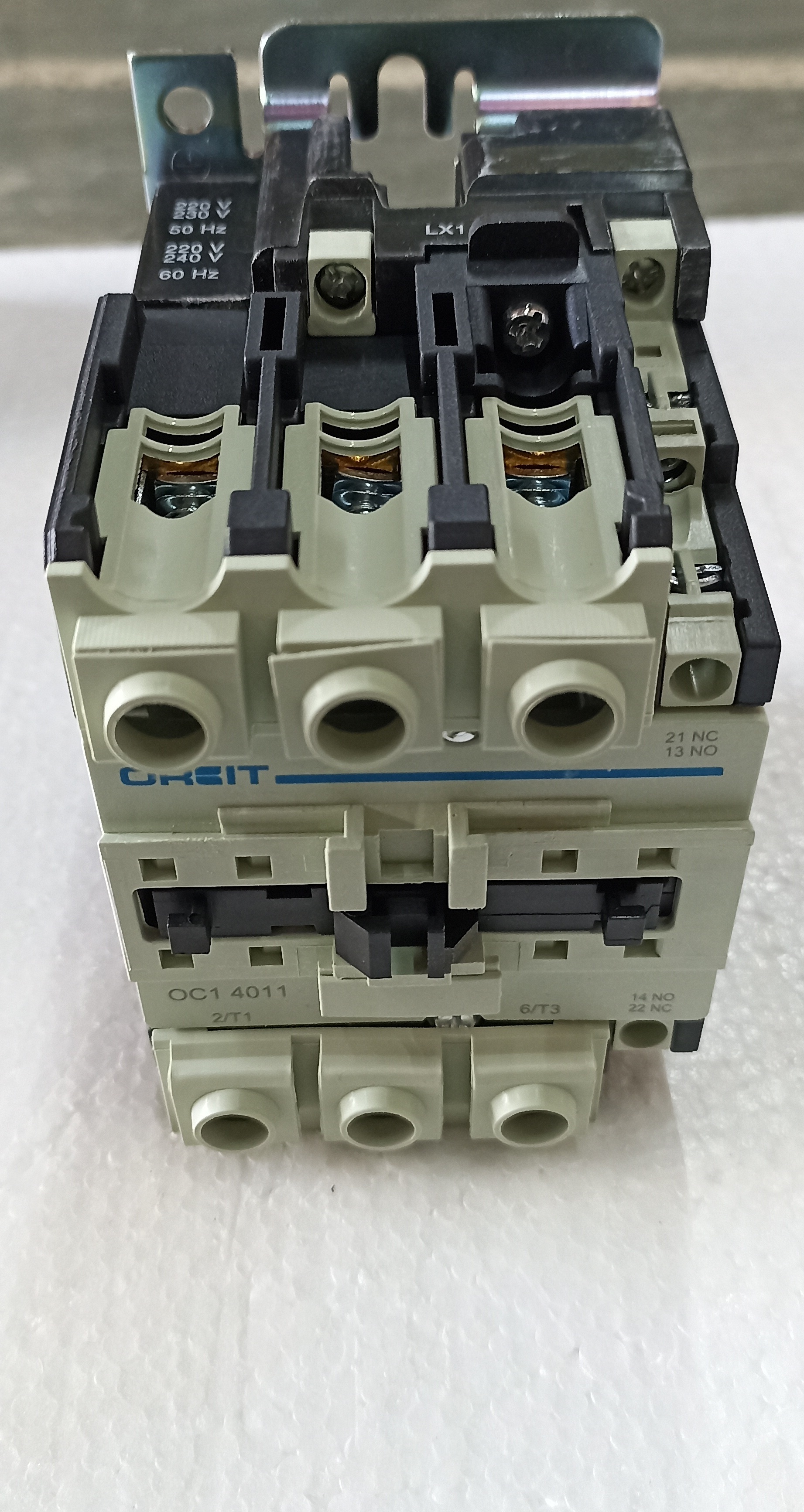

ORBIT 40A CONTACTOR

Get a Price/Quote

ORBIT 40A CONTACTOR Specification

Humidity %
≤ 95% RH

Mounting Type
DIN Rail

Connector Type
Screw Type

Shape
Rectangular

Insulation Material
High Grade Plastic

Operating Temperature
-5°C to +40°C

Power Factor
0.95

IP Rating
IP20

Surface Finish
Matte

Feature
Silent Operation, High Reliability, Long Service Life

Efficiency
>98%

Overheating Protection
YES

Product Type
Modular Contactor

Application
AC Power Control, Lighting Circuits, Motor Control

Protection Level
IP20

Frequency (MHz)
50 Hz

Rated Voltage
230V AC

Energy Consumption
Low Power Consumption

Output Type
Normally Open (NO)

Color
White and Blue

Dimension (L*W*H)
70 mm x 35 mm x 60 mm

Weight
230 g

Size
Standard DIN Rail Mounting

Phase
Single Phase

Input Voltage
230V AC

Material
Flame Retardant Plastic and Copper

Connection Type
Screw Terminal

No Of Poles
2P

Contact Material
Silver Alloy

Coil Voltage
220-240V AC

Response Time
< 20 ms

Electrical Life
100,000 Operations

Rated Current
40A

Ambient Storage Temperature
-25°C to +70°C

Vibration Resistance
10-55 Hz, 1.0 mm

Standards Compliance
IEC 60947-4-1

Mechanical Life
1,000,000 Operations

Shock Resistance
10G

ORBIT 40A CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Sample Available
Yes

Main Domestic Market
All India

About ORBIT 40A CONTACTOR

Orbit 40A Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Magnetic Contactor

Make :- Orbit

Condition :- New

Ampere :- 40A

KW :- 22 Kw

Coil Voltage :- 220v/50 Hz

Aux. Contact :- 1 NO

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Robust Reliability in Switching

Engineered for durability and longevity, the ORBIT 40A Contactor offers a mechanical life of over one million operations. Silver alloy contacts and a premium insulating plastic ensure consistent performance, even in challenging conditions. Its built for high-reliability power control, reducing maintenance and replacement needs.

Versatile Application Capabilities

Ideal for AC power management, lighting, and motor control, the ORBIT 40A Contactor fits a wide range of installation scenarios. With its single phase, 2-pole design and DIN rail mounting compatibility, the device integrates seamlessly into standard electrical panels for both new and retrofit projects.

Efficient and Safe Operation

The contactors low energy consumption, high efficiency (>98%), and built-in overheating protection combine to provide dependable operation with minimal risk. Its IP20-rated enclosure and flame retardant materials maximize safety for both the operator and equipment, even in humid or vibration-prone environments.

FAQs of ORBIT 40A CONTACTOR:

Q: How is the ORBIT 40A Contactor typically installed in electrical systems?

A: The ORBIT 40A Contactor features a standard DIN rail mounting design and screw terminals, making installation straightforward in both commercial and industrial electrical panels.

Q: What are the main applications for this contactor?

A: This contactor is most commonly used in AC power control, lighting circuits, and motor control applications. Its design supports reliable switching and protection for a variety of single-phase installations.

Q: When should I consider replacing the ORBIT 40A Contactor?

A: Replacement is suggested after 100,000 electrical switching operations or if mechanical operation becomes irregular. Routine preventive maintenance can also help determine its serviceability.

Q: Where is the ORBIT 40A Contactor best suited for use?

A: The device is ideal for indoor electrical panels in industrial, commercial, and residential settings, thanks to its IP20 protection, robust vibration and shock resistance, and ambient temperature tolerance.

Q: What procedures should be followed for safe operation and maintenance?

A: Always ensure the contactor is de-energized before maintenance. Inspect for proper screw terminal tightness and check for dust or overheating signs. Replace the unit if insulation degrades or performance drops.

Q: How does the ORBIT 40A Contactor benefit electrical systems compared to standard models?

A: It offers silent operation, high efficiency (over 98%), rapid response, reliable protection with flame retardant housing, low power consumption, and an extended service life, making it a superior choice for demanding switching applications.
