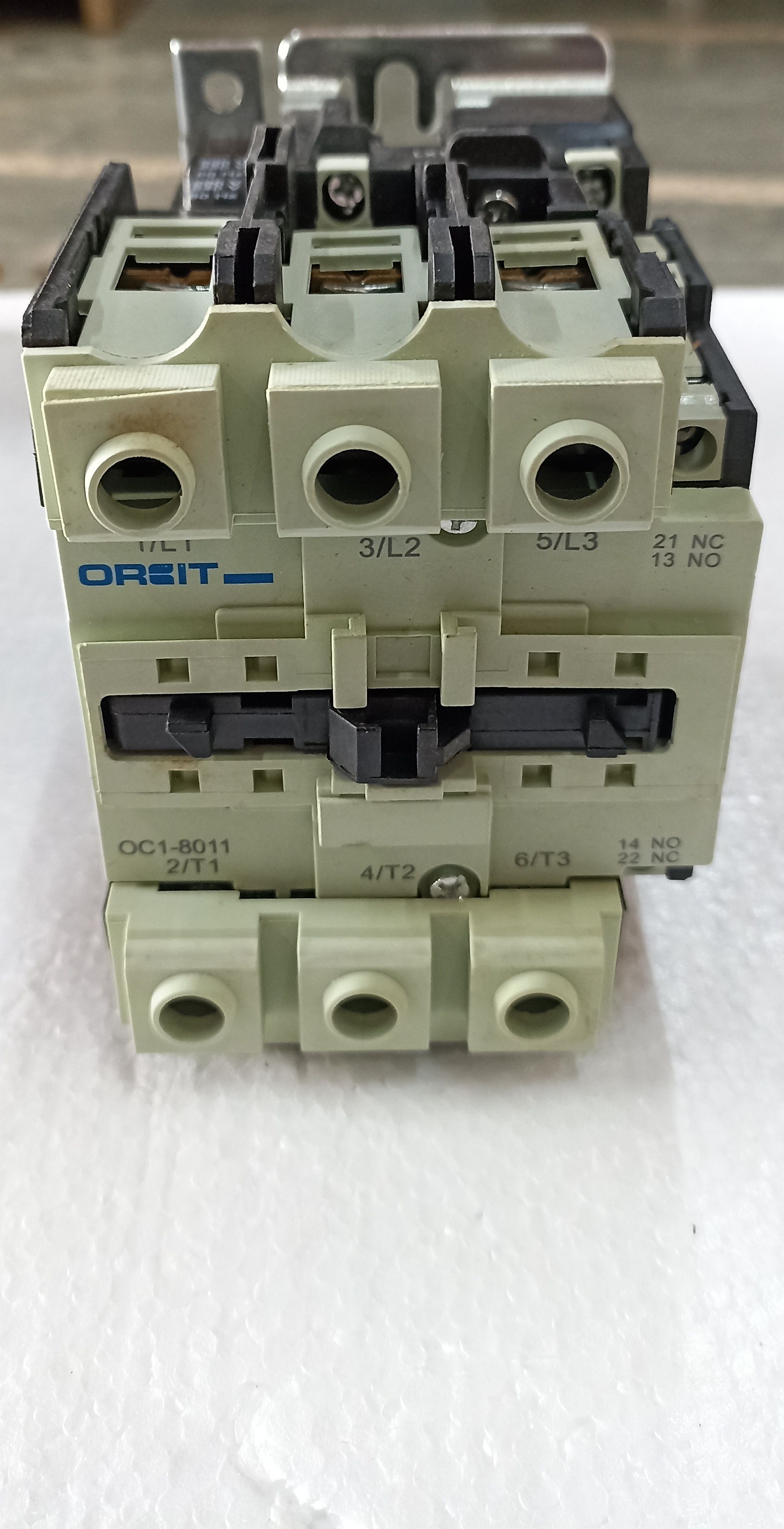

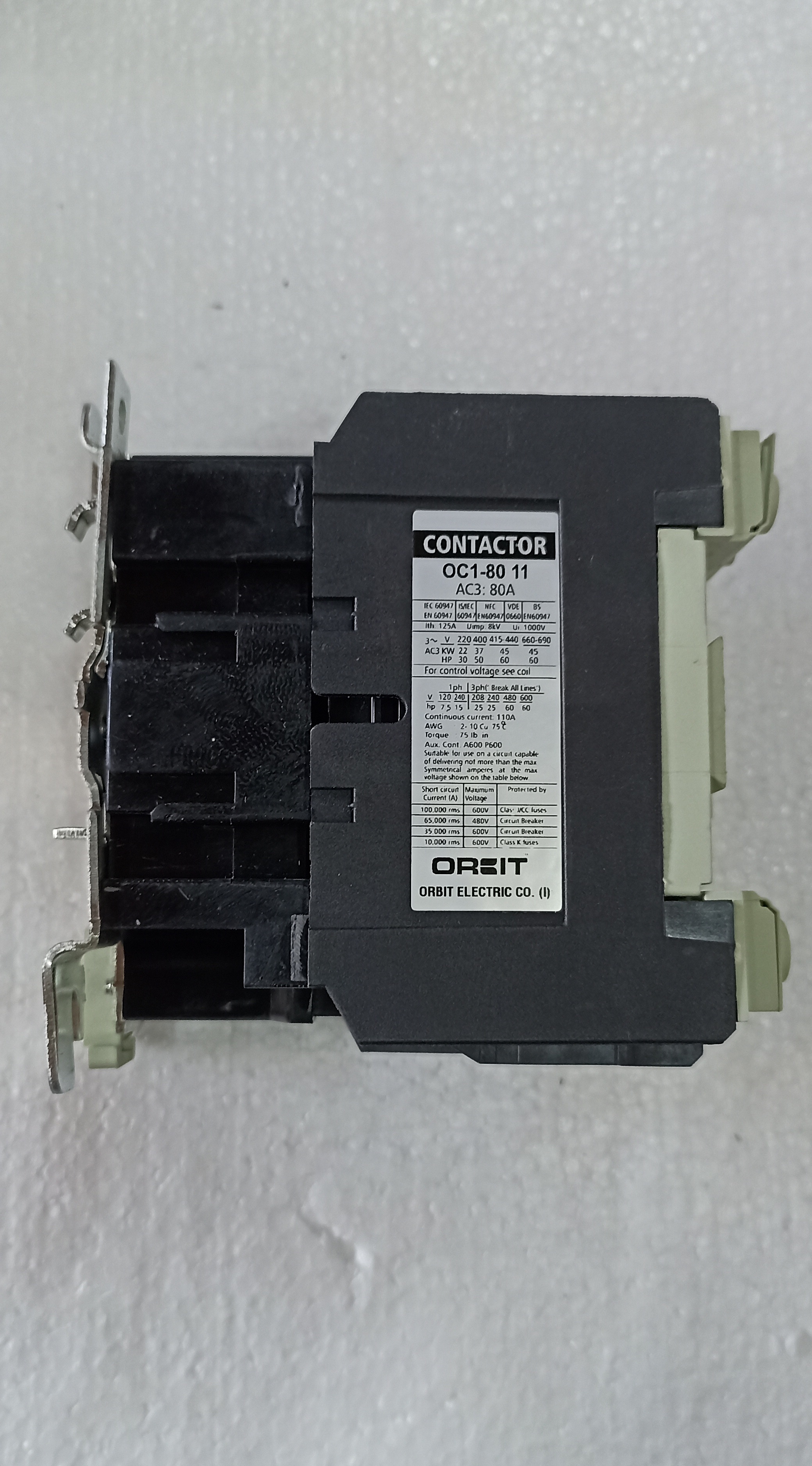

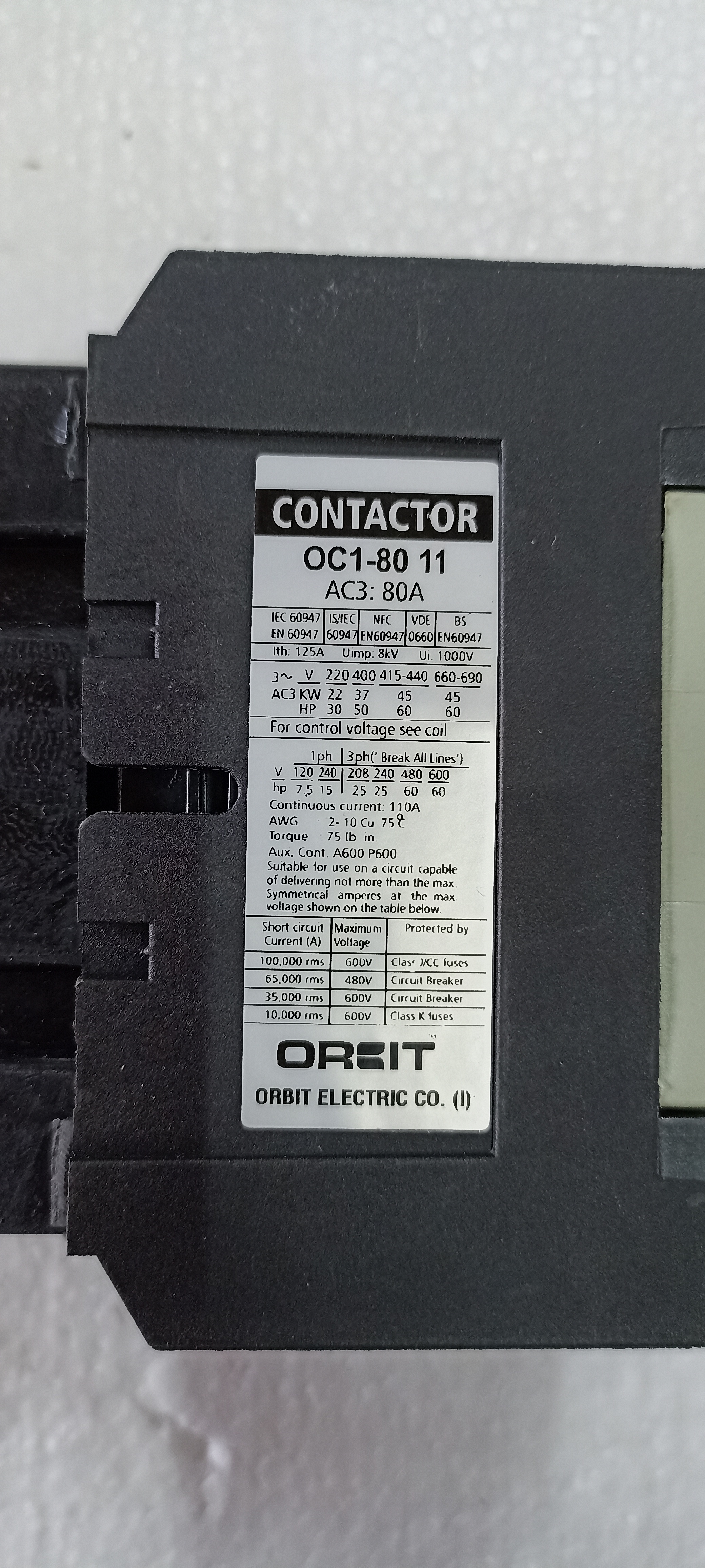

ORBIT 80A CONTACTOR

Get a Price/Quote

ORBIT 80A CONTACTOR Specification

Efficiency
High

Surface Finish
Matte

Connector Type
Screw

Feature
High Durability, Reliable Performance

Insulation Material
Thermoplastic

IP Rating
IP20

Power Factor
0.95

Overheating Protection
Yes (Thermal Overload Compatible)

Operating Temperature
-5°C to +55°C

Mounting Type
DIN Rail/Panel Mount

Shape
Rectangular

Humidity %
≤ 95% RH

Product Type
Contactor

Application
Industrial, Motor Control, Power Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
415 VAC

Energy Consumption
Low

Output Type
AC

Color
Black & White

Dimension (L*W*H)
Approx. 85 x 82 x 91 mm

Weight
Approx. 470 g

Size
Standard

Phase
Three Phase

Input Voltage
220-240 VAC (Coil)

Material
Plastic and Copper

Connection Type
Screw Terminal

No Of Poles
3 Pole

ORBIT 80A CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ORBIT 80A CONTACTOR

Raj Electricals Offering Orbit New 80A Contactor At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Magnetic Contactor

Make :- Orbit

Ampere :- 80A

Kw :- 45 Kw

Condition :- New

Coil Voltage :- 220v/50 Hz

Aux. Contact :- 1 NO

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

High Performance and Durability

Built to handle up to 80A AC-3 at 415 VAC, the ORBIT 80A Contactor is designed for continuous operation and demanding industrial tasks. Its copper and silver alloy contacts, combined with a robust thermoplastic enclosure, ensure reliable conductivity and high resistance to wear. The unit withstands vibrations up to 5g and shocks up to 10g (11 ms), resulting in less downtime and extended service life.

Flexible Installation and Application

With both DIN rail and panel mount options, the ORBIT 80A Contactor adapts easily to diverse setups. Its standard size and screw terminals simplify connections, making it suitable for protection, motor control, and power circuits across diverse industries. The matte-finish black and white enclosure delivers a modern appearance while supporting operational temperatures from -5C to +55C.

FAQs of ORBIT 80A CONTACTOR:

Q: How do I install the ORBIT 80A Contactor in my industrial setup?

A: The ORBIT 80A Contactor offers flexible mounting options, including both DIN rail and panel mount. The screw terminal connections allow for straightforward wiring. Always follow the specific wiring diagram provided with the product and ensure that all electrical work is performed by a qualified technician in accordance with safety standards.

Q: What are the main benefits of choosing the ORBIT 80A Contactor for motor control?

A: This contactor provides high reliability with an electrical life of up to 1,000,000 operations, low energy consumption, and silver alloy contacts for superior conductivity. Its robust design resists vibration and shock, and it features overheating protection with thermal overload compatibility, making it ideal for industrial motor control applications.

Q: Where can I use the ORBIT 80A Contactor?

A: The contactor is designed for use in industrial environments, specifically in applications such as motor control, power circuit switching, and protection systems for three-phase operations. Its IP20 rating makes it suitable for enclosed installations, and it is widely distributed and available through exporters, manufacturers, and suppliers across India.

Q: What is the process for wiring auxiliary contacts on the ORBIT 80A Contactor?

A: Auxiliary contacts (1 NO + 1 NC, optional) can be wired using the marked terminals. Consult the wiring diagram to determine the correct configuration for your control circuits. Ensure that power is disconnected before installation or maintenance to prevent electrical hazards.

Q: When is maintenance required for the ORBIT 80A Contactor?

A: Routine inspections are recommended at regular intervals based on your operational environment. Check for signs of contact wear or overheating, and verify that connections remain tight. Clean the external case as needed, ensuring the device remains protected from dust for optimal performance.

Q: How does the ORBIT 80A Contactor comply with safety and efficiency standards?

A: The product adheres to IEC 60947-4-1 and IS/IEC 60947 standards, ensuring safety and operational reliability. Its thermoplastic insulation, IP20 protection level, and compatibility with thermal overload relays contribute to high efficiency and safety in industrial power systems.
