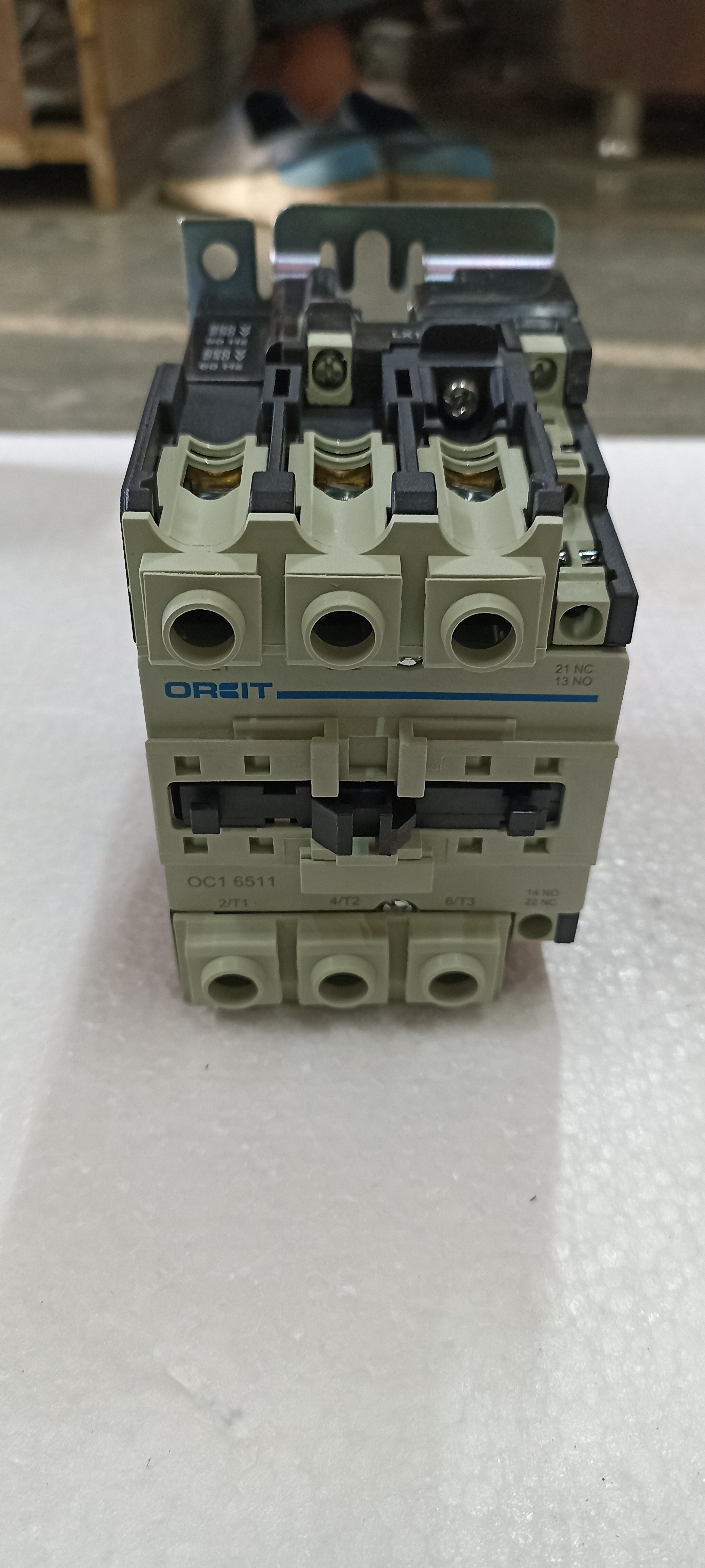

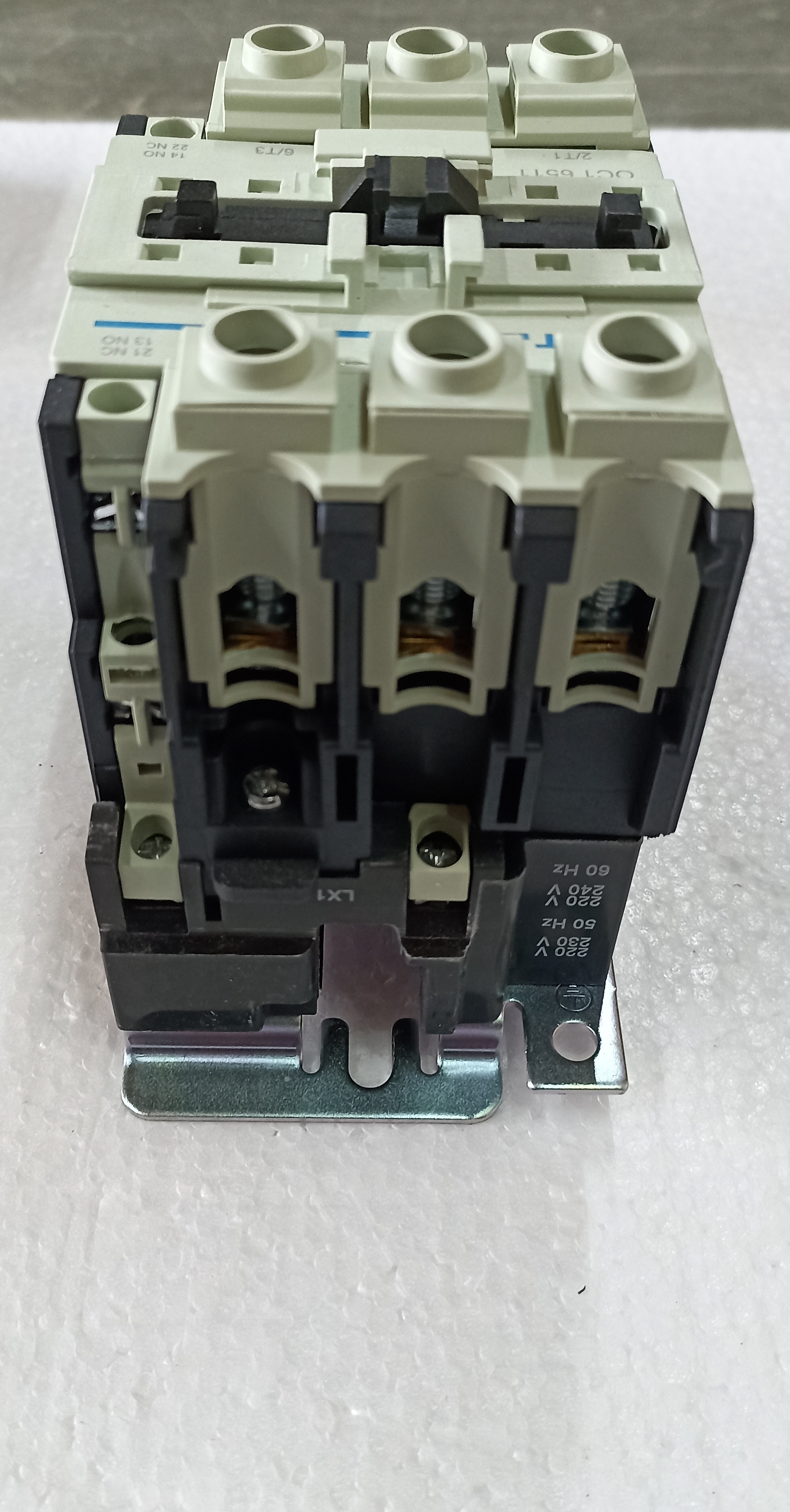

ORBIT 65A CONTACTOR

Get a Price/Quote

ORBIT 65A CONTACTOR Specification

Shape
Rectangular

Insulation Material
Polycarbonate

Feature
High Contact Reliability, Long Electrical Life

IP Rating
IP20

Overheating Protection
YES

Efficiency
High Switching Efficiency

Humidity %
Up to 85% RH (Non-condensing)

Mounting Type
DIN Rail & Panel Mounting

Operating Temperature
-5°C to 55°C

Surface Finish
Matte Finish

Connector Type
Screw Connector

Power Factor
0.7 min

Product Type
Electromagnetic Contactor

Application
Motor Starter, Industrial Control Panel, HVAC

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
220V/415V AC

Energy Consumption
Low Power Consumption

Output Type
Switching

Color
Black & White

Dimension (L*W*H)
Approx 90 x 80 x 76 mm

Weight
Approx 500g

Size
Standard

Phase
Three Phase

Input Voltage
220/415V AC

Connection Type
Screw Terminal

Material
Flame Retardant Plastic and Copper

No Of Poles
3

ORBIT 65A CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ORBIT 65A CONTACTOR

Orbit New 65A Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Magnetic Contactor

Make :- Orbit

Condition :- New

Ampere :- 65A

kw :- 37 kw

Coil Voltage :- 220v/50 Hz

Aux. Contact :- 1 NO

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Reliable Performance and Durability

The ORBIT 65A CONTACTOR is built to last, featuring silver alloy contacts and a flame-retardant plastic construction. Its endurance ratings-over a million mechanical and half a million electrical cycles-make it exceptionally dependable for motor starters, control panels, and HVAC systems. With protection features such as overheating protection and IP20-rated enclosure, reliability in diverse applications is ensured.

Flexible Installation and Operation

This contactor accommodates both DIN rail and panel mounting, providing installation versatility for various industrial environments. The broad coil voltage range (110/220/415V AC) and screw terminal connections simplify integration, while the optional auxiliary contacts offer flexibility for tailored control systems.

Safety and Compliance

Conforming to IS/IEC 60947-4-1 standards, the contactor's robust insulation (2500V dielectric strength) and IP20 protection guard against electrical hazards. Its polycarbonate insulation material and matte finish ensure safety and longevity, even in challenging environments. Withstanding up to 10 kA short circuits, it's designed for stringent safety and international compliance.

FAQ's of ORBIT 65A CONTACTOR:

Q: How do I install the ORBIT 65A CONTACTOR in my industrial control panel?

A: The ORBIT 65A CONTACTOR supports both DIN rail and panel mounting, making installation straightforward. Secure the contactor in the desired position, connect your input and output wiring using the screw terminals, and select the appropriate coil voltage (110V/220V/415V AC) as per your application's requirements.

Q: What are the main benefits of using the ORBIT 65A CONTACTOR in HVAC and motor starter applications?

A: This contactor offers high contact reliability, superior electrical and mechanical endurance, and flame-retardant construction. It provides efficient, safe switching of loads, is designed to handle frequent cycling, and includes features like overheating protection and IP20 enclosure for operational safety.

Q: When should auxiliary contacts (1 NO + 1 NC) be used with this contactor?

A: Auxiliary contacts are used when you need to perform additional signaling or interlocking functions-such as controlling indicator lights or integrating safety circuits. These are optional and can be added based on the complexity of your control system.

Q: Where is the ORBIT 65A CONTACTOR most commonly utilized?

A: It is widely used in industrial motor starters, control panels, and HVAC systems, particularly in manufacturing facilities, commercial buildings, and installations requiring dependable three-phase switching capability.

Q: What process should be followed for connecting this contactor within an electrical panel?

A: First, ensure the main power is disconnected. Mount the contactor via DIN rail or panel screws as needed. Connect supply and load cables to the dedicated screw terminals, paying careful attention to phase and coil voltage selection. Once all connections are double-checked, restore power and perform initial testing.

Q: How does the contactor ensure safety and reliability during operation?

A: With features like high dielectric strength, robust insulation, overheating protection, and IP20 enclosure, the contactor minimizes risks of electrical faults. Compliance with IS/IEC 60947-4-1 ensures it meets industry safety standards, providing consistent and reliable performance in demanding settings.
