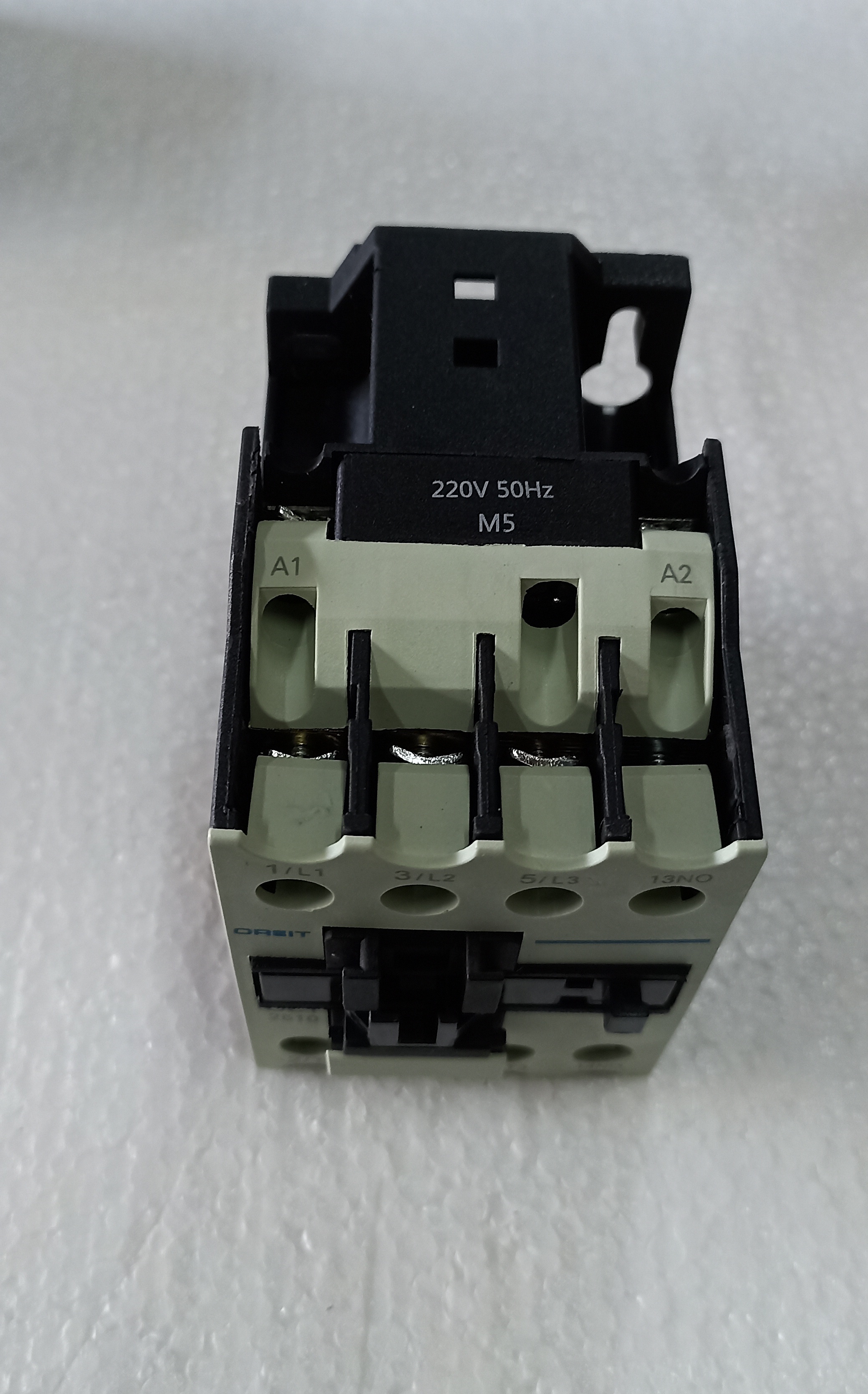

ORBIT 25A CONTACTOR

Get a Price/Quote

ORBIT 25A CONTACTOR Specification

Feature
Silent Operation, Compact Size, High Durability

Humidity %
10-90% Non Condensing

Connector Type
Screw

IP Rating
IP20

Operating Temperature
-5°C to +55°C

Overheating Protection
YES

Shape
Rectangular

Surface Finish
Matte

Mounting Type
DIN Rail Mounting

Power Factor
0.9

Insulation Material
Polycarbonate

Efficiency
High

Product Type
Contactor

Application
Motor Starter, Power Control, HVAC, Industrial Automation

Protection Level
IP20

Frequency (MHz)
50 Hz

Rated Voltage
230V AC

Energy Consumption
Low

Output Type
Normally Open / Normally Closed

Color
White & Blue

Dimension (L*W*H)
70mm x 54mm x 90mm

Weight
320 g

Size
Standard

Input Voltage
230V AC

Phase
Single Phase

Connection Type
Screw Terminal

No Of Poles
2 Pole

Material
Polycarbonate Body, Copper Contacts

Contact Rating
25A

Shock Resistance
Yes

Coil Voltage
230V AC

Auxiliary Contacts
Available

Electrical Life
100,000 Operations

Ambient Temperature
-10°C to +55°C

Response Time
< 30 ms

Mechanical Life
Over 1 Million Operations

ORBIT 25A CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Sample Available
Yes

Main Domestic Market
All India

About ORBIT 25A CONTACTOR

Orbit 25A Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Magnetic Contactor

Make :- Orbit

Condition :- New

Ampere :- 25A

Coil Voltage :- 220v/50 Hz

Aux. Contact :- 1 NO

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

High Performance and Durability

Constructed with a robust polycarbonate body and copper contacts, the ORBIT 25A Contactor boasts a high mechanical life exceeding 1 million operations and can withstand over 100,000 electrical cycles. Its compact, silent design, and IP20 protection level ensure reliability and long-lasting service across various industrial environments.

Flexible Applications

Designed to perform efficiently in motor starters, power control, HVAC systems, and industrial automation, this contactor supports a wide range of applications. Its 2-pole, normally open/closed output configuration and DIN rail mounting make it easy to integrate into new or existing systems while offering reliable performance under varying operational conditions.

Ease of Installation and Operation

With screw terminal connectors and a standard size for simplifying mounting on DIN rails, installing the ORBIT 25A Contactor is straightforward. Its quick response time under 30 ms, silent operation, and high shock resistance further enhance its usability for installers and end users alike.

FAQ's of ORBIT 25A CONTACTOR:

Q: How do I install the ORBIT 25A Contactor in my electrical system?

A: The ORBIT 25A Contactor is designed for DIN rail mounting, featuring screw terminals for secure and straightforward connections. Simply attach it to the DIN rail, connect the input and output wires according to standard wiring diagrams, and ensure the coil is supplied with 230V AC.

Q: What kind of protection does the ORBIT 25A Contactor offer?

A: This contactor features IP20-level protection, offering resistance against solid objects and minimizing the risk of accidental contact. Additionally, the unit includes overheating protection, ensuring operational safety and enhanced durability in demanding industrial environments.

Q: When should the ORBIT 25A Contactor be used in an application?

A: It is ideal for controlling single-phase AC circuits, typically in motor starter systems, HVAC units, power control panels, and industrial automation setups. Use this contactor wherever reliable on/off switching and long operational life are required.

Q: Where can the ORBIT 25A Contactor operate effectively?

A: The device functions efficiently in environments with ambient temperatures from -10C to +55C and relative humidity between 10-90% non-condensing, making it suitable for various industrial and commercial settings.

Q: What are the benefits of using the ORBIT 25A Contactor?

A: Key advantages include silent operation, high mechanical and electrical life, low energy consumption, compact design, and easy DIN rail mounting. The device also features fast response time and high shock resistance, ensuring reliable and efficient control.

Q: How does the contactor ensure safe and efficient performance?

A: With a polycarbonate insulating body, copper contacts, IP20 protection, and built-in overheating protection, the ORBIT 25A Contactor delivers high safety standards. Its fast response and standard power factor further enhance operational efficiency in daily use.
