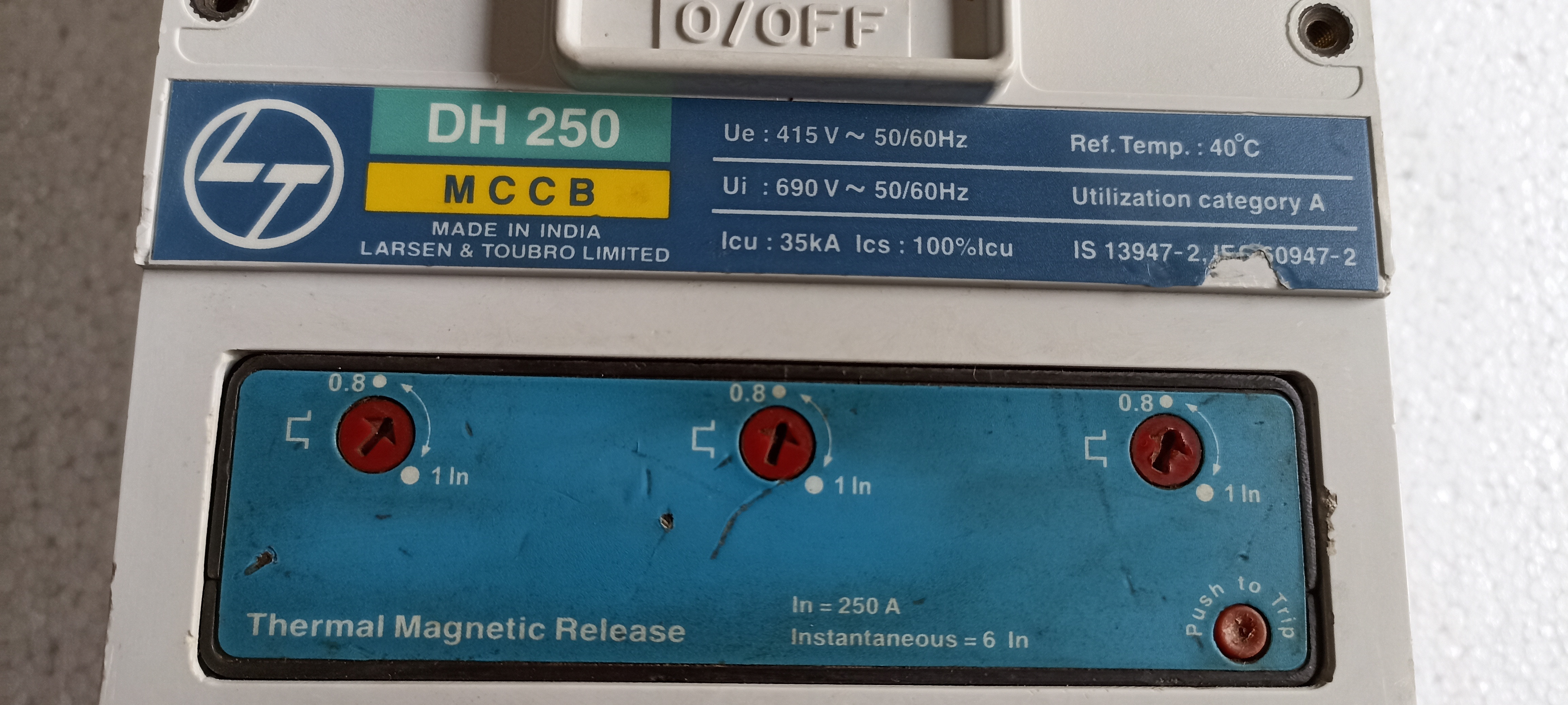

LT (DH-250) 250A 3P MCCB

Get a Price/Quote

LT (DH-250) 250A 3P MCCB Specification

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA

Phase
Three Phase

Rated Short Circuit Making Current
70 kA

Mechanical Life
8000 operations

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overcurrent Protection, Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
250A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes

Weight
Approx 2.2 kg

Color
Grey

Neutral Protection
No

Operating Temperature Range
-5°C to +55°C

Tripping Technology
Thermal Magnetic

Auxiliary Contact Option
Available (Optional)

Adjustment Range
200-250A Adjustable

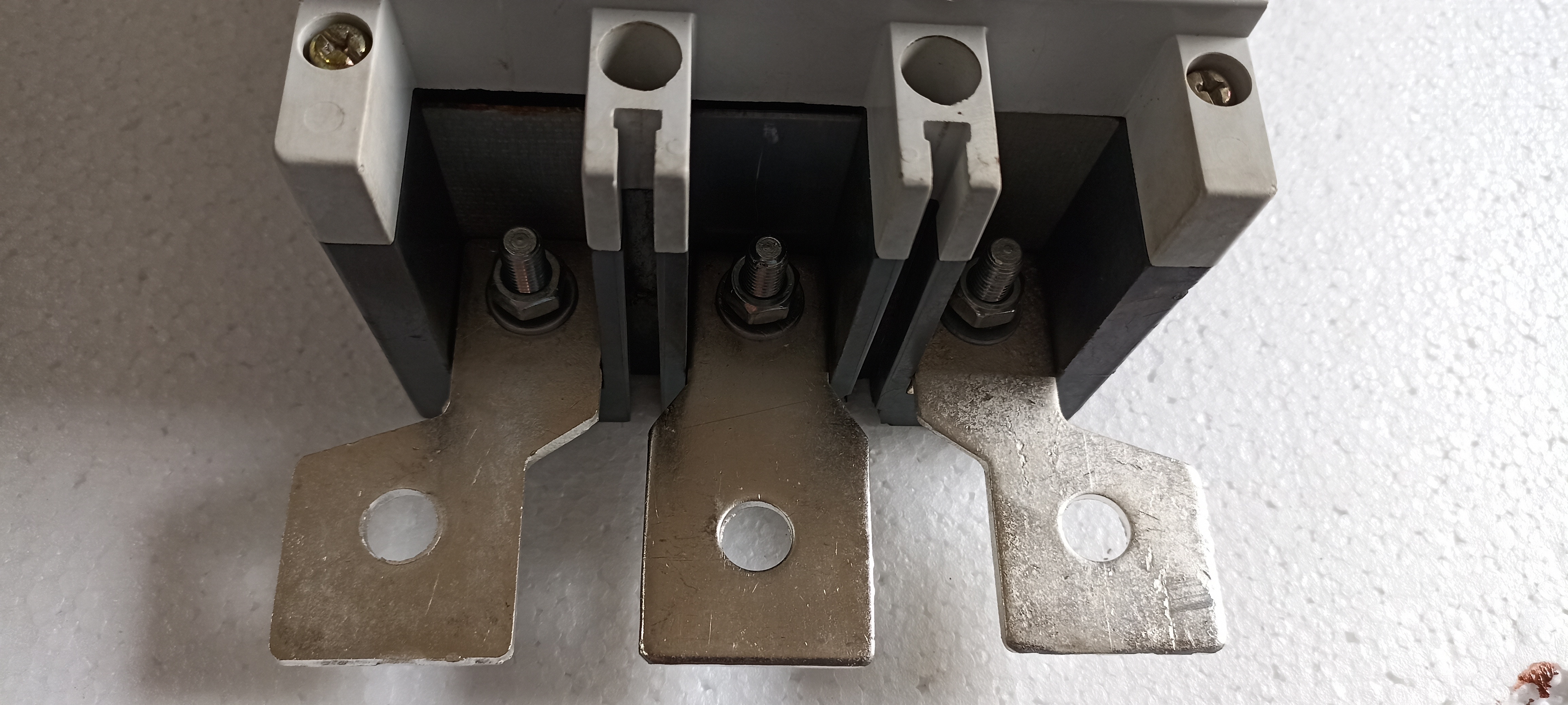

Connection Type
Direct Terminal

Mounting Style
Flush/Plug-in Mount

Frame Size
250AF

Degree of Protection
IP20 (Front Terminals)

LT (DH-250) 250A 3P MCCB Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Australia, Central America, North America, South America, Western Europe, Middle East, Eastern Europe, Asia, Africa

Main Domestic Market
All India

About LT (DH-250) 250A 3P MCCB

L&T (DH 250) 250A 3P MCCB Available In Stock At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- L&T

Ampere :- 250A

Pole :- 3P

Model :- DH 250

Condition :- New

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Protection for Industrial Applications

The LT (DH-250) 250A 3P MCCB is designed to provide comprehensive protection for electrical circuits up to 415V AC. Its robust thermal magnetic tripping mechanism ensures both overcurrent and short circuit safety. The adjustable current range and optional auxiliary contact accommodate various industrial requirements, making it adaptable to dynamic energy systems in manufacturing, distribution, and infrastructure sectors.

User-Friendly Mounting and Easy Installation

With flush and plug-in mounting options, as well as a direct terminal connection type, the DH-250 MCCB offers straightforward installation for panel builders and system integrators. Its IP20-rated front terminals add an extra layer of safety during maintenance, while the compact design (frame size 250AF) makes it convenient for retrofitting into existing switchgear assemblies.

FAQ's of LT (DH-250) 250A 3P MCCB:

Q: How can I install the LT (DH-250) 250A 3P MCCB in a panel?

A: You can install the LT (DH-250) MCCB using either flush or plug-in mounting styles directly onto your panel board. Make sure the direct terminal connection is securely fastened, and follow standard installation practices for three-phase breakers to ensure safe and reliable operation.

Q: What is the benefit of the adjustable 200-250A setting on this MCCB?

A: The adjustable range allows you to fine-tune the breaker's trip setting to match your specific circuit requirements, ensuring optimal protection for both equipment and wiring. This flexibility is particularly valuable in facilities with fluctuating load demands.

Q: When should an auxiliary contact option be considered for this MCCB?

A: Auxiliary contacts are recommended when you need status signaling or remote monitoring of breaker operation in your control system. This is useful for automated processes where feedback on the position (ON/OFF/tripped) of the MCCB enhances system safety and diagnostics.

Q: Where is this MCCB typically used?

A: The LT (DH-250) 250A 3P MCCB is ideal for heavy-duty applications in industrial, commercial, and infrastructure projects across India. It's commonly used in power distribution panels, motor control centers, and large machinery control circuits.

Q: What processes does the LT (DH-250) MCCB protect against?

A: This MCCB safeguards electrical circuits from overcurrent, short circuit, and temperature-related faults. The thermal magnetic tripping technology ensures precise interruption under abnormal conditions, protecting both installations and connected devices.

Q: How does the degree of protection (IP20) impact usage?

A: The IP20 rating ensures that the front terminals are protected against accidental finger contact, enhancing operator safety during installation and maintenance. However, the MCCB should be installed in an enclosure or location that provides further protection from dust and moisture.
