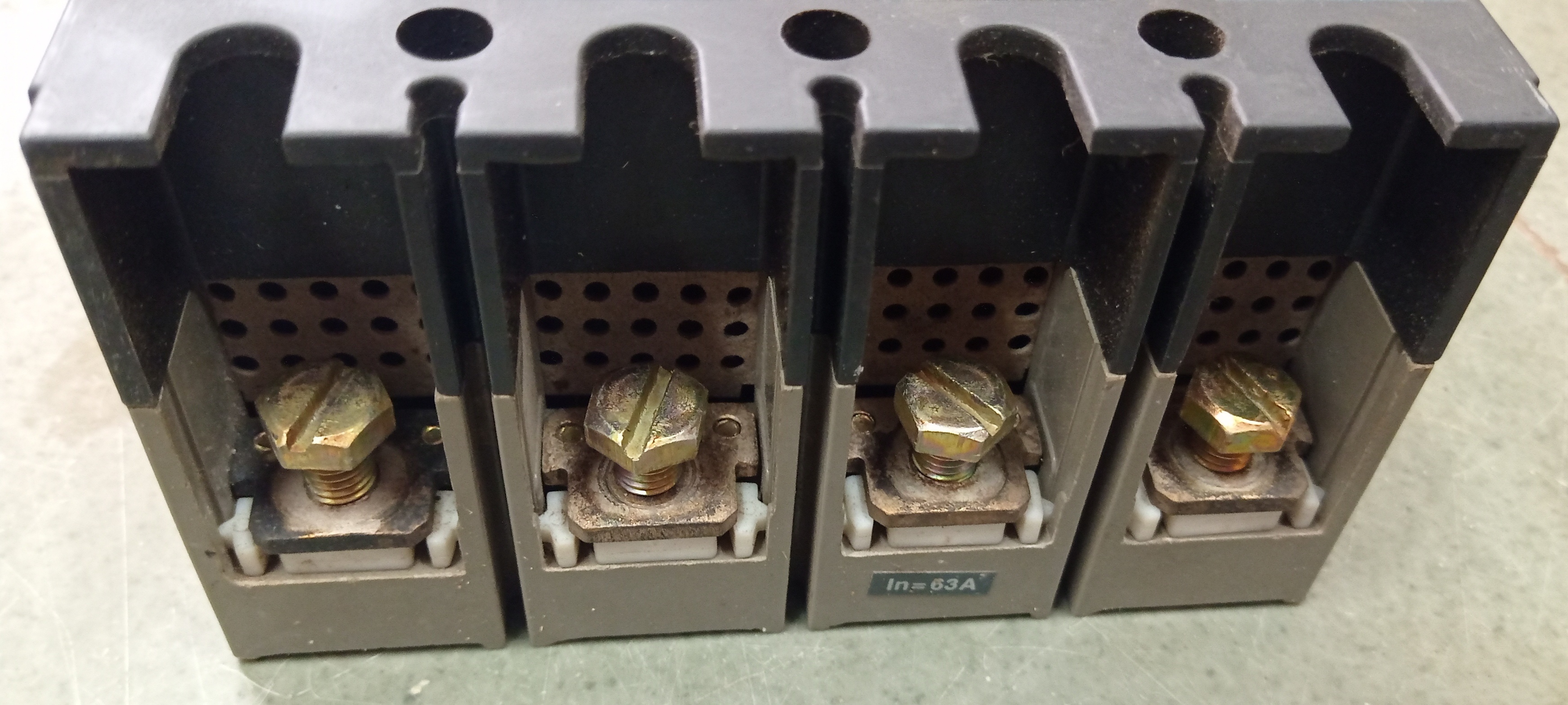

63 AMP 4P MERLIN GERIN MCCB

Get a Price/Quote

MOQ : 1 Number

63 AMP 4P MERLIN GERIN MCCB Specification

Rated Short Circuit Making Current
25 kA

Mechanical Life
Up to 10,000 operations

Rated Short Circuit Breaking Current
25 kA

Phase
Three Phase

Breaking Capacity
25 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounted

Function
Circuit Protection, Overload and Short Circuit Protection

Poles Number
4 Pole

Rated Voltage
415V AC

Rated Current
63 Amp

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes, Thermo-magnetic protection

Weight
Approx. 2.5 kg

Color
Grey/Black

Accessories Compatibility
Auxiliary Contacts, Shunt Trip, Under Voltage Trip

Degree of Protection
IP20

Trip Unit Type
Thermal Magnetic

Mounting Type
Fixed

Application
Industrial, Commercial Electrical Distribution

Operating Temperature Range
-5°C to +40°C

Indicator
Trip Indicator Provided

Model Number
NSX63F

Standards Compliance
IEC 60947-2

Terminal Connection
Screw Terminal

63 AMP 4P MERLIN GERIN MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 63 AMP 4P MERLIN GERIN MCCB

Raj Electricals Offering 63 Amp 4P Merlin Gerin Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Brand :- Merlin Gerin

Type : Mccb

Rated Current (A) : 63

Number of Poles : 4

Breaking Capacity (kA) : 25

Model Number :- NKF250D-4P

We deal in all type of used & unused products which comes from ALANG ship recycling yard.

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Comprehensive Circuit Protection

The NSX63F MCCB safeguards electrical equipment from overloads and short circuits with advanced thermo-magnetic technology. With a C curve characteristic, it reacts quickly to fault conditions, minimizing system damage and downtime. This makes it ideal for demanding industrial and commercial environments.

Easy Installation and Compatibility

Engineered for fixed, panel-mounted applications, the MCCB features screw terminal connections, simplifying installation and ensuring secure connectivity. Its compatibility with additional accessories such as auxiliary contacts and shunt trip devices enhances operational flexibility and system integration.

Built to Last with Reliable Performance

With a mechanical life of up to 10,000 operations and an operating temperature range from -5C to +40C, the NSX63F offers reliable performance in diverse conditions. Its IP20 protection and robust construction make it a dependable choice for distributors, exporters, manufacturers, and suppliers across India.

FAQ's of 63 AMP 4P MERLIN GERIN MCCB:

Q: How does the NSX63F MCCB provide circuit protection in electrical systems?

A: The NSX63F MCCB employs thermo-magnetic technology to detect and interrupt overloads and short circuits, effectively protecting connected equipment and wiring. Its C curve characteristic allows for quick tripping in response to fault currents, reducing the risk of electrical hazards in industrial and commercial setups.

Q: What accessories can be used with the NSX63F MCCB for increased functionality?

A: The NSX63F MCCB is compatible with several accessories, including auxiliary contacts for status indication, shunt trip units for remote tripping, and under voltage trips for enhanced protection. These options allow users to tailor circuit breaker operations to specific application needs.

Q: When should I consider using the NSX63F MCCB in my electrical system?

A: You should install the NSX63F MCCB when you require reliable overload and short circuit protection for three-phase distribution systems, especially in industrial or commercial environments with rigorous safety and performance demands.

Q: Where is the best place to mount the NSX63F MCCB?

A: This MCCB is designed for fixed, panel-mounted installation, making it suitable for main distribution boards or subpanels in both new and existing infrastructure. The screw terminal design ensures secure and straightforward mounting on site.

Q: What is the process for installing the NSX63F MCCB?

A: Installation involves panel mounting the circuit breaker and connecting cables through the screw terminals. Compatibility with various accessories allows for added features. It is recommended that a qualified electrician carries out installation to ensure compliance with safety standards.

Q: How does the trip indicator benefit users during system operation?

A: The built-in trip indicator provides immediate visual feedback whenever the MCCB trips due to a fault. This feature helps maintenance personnel quickly identify the faulted circuit, accelerating troubleshooting and reducing system downtime.
