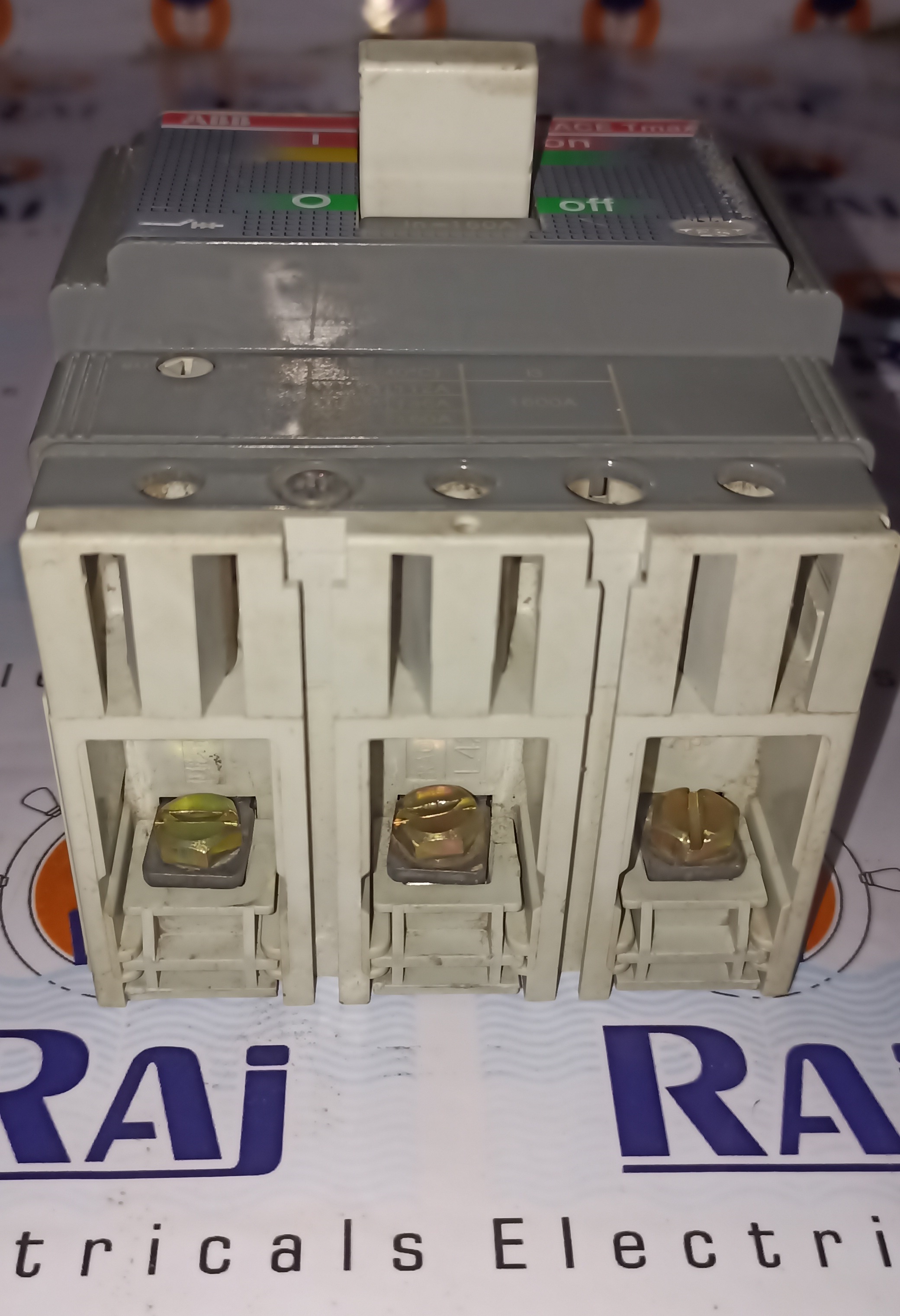

ABB SACE TMAX 160A 3P MCCB

Name: ABB SACE TMAX 160A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

ABB SACE TMAX 160A 3P MCCB Specification

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA at 415V AC

Rated Short Circuit Making Current
72 kA

Phase
Three Phase

Mechanical Life
Up to 20,000 operations

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting (Fixed or Plug-in)

Function
Protection against overload and short circuit

Poles Number
3

Rated Voltage
415V AC

Rated Current
160A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic

Temperature Protection
Yes, with adjustable thermal protection

Weight
2.5 kg (approx.)

Color
Grey/Black

Trip Unit Type
Thermal-Magnetic (TMD)

Connection Type
Screw terminal

Application
Distribution, Motor Protection, Industrial and Commercial Installations

Frame Size
T1

Protection Degree
IP20 (with terminal shrouds)

Adjustable Overload Setting
0.7 to 1 x In

Operating Temperature
-25C to +70C

Utilization Category
A

Dimensions (H x W x D)
150 mm x 105 mm x 60 mm (approx.)

Electrical Endurance
Up to 10,000 operations at rated current

Mounting Orientation
Any position

ABB SACE TMAX 160A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 160A 3P MCCB

Raj Electricals Offering ABB SACE TMAX 160A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 160A

Pole :- 3P

Model :- SACE TMAX

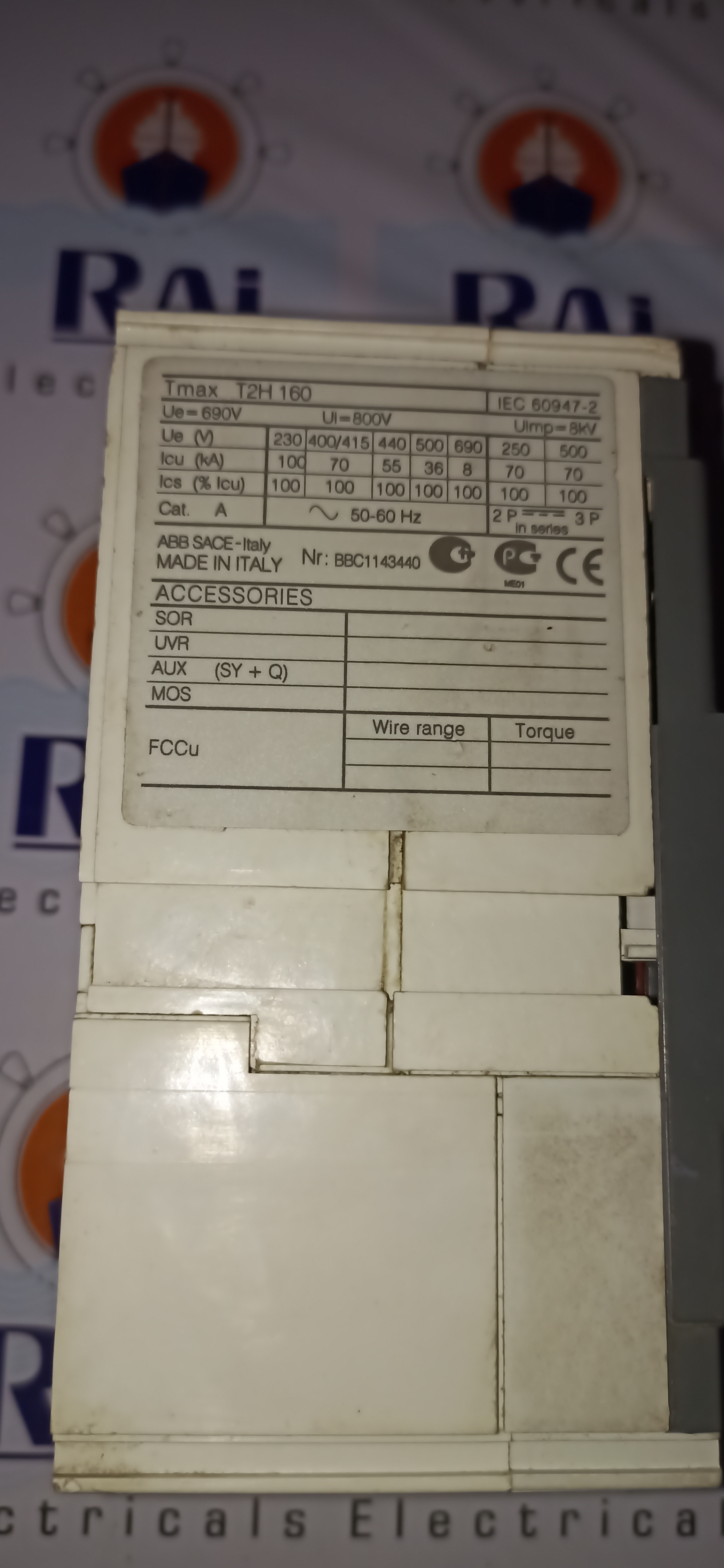

Model Number :- Tmax T2H 160

Condition :- Refurbished

Breaking Capacity :- 55 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Protection for Various Applications

The ABB SACE TMAX 160A 3P MCCB is engineered for protecting electrical systems within industrial, commercial, and distribution environments. Its thermal-magnetic trip unit adjusts easily to prevent circuit damage caused by overloads or short circuits, making it ideal for demanding settings where operational continuity and safety are priorities.

Flexible Mounting and Operation

With its compact T1 frame size and ability to be mounted in any orientation, this MCCB adapts seamlessly to panel configurations. Screw terminal connections simplify installation, and the IP20 degree of protection with terminal shrouds ensures safe handling during setup and servicing.

Durable and Reliable Performance

Built for longevity, this circuit breaker can withstand up to 10,000 electrical and 20,000 mechanical operations, making it suitable for frequent switching cycles. The adjustable overload and thermal protection features extend equipment lifespan and help ensure system reliability in harsh or variable temperature conditions.

FAQ's of ABB SACE TMAX 160A 3P MCCB:

Q: How do I adjust the overload setting on the ABB SACE TMAX 160A 3P MCCB?

A: The overload setting on the thermal-magnetic (TMD) trip unit can be adjusted between 0.7 to 1 times the rated current (In) using the designated adjustment dial on the unit. This allows for precise customization based on specific load requirements.

Q: What types of installations is this MCCB suitable for?

A: This MCCB is ideal for distribution, motor protection, and a wide range of industrial and commercial installations requiring three-phase protection up to 160A. Its flexible mounting options and robust design make it versatile for both panel-mounted fixed and plug-in setups.

Q: When should I use the adjustable thermal protection feature?

A: The adjustable thermal protection should be set whenever you need to tailor the circuit breaker's response to varying electrical load conditions. It's especially useful in environments where load currents can fluctuate or where equipment sensitivity to overcurrent is a concern.

Q: Where can the ABB SACE TMAX 160A 3P MCCB be installed?

A: This MCCB can be installed in any orientation within control panels, thanks to its design. It is suitable for both new installations and retrofit projects in industrial, commercial, and distribution boards requiring reliable circuit protection.

Q: What is the process for mounting and connecting the MCCB?

A: Mount the MCCB onto the panel using the appropriate fixed or plug-in installation method. Connect the incoming and outgoing wiring to the screw terminals, ensuring terminal shrouds are in place to maintain IP20 protection. Verify connections are secure before energizing the circuit.

Q: How does using this MCCB benefit electrical systems?

A: Utilizing the ABB SACE TMAX MCCB provides robust protection against overloads and short circuits, reducing downtime, safeguarding equipment, and enhancing the overall reliability of your electrical distribution system. Its high breaking capacity and adjustability offer added operational flexibility.
