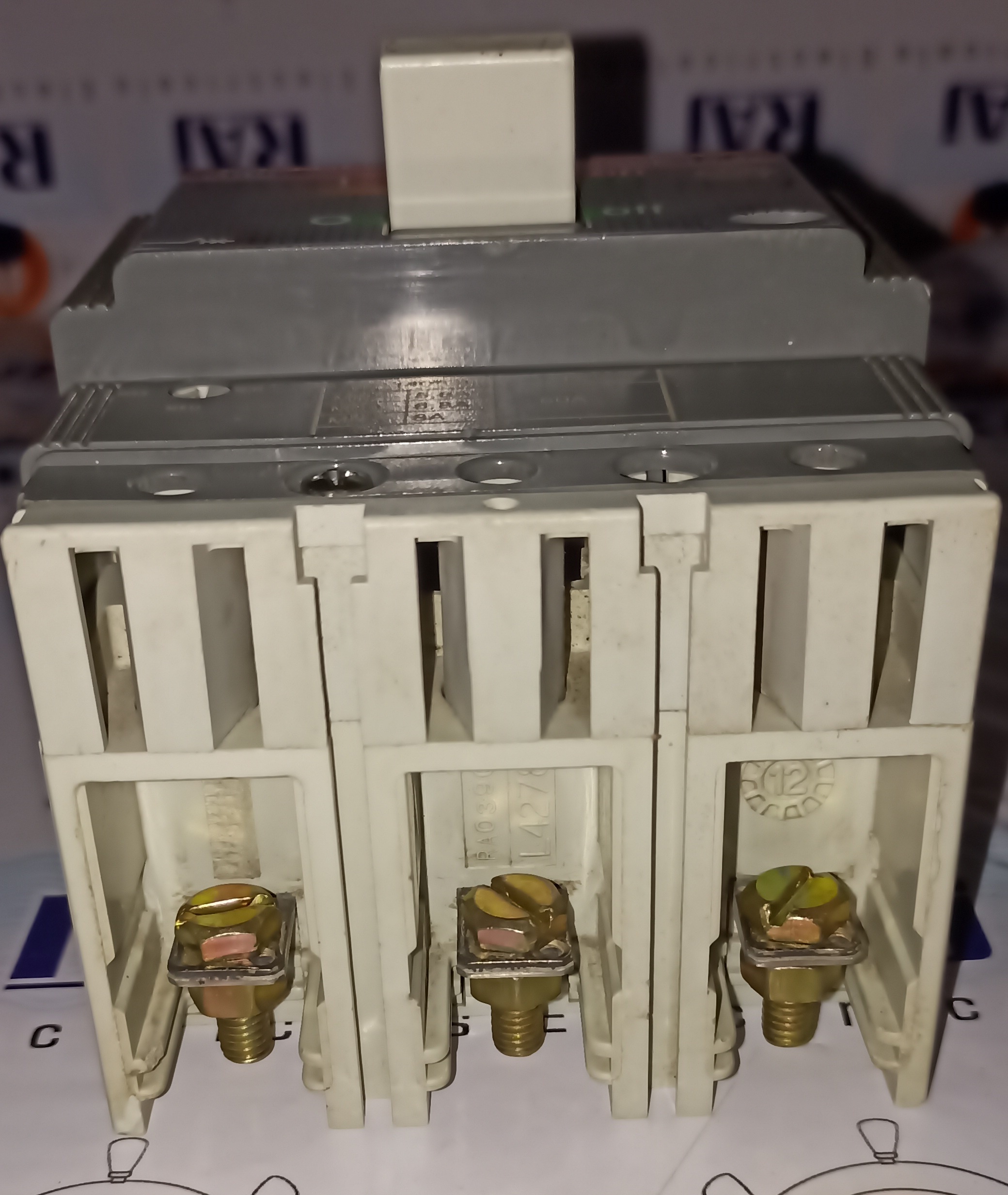

ABB SACE TMAX 8A 3P MCCB

Name: ABB SACE TMAX 8A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

ABB SACE TMAX 8A 3P MCCB Specification

Rated Short Circuit Making Current
25 kA

Mechanical Life
10,000 operations

Phase
Three Phase

Rated Short Circuit Breaking Current
25 kA

Breaking Capacity
25 kA at 415V AC

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Fixed

Function
Protection against overload and short circuit

Poles Number
3 Poles (3P)

Rated Voltage
415V AC

Rated Current
8A

Rated Frequency
50/60 Hz

Curves
Thermomagnetic

Temperature Protection
Yes, built-in thermal protection

Weight
Approx. 1.3 kg

Color
Grey/Black

Standards Compliance
IEC 60947-2

Insulation Voltage (Ui)
690V

Degree of Protection
IP20 (when installed in enclosure)

Busbar Connections
Supported

Terminal Type
Screw Terminals

Accessories Compatible
Auxiliary switch, shunt trip, undervoltage release

Auxiliary Contacts
Available as option

Frequency of Operation
Up to 30 cycles/hour

Service Breaking Capacity (Ics)
25 kA

Operating Temperature
-25C to +70C

Mounting Type
Panel Mounting

Rated Impulse Withstand Voltage (Uimp)
8 kV

Trip Unit Technology
Thermal Magnetic Trip Unit

Electrical Life
2,500 operations

ABB SACE TMAX 8A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 8A 3P MCCB

Raj Electricals Offering ABB SACE TMAX 8A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 8A

Pole :- 3P

Model :- SACE TMAX

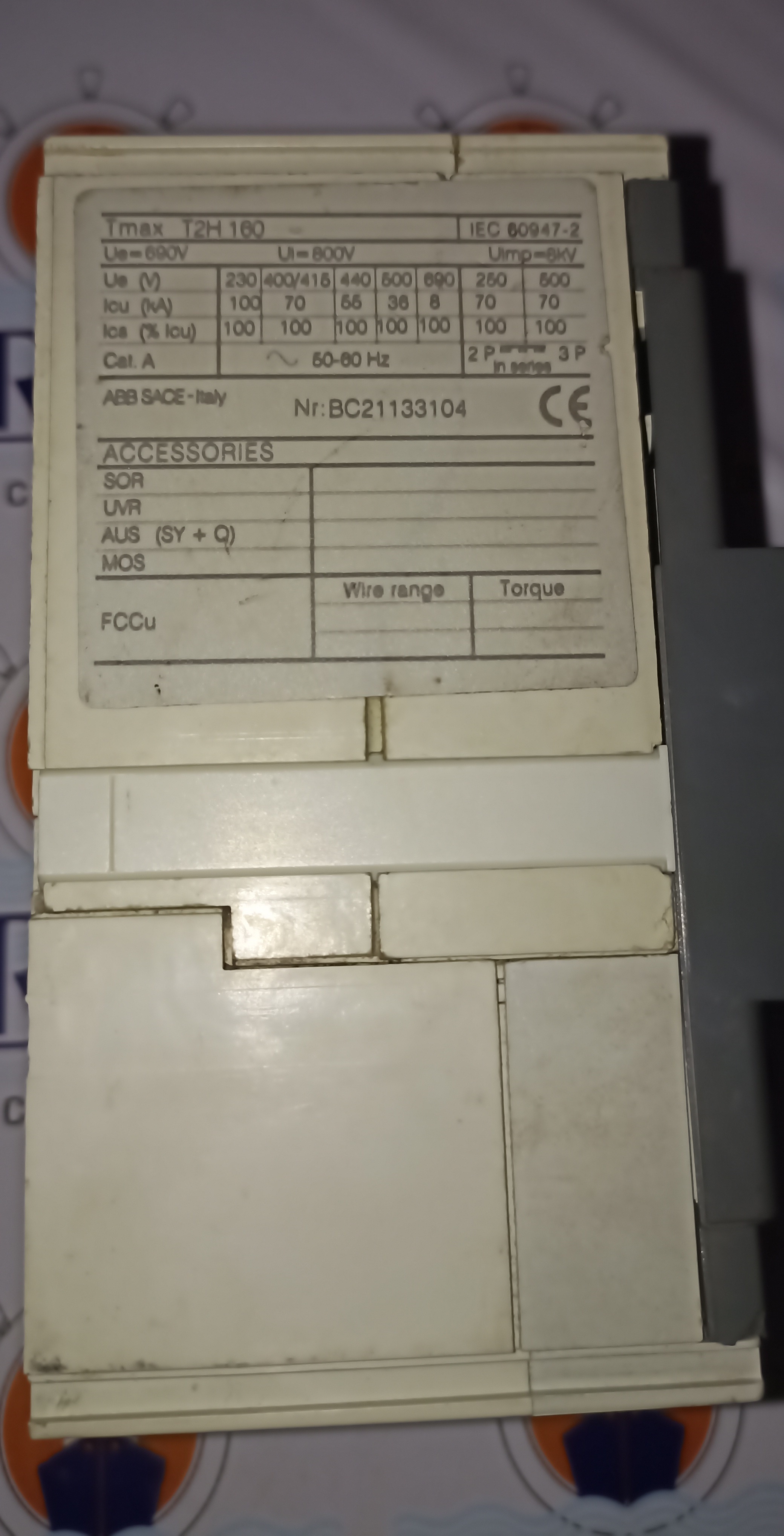

Model Number :- Tmax T2H 160

Condition :- Refurbished

Breaking Capacity :- 55 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Protection and Reliability

The ABB SACE TMAX 8A 3P MCCB integrates thermal and magnetic trip technology, offering dependable protection against both overload and short circuit events. Its built-in temperature protection ensures operational safety and extends service life, making it ideal for demanding industrial applications.

Flexible Installation and Versatile Compatibility

Designed for panel mounting with screw terminals and busbar support, this MCCB fits seamlessly into existing or new electrical infrastructure. Compatible with a range of accessories including auxiliary switches and shunt trips, it delivers flexible configuration options tailored to various protection requirements.

FAQ's of ABB SACE TMAX 8A 3P MCCB:

Q: How does the ABB SACE TMAX 8A 3P MCCB provide protection in electrical systems?

A: This MCCB uses an advanced thermal magnetic trip unit to identify overloads (thermal) and short circuits (magnetic) in three-phase systems, disconnecting the circuit to prevent equipment damage and enhance operational safety.

Q: What are the installation options and where can this MCCB be mounted?

A: The ABB SACE TMAX 8A 3P MCCB is designed for fixed panel mounting. It features screw terminals and supports busbar connections, making it straightforward to integrate into industrial panels or distribution boards.

Q: When should auxiliary contacts or additional accessories be considered for use with this MCCB?

A: Auxiliary contacts, shunt trips, or undervoltage releases can be incorporated when remote control, status signaling, or enhanced circuit protection is required-such as automatic isolation in remote monitoring systems or safety interlocks.

Q: What are the main benefits of using this MCCB in three-phase power distribution?

A: Key benefits include high breaking capacity (25 kA at 415V AC), robust thermal and magnetic protection, compliance with international safety standard IEC 60947-2, and compatibility with essential control accessories, ensuring both safety and adaptability.

Q: How is the durability and operational longevity of this MCCB ensured?

A: With an electrical life of up to 2,500 operations and a mechanical life of 10,000 operations, the device is engineered for reliable repeated use. Its operational temperature range (-25C to +70C) assures performance in various environments.

Q: Where is this MCCB typically utilized?

A: The TMAX 8A 3P MCCB is extensively used in industrial and commercial facilities across India for protecting critical power equipment, distribution panels, and various machinery from electrical faults.
