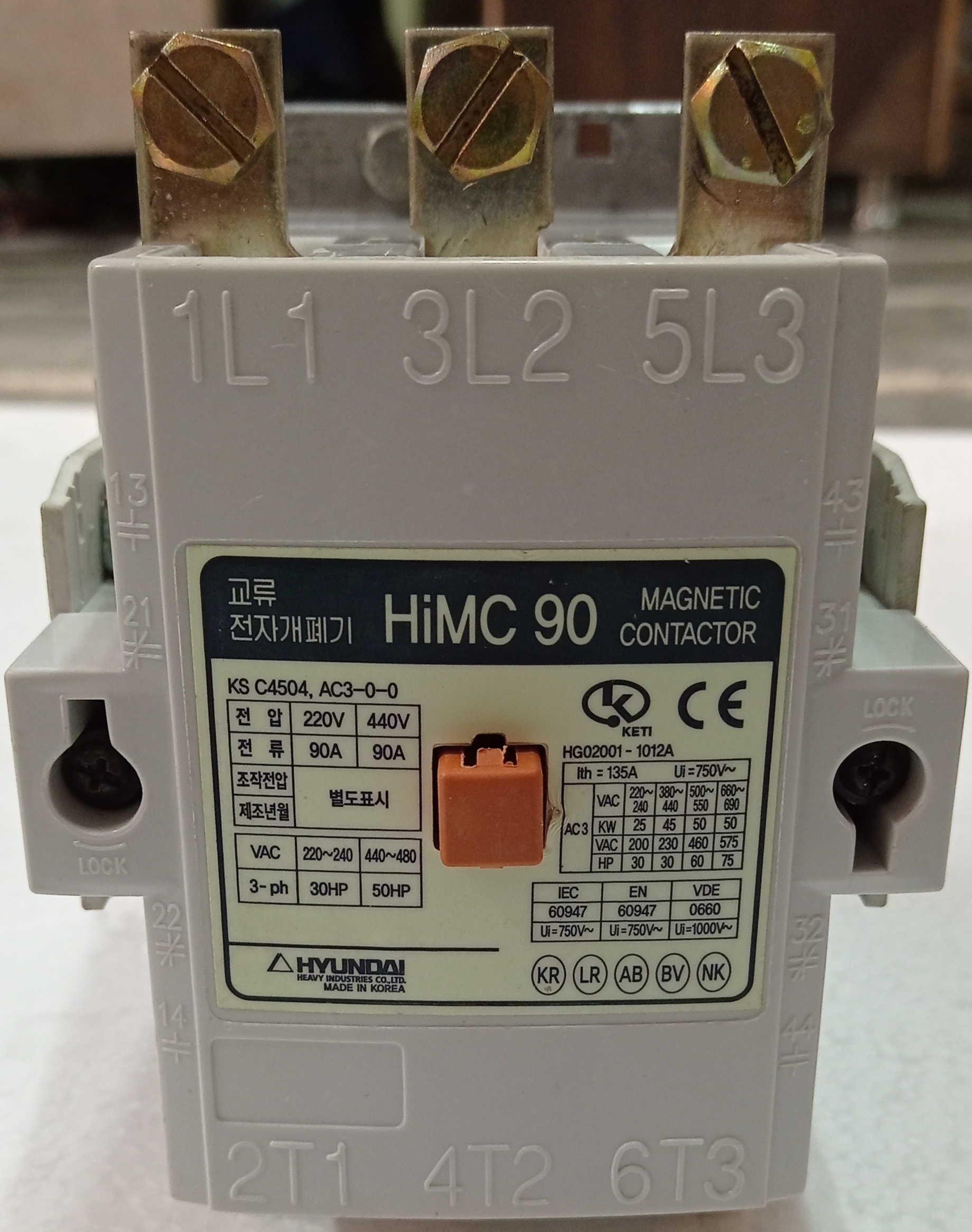

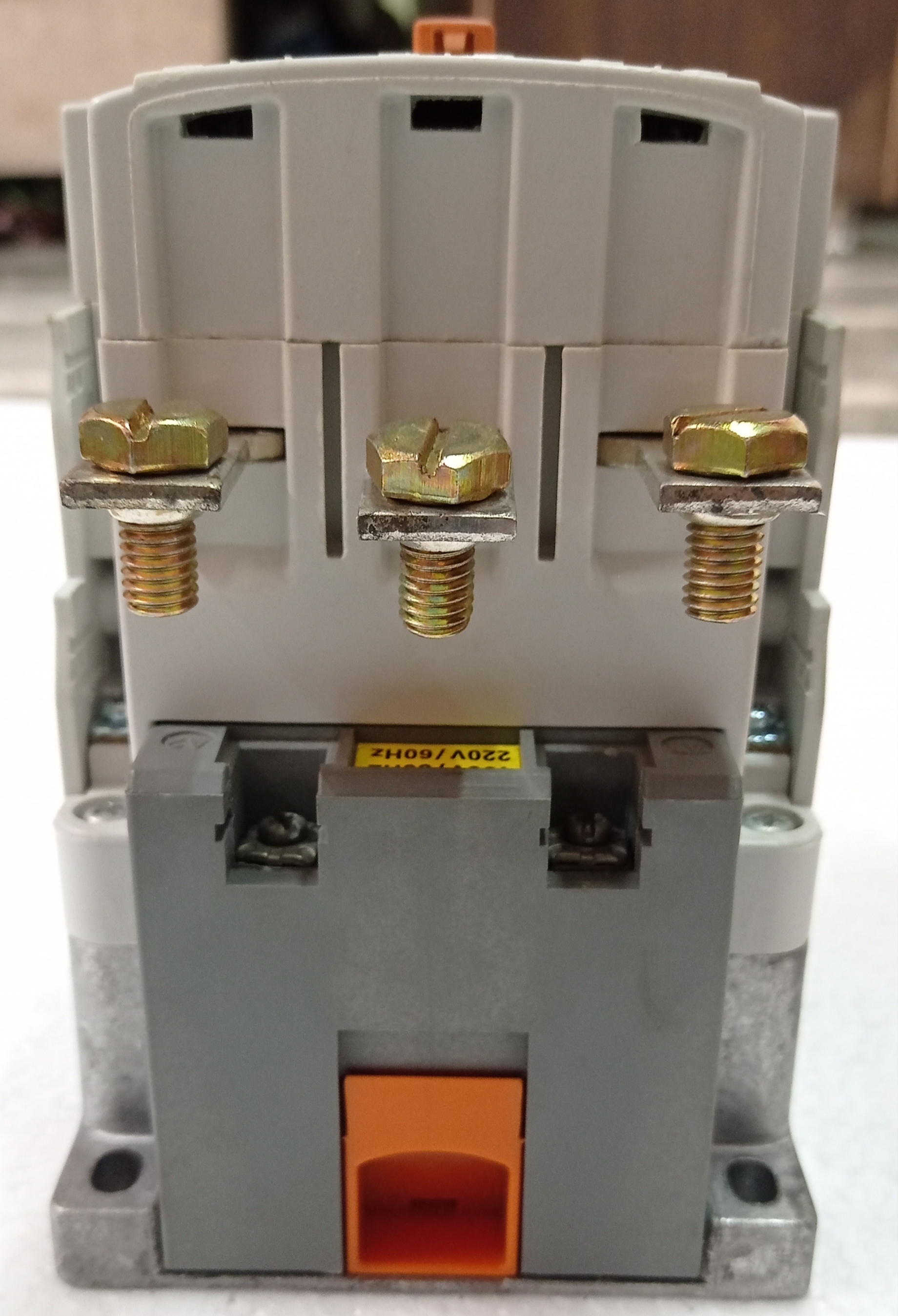

HYUNDAI HiMC 90 CONTACTOR

Get a Price/Quote

HYUNDAI HiMC 90 CONTACTOR Specification

IP Rating
IP20

Shape
Rectangular

Surface Finish
Molded Matt Finish

Connector Type
Screw

Feature
Reliable Switching, Long Electrical Life, Compact Design

Overheating Protection
Requires separate Thermal Overload Relay (not built-in)

Operating Temperature
-5°C to +55°C

Efficiency
High operational efficiency

Insulation Material
Thermoplastic

Mounting Type
DIN Rail / Panel Mount

Power Factor
0.85 (Typical)

Humidity %
≤ 95% RH (non-condensing)

Product Type
AC Contactor

Application
Motor Control, HVAC, Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC Max

Energy Consumption
4.5 VA (AC) approx

Output Type
Electromechanical Switching

Color
Grey & Blue

Dimension (L*W*H)
105 x 95 x 110 mm (Approx.)

Weight
Approx. 1.2 kg

Input Voltage
220-240V AC Coil (others available)

Phase
Three Phase

Size
90A Frame Size

Connection Type
Screw Terminal

Material
High Strength Plastic (Body), Copper (Contacts)

No Of Poles
3 Pole

Storage Temperature
-25°C to 65°C

Rated Current
90A

Coil Consumption
Approximately 7.5VA (inrush), 4.5VA (holding)

Mechanical Endurance
>10 Million Operations

Auxiliary Contacts
1NO + 1NC (optional)

Short Circuit Withstand Capacity
10 kA

RoHS Compliance
Yes

Electrical Endurance
>1 Million Operations

Model Name
HiMC 90

HYUNDAI HiMC 90 CONTACTOR Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About HYUNDAI HiMC 90 CONTACTOR

Hyundai HiMC 90 Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Brand :- Hyundai

Type :- Magnetic Contactor

Model Number :- HiMC 90

Auxiliary Contact :- 2NO+2NC

Ith :- 135A

Number Of Poles :- 3

Number Of Phase :- 3

Frequency :- 50 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Durability and Safety

Engineered for longevity, the HYUNDAI HiMC 90 boasts a mechanical endurance exceeding 10 million operations and electrical endurance over 1 million operations. The contactor offers IP20 level protection, ensuring safety from accidental contact and durability in demanding industrial conditions. Separate thermal overload relays are recommended for optimal overheating protection.

Efficient Operation and Flexible Installation

With high operational efficiency and a compact design, the HiMC 90 minimizes energy consumption while delivering consistent performance. The device supports both screw and DIN rail mounting, simplifying installation and allowing flexibility in integration into various control panels. The sturdy thermoplastic body and copper contacts enhance both reliability and service life.

Wide Range of Applications

This contactor is suitable for diverse industrial uses, including motor control, HVAC systems, and automation solutions. Its three-pole design supports multiple load types, with a high short-circuit withstand capacity of 10 kA. It is ideal for distributors, exporters, manufacturers, suppliers, and traders in the Indian industrial sector.

FAQ's of HYUNDAI HiMC 90 CONTACTOR:

Q: How is the HYUNDAI HiMC 90 Contactor typically used in industrial applications?

A: The HiMC 90 is primarily used for motor control, HVAC systems, and various industrial automation tasks requiring reliable switching for three-phase circuits. Its robust construction and high endurance make it ideal for continuous operation in demanding environments.

Q: What are the main benefits of using the HiMC 90 Contactor?

A: Key benefits include long mechanical and electrical life, high operational efficiency, compact yet durable design, and reliable electromechanical switching. The contactor's RoHS compliance and molded matt finish enhance both environmental safety and aesthetics.

Q: When should a separate thermal overload relay be installed with the HiMC 90?

A: A separate thermal overload relay is required whenever protection against overheating is needed, as it is not built into the contactor itself. This ensures optimal protection for the connected equipment.

Q: What process should I follow to install the HiMC 90 Contactor?

A: Installation involves securing the contactor onto a DIN rail or mounting panel, connecting the power and auxiliary contacts using screw terminals, and integrating a thermal overload relay if needed. Always adhere to the specified operating and storage temperature ranges for best performance.

Q: Where can the HYUNDAI HiMC 90 Contactor be sourced in India?

A: It is available through authorized distributors, exporters, manufacturers, suppliers, and traders across India who specialize in industrial electrical components.

Q: How does the HiMC 90 handle power efficiency and durability?

A: With an efficient coil design that consumes approximately 4.5VA during holding and durable copper contacts, the HiMC 90 ensures minimal energy loss and consistent performance throughout its operational life.
