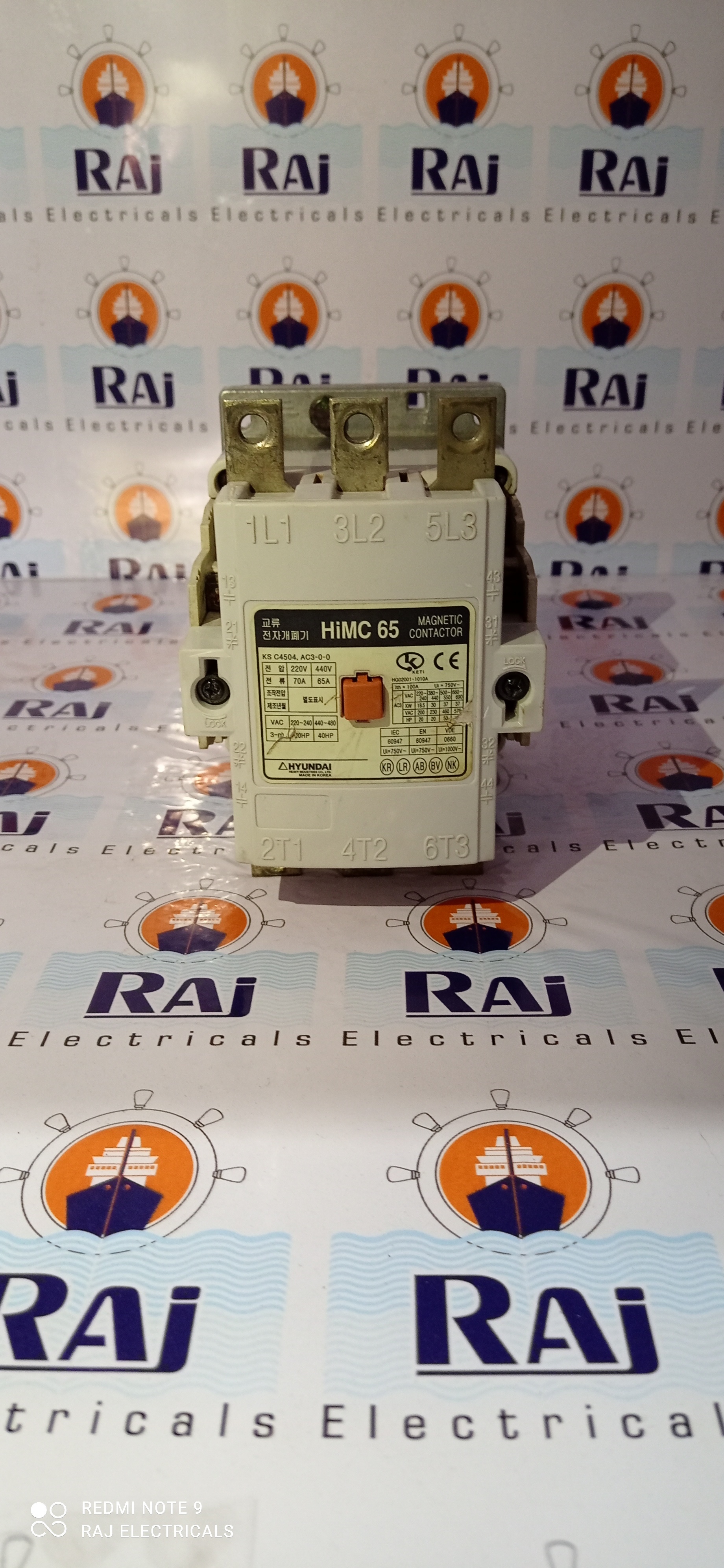

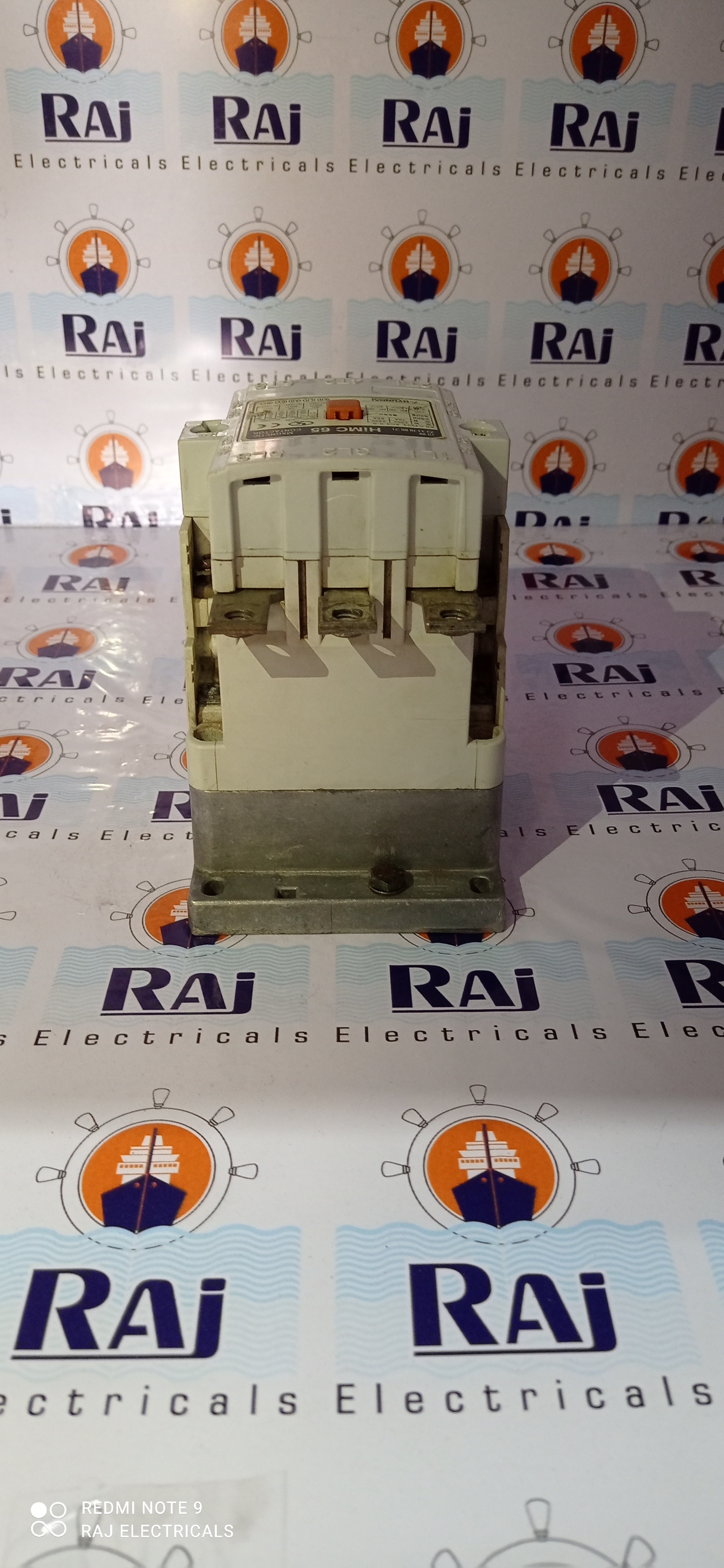

HYUNDAI HiMC 65 CONTACTOR

Get a Price/Quote

HYUNDAI HiMC 65 CONTACTOR Specification

Power Factor
0.8 – 1

Connector Type
Screw

Insulation Material
Thermoplastic

Surface Finish
Smooth

Humidity %
5~95% RH (Non-condensing)

IP Rating
IP20

Feature
Long Mechanical Life, Low Power Consumption

Overheating Protection
Available in Add-on Relay

Efficiency
High

Shape
Rectangular

Operating Temperature
-25°C to 60°C

Mounting Type
DIN Rail or Panel Mount

Product Type
AC Contactor

Application
Motor Starter, HVAC, Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
9.8 VA (hold)

Output Type
Mechanical Switching

Color
White & Blue

Dimension (L*W*H)
89 × 94 × 98 mm

Weight
1.27 kg

Input Voltage
220/240 V AC coil

Size
Standard

Phase
Three Phase

Material
Flame Retardant Plastic & Copper

No Of Poles
3

Connection Type
Screw Terminal

HYUNDAI HiMC 65 CONTACTOR Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About HYUNDAI HiMC 65 CONTACTOR

Hyundai HiMC 65 Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Brand :- Hyundai

Model :- HiMC 65

Type :- Magnetic Contactor

Ith :- 100A

Pole Description :- 3

auxiliary contact :- 2NO+2NC

Frequency :- 50Hz

Voltage Rating :- 220V AC

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Exceptional Durability for Demanding Operations

With an impressive mechanical endurance of 10 million operations and electrical endurance of up to 1 million operations, the HYUNDAI HiMC 65 Contactor is engineered for prolonged life and dependable performance in continuous-use industrial settings. Its high-quality flame retardant plastic housing, copper components, and industrial-grade insulation guarantee operational resilience and safety.

Advanced Safety and Compliance Features

Safety is paramount in the design of the HYUNDAI HiMC 65 Contactor. Its flame retardant materials, IP20 protection level, and vibration resistance up to 5g ensure secure operation, even in challenging conditions. The contactor conforms with IEC 60947-4-1 and adheres to RoHS directives, providing confidence in both quality and environmental responsibility.

Flexible Installation and Wide Compatibility

Featuring both DIN rail and panel mounting options as well as screw terminals, the HYUNDAI HiMC 65 Contactor offers installation flexibility. Its auxiliary contacts are expandable, and it supports applications up to 2000 meters elevation and across a broad temperature range (-25C to 60C), making it ideal for various industrial environments including motor control, HVAC, and automation solutions.

FAQ's of HYUNDAI HiMC 65 CONTACTOR:

Q: How is the HYUNDAI HiMC 65 Contactor installed in industrial settings?

A: The contactor supports easy installation using either a DIN rail or direct panel mounting. With screw terminal connections and a standard rectangular shape, it fits seamlessly into most electrical panels for motor starters or automation systems.

Q: What protection features are available with this contactor?

A: The HYUNDAI HiMC 65 offers an IP20 protection rating and is constructed from flame retardant plastic. For short-circuit protection, it requires a separate protective device and overheating protection can be added via an auxiliary relay.

Q: When should I use the expandable auxiliary contacts?

A: Expandable auxiliary contacts (1 NO + 1 NC as standard) are typically used when you need to control or monitor secondary circuits, such as signaling additional equipment or integrating with automation controls.

Q: Where can the HYUNDAI HiMC 65 Contactor be effectively utilized?

A: This contactor is ideally suited for motor starters, HVAC systems, and a range of industrial automation tasks. It is designed to operate efficiently at altitudes up to 2000 meters and within a humidity range of 5-95% RH (non-condensing).

Q: What process ensures its compliance and efficiency?

A: The HiMC 65 is manufactured according to IEC 60947-4-1 standards and is RoHS compliant. Quality inspections and rigorous endurance testing for both mechanical and electrical cycles ensure long-term efficiency.

Q: How does this contactor benefit industrial applications?

A: It delivers reliable performance for high-demand operations, low coil power consumption (9 VA pick-up, 2.5 VA hold), and robust endurance. The result is reduced maintenance costs and enhanced operational efficiency for processes requiring frequent switching.
