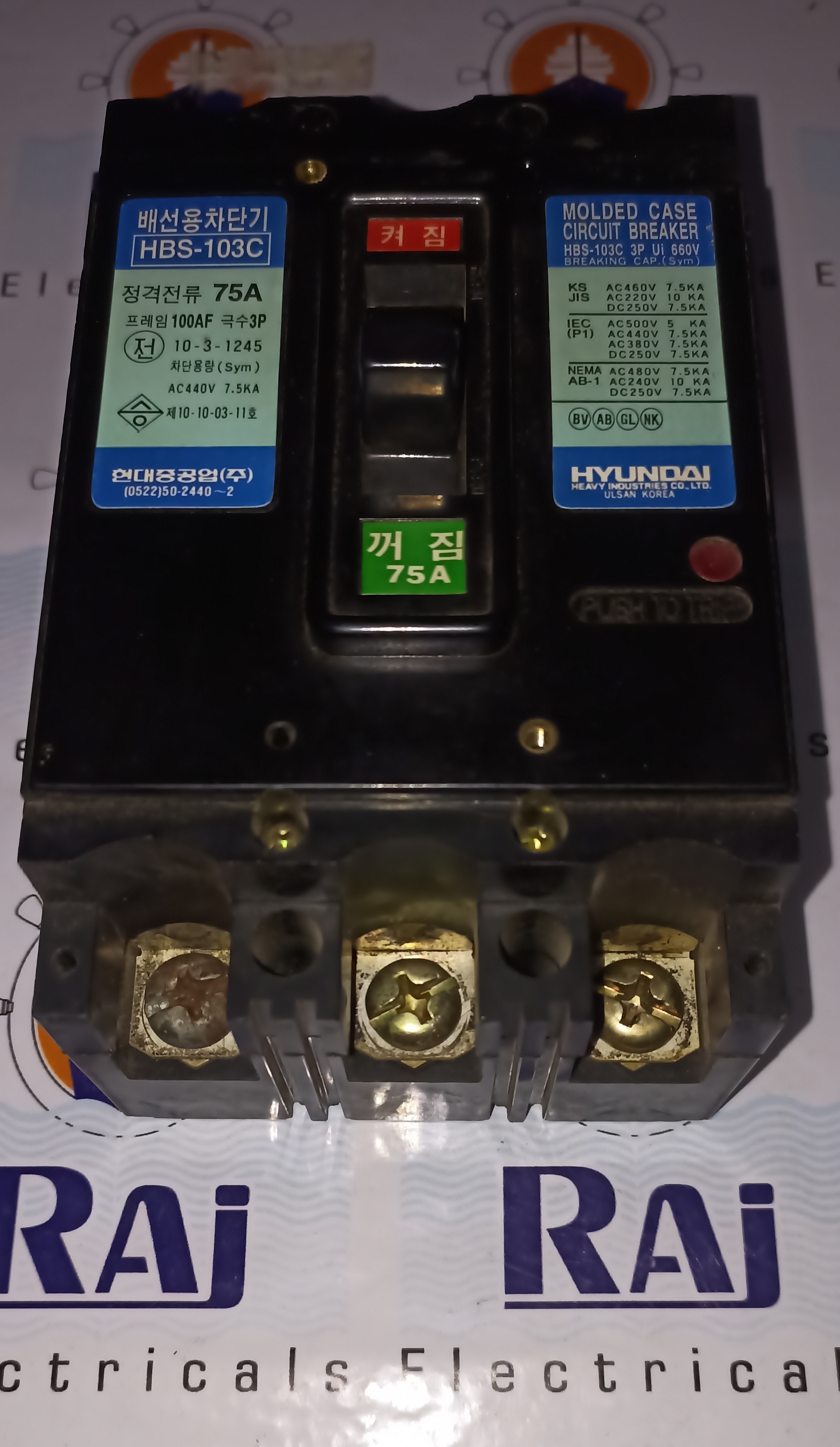

HYUNDAI (HBS-103C) 75A 3P MCCB

Name: HYUNDAI (HBS-103C) 75A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

HYUNDAI (HBS-103C) 75A 3P MCCB Specification

Rated Short Circuit Making Current
50 kA (Icm at 415V AC)

Breaking Capacity
25 kA

Phase
Three Phase

Mechanical Life
10,000 Operations

Rated Short Circuit Breaking Current
25 kA (Icu at 415V AC)

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Circuit Protection (Overload & Short Circuit)

Poles Number
3 Poles (3P)

Rated Voltage
415V AC

Rated Current
75A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Ambient Temperature compensated

Weight
1.8 Kg (Approx)

Color
Grey/Black

Standard
IEC 60947-2

Trip Unit Type
Thermal Magnetic Release

Operating Temperature Range
-5C to +40C

Auxiliary Accessories
Optional (Shunt Trip, Auxiliary Contact, Alarm Switch)

Mounting Orientation
Vertical/Horizontal

Insulation Voltage (Ui)
690V

Terminal Type
Box Type Lugs

Degree of Protection
IP20

Utilization Category
A

HYUNDAI (HBS-103C) 75A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About HYUNDAI (HBS-103C) 75A 3P MCCB

Raj Electricals Offering HYUNDAI (HBS-103C) 75A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- HYUNDAI

Ampere :- 75A

Pole :- 3P

Model :- HBS-103C

Condition :- Refurbished

Breaking Capacity :- 7.5 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Circuit Protection

The HYUNDAI HBS-103C MCCB provides robust protection against overloads and short circuits, making it suitable for demanding electrical environments. Engineered for both commercial and industrial installation, its thermal magnetic release delivers accurate tripping in hazardous conditions, safeguarding critical equipment and systems.

Versatile and Easy Installation

With its box-type lugs and flexible mounting options, installation of the MCCB is straightforward on standard panels. The device supports vertical and horizontal orientation, making it adaptive to various panel layouts. Its compact design and manageable weight further facilitate convenient mounting and maintenance.

Enhanced Safety and Durability

Designed with an IP20 degree of protection and a mechanical life of up to 10,000 operations, the MCCB ensures long-term reliability. Rated for a wide temperature range and equipped with ambient temperature compensation, it maintains consistent performance even in fluctuating environments.

FAQ's of HYUNDAI (HBS-103C) 75A 3P MCCB:

Q: How does the HYUNDAI HBS-103C MCCB provide circuit protection?

A: The HYUNDAI HBS-103C MCCB utilizes a thermal magnetic release trip unit that quickly responds to overloads and short circuits, minimizing potential damage to electrical circuits and connected equipment.

Q: What are the main installation options for this MCCB?

A: The MCCB is designed for panel mounting and supports both vertical and horizontal orientations, making it suitable for a wide range of electrical distribution boards.

Q: When should auxiliary accessories such as shunt trip or alarm switches be used?

A: Auxiliary accessories like shunt trip, auxiliary contact, or alarm switch are used when remote operation, status indication, or fault notification is required, enhancing control and safety in complex systems.

Q: Where can the HYUNDAI HBS-103C MCCB be used?

A: This MCCB is ideal for use in industrial and commercial settings across India, where reliable three-phase circuit protection is required, especially in panels operating at 415V AC and within the specified temperature range.

Q: What is the process for selecting the correct MCCB configuration?

A: Select the MCCB based on your system's rated voltage (415V AC), current requirements (75A), number of poles (3P), and additional accessory needs, ensuring compatibility with your application and compliance with IEC 60947-2 standards.

Q: How does the device ensure safety in variable temperature environments?

A: The MCCB is equipped with ambient temperature compensation, maintaining accurate trip characteristics across its entire specified temperature range (-5C to +40C), which enhances safety and reliability.
