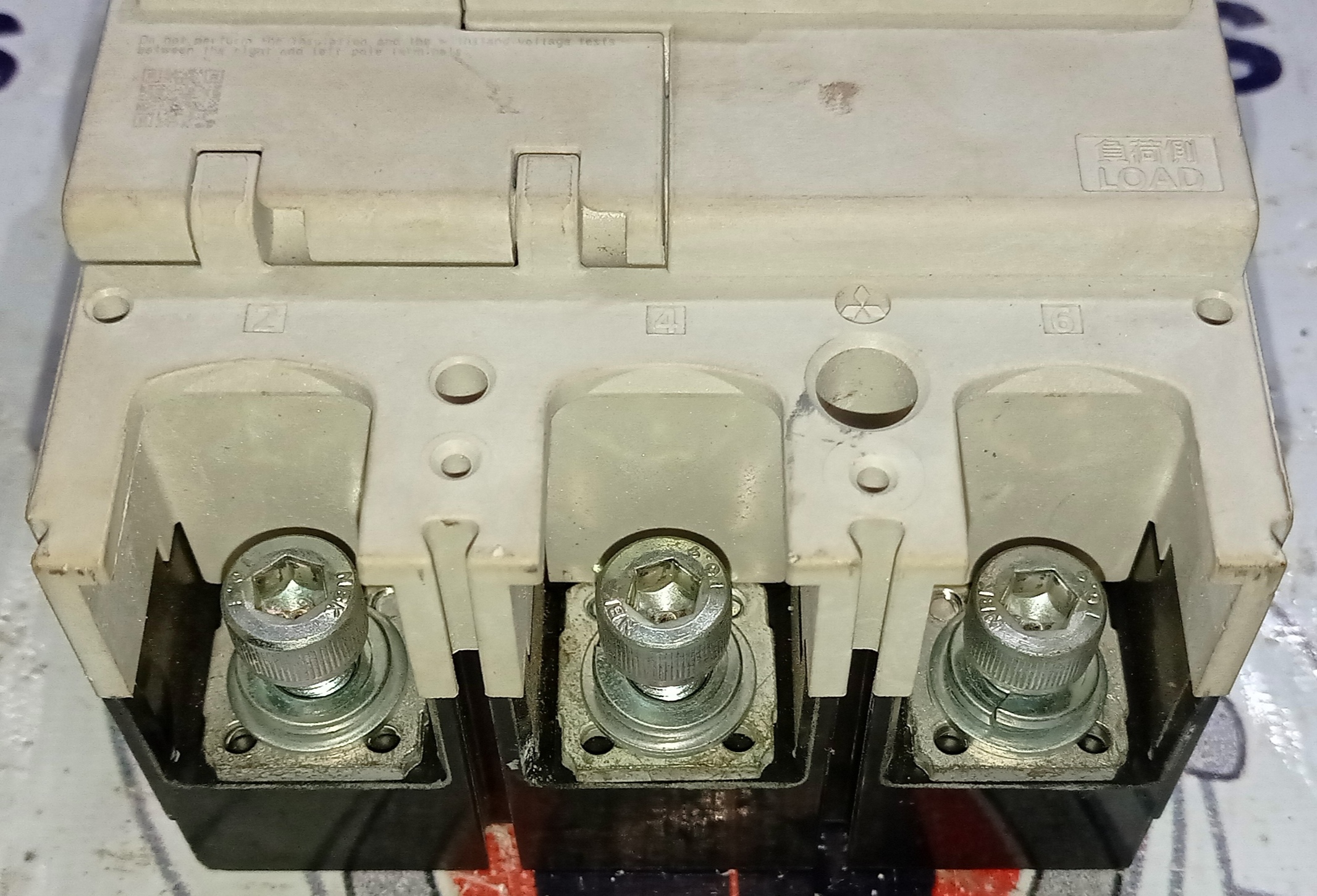

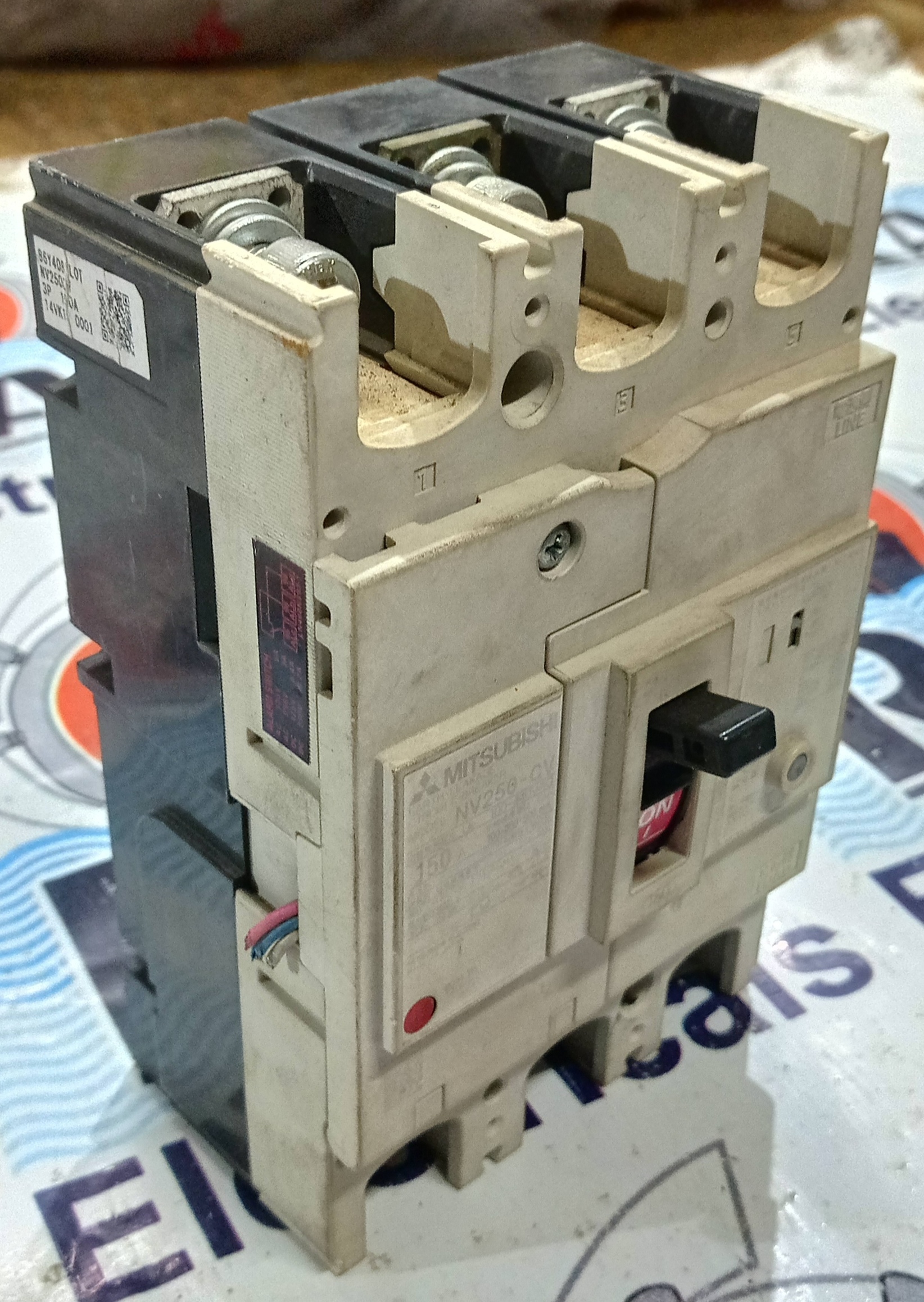

MITSUBISHI (NV250-CV) 150A 3P MCCB

Name: MITSUBISHI (NV250-CV) 150A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

MITSUBISHI (NV250-CV) 150A 3P MCCB Specification

Mechanical Life
10,000 operations

Rated Short Circuit Making Current
63 kA

Breaking Capacity
36 kA

Rated Short Circuit Breaking Current
36 kA

Phase
Three Phase

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overload and Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
AC 415V

Rated Current
150A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes

Weight
Approx. 2.3 kg

Color
Black & Grey

Electrical Life
2,000 operations

Mounting Type
Fixed

Auxiliary Contact Option
Available (Optional)

Ambient Temperature Range
-10C to +60C

Trip Unit Type
Thermal Magnetic

Protection Class
IP20

Terminal Type
Screw Terminal

Dimensions
Approx. 155mm (H) x 105mm (W) x 60mm (D)

Application
Industrial Electrical Distribution

Model
NV250-CV

MITSUBISHI (NV250-CV) 150A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI (NV250-CV) 150A 3P MCCB

Raj Electricals Offering MITSUBISHI (NV250-CV) 150A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- MITSUBISHI

Ampere :- 150A

Pole :- 3P

Model :- NV250-CV

Condition :- Refurbished

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Industrial Protection

Engineered for demanding industrial applications, the NV250-CV provides both overload and short-circuit protection with thermal magnetic trip units. These features safeguard your equipment, ensuring uptime and reliability across varied operating conditions under three-phase power distribution.

Durable and Versatile Design

With a mechanical life of 10,000 operations and an electrical life of 2,000 operations, this MCCB is built to withstand intense industrial use. Its fixed panel mounting and screw terminals allow for easy installation and maintenance, while its compact size accommodates tight distribution panels.

Flexible Installation and Options

Optional auxiliary contacts offer remote monitoring and control capabilities. The MCCB's design supports various industrial requirements with a rated voltage of AC 415V, compatibility for both 50 and 60 Hz, and an ambient temperature range of -10C to +60C.

FAQ's of MITSUBISHI (NV250-CV) 150A 3P MCCB:

Q: How is the MITSUBISHI NV250-CV 150A 3P MCCB installed in an industrial panel?

A: The NV250-CV MCCB is designed for fixed installation using panel mounting. Its screw terminal connections facilitate secure and straightforward wiring within standard industrial distribution panels.

Q: What protection functions does the NV250-CV offer?

A: This MCCB provides both overload and short-circuit protection via its reliable thermal magnetic trip unit, safeguarding electrical circuits from excessive current or faults.

Q: When should auxiliary contacts be considered for this MCCB?

A: Auxiliary contacts are recommended when remote status monitoring or control integration is needed. These are optional and can be added based on application requirements for enhanced system management.

Q: Where is the NV250-CV 150A MCCB typically used?

A: It is primarily used in industrial electrical distribution systems where reliable protection and three-phase circuit management are critical. Its robust design suits heavy-duty industrial environments.

Q: What is the process for maintaining the NV250-CV MCCB?

A: Regular visual inspections and occasional operational testing are suggested to verify its mechanical integrity and electrical functionality. Given its high mechanical and electrical life ratings, ongoing maintenance is minimal.

Q: How does the IP20 protection class benefit the user?

A: The IP20 rating protects against solid objects larger than 12mm, enhancing operator safety during installation and service, though it should be installed in an enclosure away from dust and water hazards.

Q: What advantages does the NV250-CV provide over standard breakers?

A: With a high breaking capacity of 36 kA, thermal magnetic tripping, and sturdy construction, this MCCB offers robust protection, reliability, and flexible integration options to meet stringent industrial standards.
