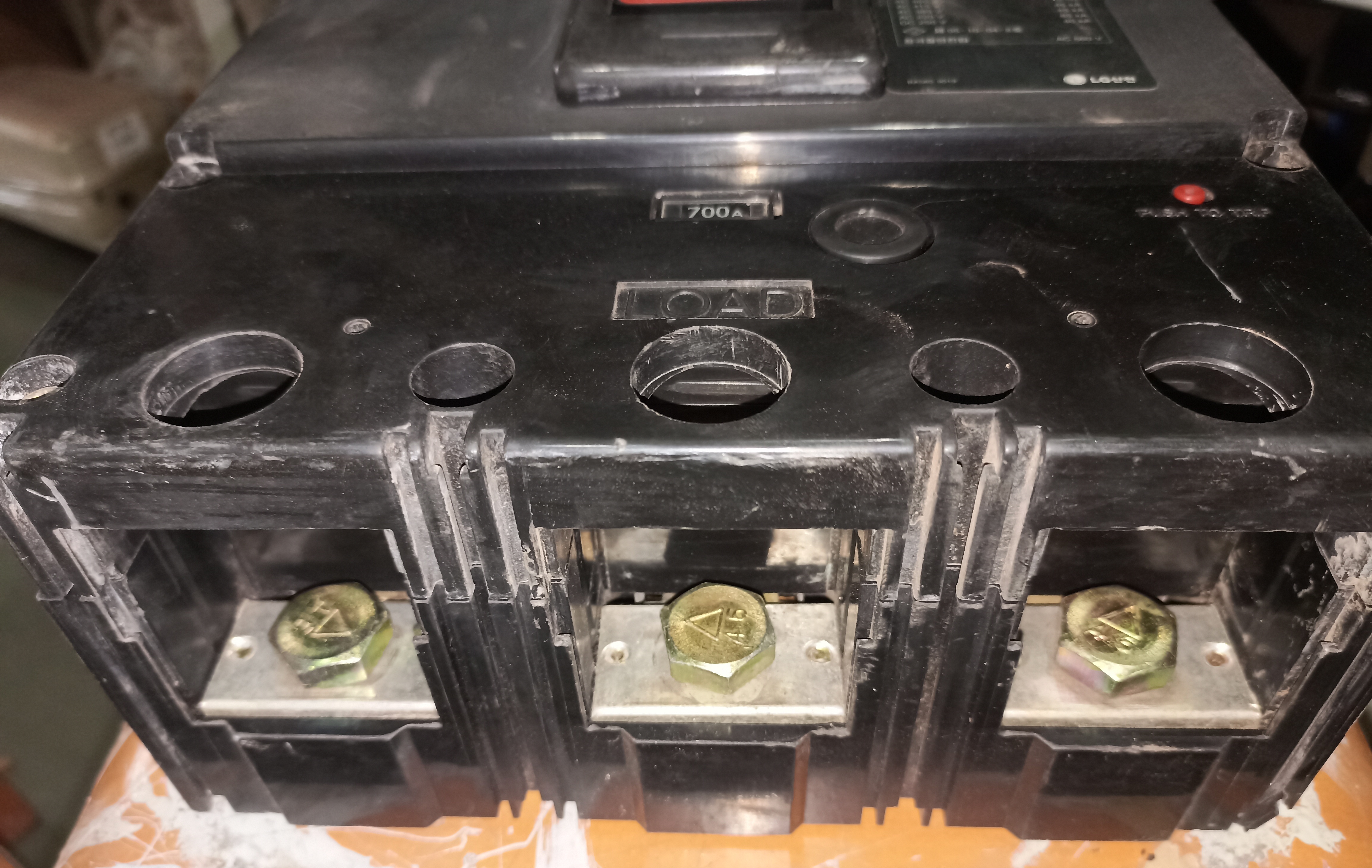

LG 700A 3P MCCB

Name: LG 700A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

LG 700A 3P MCCB Specification

Phase
Three Phase (3P)

Breaking Capacity
50 kA at 415V AC

Rated Short Circuit Breaking Current
50 kA

Rated Short Circuit Making Current
105 kA

Mechanical Life
10,000 Operations

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed, Plug-in, Drawout

Function
Over Current Protection, Short Circuit Protection, Isolation

Poles Number
3 Poles

Rated Voltage
690V AC

Rated Current
700A

Rated Frequency
50/60 Hz

Curves
C, D

Temperature Protection
Yes

Weight
Approx. 11 kg

Color
Grey/Black

Protection Degree
IP20

Mounting Type
Panel Mounting

Operating Ambient Temperature
-5C to +40C

Trip Unit Type
Thermal-Magnetic

Auxiliary Contacts Option
Available

Terminal Type
Box Type Terminals

LG 700A 3P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About LG 700A 3P MCCB

Raj Electricals Offering LG 700A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

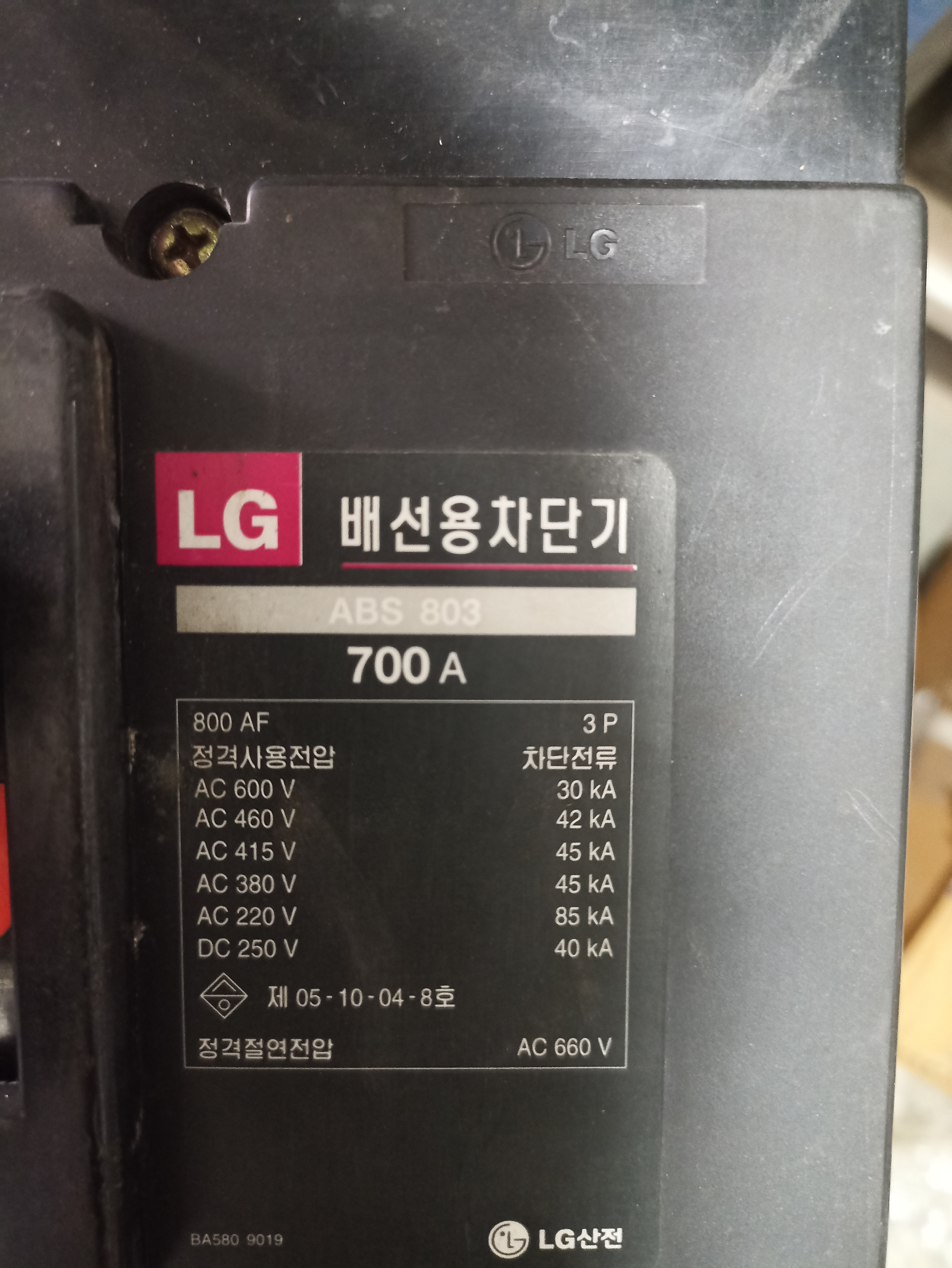

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- LG

Ampere :- 700A

Pole :- 3P

Condition :- Refurbished

Breaking Capacity :- 45 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Protection for Industrial Systems

The LG 700A 3P MCCB stands out for its high breaking capacity of 50 kA at 415V AC, providing dependable overcurrent and short circuit protection. Engineered with a thermal-magnetic trip unit and designed for three-phase applications, it ensures consistent safety and uninterrupted operation in demanding electrical environments.

Versatile Installation and Connectivity Options

Offering installation flexibility, the LG 700A MCCB supports panel, fixed, plug-in, and drawout mounting, adapting seamlessly to various system requirements. Its box-type terminals facilitate straightforward and secure wiring, while auxiliary contact availability extends monitoring and control opportunities for advanced applications.

FAQ's of LG 700A 3P MCCB:

Q: How is the LG 700A 3P MCCB installed in electrical panels?

A: The LG 700A 3P MCCB supports panel mounting, as well as fixed, plug-in, and drawout installation options, making it adaptable for different switchgear and panel designs.

Q: What protection features does the LG 700A MCCB offer?

A: This MCCB provides overcurrent, short circuit, and isolation protection, utilizing a thermal-magnetic trip unit to detect and respond accurately to electrical faults.

Q: When should I use the LG 700A 3P MCCB in my electrical system?

A: The LG 700A is suitable for use in high-capacity, three-phase systems that require up to 700A rated current, particularly in industrial and commercial applications requiring robust fault protection.

Q: Where can auxiliary contacts be installed on the LG 700A MCCB?

A: Auxiliary contacts can be added to monitor breaker status and integrate with control systems, typically installed in designated slots or areas on the breaker housing.

Q: What is the process for connecting cables to the LG 700A MCCB?

A: Cables are connected via box-type terminals, which ensure a secure and reliable electrical connection. Always follow manufacturer's guidelines for torque and cable size.

Q: How does the IP20 protection degree benefit usage?

A: IP20 provides protection against the ingress of solid objects larger than 12 mm, reducing the risk of accidental contact with live parts, which enhances operational safety.

Q: What are the main advantages of choosing this MCCB for industrial applications?

A: Key benefits include its high breaking capacity, reliable thermal-magnetic protection, versatile mounting options, long mechanical life (up to 10,000 operations), and compatibility with auxiliary accessories for enhanced monitoring and control.
