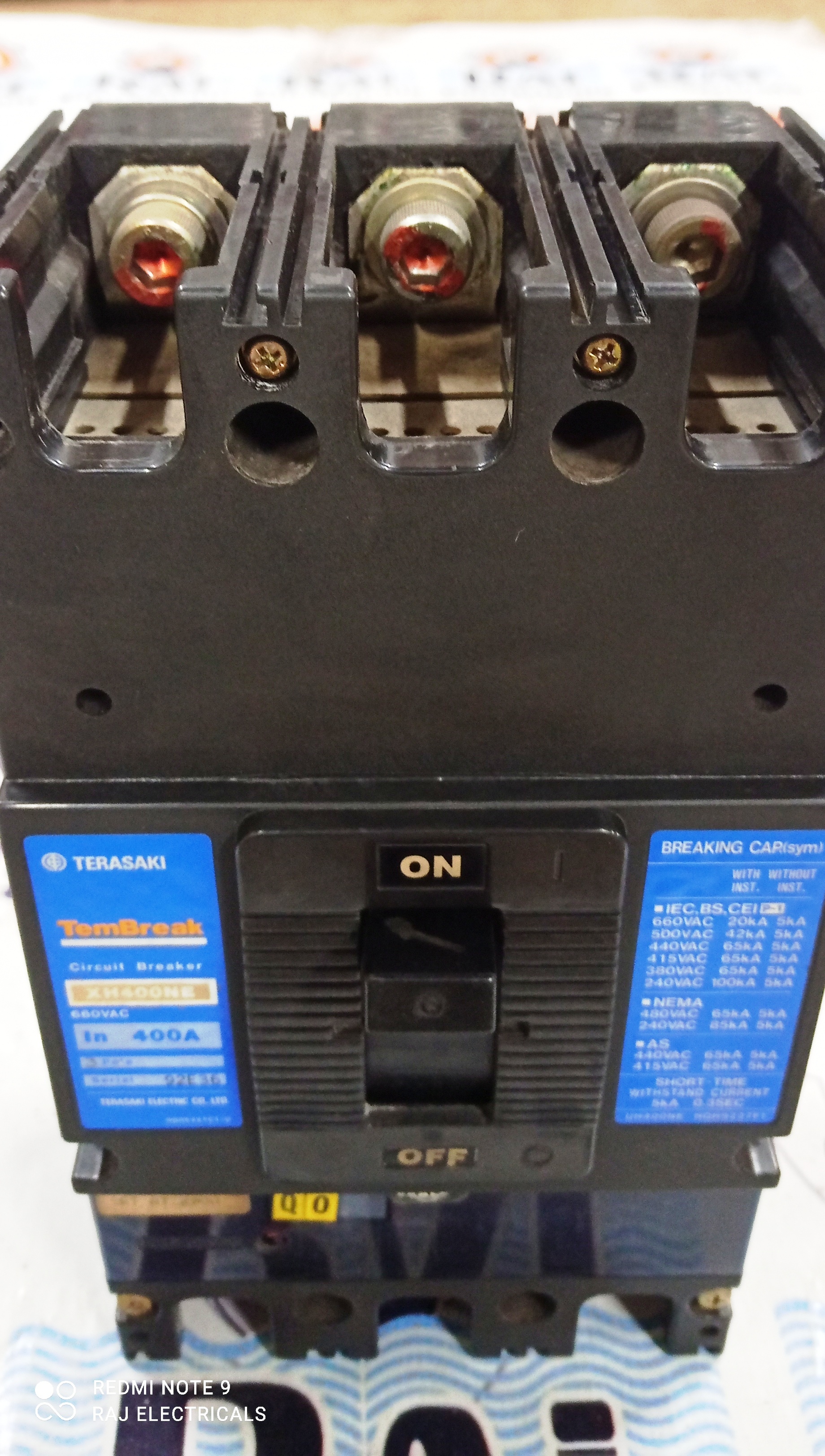

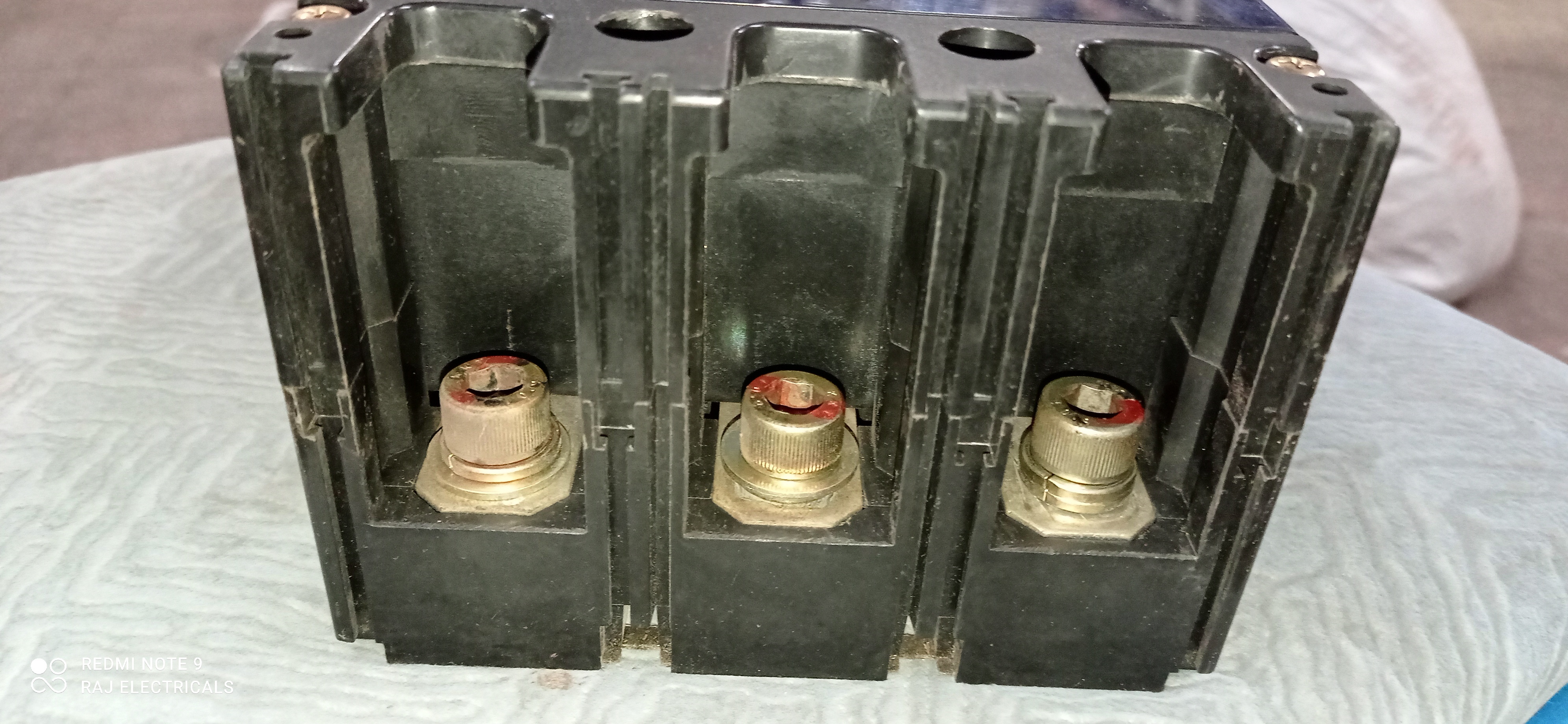

TERASAKI 400A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

TERASAKI 400A 3P MCCB Specification

Mechanical Life
10,000 operations

Phase
Three Phase

Rated Short Circuit Making Current
40 kA

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA at 415V AC

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Fixed Mounting, Panel Mounting

Function
Protection against overloads and short circuits

Poles Number
3 Poles (3P)

Rated Voltage
415V AC

Rated Current
400A

Rated Frequency
50/60 Hz

Curves
Standard Trip Curve

Temperature Protection
Yes, with thermal-magnetic trip

Weight
Approx. 7.5 kg

Color
Grey

Storage Temperature
-40°C to +70°C

Adjustment Range of Overload Release
320A - 400A

Tripping Mechanism
Thermal-magnetic

Operating Temperature Range
-5°C to +40°C

Utilization Category
AC-22A

Mounting Orientation
Vertical or Horizontal

Protection Class
IP20

Connection Type
Bolt-on terminals

Accessories Compatible
Rotary handles, auxiliary contacts, shunt trips, undervoltage releases

Dielectric Strength
2.5kV for 1 minute

External Operating Handle
Optional, available separately

TERASAKI 400A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About TERASAKI 400A 3P MCCB

Terasaki 400A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- Terasaki.

Model Number :- XH400NE

Ampere :- 400.

Number Of Poles :- 3

Voltage :- 440V AC.

Frequency :- 50 Hz.

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Comprehensive Protection for Industrial Systems

The TERASAKI 400A 3P MCCB delivers reliable three-phase protection, minimizing downtime and damage from electrical faults. Its robust design and rapid tripping mechanism ensure the safety of distribution panels and critical equipment. Adjustable overload settings enable tailored protection for a variety of loads, making it a versatile component in demanding industrial environments.

Flexible Installation and Accessory Options

This circuit breaker allows fixed or panel mounting, and can be oriented vertically or horizontally to adapt to space constraints. Optional external rotary handles, as well as compatible auxiliary contacts and trip devices, make it suitable for both manual and automated control solutions, facilitating customization for unique installation needs.

FAQ's of TERASAKI 400A 3P MCCB:

Q: How is the TERASAKI 400A 3P MCCB typically installed and connected?

A: The MCCB is designed for both fixed and panel mounting, supporting either vertical or horizontal orientation. It features bolt-on terminals for secure and reliable electrical connections. Installation should be conducted by qualified professionals to ensure safety and adherence to electrical standards.

Q: What kind of electrical protection does this MCCB provide?

A: This device offers comprehensive protection against both overloads and short circuits with its thermal-magnetic tripping mechanism. The overload release is adjustable from 320A to 400A, helping to safeguard equipment from both prolonged overcurrent situations and abrupt faults.

Q: When should I consider using accessories with the TERASAKI 400A 3P MCCB?

A: Accessories such as rotary handles, auxiliary contacts, shunt trips, and undervoltage releases are used when enhanced functionality is needed, such as remote operation, status signalling, or integration with control circuits. They are particularly beneficial in complex panel setups or automated systems.

Q: Where can this MCCB operate in terms of environmental conditions?

A: The breaker is suitable for environments with an operating temperature range of -5C to +40C and can be stored between -40C and +70C, making it reliable for use in standard industrial and commercial locations with moderate climates.

Q: What process is required to adjust the overload protection settings?

A: Adjustment of the overload protection from 320A to 400A typically involves setting the required value via a dial or selector integrated on the breaker. It is important to refer to the product manual and adhere to safety procedures during this adjustment.

Q: How does the MCCB contribute to the overall safety and reliability of an electrical system?

A: By providing prompt disconnection during overloads or faults, as well as allowing customization of protection levels, this MCCB reduces the risk of equipment damage, minimizes outages, and enhances maintenance safety for personnel.

Q: What are the key benefits of choosing the TERASAKI 400A 3P MCCB for panel builders and system integrators?

A: Panel builders benefit from its flexible mounting options, wide accessory compatibility, and straightforward installation. The combination of high breaking capacity, reliable tripping technology, and compliance with international standards makes it an excellent choice for demanding projects.
