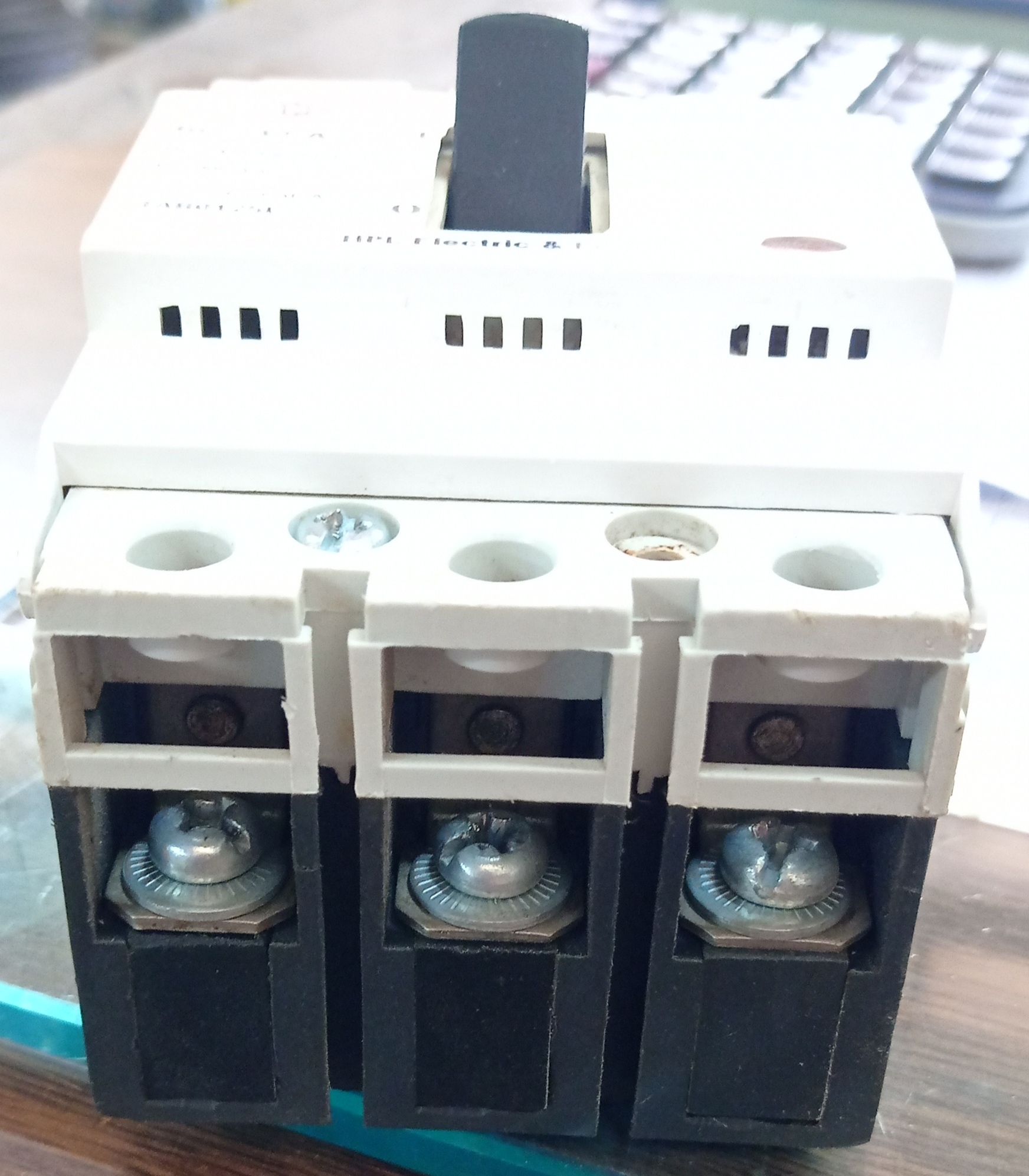

HPL 32A 3P MCCB

Get a Price/Quote

HPL 32A 3P MCCB Specification

Rated Short Circuit Breaking Current
25kA

Phase
Three Phase

Rated Short Circuit Making Current
32kA

Mechanical Life
10,000 Operations

Breaking Capacity
25kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail/Panel Mounting

Function
Overload & Short Circuit Protection

Poles Number
3 Pole

Rated Voltage
415V AC

Rated Current
32A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Yes

Weight
Approx 700g

Color
Grey/White

Auxiliary Contact Option
Available (Optional)

IP Rating
IP20

Standards
IS/IEC 60947-2

Trip Unit Technology
Thermal Magnetic

Mounting Type
Fixed

Frame Size
100AF

Ambient Temperature Range
-5°C to +55°C

Operating Voltage
240/415V AC

Terminal Type
Screw Type

HPL 32A 3P MCCB Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

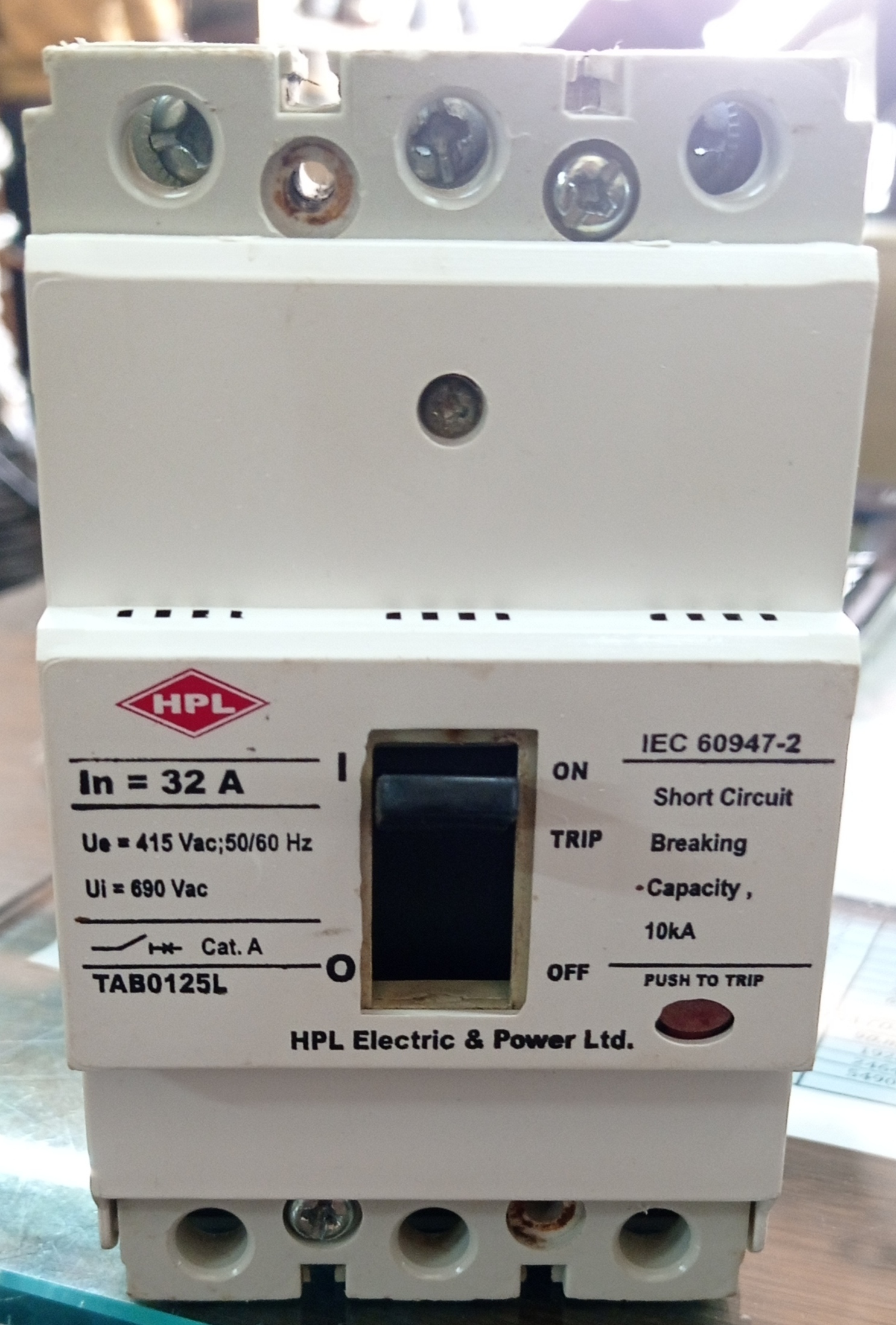

About HPL 32A 3P MCCB

Hpl 32A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.
Product Specification :-
Product :- Moulded Case Circuit Breaker
Make :- Hpl
Ampere :- 32A
Number Of Pole :- 3P
Breaking Capacity :- 10 kA
Ue :- 415V AC
Frequency :- 50/60 Hz
Ui :- 690V AC
We Supply Our Products In All Over India And Also In Foreign Countries.
For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Safety and Reliability

Designed to meet IS/IEC 60947-2 standards, the HPL 32A 3P MCCB provides superior protection through its thermal magnetic trip unit. Capable of handling harsh conditions with an ambient temperature range of -5C to +55C, it ensures operational reliability, minimizing risks from overload and short circuit events.

Versatile Installation and Operation

Offering both DIN rail and panel mounting options, this MCCB is suitable for various installation needs in distribution panels or industrial set-ups. The screw-type terminal and optional auxiliary contact enable straightforward integration and expand functionality with monitoring or control circuits as needed.

Engineered for Performance

With a powerful breaking capacity of 25kA, rated current of 32A, and Type C operating curve, the MCCB ensures immediate response and high mechanical enduranceup to 10,000 operations. Its compact 100AF frame size and IP20 rating make it a practical solution for modern electrical distribution systems.

FAQs of HPL 32A 3P MCCB:

Q: How does the thermal magnetic trip unit in the HPL 32A 3P MCCB ensure circuit protection?

A: The thermal magnetic trip unit offers dual protection by using a thermal element for long-term overload and a magnetic element for instant short-circuit conditions. This mitigates electrical faults quickly, safeguarding equipment and personnel.

Q: What installation options are available for this MCCB, and where can it be used?

A: The MCCB supports both DIN rail and panel mounting, making it versatile for use in distribution boards, control panels, and industrial automation setups across commercial and industrial facilities.

Q: When is it recommended to opt for the auxiliary contact feature?

A: Auxiliary contacts are advisable when remote monitoring, signaling, or integration with control systems is required, enabling timely fault reporting and automated actions in advanced installations.

Q: Where does the MCCB comply with recognized standards and regulations?

A: This product conforms to IS/IEC 60947-2 standards, ensuring it meets stringent safety, design, and performance benchmarks suitable for use in Indian and global markets.

Q: What is the process for mounting the HPL 32A 3P MCCB in a switchboard?

A: Installation is straightforward: select DIN rail or fixed panel mounting, connect incoming and outgoing wires using the screw-type terminals, and secure the device to ensure firm electrical and mechanical connection.

Q: How can users benefit from the IP20 rating and temperature protection features?

A: The IP20 rating protects against accidental finger contact, enhancing operational safety, while temperature protection prevents thermal damage, ensuring long-term reliability in varying environmental conditions.
