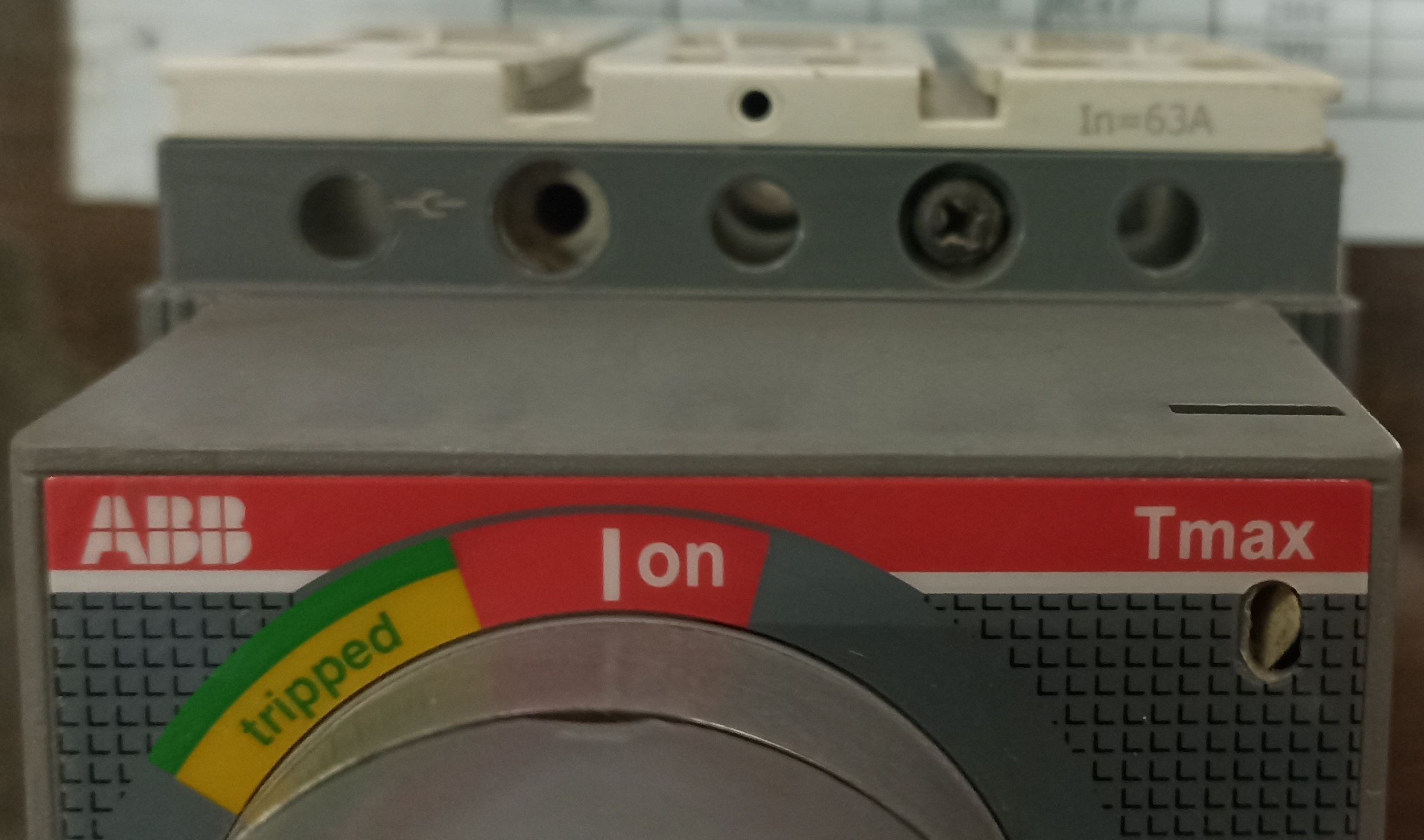

ABB SACE TMAX 63A 3P MCCB

Name: ABB SACE TMAX 63A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

ABB SACE TMAX 63A 3P MCCB Specification

Rated Short Circuit Making Current
63 kA Peak

Phase
Three Phase

Mechanical Life
20,000 operations

Breaking Capacity
25 kA @ 415V AC

Rated Short Circuit Breaking Current
25 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed, Panel Mounting

Function
Circuit Protection

Poles Number
3P

Rated Voltage
415V AC

Rated Current
63A

Rated Frequency
50/60 Hz

Curves
B, C, D Curves (Depending on Model)

Temperature Protection
Thermal-Magnetic Release

Weight
1.2 kg (approx.)

Color
Grey / Black

Terminal Type
Screw terminals

Ambient Temperature Range
-25C to +70C

Insulation Voltage
690V

Connection Capacity
Up to 35 mm2 cable

Overload Protection
Yes

Frame Size
Tmax T1 Frame

Trip Unit
Fixed Thermal & Magnetic

Degree of Protection
IP20

Standards Compliance
IEC 60947-2

Auxiliary Contacts Availability
Optional

Dimensions (H x W x D)
130 mm x 90 mm x 70 mm (approx.)

Short Circuit Protection
Yes

Electrical Endurance
10,000 operations

Approval
CE, UL Certified

Mounting Position
Any

ABB SACE TMAX 63A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 63A 3P MCCB

ABB SACE TMAX 63A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 63A

Pole :- 3P

Model :- SACE TMAX

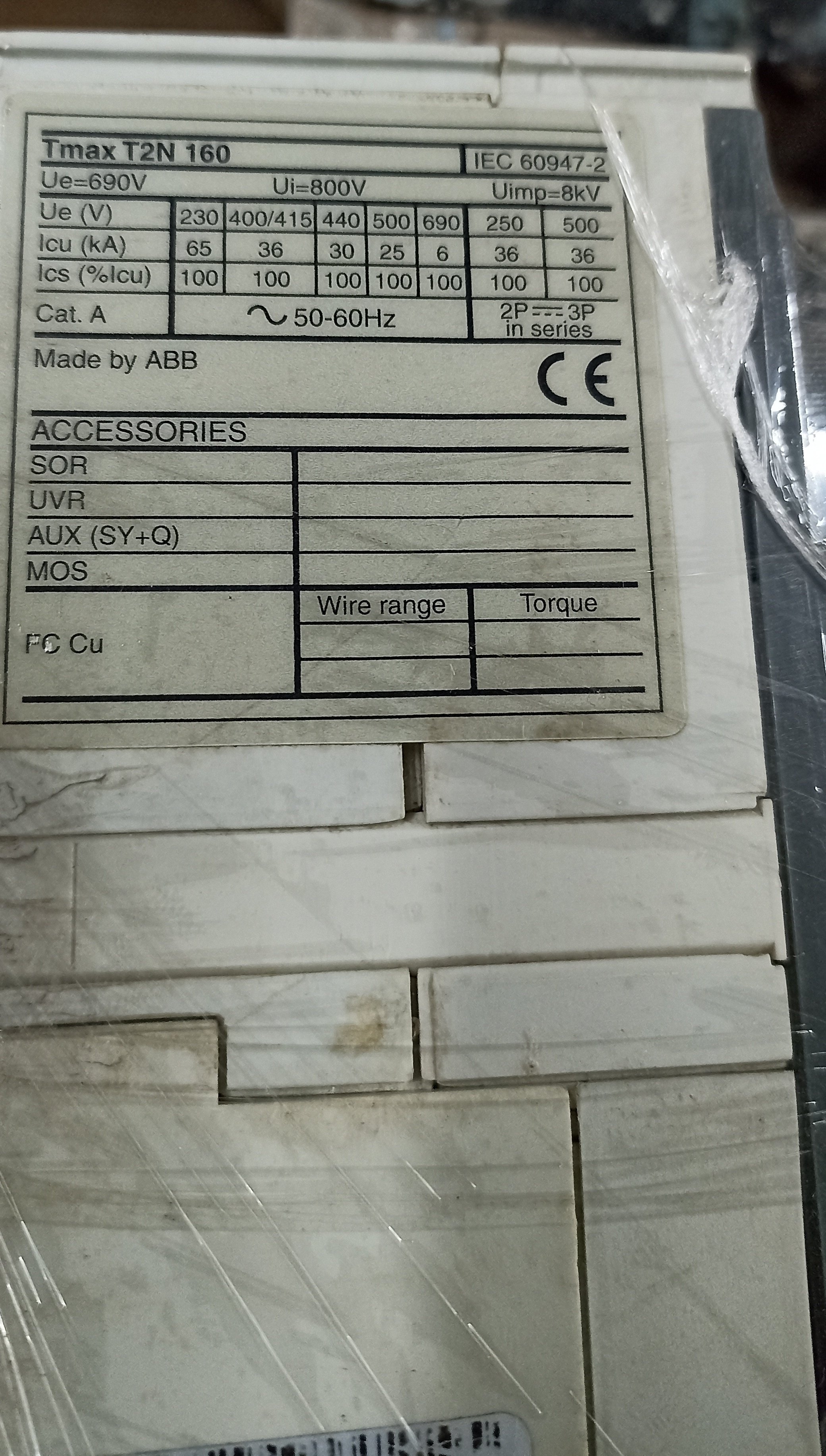

Model Number :- Tmax T2N 160

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile and Reliable Protection

The ABB SACE TMAX 63A 3P MCCB delivers high-performance protection for three-phase circuits, supporting a wide range of installation environments with an ambient temperature tolerance from -25C to +70C. Its advanced thermal-magnetic trip unit ensures dependable overload and short circuit protection, meeting IEC and UL standards for safety and reliability.

Compliant and Durable Design

This circuit breaker conforms to international standards, including IEC 60947-2 and CE, and features a robust Tmax T1 frame. With a breaking capacity of 25 kA at 415V AC, a mechanical life of 20,000 operations, and IP20 protection, it is built for durability in demanding industrial and commercial applications.

Flexible Installation Options

The ABB SACE TMAX 63A MCCB offers flexible panel mounting in any position, convenience through screw terminals, and supports cable sizes up to 35 mm2. Optional auxiliary contacts and a compact design (130 x 90 x 70 mm) facilitate task-specific adaptation and integration into varied panel layouts.

FAQ's of ABB SACE TMAX 63A 3P MCCB:

Q: How does the thermal-magnetic trip unit in the ABB SACE TMAX 63A MCCB ensure protection?

A: The fixed thermal-magnetic trip unit combines two mechanisms: thermal protection responds to sustained overloads, while magnetic protection reacts instantly to short circuits. This dual action ensures reliable circuit protection against both overloads and short circuit events.

Q: What standards does the ABB SACE TMAX 63A 3P MCCB comply with?

A: This MCCB conforms to IEC 60947-2 standards and holds CE and UL certifications, ensuring it meets stringent global safety and quality regulations for circuit protection devices.

Q: When should optional auxiliary contacts be used with this MCCB?

A: Optional auxiliary contacts are recommended when additional control or signaling is required, such as remote ON/OFF indication, integration with automated systems, or status monitoring from a control panel.

Q: Where can the ABB SACE TMAX 63A MCCB be installed?

A: The MCCB is designed for fixed, panel-mounted installations and can be mounted in any position, providing flexibility for place of installation in industrial and commercial panels throughout varied environments.

Q: What is the process for connecting cables to the ABB SACE TMAX 63A MCCB?

A: Cables up to 35 mm2 can be securely connected using the screw terminal type provided. Proper tightening and adherence to recommended wiring practices ensure a safe and reliable connection.

Q: How does the device perform under different environmental conditions?

A: With an ambient operating temperature range from -25C to +70C and an IP20 degree of protection, the MCCB performs reliably in various industrial and commercial environments, resisting dust ingress and temperature fluctuations.

Q: What are the benefits of using this MCCB in circuit applications?

A: Key benefits include robust overload and short circuit protection, compliance with international standards, high breaking capacity (25 kA at 415V AC), reliable operation for up to 20,000 mechanical cycles, and flexible installation with optional accessories.
