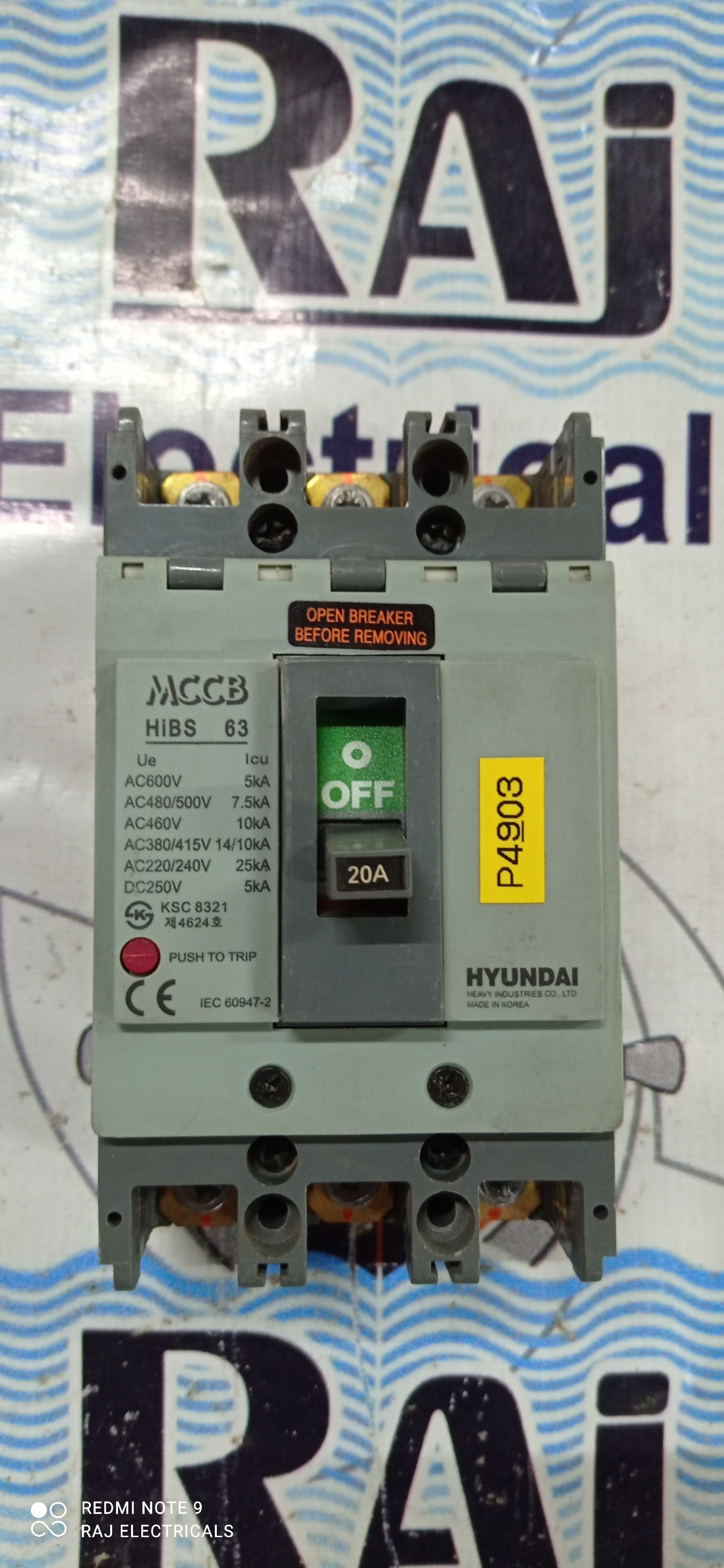

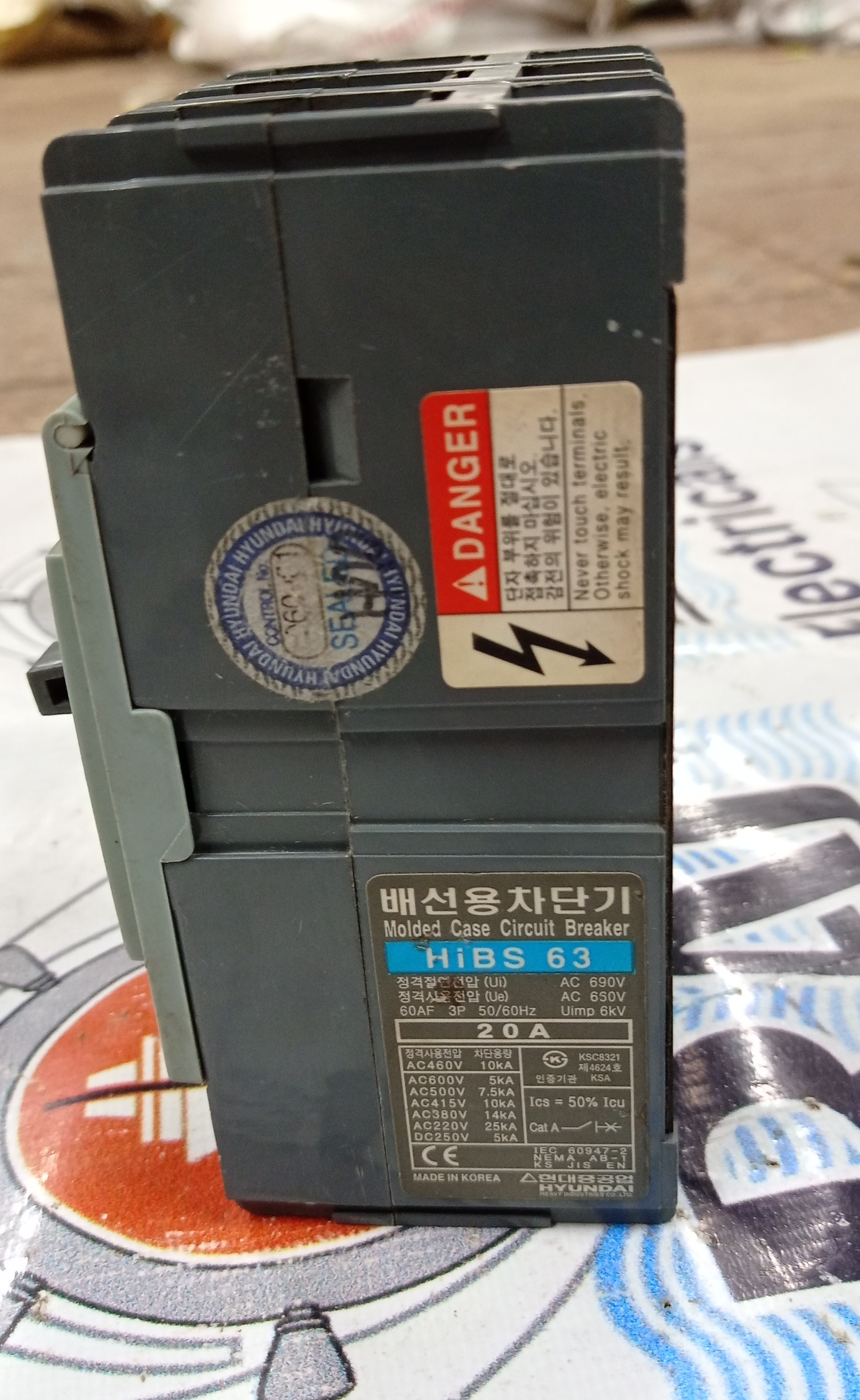

HYUNDAI (HiBS-63) 20A 3P MCCB

Name: HYUNDAI (HiBS-63) 20A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

HYUNDAI (HiBS-63) 20A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Breaking Current
18kA

Mechanical Life
Over 10,000 operations

Breaking Capacity
18kA

Rated Short Circuit Making Current
Approx. 18kA (peak)

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
DIN rail or panel mounting

Function
Protection of electrical circuits from overload and short circuits

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
20A

Rated Frequency
50/60Hz

Curves
C Type

Temperature Protection
Thermal & Magnetic trip unit

Weight
Approx. 700g

Color
Grey

Operation Voltage (Ue)
415V AC

Storage Temperature
-25C to +70C

Model Number
HiBS-63

Degree of Protection
IP20

Trip Unit Type
Fixed thermal and magnetic

Rated Insulation Voltage (Ui)
690V AC

Mounting Position
Vertical and Horizontal

Ambient Temperature Range
-5C to +40C

Case Material
High strength engineered plastic

Altitude
Up to 2000m without derating

Terminal Connection
Screw type terminals

Frequency of Operation
Max. 240 operations per hour

Utilization Category
A

HYUNDAI (HiBS-63) 20A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About HYUNDAI (HiBS-63) 20A 3P MCCB

Raj Electricals Offering HYUNDAI (HiBS-63) 20A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Hyundai

Ampere :- 20A

Pole :- 3P

Model :- HiBS-63

Condition :- Refurbished

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Superior Electrical Protection

The HiBS-63 delivers both overload and short circuit protection through its advanced fixed thermal and magnetic trip unit. With a breaking capacity of 18kA and fast response, it protects critical assets and circuits from electrical faults, making it ideal for demanding environments.

Installation Flexibility

Designed for straightforward integration, the HYUNDAI HiBS-63 can be mounted either vertically or horizontally. Its DIN rail and panel mounting versatility, along with screw-type terminals, allows for easy and secure connection in a variety of electrical panels and applications.

Durable Construction and Reliable Operation

Built from high-strength engineered plastic and rated at IP20, the HiBS-63 is made to withstand harsh conditions. It can safely operate in ambient temperatures between -5C and +40C, and at altitudes up to 2000 meters without performance derating, ensuring reliable use over a long operational lifespan.

FAQ's of HYUNDAI (HiBS-63) 20A 3P MCCB:

Q: How does the HYUNDAI HiBS-63 MCCB protect electrical circuits?

A: The HiBS-63 MCCB safeguards electrical circuits from overload and short circuits by utilizing a fixed thermal and magnetic trip unit. This dual protection mechanism ensures the device responds accurately and rapidly to abnormal current conditions.

Q: What are the mounting and installation options for this MCCB?

A: You can install the HYUNDAI HiBS-63 on either a DIN rail or directly on a panel. It supports both vertical and horizontal mounting positions, providing flexibility to suit different panel designs and layouts.

Q: When is the HYUNDAI HiBS-63 suitable for use?

A: This MCCB is suitable when you need reliable protection in three-phase circuits with a rated voltage up to 415V AC and a current requirement of 20A, especially in commercial and industrial applications.

Q: Where can the HYUNDAI HiBS-63 be installed effectively?

A: It can be installed in environments where the ambient temperature ranges from -5C to +40C and at altitudes up to 2000 meters without loss of performance, making it ideal for a wide range of settings.

Q: What is the process for connecting wires to the HiBS-63?

A: The HiBS-63 uses screw-type terminals for wire connections, enabling users to securely attach wires with minimal effort during installation.

Q: How is the operational benefit of the HiBS-63 maximized?

A: Operational benefits are maximized through its high mechanical life (over 10,000 operations), frequent use capability (up to 240 operations per hour), and durable engineered plastic casing, ensuring reduced maintenance and long-term reliability.

Q: What advantages does the IP20 protection rating offer?

A: The IP20 rating protects the device against the ingress of solid objects over 12.5mm, enhancing user safety and ensuring reliable operation in protected environments.
