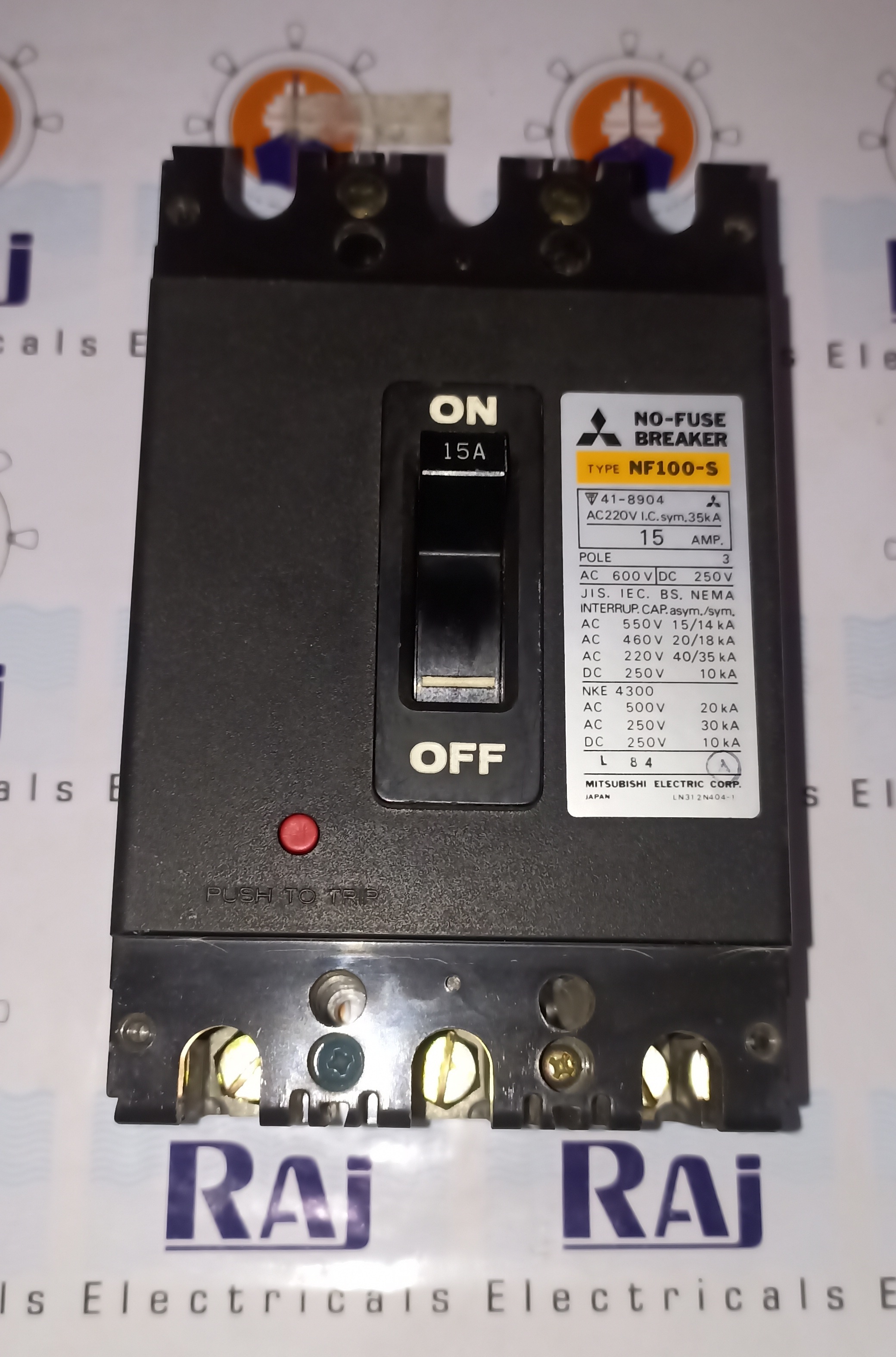

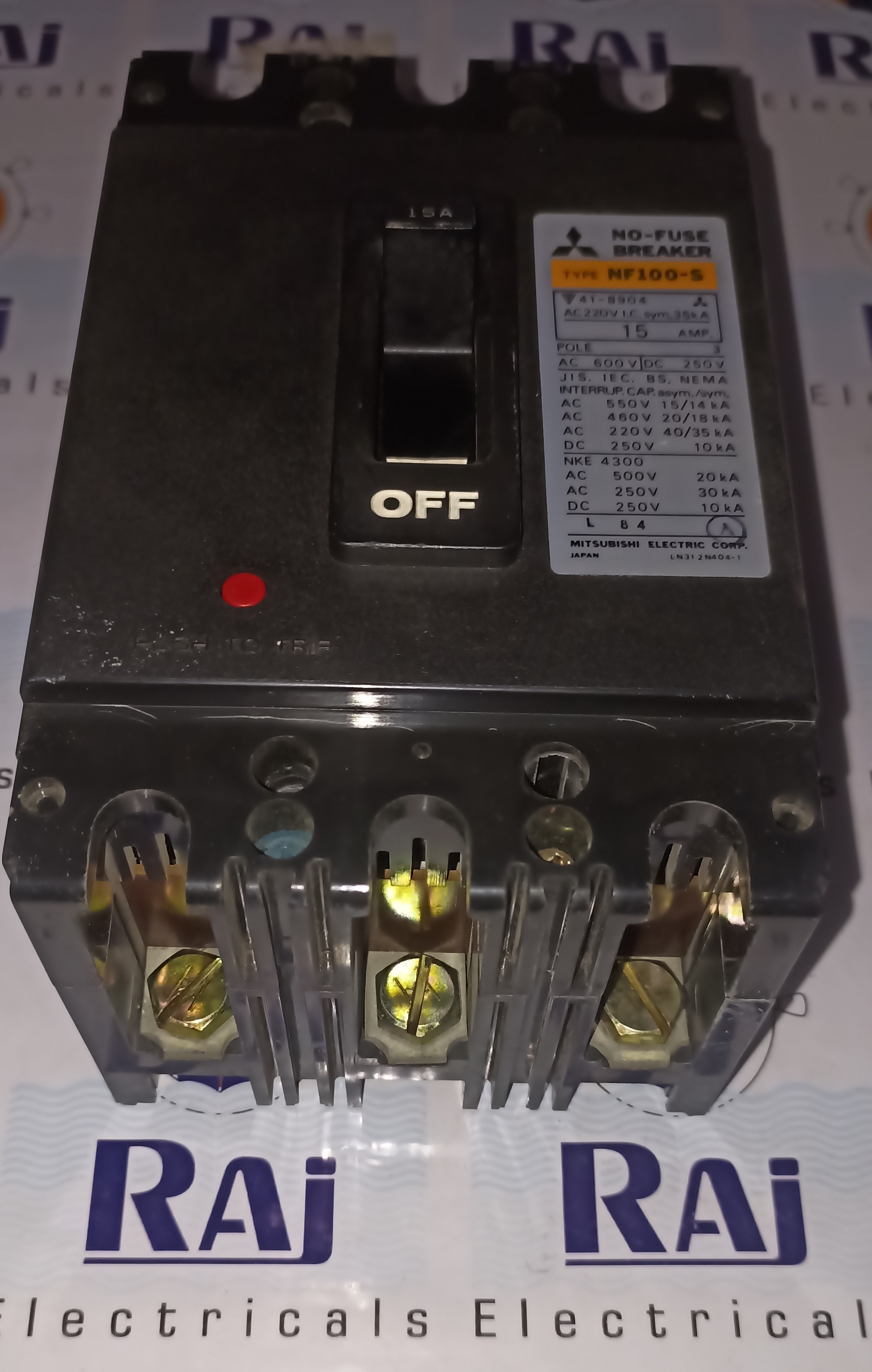

MITSUBISHI 15A 3P (NF100-S) MCCB

Get a Price/Quote

MOQ : 5 Pieces

MITSUBISHI 15A 3P (NF100-S) MCCB Specification

Rated Short Circuit Breaking Current
25kA @ 415V AC

Mechanical Life
10,000 operations

Phase
Three Phase

Breaking Capacity
25kA at 415V AC

Rated Short Circuit Making Current
Not less than 25kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail / Panel Mounting

Function
Circuit Protection

Poles Number
3 Poles

Rated Voltage
AC 415V

Rated Current
15A

Rated Frequency
50/60 Hz

Curves
Standard (Thermal-Magnetic)

Temperature Protection
Thermal & Magnetic Release

Weight
Approx. 0.75 kg

Color
Gray

Usage
Industrial/Commercial

Rated Insulation Voltage (Ui)
690V AC

Trip Unit
Fixed thermomagnetic

Terminal Type
Screw terminal

Model
NF100-S

Operating Temperature Range
-5C to +40C

Rated Impulse Withstand Voltage (Uimp)
8kV

MITSUBISHI 15A 3P (NF100-S) MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI 15A 3P (NF100-S) MCCB

MITSUBISHI (NF100-S) 15A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Mitsubishi

Ampere :- 15A

Pole :- 3P

Model :- NF100-S

Condition :- Refurbished

Breaking Capacity :- 50 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Superior Circuit Protection

The MITSUBISHI NF100-S MCCB delivers dependable circuit protection for various industrial and commercial power distribution systems. Incorporating a thermal-magnetic release mechanism, it defends against both overloads and short circuits, ensuring safety and minimizing downtime. The impressive breaking capacity up to 25kA at 415V AC provides added security in high-demand environments.

Versatile Installation Options

Engineered for flexibility, the MITSUBISHI NF100-S supports both DIN rail and panel mounting. Its compact design and screw terminal connections simplify the installation process, making it suitable for new setups or retrofit projects. This versatility allows integration into a wide range of electrical panels and distribution boards.

Durability and Reliability

Built to last, the NF100-S boasts a robust mechanical life of up to 10,000 operations. Its construction ensures ongoing reliable operation in harsh industrial or commercial environments. The wide temperature tolerance from -5C to +40C ensures consistent performance regardless of surrounding climate conditions.

FAQ's of MITSUBISHI 15A 3P (NF100-S) MCCB:

Q: How does the MITSUBISHI 15A 3P (NF100-S) MCCB protect electrical circuits?

A: The MCCB uses a fixed thermomagnetic trip unit to provide circuit protection by automatically disconnecting the power in the event of overloads or short circuits, reducing the risk of equipment damage and electrical fires.

Q: What are the key installation options for the NF100-S MCCB?

A: The NF100-S can be installed using either DIN rail or standard panel mounting, offering flexibility for a variety of electrical distribution systems and making it suitable for both new and retrofit installations.

Q: Where is the MITSUBISHI NF100-S most commonly used?

A: This MCCB is designed for industrial and commercial environments where reliable circuit protection and high breaking capacity are essential, such as in manufacturing plants, warehouses, and commercial buildings.

Q: What is the process for installing the NF100-S MCCB?

A: Installation involves securing the device to a DIN rail or directly onto a panel, connecting conductors via screw terminals, and integrating it within the electrical distribution board. Proper adherence to electrical codes and safety standards is recommended.

Q: When should this MCCB be considered for use?

A: The NF100-S should be used when accurate, reliable circuit protection is needed for three-phase systems with a rated current of 15A and where a high short-circuit breaking capacity (up to 25kA) is necessary.

Q: What are the benefits of using the MITSUBISHI NF100-S MCCB?

A: Users benefit from robust protection, high breaking capacity, long mechanical life, and versatile installation, making it a dependable choice for managing circuit safety in challenging environments.
