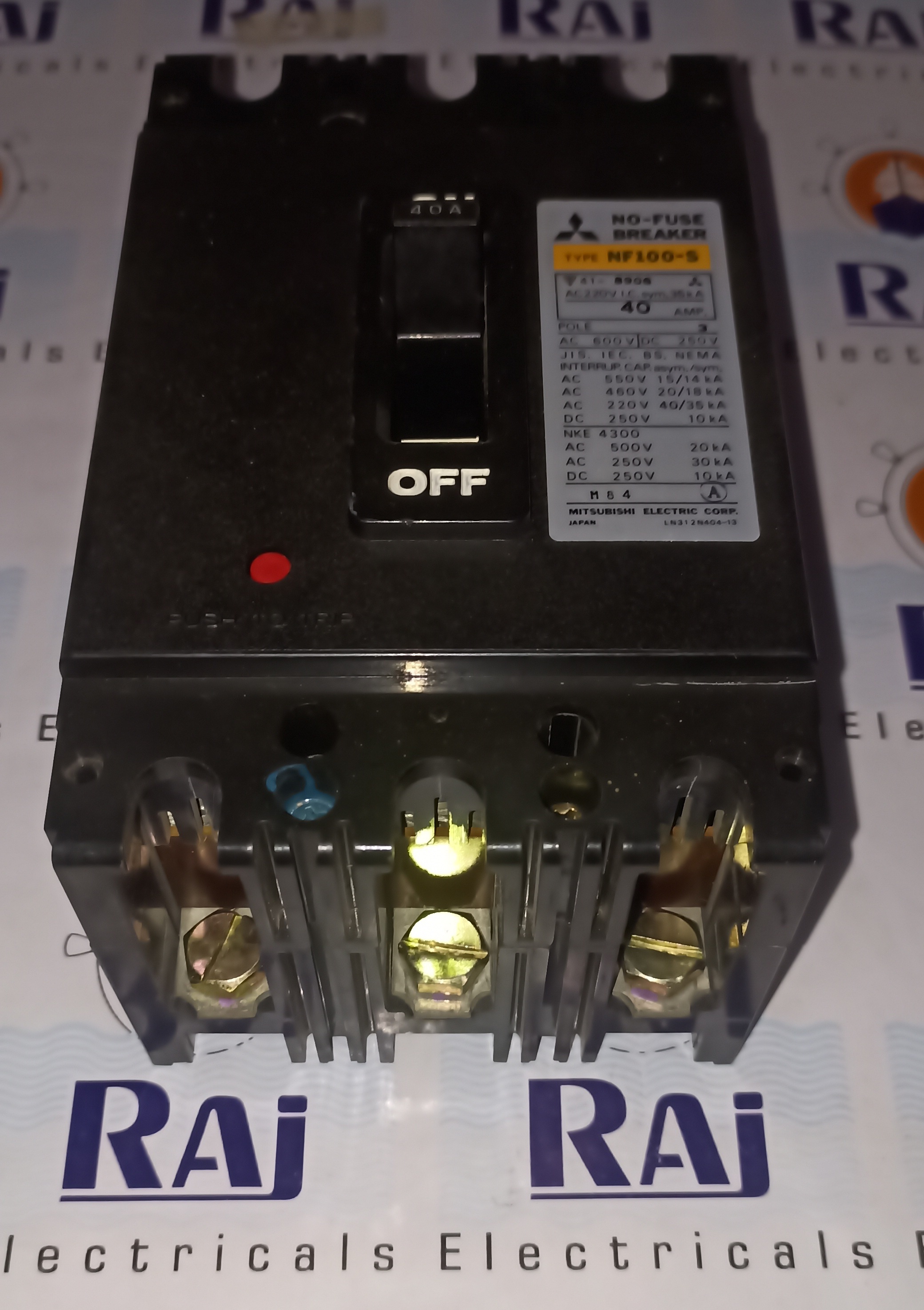

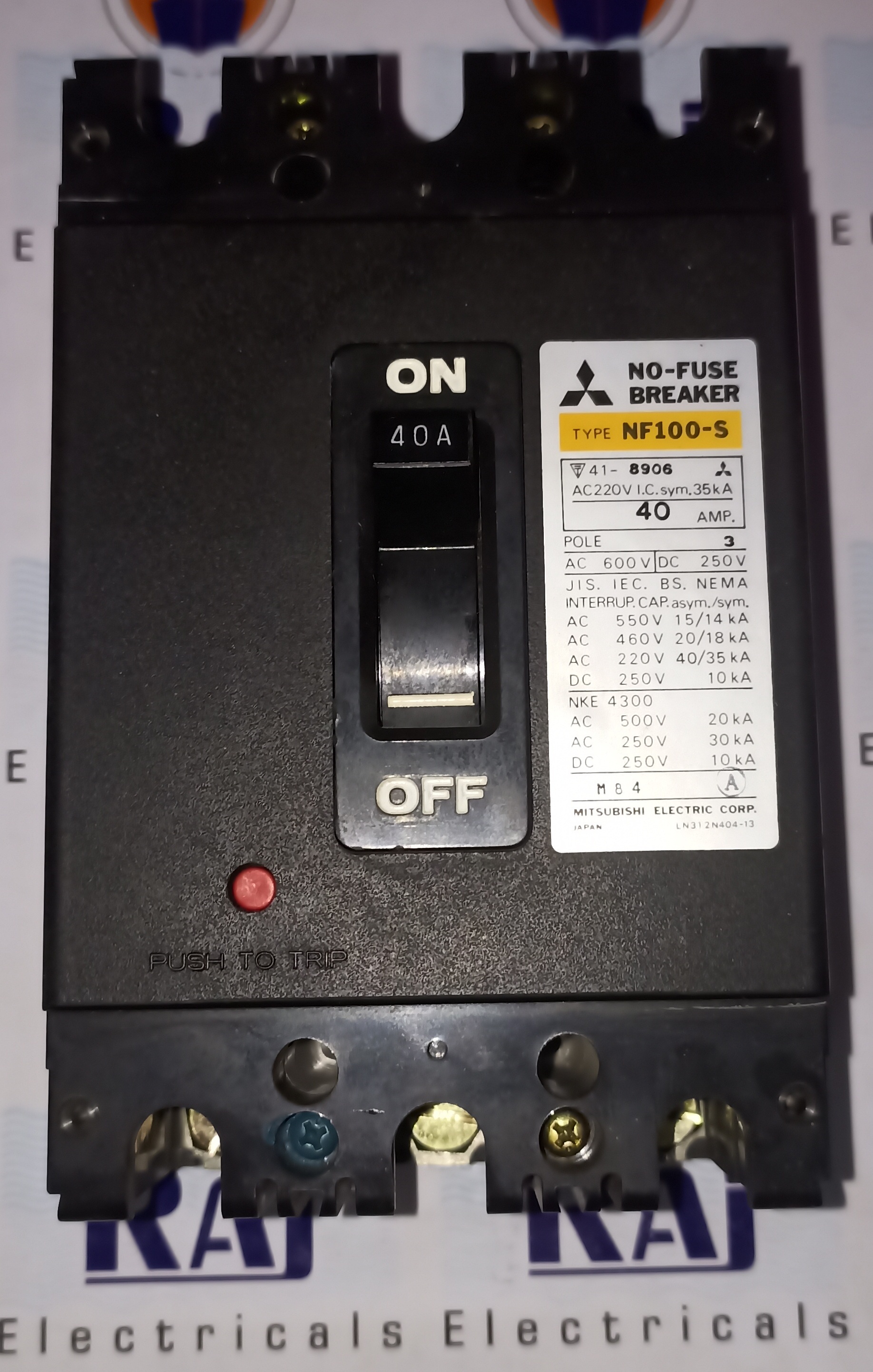

MITSUBISHI (NF100-S) 40A 3P MCCB

Name: MITSUBISHI (NF100-S) 40A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

MITSUBISHI (NF100-S) 40A 3P MCCB Specification

Mechanical Life
10000 Operations (ON/OFF)

Rated Short Circuit Breaking Current
10kA

Phase
Three Phase

Breaking Capacity
10kA (at 415V AC)

Rated Short Circuit Making Current
10kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail or Panel Mounting

Function
Overload & Short Circuit Protection

Poles Number
3 Pole (3P)

Rated Voltage
AC 415V

Rated Current
40A

Rated Frequency
50/60 Hz

Curves
C-Type Tripping Characteristic

Temperature Protection
Thermal & Magnetic Trip Unit

Weight
Approx. 1.1 kg

Color
Grey/Black

Electrical Life
2000 Operations (ON/OFF) under full load

Mounting Orientation
Vertical/Horizontal

Connection Type
Screw Terminal

Operating Temperature Range
-5C to +40C

Service Environment
Indoor use only

Degree of Protection
IP20 (Front Side)

Rated Insulation Voltage
690V AC

Trip Unit Type
Fixed Thermal & Magnetic

MITSUBISHI (NF100-S) 40A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI (NF100-S) 40A 3P MCCB

Raj Electricals Offering MITSUBISHI (NF100-S) 40A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Mitsubishi

Ampere :- 40A

Pole :- 3P

Model :- NF100-S

Condition :- Refurbished

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Circuit Protection for Three-Phase Systems

Engineered with a C-type tripping characteristic, the MITSUBISHI (NF100-S) 40A 3P MCCB delivers precise overload and short circuit protection in various three-phase power distribution scenarios. Its adaptability for both DIN rail and panel mounting ensures flexibility during installation, making it ideal for use in industrial, commercial, or residential electrical panels.

High Durability Meets Reliable Performance

Boasting mechanical endurance for 10,000 operations and full-load electrical life for 2,000 cycles, this MCCB upholds reliable operation under demanding situations. The fixed thermal and magnetic trip unit effortlessly handles temperature fluctuations from -5C to +40C, preserving system integrity and safety over prolonged use.

FAQ's of MITSUBISHI (NF100-S) 40A 3P MCCB:

Q: How do I install the MITSUBISHI (NF100-S) 40A 3P MCCB?

A: Installation is straightforward and the device offers flexibility for both vertical and horizontal orientations. You can mount it on a DIN rail or directly onto a panel. The screw terminal connections simplify wiring. For safety, always ensure the power supply is off during installation and follow manufacturer guidelines.

Q: What environments is this MCCB suitable for?

A: The MCCB is intended for indoor use only and operates efficiently within temperatures from -5C to +40C. Its IP20 degree of protection (front side) safeguards against finger contact and large objects but should be used where moisture and dust exposure are limited.

Q: When should I use this MCCB in my electrical system?

A: This MCCB is ideal for applications requiring robust overload and short circuit protection for three-phase AC circuits up to 415V and 40A. It is especially beneficial in power distribution boards for commercial, industrial, or large residential settings where reliable protection and easy maintenance are priorities.

Q: Where can this circuit breaker be installed within my facility?

A: It can be installed in various electrical panels, distribution boards, or control circuits that follow the rated voltage and current guidelines. Its compact design and color scheme make it suitable for organized panel layouts in control rooms, switch rooms, or other protected indoor locations.

Q: What is the process for resetting the MCCB after a trip?

A: After identifying and correcting the fault (overload or short circuit), simply switch the MCCB back to its ON position. Ensure no underlying issue persists before resetting to prevent repeated tripping and potential equipment damage.

Q: What benefits does this MCCB offer over standard circuit breakers?

A: Unlike basic breakers, the NF100-S provides dual thermal and magnetic protection for fast and reliable response to electrical faults. Its high short-circuit breaking capacity (10kA) ensures robust performance, and the extended mechanical and electrical life reduces maintenance frequency, minimizing downtime.
