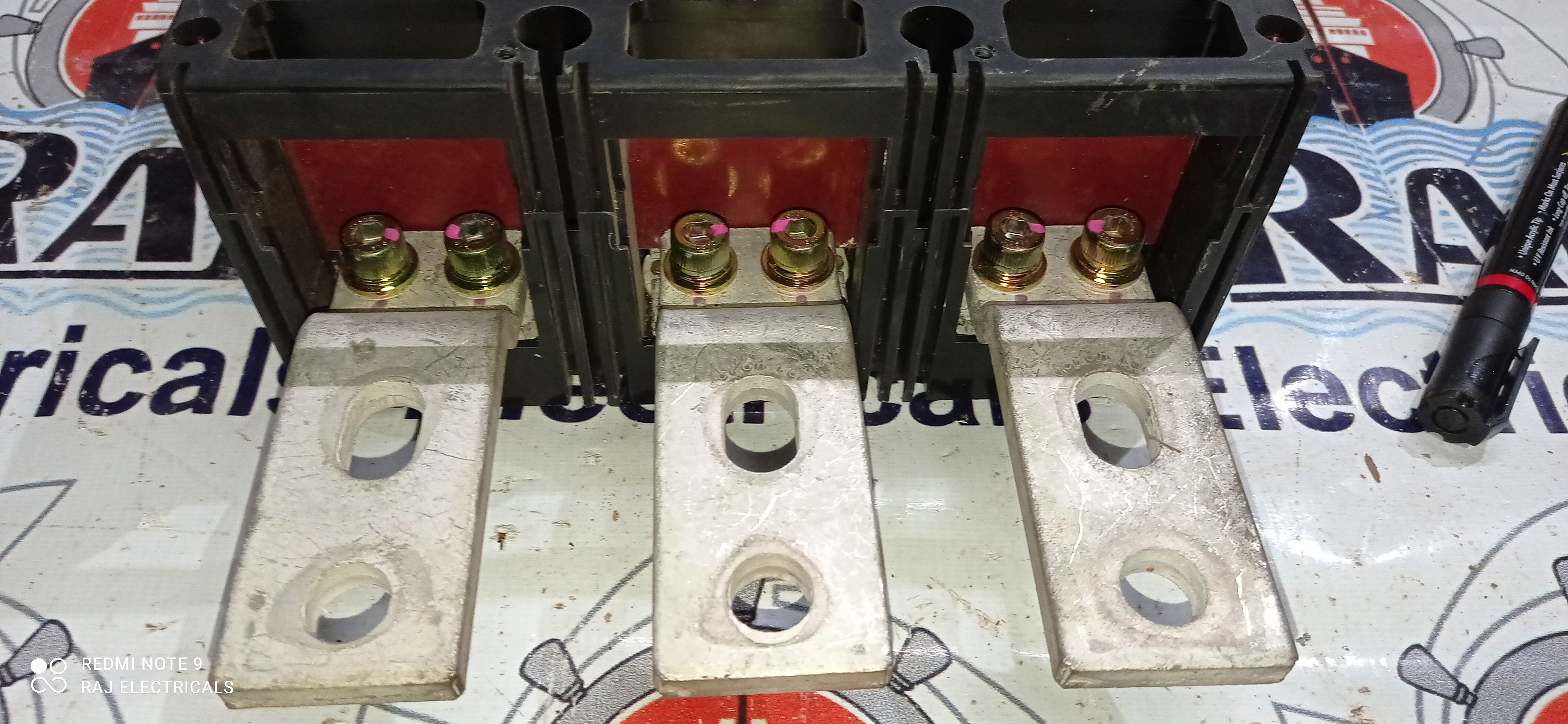

MITSUBISHI (NV600-SEP) 500A 3P MCCB

Name: MITSUBISHI (NV600-SEP) 500A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 2 Pieces

MITSUBISHI (NV600-SEP) 500A 3P MCCB Specification

Phase
Three Phase

Breaking Capacity
50 kA at 415V AC

Mechanical Life
10,000 operations

Rated Short Circuit Making Current
110 kA peak

Rated Short Circuit Breaking Current
50 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Vertical/Horizontal mounting, Panel mountable

Function
Protection against overload and short circuit

Poles Number
3 Poles (3P)

Rated Voltage
AC 690V

Rated Current
500A

Rated Frequency
50/60 Hz

Curves
Standard/Inverse Time Characteristics

Temperature Protection
Integrated thermal and magnetic trip

Weight
15.3 kg (approx)

Color
Black/Grey

Terminal Type
Box Lug / Cable Lug

Trip Unit Type
Fixed thermal-magnetic

Frame Size
600AF

Mounting Type
Flush / Surface mounting

Operating Voltage Range
AC 220-690V

Ambient Temperature
-5C to +40C

MITSUBISHI (NV600-SEP) 500A 3P MCCB Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI (NV600-SEP) 500A 3P MCCB

Raj Electricals Offering MITSUBISHI (NV600-SEP) 500A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- MITSUBISHI

Ampere :- 500A

Pole :- 3P

Model :- NV600-SEP

Condition :- Refurbished

Breaking Capacity :- 50 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Protection for Critical Infrastructure

Engineered for both overload and short-circuit protection, the MITSUBISHI NV600-SEP MCCB ensures operational safety in demanding electrical environments. Its integrated thermal-magnetic trip mechanism responds to overcurrent events with precision, making it ideal for critical infrastructure and large-scale industrial panels. Its high breaking capacity and versatile installation options meet the needs of modern electrical distributions.

Flexible Mounting and Connection Options

With compatibility for flush and surface mounting and the ability to install vertically or horizontally, the NV600-SEP adapts easily to a wide range of setups. Box lug and cable lug terminals provide interchangeable connection flexibility, and its panel mountable design is suitable for new installations as well as retrofit projects.

Long-Lasting and Durable Performance

Constructed from high-quality materials in a black/grey finish, this MCCB offers impressive mechanical durability, rated for 10,000 operations. Its reliable temperature protection, wide operating voltage, and three-phase support guarantee efficient long-term use in diverse environments while maintaining safety and stability.

FAQ's of MITSUBISHI (NV600-SEP) 500A 3P MCCB:

Q: How does the MITSUBISHI (NV600-SEP) 500A 3P MCCB protect my electrical system?

A: This MCCB safeguards your system by using a fixed thermal-magnetic trip unit, which detects overloads and short circuits, automatically interrupting the electrical flow to prevent equipment damage and enhance safety.

Q: What mounting options are available for the NV600-SEP MCCB?

A: The MCCB supports flush and surface mounting, can be installed vertically or horizontally, and is panel mountable, giving you the flexibility to integrate it into various electrical setups.

Q: When should I use this MCCB in my electrical installation?

A: This device is ideal for use in industrial and commercial power distribution systems where high current protection (up to 500A), high breaking capacity (up to 50 kA at 415V AC), and robust safety features are required.

Q: Where can I install or use the NV600-SEP MCCB?

A: The MCCB is suitable for indoor installations within electrical panels, control rooms, and other protected environments, commonly found in manufacturing units, large buildings, and critical infrastructures across India.

Q: What is the process to connect cables to this MCCB?

A: You can connect cables using the box lug or cable lug terminals, ensuring secure, reliable connections for up to 500A rated current. Always follow proper safety protocols and manufacturer instructions during installation.

Q: How does the thermal-magnetic trip unit function in this MCCB?

A: The thermal-magnetic trip unit combines thermal protection (for long-term overloads) and magnetic protection (for short-circuit events), automatically disconnecting the circuit in hazardous conditions to minimize risks.

Q: What are the key benefits of choosing the NV600-SEP MCCB?

A: Key benefits include high safety with 50 kA breaking capacity, flexible installation options, long mechanical life (10,000 operations), and reliable three-phase protection, making it a dependable solution for robust power distribution.
