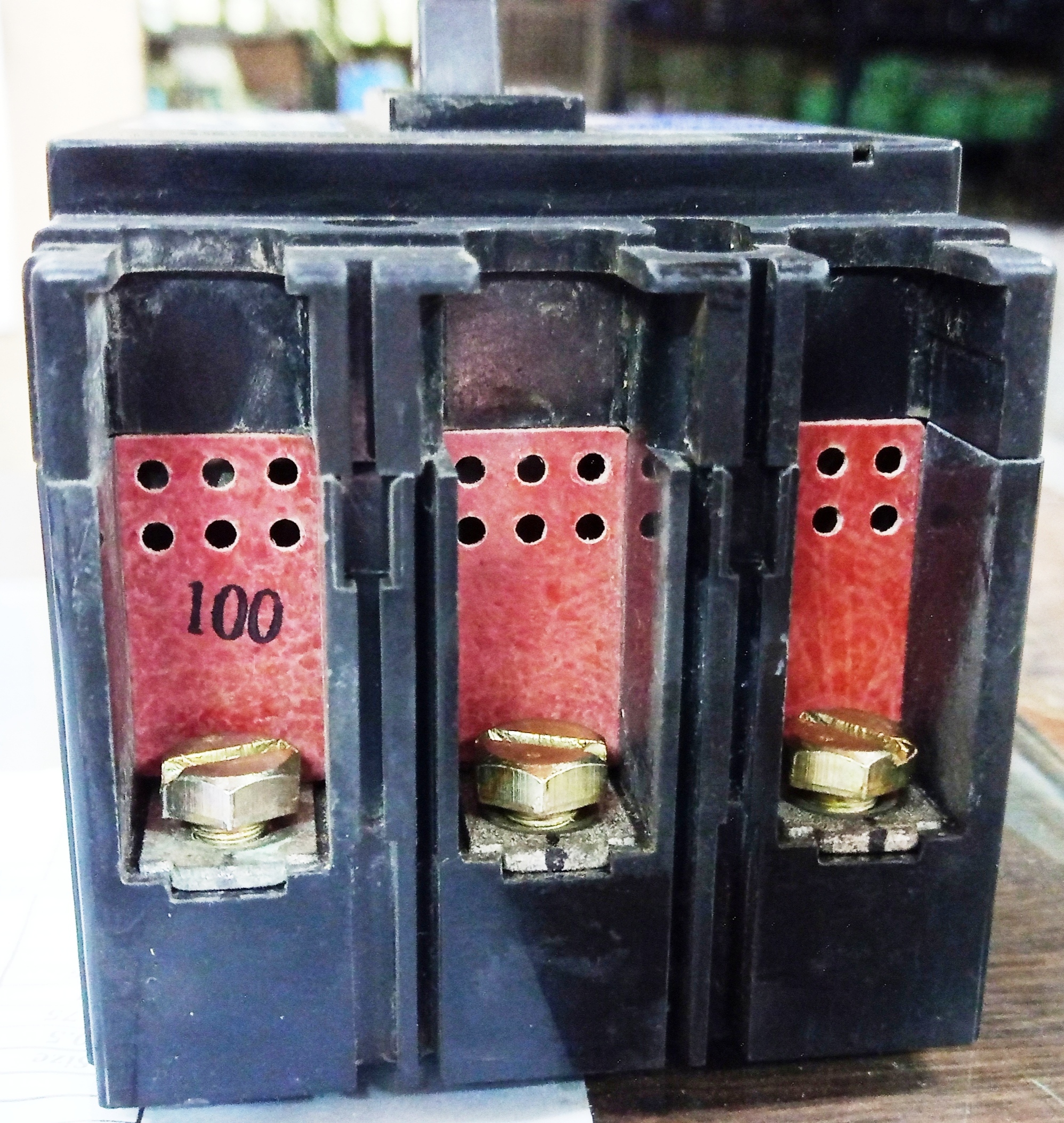

TERASAKI (XH100NS) 100AMP MCCB

Get a Price/Quote

MOQ : 100 Pieces

TERASAKI (XH100NS) 100AMP MCCB Specification

Rated Short Circuit Making Current
36kA

Breaking Capacity
36kA

Phase
Three Phase

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
36kA

Product Type
MCCB (Moulded Case Circuit Breaker)

Installation Options
Panel Mounting

Function
Circuit Protection

Poles Number
3P

Rated Voltage
AC 415V

Rated Current
100A

Rated Frequency
50/60Hz

Curves
NS Curve

Temperature Protection
Thermal-Magnetic Release

Weight
Approx. 2.5kg

Color
Grey/Black

Protection Type
Overload & Short Circuit

Ambient Temperature Range
-10°C to +60°C

Adjustable Setting
Thermal Adjustment Provided

Operating Voltage Range
200V - 440V AC

Mounting Type
DIN Rail or Bolt-on

Contact Position Indicator
Yes

Terminal Connection
Box Type/Front

Rated Impulse Withstand Voltage
6kV

Enclosure Material
Moulded Plastic

Trip Type
Thermal & Magnetic

Model
XH100NS

Application
Industrial & Commercial Panels

Utilization Category
AC-22A

TERASAKI (XH100NS) 100AMP MCCB Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

About TERASAKI (XH100NS) 100AMP MCCB

MCCB stands for Molded Case Circuit Breaker. It is another type of electrical protection device which is used when load current exceeds the limit of a miniature circuit breaker. The MCCB provides protection against overload, short circuit faults and is also used for switching the circuits.

Reliable Overload and Short Circuit Protection

The XH100NS MCCB employs both thermal and magnetic tripping mechanisms, providing fast and precise responses to overloads and short-circuit conditions. Its advanced design enhances safety in commercial and industrial power distribution panels, reducing potential electrical hazards.

Flexible Installation Options

Adaptable to a wide range of environments, the XH100NS supports DIN rail and bolt-on mounting, simplifying incorporation into both new and existing panel setups. The compact moulded plastic enclosure ensures space efficiency and durability.

Enhanced Usability and Monitoring

With a built-in contact position indicator and adjustable thermal settings, users can easily monitor breaker status and fine-tune protection parameters to suit particular load requirements. Its wide ambient temperature tolerance makes it suitable for various climates.
