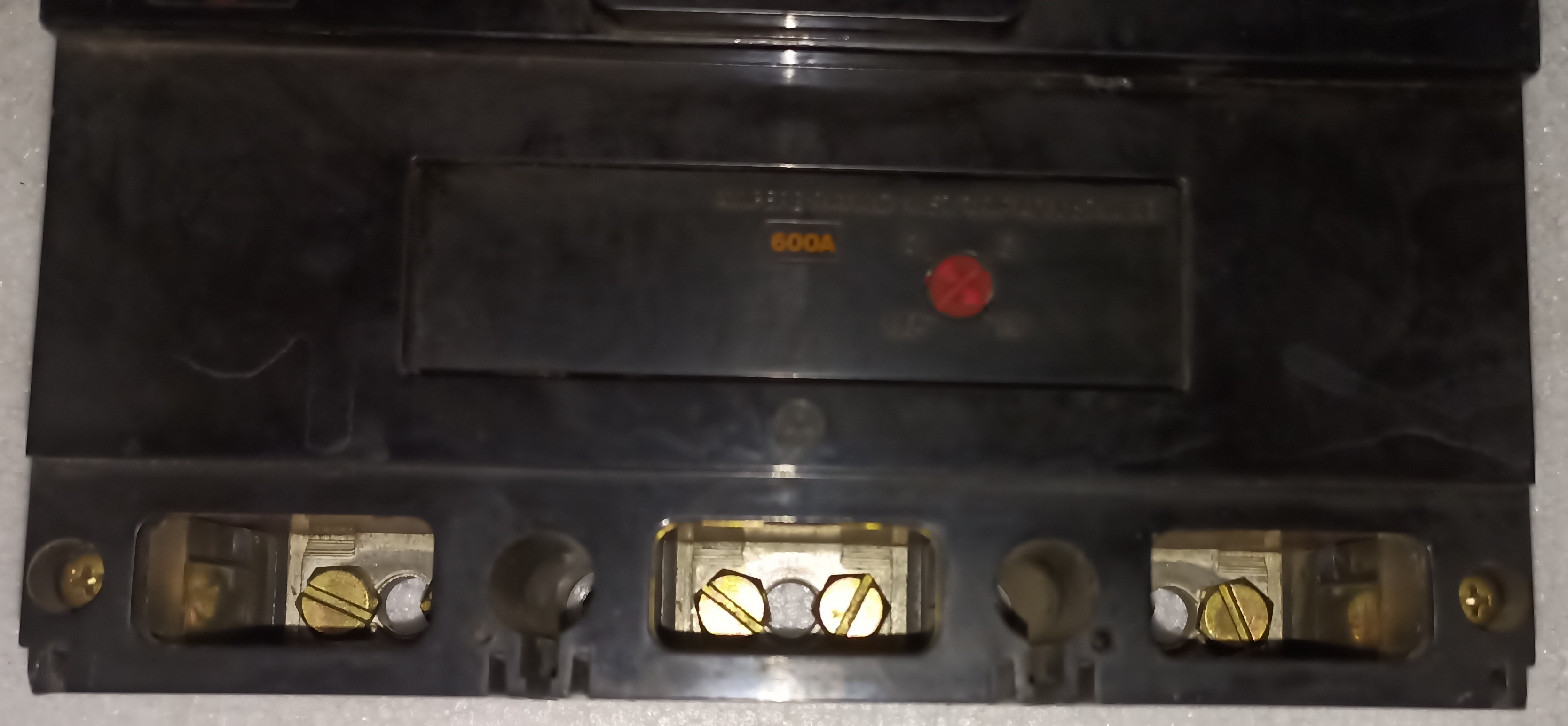

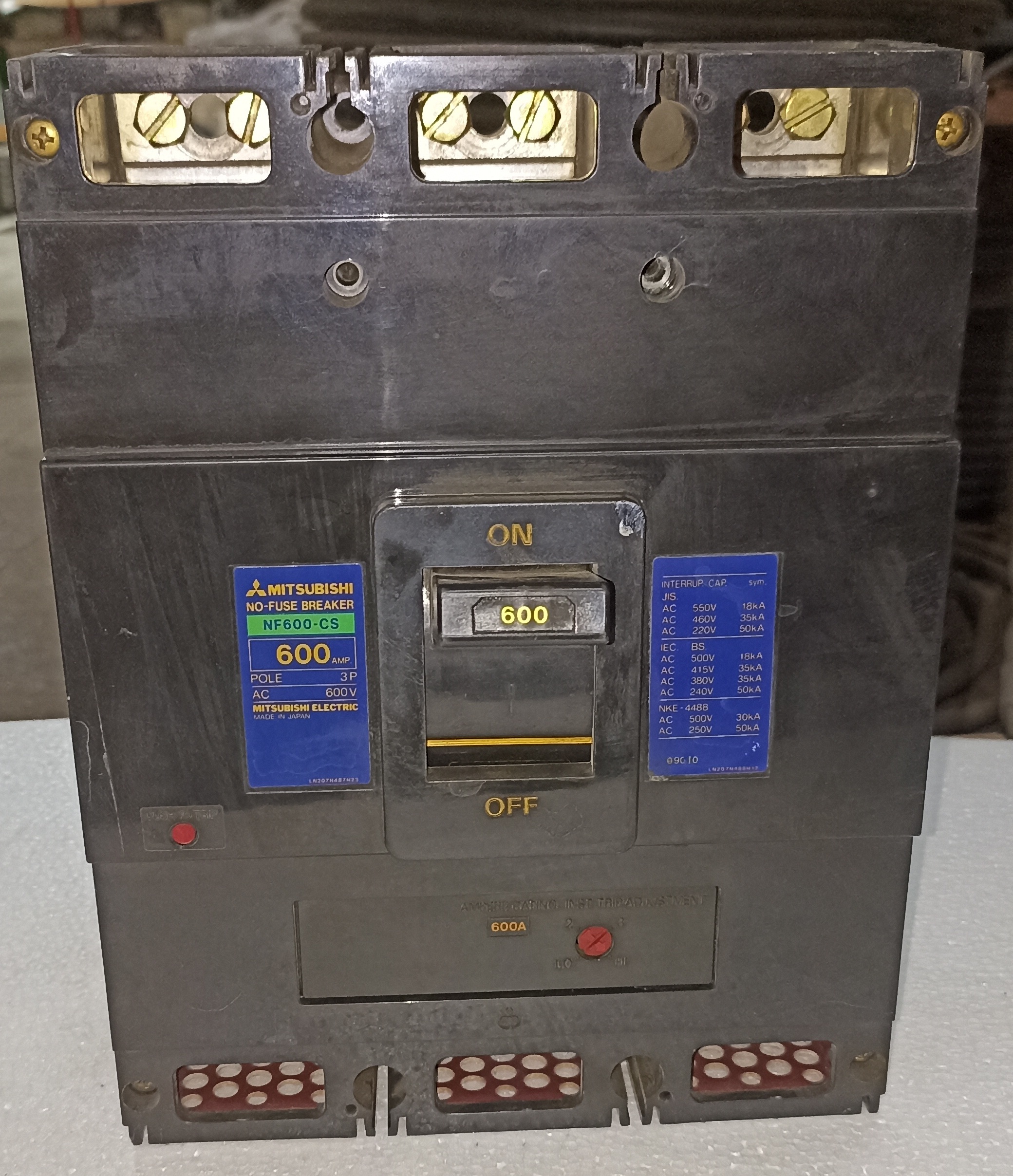

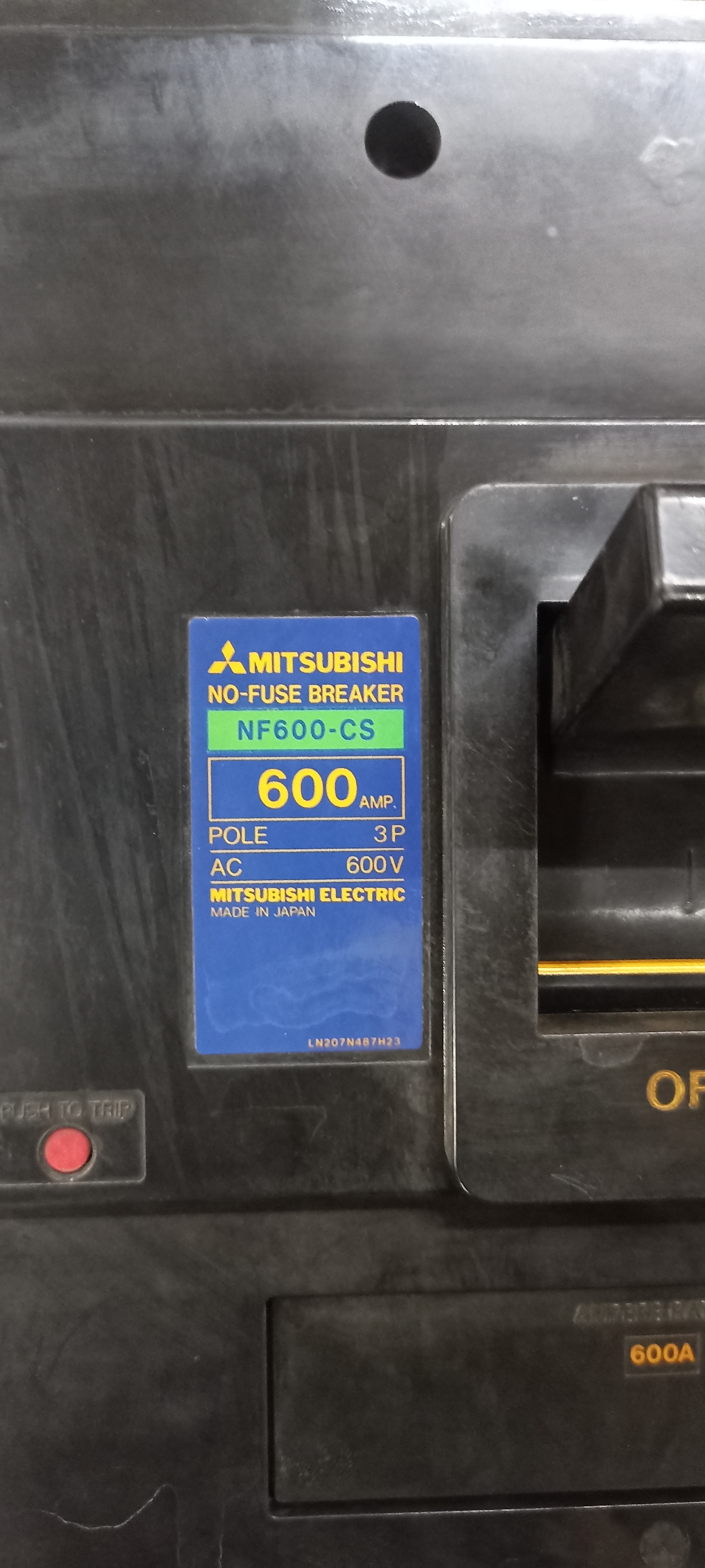

MITSUBISHI (NF600-CS) 600A 3P MCCB

Name: MITSUBISHI (NF600-CS) 600A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

MITSUBISHI (NF600-CS) 600A 3P MCCB Specification

Breaking Capacity
65 kA

Rated Short Circuit Breaking Current
65 kA

Rated Short Circuit Making Current
130 kA

Phase
Three Phase

Mechanical Life
10,000 operations

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount

Function
Overload and Short Circuit Protection

Poles Number
3 Pole (3P)

Rated Voltage
AC 690V

Rated Current
600A

Rated Frequency
50/60 Hz

Curves
C Curve, General Protection

Temperature Protection
Yes, with Adjustable Thermal Release

Weight
Approx. 16 kg

Color
Grey

Service Short-Circuit Breaking Capacity (Ics)
50% of Icu

Operating Temperature Range
-5C to +40C

Connection type
Bolt-on type terminal

Trip Type
Thermal Magnetic

Standards
IEC 60947-2

Protection Degree
IP20 (when installed)

Insulation Voltage (Ui)
1000V

Mounting Orientation
Any

Auxiliary Contacts Option
Available

MITSUBISHI (NF600-CS) 600A 3P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI (NF600-CS) 600A 3P MCCB

MITSUBISHI (NF600-CS) 600A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- MITSUBISHI

Ampere :- 600A

Pole :- 3P

Model :- NF600-CS

Condition :- Refurbished

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Protection for Critical Systems

The NF600-CS MCCB provides dependable overload and short-circuit protection, ensuring safety and operational continuity for both equipment and personnel. Its thermal magnetic trip mechanism, adjustable thermal release, and C curve characteristic make it adaptable to diverse load requirements in industrial, commercial, or utility settings.

Flexible Installation and Reliable Performance

Engineered for ease of integration, this MCCB supports bolt-on terminals and panel mounting. Its design allows any mounting orientation and includes optional auxiliary contacts for enhanced monitoring. With an operating temperature range from -5C to +40C, it delivers steady performance across varying environments.

FAQ's of MITSUBISHI (NF600-CS) 600A 3P MCCB:

Q: How is the MITSUBISHI NF600-CS 600A 3P MCCB installed?

A: The circuit breaker is designed for panel mount applications and utilizes bolt-on type terminals, ensuring a secure connection. With the option to mount in any orientation, installation is straightforward for various panel designs.

Q: What standards does the NF600-CS MCCB comply with and why is this important?

A: This MCCB is manufactured according to IEC 60947-2 standards, which guarantees global compatibility, safety, and reliability in industrial electrical protection.

Q: When should the auxiliary contact option be used with this MCCB?

A: Auxiliary contacts are recommended when additional monitoring or remote control of the breaker status is desired, such as for integrating with facility management systems or signalling breaker trip conditions.

Q: Where can the NF600-CS MCCB be used effectively?

A: It's suitable for a wide range of applications, including industrial plants, commercial buildings, and utility substations, particularly where high current protection (up to 600A) and robust short-circuit capabilities are needed.

Q: What protection features are included with the NF600-CS MCCB?

A: The MCCB provides overload and short circuit protection, features a thermal magnetic trip mechanism with adjustable thermal release, and meets IP20 protection degree when installed, safeguarding both equipment and operators.

Q: How does the MCCB handle high fault currents?

A: It offers a rated short circuit breaking current of 65 kA and a short circuit making current of 130 kA, ensuring rapid disconnection in the event of severe faults and minimizing potential damage to the system.

Q: What are the operational benefits of using the NF600-CS MCCB?

A: The breaker boasts a mechanical life of 10,000 operations, high insulation voltage (up to 1000V), compatibility with three-phase systems, and adaptability through optional features, ensuring longevity and flexibility in demanding settings.
