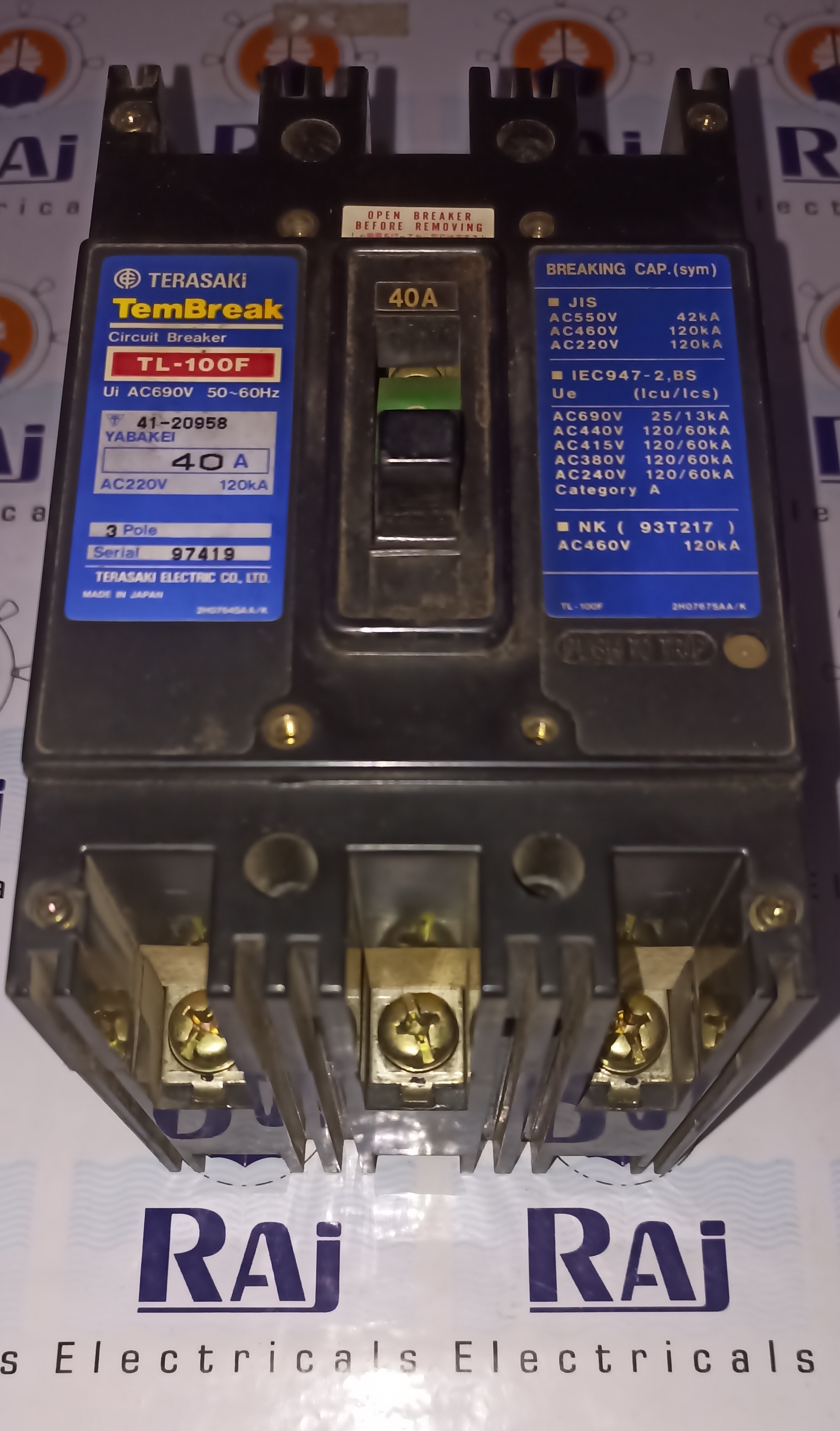

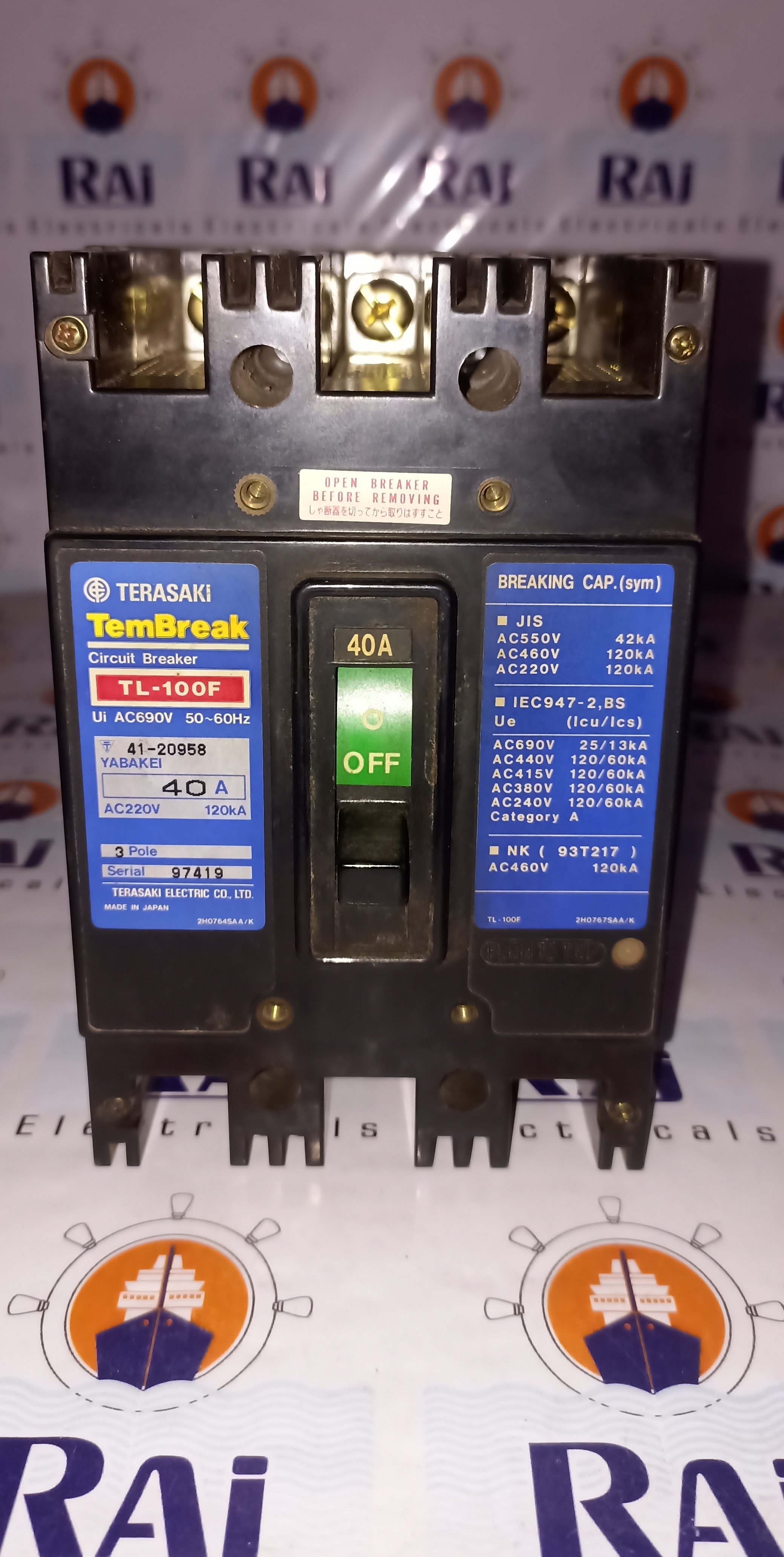

TERASAKI (TL-100F) 40A 3P MCCB

Name: TERASAKI (TL-100F) 40A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

TERASAKI (TL-100F) 40A 3P MCCB Specification

Breaking Capacity
18kA at 415V AC

Rated Short Circuit Making Current
20kA

Rated Short Circuit Breaking Current
18kA

Mechanical Life
10,000 operations

Phase
Three Phase

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount

Function
Overload & Short-circuit Protection

Poles Number
3P

Rated Voltage
AC 415V

Rated Current
40A

Rated Frequency
50/60Hz

Curves
Standard (Fixed)

Temperature Protection
Yes

Weight
Approx. 1.2 kg

Color
Grey/Black

Thermal Protection Adjustment
Fixed

Connection Type
Screw Terminal

Trip Unit Type
Thermal Magnetic

Service Condition
Indoor

Frame Size
TL-100F

Operating Temperature Range
-5C to +40C

Rated Impulse Withstand Voltage (Uimp)
8kV

Insulation Voltage (Ui)
690V AC

Protection Degree
IP20

Electrical Life
5,000 operations

Mounting Orientation
Any

Standards
IEC 60947-2

TERASAKI (TL-100F) 40A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TERASAKI (TL-100F) 40A 3P MCCB

Raj Electricals Offering TERASAKI (TL-100F) 40A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Terasaki

Ampere :- 40A

Pole :- 3P

Model :- TL-100F

Condition :- Refurbished

Breaking Capacity :- 60 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Consistent Protection and Reliability

The TL-100F MCCB delivers secure protection against overloads and short circuits, thanks to its thermal magnetic trip unit and fixed thermal protection adjustment. Its high-breaking and short-circuit making current ratings fulfill demanding safety needs, making it suitable for critical electrical installations.

Versatility in Installation and Application

This breaker supports panel mount configurations and can be oriented in any direction, providing flexibility for different installation scenarios. Its compatibility with three-phase systems and standard connection types ensures seamless integration in commercial and industrial setups.

FAQ's of TERASAKI (TL-100F) 40A 3P MCCB:

Q: How does the thermal magnetic trip unit in the TL-100F MCCB function?

A: The thermal magnetic trip unit in the TL-100F provides dual protection by using a thermal element to detect overloads and a magnetic element to detect short-circuits, automatically disconnecting the circuit when unsafe conditions occur.

Q: What are the benefits of the TL-100F's fixed thermal protection adjustment?

A: Fixed thermal protection setting ensures reliable and consistent operation, reducing the risk of accidental misadjustment, thus enhancing safety in critical power distribution environments.

Q: Where can the TERASAKI TL-100F 40A 3P MCCB be installed?

A: This MCCB is designed for indoor panel mounting and supports any orientation, providing flexibility for installation in various commercial and industrial electrical panels.

Q: What connection method is used with the TL-100F MCCB?

A: The TL-100F utilizes screw terminals for its connections, enabling secure and stable integration into electrical systems.

Q: When should you use the TL-100F MCCB?

A: The TL-100F is ideally used when robust overload and short-circuit protection is required in three-phase environments, such as in commercial buildings, factories, or distribution boards.
