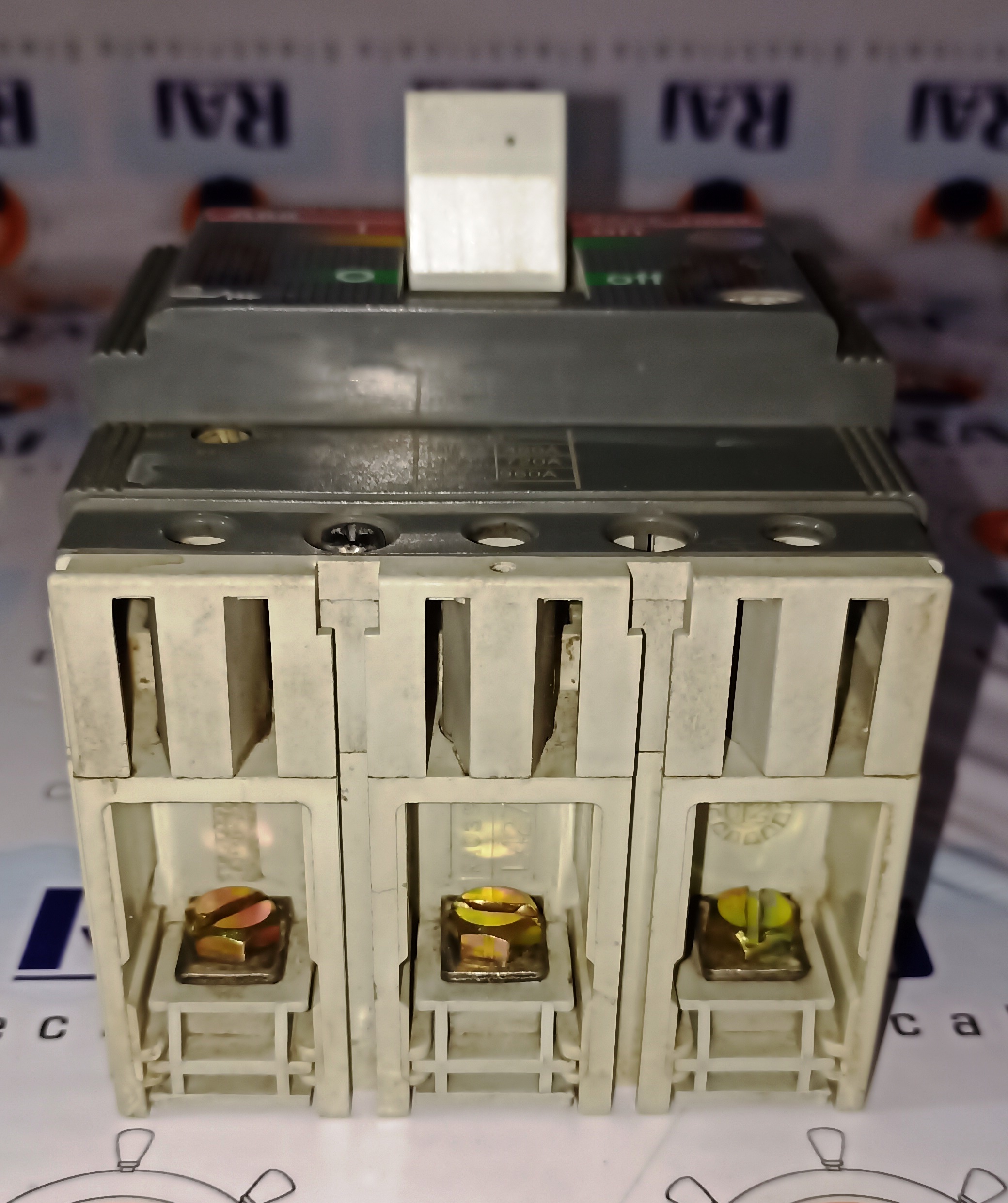

ABB SACE TMAX 80A 3P MCCB

Name: ABB SACE TMAX 80A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

ABB SACE TMAX 80A 3P MCCB Specification

Mechanical Life
20,000 operations

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA at 415V AC

Phase
Three Phase

Rated Short Circuit Making Current
72 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed, plug-in, withdrawable

Function
Protection against overload and short circuits

Poles Number
3 Poles (3P)

Rated Voltage
415V AC

Rated Current
80A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic

Temperature Protection
Yes (Thermal protection)

Weight
Approx. 2.4 Kg

Color
Grey/Black

Adjustment Range of Overload Release
0.7 to 1 x In

Operation Voltage Range
220-690V AC

Ambient Temperature Range
-25C to +70C

Material
High strength molded plastic

Mounting Type
Panel mounting

Terminal Type
Screw Terminals

Frame Size
Tmax T1

Degree of Protection
IP20 (front)

Trip Unit Type
Thermal-Magnetic (TMD)

Standards Compliance
IEC 60947-2

Dimensions (LxWxH)
Approx. 140 x 105 x 70 mm

Utilization Category
A

ABB SACE TMAX 80A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Middle East, Africa, Asia

Main Domestic Market
All India

About ABB SACE TMAX 80A 3P MCCB

Raj Electricals Offering ABB SACE TMAX 80A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 80A

Pole :- 3P

Model :- SACE TMAX

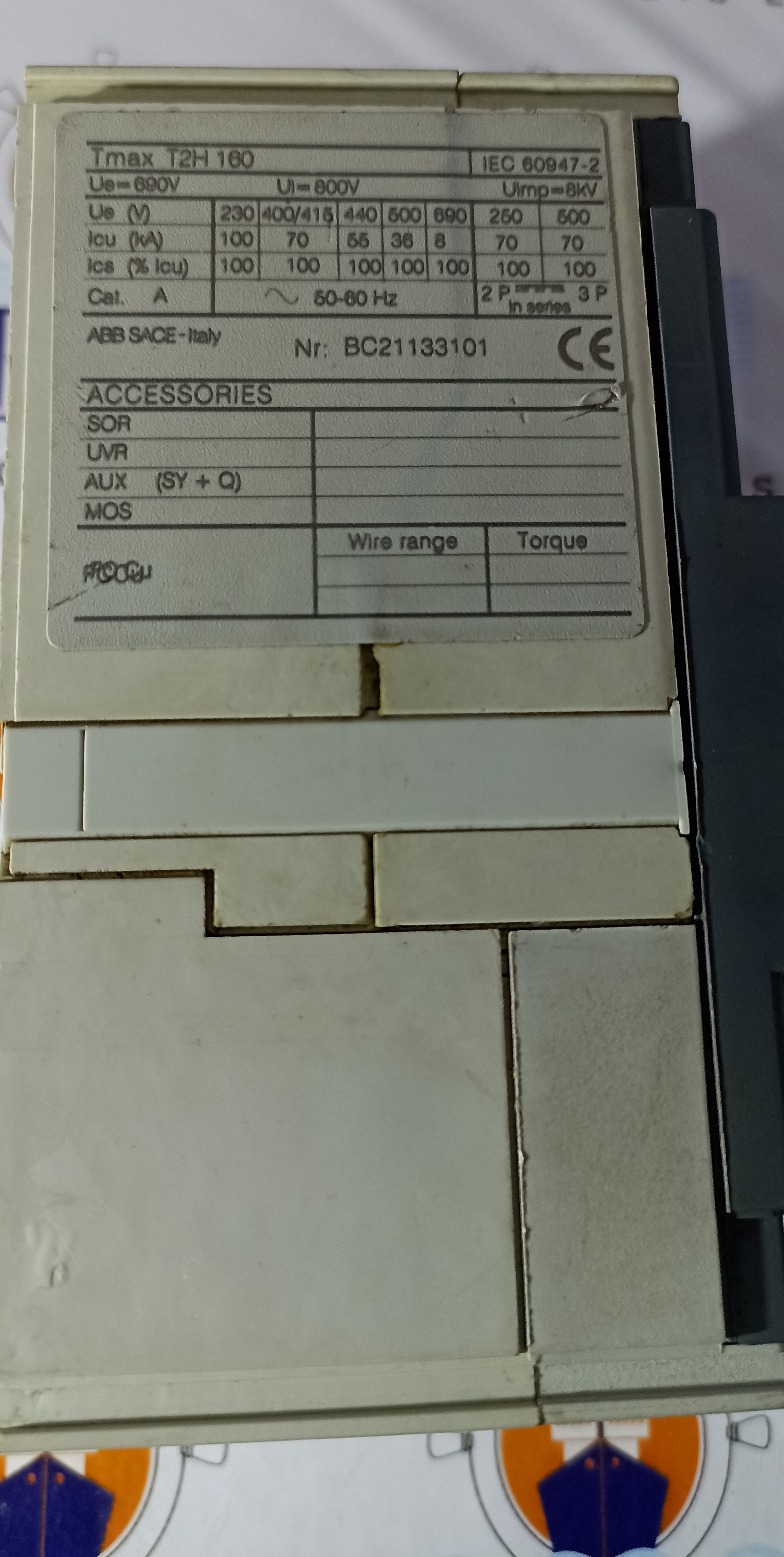

Model Number :- Tmax T2H 160

Condition :- Refurbished

Breaking Capacity :- 55 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Comprehensive Protection and Durable Build

The ABB SACE TMAX 80A 3P MCCB is engineered with advanced thermal-magnetic protection for reliable operation under varying loads and fault conditions. Its high breaking capacity and thermal protection uphold electrical safety, while the molded plastic construction withstands tough environments. The compact footprint and IP20-rated front ensure minimal intrusion and enhanced operator safety in panel installations.

Flexible Installation and Easy Integration

Designed for panel mounting, this MCCB offers flexible installation options-fixed, plug-in, or withdrawable-to suit a range of system designs. The convenient screw terminals facilitate secure connections, and its universal aesthetics (grey/black) complement modern switchboards. With compatibility across 50/60 Hz networks and versatile voltage operation, it seamlessly integrates into new or existing setups.
