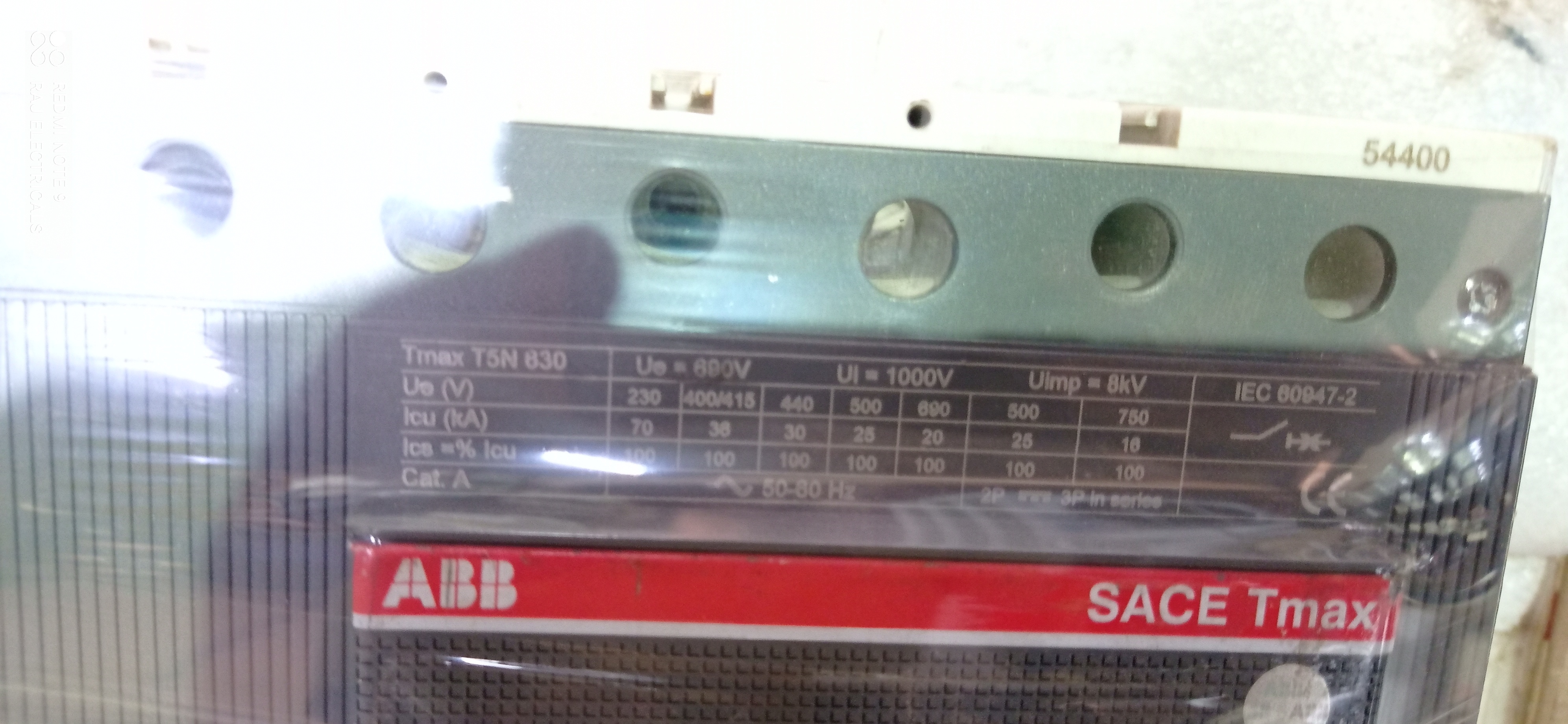

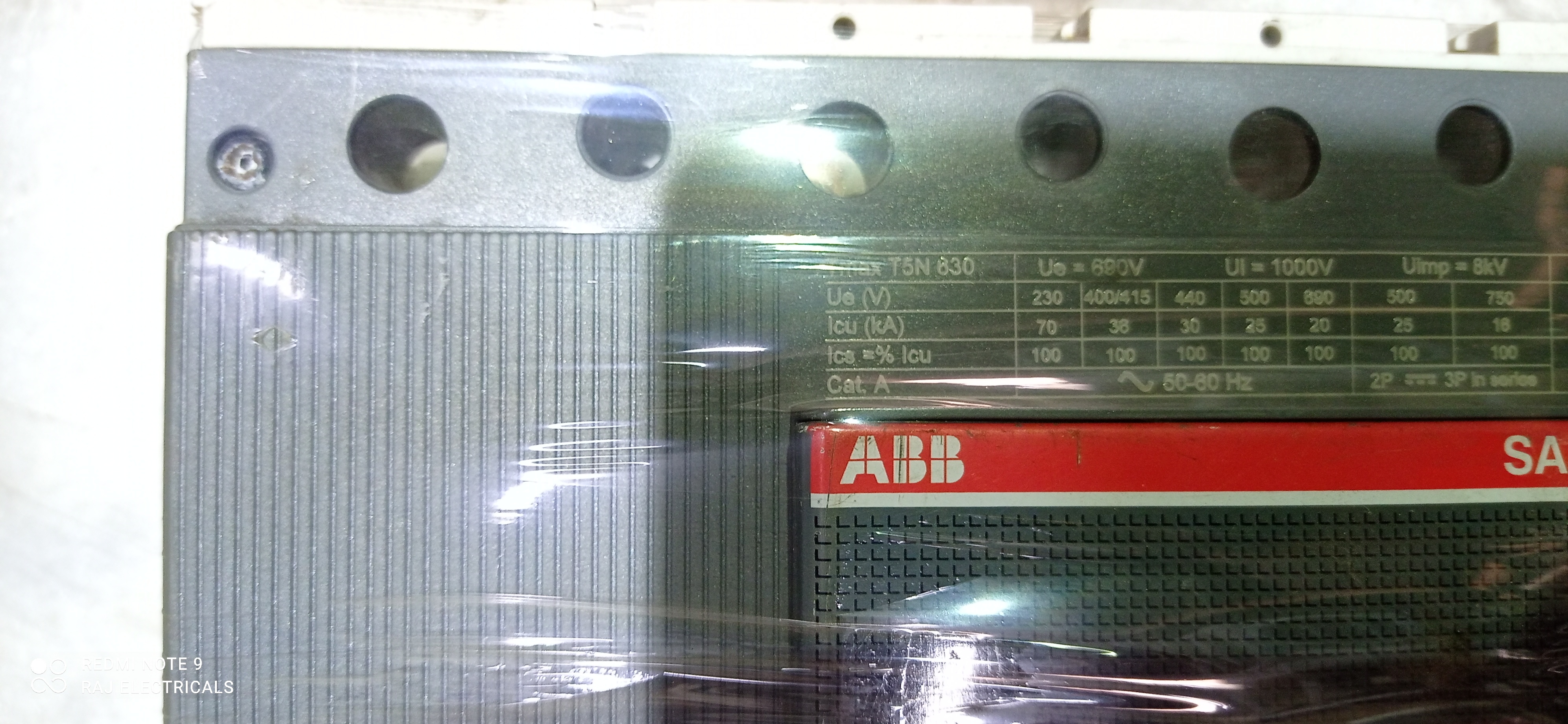

ABB SACE TMAX 630A 4P MCCB

Name: ABB SACE TMAX 630A 4P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

ABB SACE TMAX 630A 4P MCCB Specification

Rated Short Circuit Breaking Current
70 kA

Phase
Three Phase + Neutral

Mechanical Life
10,000 operations

Breaking Capacity
70 kA at 415V AC

Rated Short Circuit Making Current
154 kA

Product Type
MCCB (Moulded Case Circuit Breaker)

Installation Options
Panel/Surface Mounting

Function
Moulded Case Circuit Breaker (MCCB) for circuit protection

Poles Number
4P (Four Pole)

Rated Voltage
Up to 690V AC

Rated Current
630A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic Trip Curve

Temperature Protection
Available with adjustable thermal protection

Weight
Approx. 8 kg

Color
Grey/Black

Auxiliary Contacts
Optional (Auxiliary, Alarm, Shunt, Under Voltage Release)

Frame Size
TMAX T6

Degree of Protection
IP20

Insulation Voltage (Ui)
1000V

Connection Type
Front Terminal

Electrical Life
5,000 operations

Trip Unit Type
Adjustable Thermal & Fixed Magnetic

Operating Temperature Range
-25C to +70C

Mounting Type
Fixed

Reference Standards
IEC 60947-2

ABB SACE TMAX 630A 4P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 630A 4P MCCB

ABB SACE TMAX 630A 4P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 630A

Pole :- 4P

Model :- SACE TMAX

Model Number :- Tmax T5N 630

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Rugged Performance for Demanding Applications

The TMAX T6 frame provides high durability with mechanical life rated at 10,000 operations and electrical life of 5,000 operations. Its operational temperature range spans from -25C to +70C, making it suitable for various industrial climates. The circuit breaker is equipped with IP20 protection and a 1000V insulation voltage, delivering safety during maintenance and daily use.

Advanced Protection and Versatile Mounting

Equipped with adjustable thermal and fixed magnetic trip units, this MCCB offers adaptable and reliable circuit safeguarding. The thermal magnetic trip curve ensures prompt reaction to faults. With simple panel or surface mounting and front terminal connections, the installation process is streamlined for maximum efficiency.

FAQ's of ABB SACE TMAX 630A 4P MCCB:

Q: How does the ABB SACE TMAX 630A 4P MCCB ensure circuit protection?

A: This MCCB utilizes an adjustable thermal mechanism to guard against overloads and a fixed magnetic trip to quickly disconnect power during short circuits. Together, these features safeguard circuits by interrupting dangerous currents almost instantaneously.

Q: What installation options are available for this moulded case circuit breaker?

A: The ABB SACE TMAX T6 MCCB can be installed via panel or surface mounting. Its front-terminal connection design simplifies the wiring process and makes it suitable for a variety of switchboard assemblies.

Q: When should auxiliary contacts be used with this MCCB?

A: Auxiliary contacts, such as alarm, shunt, and under-voltage releases, can be added for advanced monitoring, remote control, or automatic disconnection based on customized protection and signaling needs.

Q: Where is this MCCB most commonly used?

A: This device is widely deployed in industrial and commercial settings, including machinery panels, switchboards, and power distribution boards. Its high breaking capacity makes it suitable for demanding electrical networks.

Q: What standards and environmental conditions does the breaker comply with?

A: The MCCB conforms to IEC 60947-2 standards, and it is engineered for reliable operation in temperatures from -25C up to +70C, with an IP20 degree of protection.

Q: What are the main benefits of choosing this four-pole MCCB model?

A: Key benefits include its high breaking capacity (70 kA at 415V AC), wide operational temperature range, long mechanical and electrical life, adjustable thermal protection, and support for auxiliary functions, ensuring versatile, safe, and durable operation.

Q: How does the adjustable thermal trip feature enhance usage?

A: The adjustable thermal trip allows customization of the overload protection threshold, ensuring sensitive circuits receive suitable protection while minimizing unnecessary interruptions.
