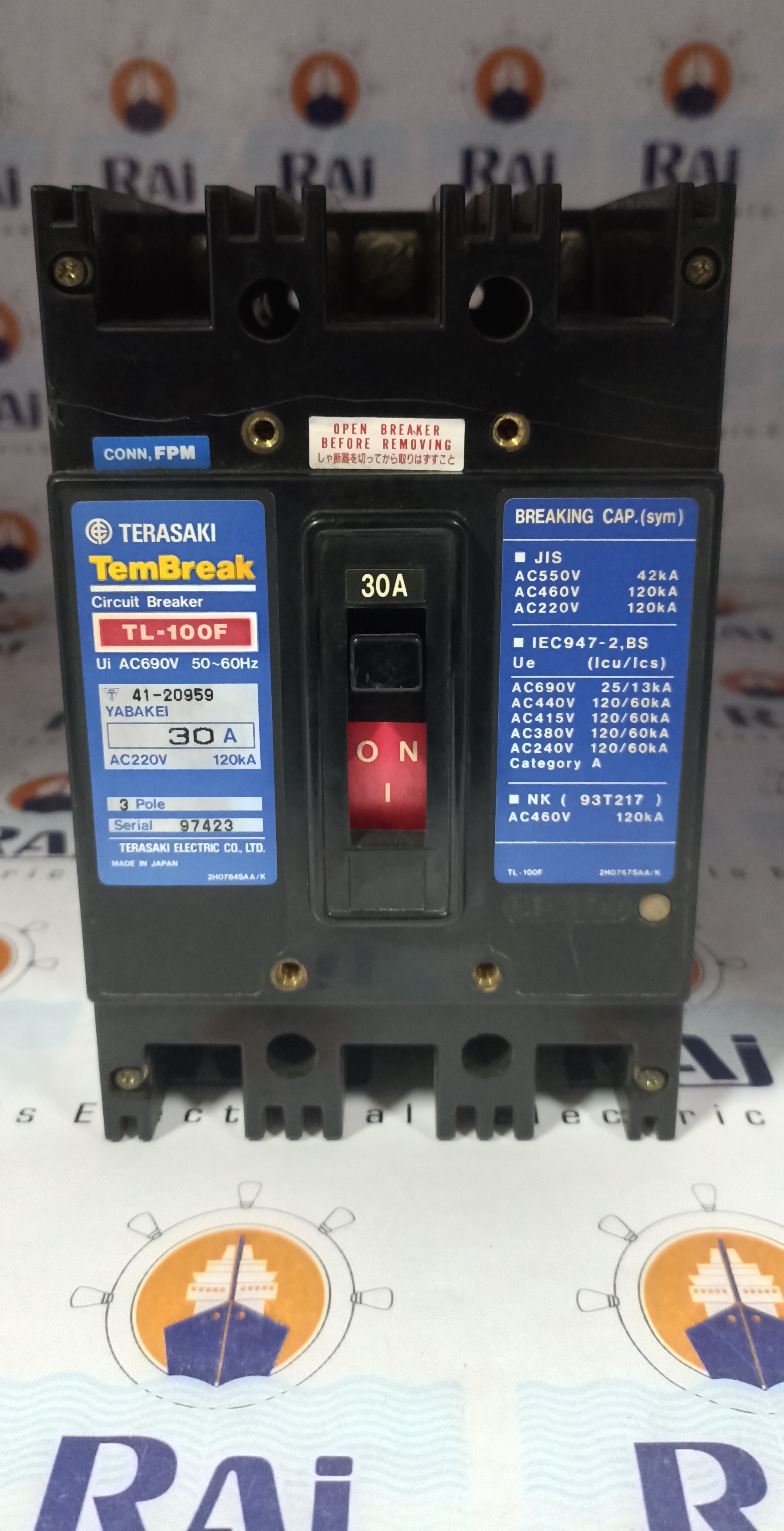

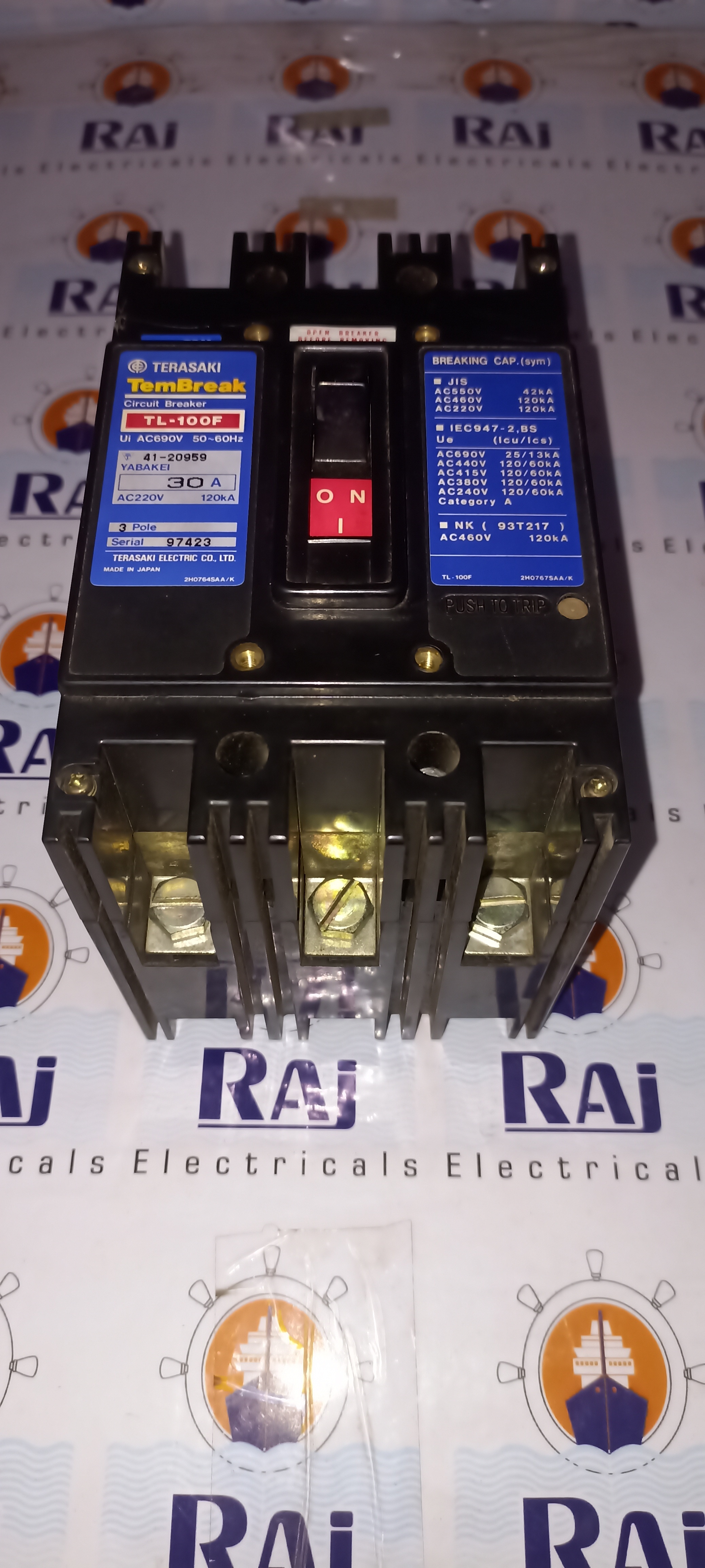

TERASAKI 30A 3P (TL-100F) MCCB

Name: TERASAKI 30A 3P (TL-100F) MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

TERASAKI 30A 3P (TL-100F) MCCB Specification

Breaking Capacity
25kA at 415V AC

Mechanical Life
10,000 Operations

Rated Short Circuit Breaking Current
Icu 25kA

Rated Short Circuit Making Current
Icm 50kA

Phase
Three Phase

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail / Panel Mounting

Function
Overcurrent and Short Circuit Protection

Poles Number
3 Pole

Rated Voltage
415V AC

Rated Current
30A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic

Temperature Protection
Thermal Trip Unit

Weight
Approx 0.8 kg

Color
Grey/Black

Contact Position Indicator
Yes

Utilization Category
A

Frame Size
100A

Application
Industrial, Commercial, Distribution Panels

Operating Temperature Range
-5C to +40C

Mounting Orientation
Vertical / Horizontal

Model
TL-100F

Trip Unit Type
Fixed

Dielectric Strength
2.5kV for 1 minute

Standards Compliance
IEC 60947-2

Insulation Voltage (Ui)
690V

Terminal Type
Screw Type

TERASAKI 30A 3P (TL-100F) MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TERASAKI 30A 3P (TL-100F) MCCB

Terasaki 30A 3P (TL-100F) MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Terasaki

Ampere :- 30A

Pole :- 3P

Model :- TL-100F

Condition :- Refurbished

Breaking Capacity :- 42 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Mounting and Application

The TERASAKI 30A 3P MCCB (TL-100F) is designed for flexible installation, supporting both DIN rail and panel mounting in vertical or horizontal orientations. Its adaptability makes it ideal for integration in a wide array of industrial and commercial distribution panels, ensuring ease of installation and optimal space utilization.

Superior Protection and Reliability

Engineered with a thermal-magnetic trip unit, the MCCB provides steadfast overcurrent and short-circuit protection. Complying with IEC 60947-2 standards, it achieves a high breaking capacity of 25kA at 415V AC, ensuring effective operation during electrical faults and safeguarding connected equipment.

Comprehensive Compliance and Durability

With an insulation voltage of 690V and a dielectric strength of 2.5kV for one minute, the TL-100F MCCB stands up to rigorous environments. Its mechanical endurance of up to 10,000 operations and reliable temperature protection make it suitable for long-term deployment in demanding applications.

FAQ's of TERASAKI 30A 3P (TL-100F) MCCB:

Q: How should the TERASAKI 30A 3P (TL-100F) MCCB be installed?

A: The TL-100F MCCB can be installed vertically or horizontally, and it supports both DIN rail and panel mounting, allowing flexibility according to your distribution panel's layout and available space.

Q: What type of protection does this MCCB provide for electrical systems?

A: It offers both overcurrent and short-circuit protection, utilizing a fixed thermal-magnetic trip unit to ensure fast and reliable interruption during electrical faults, thereby preventing damage to equipment and wiring.

Q: When is it appropriate to use the TL-100F MCCB in distribution panels?

A: This MCCB is ideal for use in industrial, commercial, and general distribution panels where a reliable 30A current rating and a high breaking capacity (25kA at 415V AC) are required for three-phase systems.

Q: Where can this MCCB be applied for optimal performance?

A: It is suited for installation in factories, commercial buildings, and distribution networks, making it a preferred choice for both new projects and upgrades in the Indian market and beyond.

Q: What is the process to verify the MCCB's status and ensure correct operation?

A: A built-in contact position indicator lets you quickly check whether the breaker is ON or OFF. Regular inspection of the terminals and trip test (as per maintenance protocols) ensures continued reliable performance.

Q: How does the TL-100F MCCB benefit industrial and commercial users?

A: Users benefit from enhanced system protection, durability with 10,000 mechanical operations, compliance with international standards, and the ability to handle harsh operating environments within the specified temperature range of -5C to +40C.
