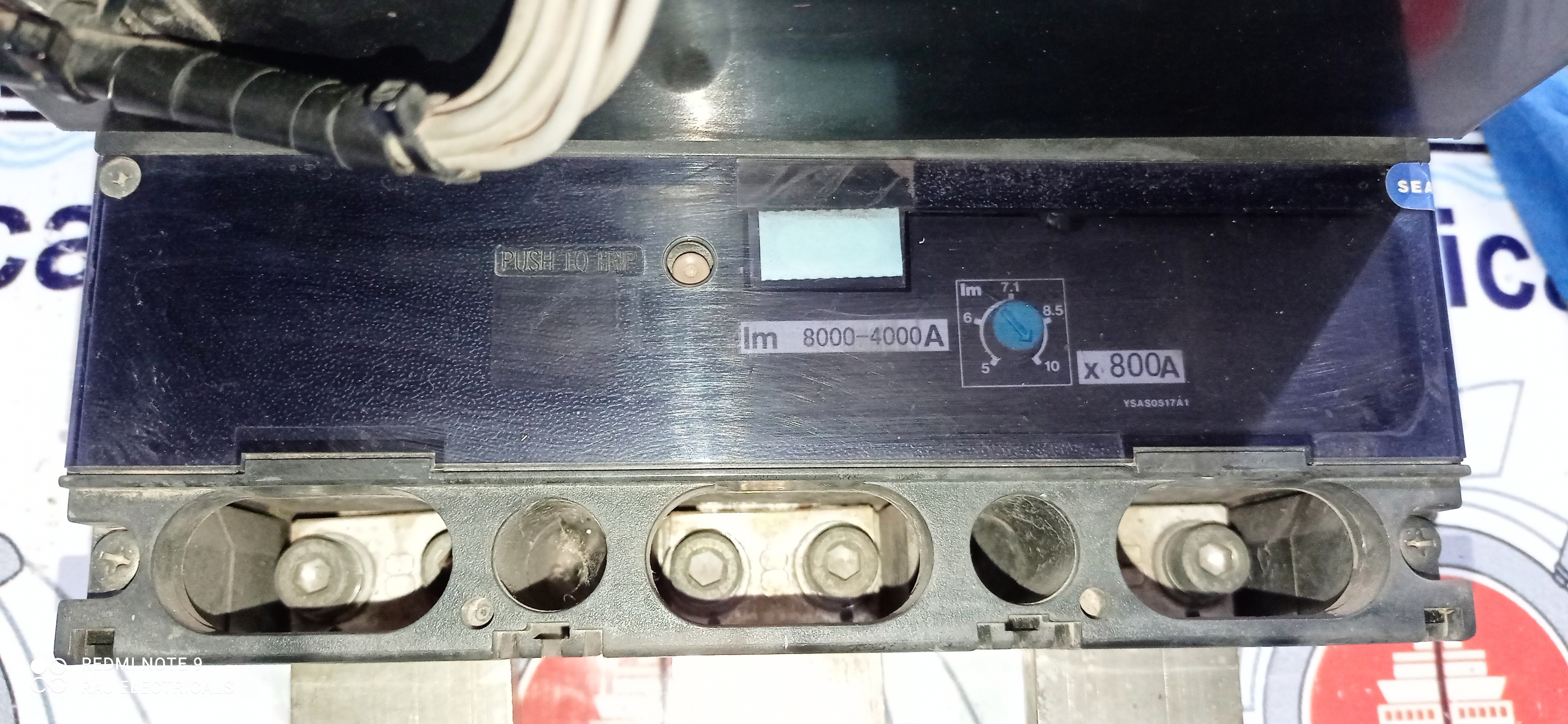

TERASAKI (XS800CS) 800AMP MCCB

Get a Price/Quote

MOQ : 100 Pieces

TERASAKI (XS800CS) 800AMP MCCB Specification

Rated Short Circuit Breaking Current
50 kA

Phase
Three Phase

Breaking Capacity
50 kA @ 415V AC

Mechanical Life
Approx. 10,000 cycles

Rated Short Circuit Making Current
80 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounted / Fixed

Function
Overcurrent and Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
AC 415V

Rated Current
800A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Integrated Thermal Protection

Weight
Approx. 12 kg

Color
Grey

Operating Temperature
-5°C to +40°C

Electrical Life
Approx. 2,000 cycles

Tripping Unit Type
Thermal-Magnetic

Model
XS800CS

Connection Type
Box Terminal/Lug

Protection Degree
IP20 (Front)

Mounting Orientation
Vertical / Horizontal

TERASAKI (XS800CS) 800AMP MCCB Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

About TERASAKI (XS800CS) 800AMP MCCB

A moulded case circuit breaker (MCCB) is a type of electrical protection device that is used to protect the electrical circuit from excessive current, which can cause overload or short circuit.

Reliable Overcurrent and Short Circuit Protection

The TERASAKI XS800CS ensures dependable safeguarding against electrical faults, thanks to its thermal-magnetic tripping unit. With an 800A rating, 50 kA breaking capacity, and integrated thermal protection, it is engineered for critical applications requiring consistent performance and safety.

Flexible Mounting and Connection Options

This MCCB can be installed in both vertical and horizontal orientations, making it adaptable to various panel layouts. Its box terminal or lug connection supports straightforward, secure wiring, while its compact and sturdy build allows for easy integration in fixed, panel-mounted configurations.

Designed for Tough Environments

With an operating temperature range of -5C to +40C and an IP20 front protection degree, the XS800CS withstands industrial conditions effectively. Its mechanical life of up to 10,000 cycles and electrical life of 2,000 cycles assure reliability throughout extended operational periods.

FAQ's of TERASAKI (XS800CS) 800AMP MCCB:

Q: How is the TERASAKI XS800CS 800AMP MCCB commonly installed in electrical systems?

A: The XS800CS MCCB can be mounted either vertically or horizontally, providing flexibility during installation in panel-mounted or fixed applications. This ensures it fits into a wide variety of switchboards or distribution panels.

Q: What protection features does the XS800CS offer for electrical circuits?

A: The MCCB is equipped with a thermal-magnetic tripping unit, delivering robust overcurrent and short circuit protection with a breaking capacity of 50 kA at 415V AC, and also incorporates integrated thermal protection for added safety.

Q: When should the XS800CS model be used instead of other MCCBs?

A: The XS800CS is best suited for installations requiring high current ratings up to 800A, three-phase operation, and substantial breaking capacities-making it ideal for demanding commercial and industrial power distribution systems.

Q: Where can the XS800CS MCCB be utilized effectively?

A: This MCCB is designed for industrial and commercial environments where reliable protection of large electrical circuits and equipment is essential, especially in panels that require a 3-pole, 800A device with high breaking capacity.

Q: What is the process for connecting the XS800CS MCCB to an electrical system?

A: Connections are made via box terminals or lugs, which accommodate secure and robust wiring for the rated current. Detailed labeling and installation instructions are provided, ensuring safe and correct connections are made by qualified electricians.

Q: How does the XS800CS benefit users seeking long-lasting protection?

A: With an electrical life of approximately 2,000 cycles and a mechanical life of up to 10,000 cycles, the XS800CS delivers reliable operation and longevity. Its durable construction and high protection standards minimize downtime and maintenance.
