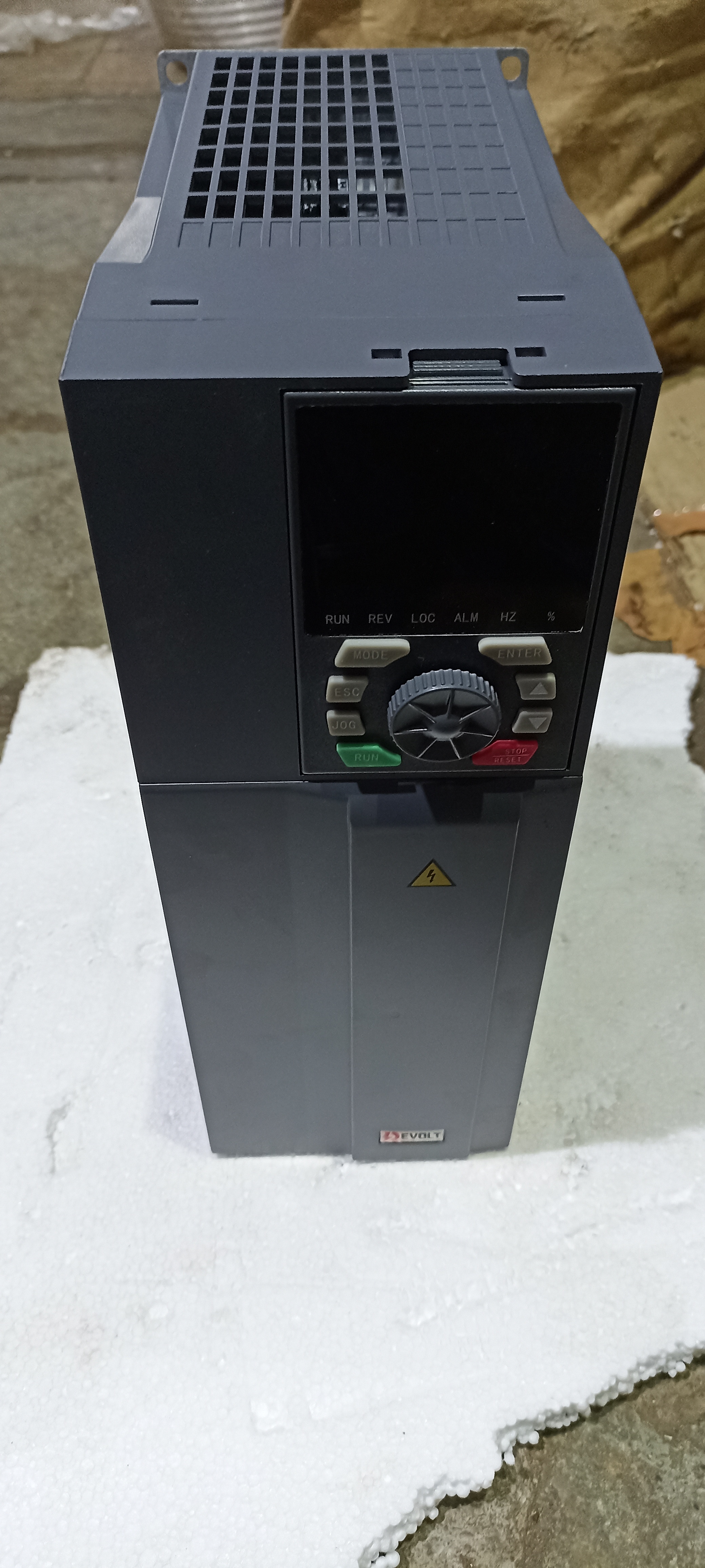

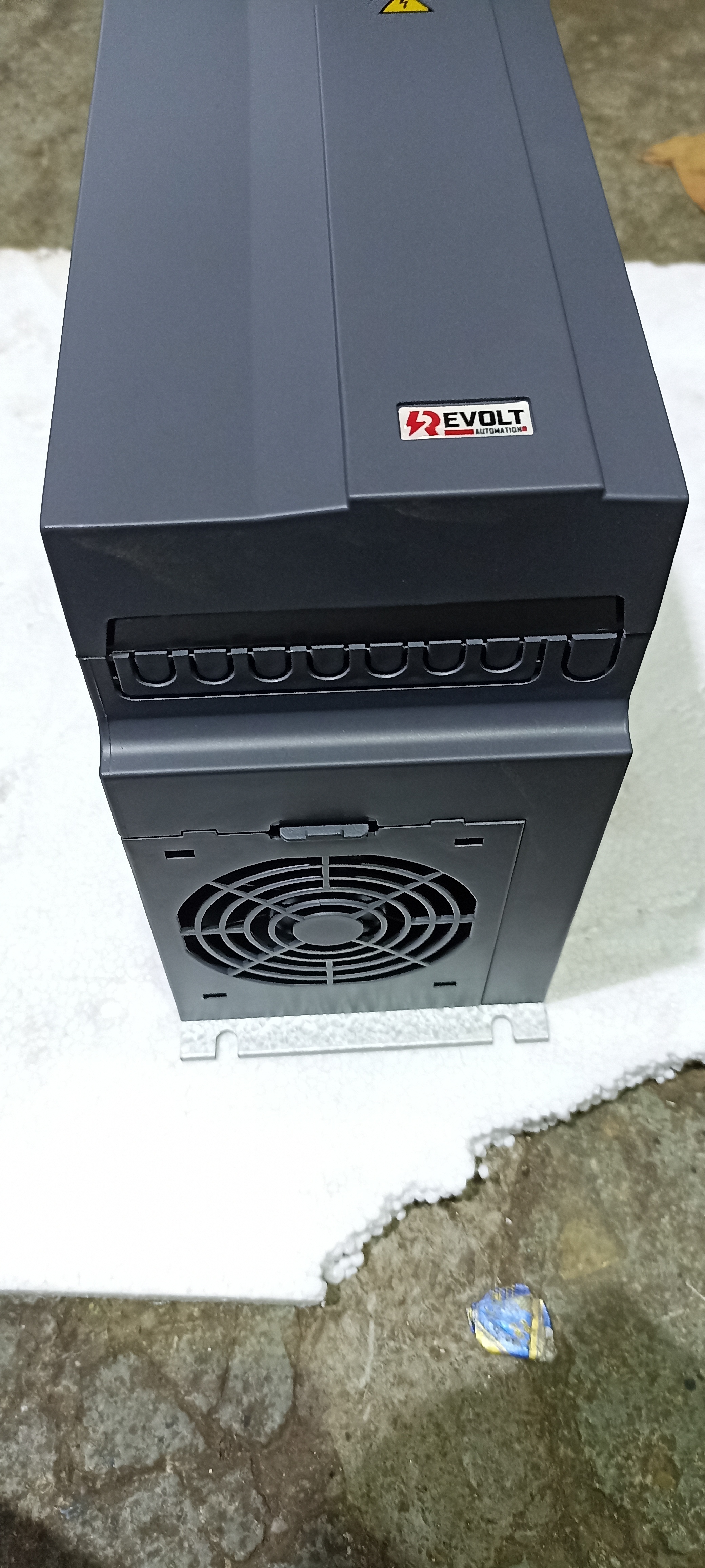

11- 15 kw Revolt AC Drive

Get a Price/Quote

11- 15 kw Revolt AC Drive Specification

Insulation Material
High Grade ABS

Surface Finish
Matte

Overheating Protection
Built-In Thermal Protection

Humidity %
0-95% Non-Condensing

Shape
Rectangular

Mounting Type
Panel Mount

Feature
Multifunctional, Programmable, User Friendly Interface

Connector Type
Screw Terminals

IP Rating
IP20

Efficiency
>96%

Operating Temperature
-10C to +50C

Power Factor
>0.98

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control, HVAC, Pumps, Conveyors

Protection Level
Overload, Short Circuit, Overvoltage, Undervoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
High Efficiency

Output Type
Digital and Analog

Color
Black & Grey

Dimension (L*W*H)
335 x 211 x 178 mm

Weight
7.5 kg

Input Voltage
AC 380-480V 50/60 Hz

Size
11-15 kW

Phase
Three Phase

No Of Poles
3

Material
ABS Plastic & Metal

Connection Type
Screw Terminal

11- 15 kw Revolt AC Drive Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 11- 15 kw Revolt AC Drive

Revolt 15 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Frequency Ac Drive

Make :- Revolt

Hp :- 15 Hp

Kw :- 11 Kw

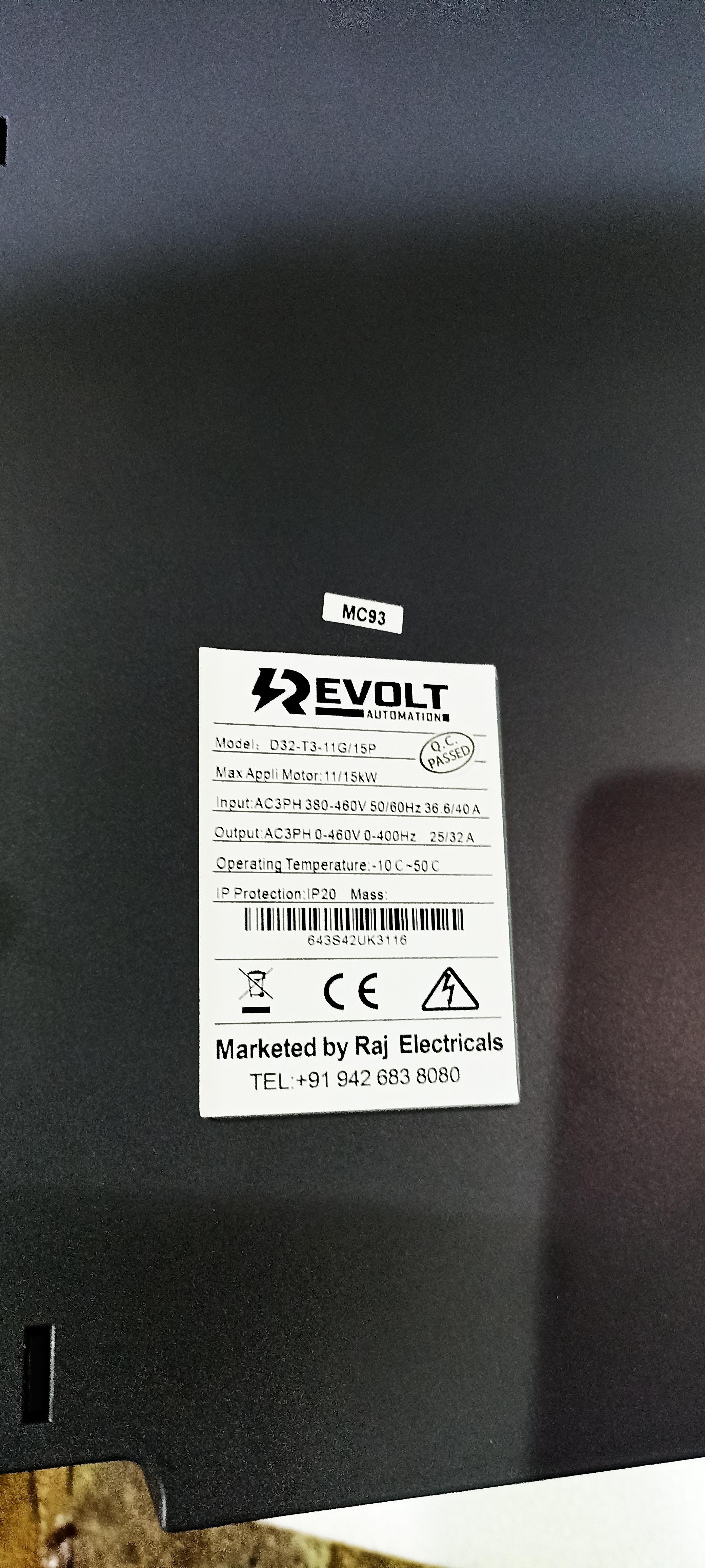

Model Number :- D32 - T3 - 11G/15P

Condition :- New

Warrenty :- 6 Month From The Date Of Purchase

Voltage :- 380-440 V AC

Frequency :- 50-60 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com

Email: raj_electricals@hotmail.com

Advanced Motor Control Technology

The Revolt AC Drive utilizes sophisticated V/F and sensorless vector control methods, delivering high precision speed regulation (1:100) and a startup torque of 150% at 1 Hz. This guarantees smooth and efficient motor operation for demanding industrial applications.

Comprehensive Protection & Reliability

With integrated features such as overload, short circuit, overvoltage, undervoltage, and built-in thermal protection, the AC drive enhances equipment safety and extends system lifespan. Its IP20 rating and robust ABS plastic & metal structure ensure dependable performance in industrial environments.

User-Friendly Programming & Communication

The digital LED display and customizable parameters make programming straightforward, while RS485 communication allows seamless integration with external controllers. Its multifunctionality is matched by a familiar screw terminal connection and panel mount form for easy installation.

FAQ's of 11- 15 kw Revolt AC Drive:

Q: How do I program and customize the parameters on the Revolt AC Drive?

A: Programming the drive is straightforward; use the digital LED display panel to navigate settings. Customizable parameters can be adjusted via onboard buttons or through RS485 communication, allowing configuration to fit your motor and application needs.

Q: What motors are compatible with this AC Drive?

A: The drive supports both Squirrel Cage Induction Motors and Permanent Magnet Synchronous Motors, making it versatile for various industrial uses such as automation, HVAC, pumps, and conveyors.

Q: When should I utilize the built-in brake chopper of the Revolt AC Drive?

A: The built-in brake chopper is beneficial for applications requiring rapid stop or high inertia loads, such as conveyor belts or heavy pumps, ensuring controlled braking and system safety under demanding conditions.

Q: Where can I install the 11-15 kW Revolt AC Drive?

A: It is designed for panel mounting in industrial settings where three-phase power is available, typically in automation cabinets or control rooms with operating temperatures between -10C to +50C and non-condensing humidity up to 95%.

Q: What is the process for connecting the drive to my motors and controllers?

A: Connect motor and power supply via screw terminals, following the wiring diagram in the manual. For controller integration, use the RS485 port for communication with external control systems, and set relevant parameters to match your setup.

Q: How does the Revolt AC Drive benefit my industrial operation?

A: With over 96% efficiency, integrated protections, high power factor (>0.98), and adaptive control methods, it optimizes energy usage, enhances motor performance, and ensures operational safety, ultimately improving productivity and reducing downtime.
