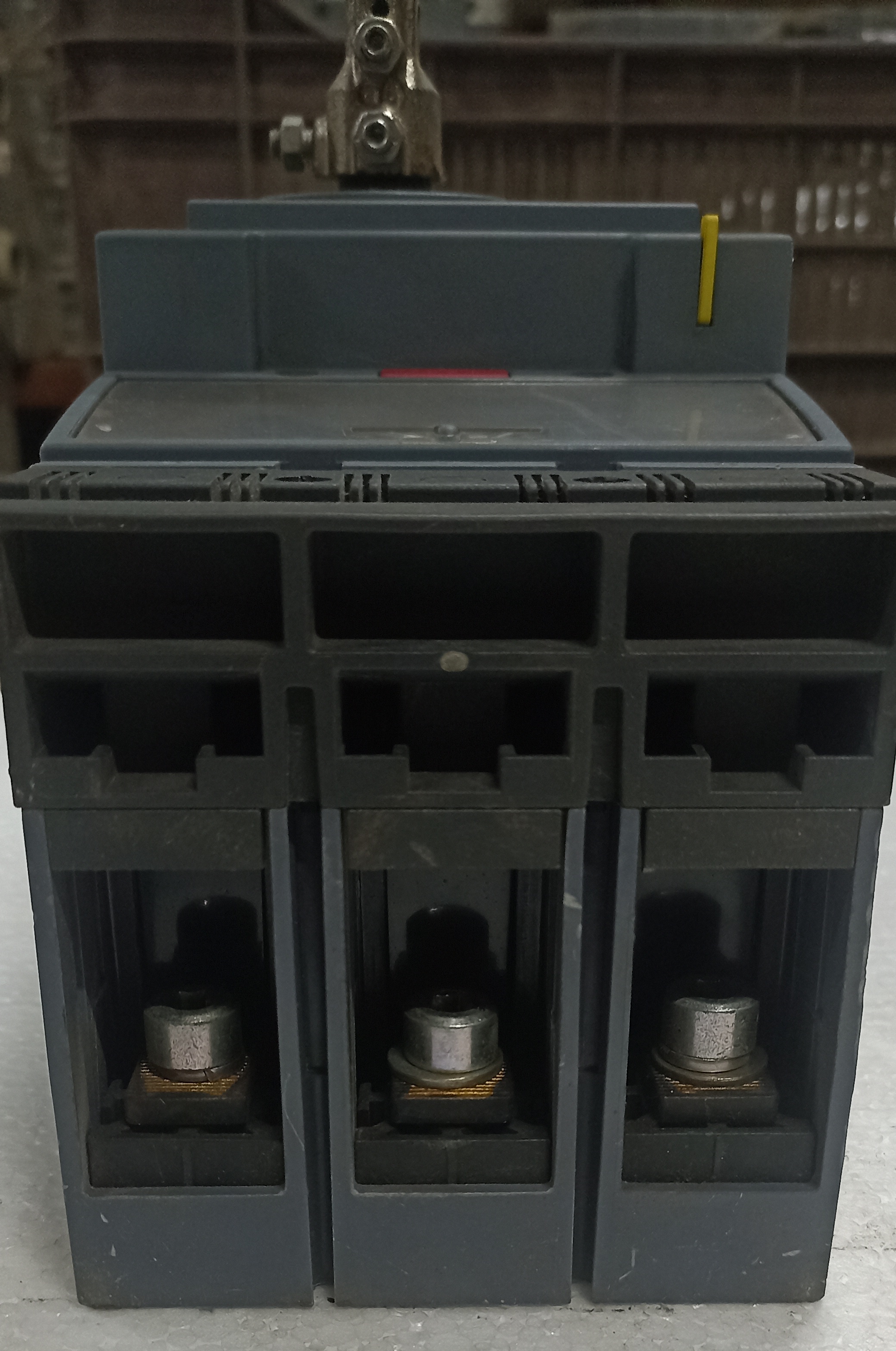

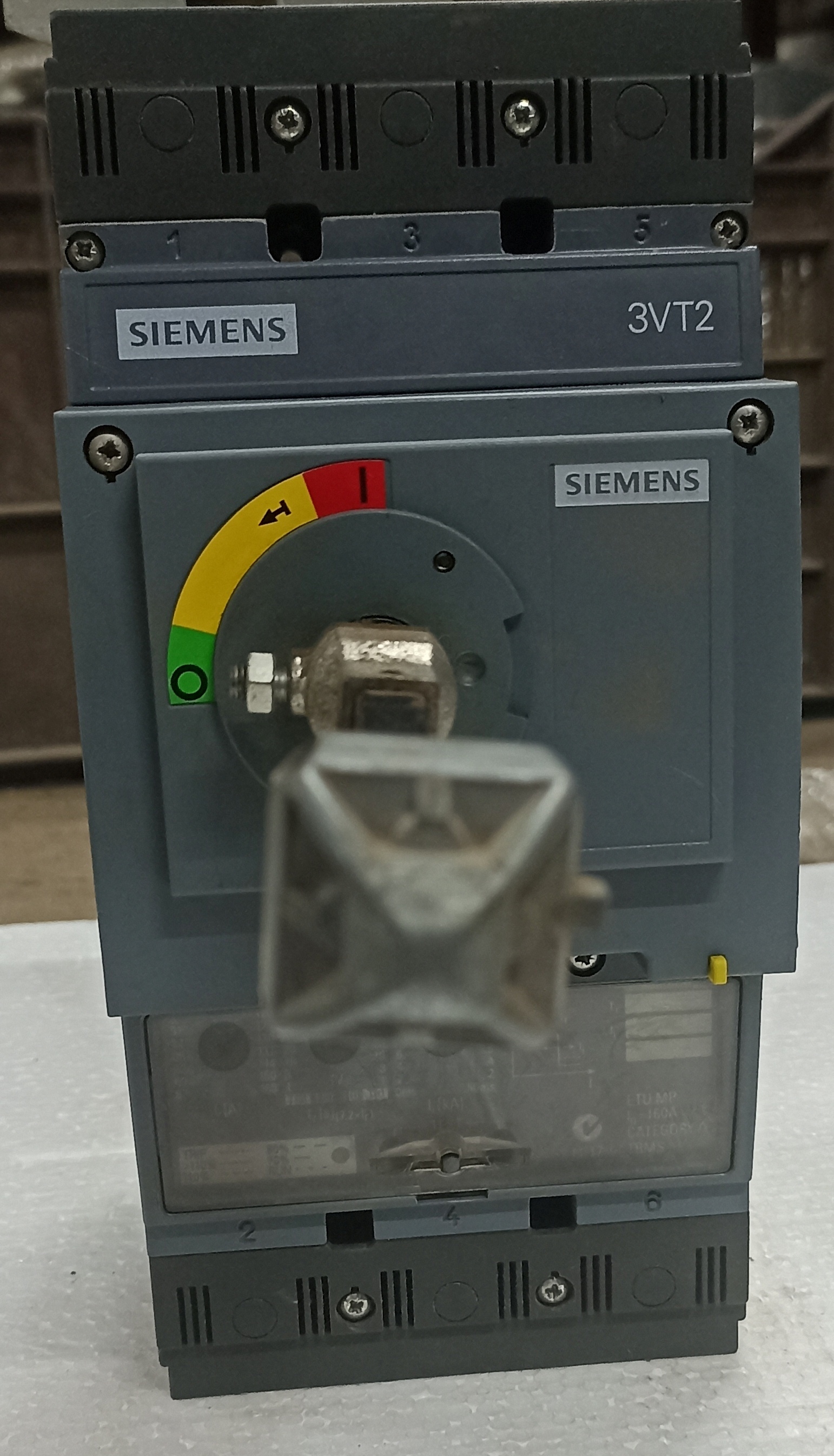

SIEMENS (3VT2) 160A 3P MCCB

Name: SIEMENS (3VT2) 160A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 2 Pieces

SIEMENS (3VT2) 160A 3P MCCB Specification

Rated Short Circuit Breaking Current
36kA

Breaking Capacity
36kA at 415V AC

Phase
Three Phase

Mechanical Life
Up to 10,000 operations

Rated Short Circuit Making Current
Up to 36kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount / Fixed Installation

Function
Protection against overload and short circuit

Poles Number
3P (Three Pole)

Rated Voltage
Up to 415V AC

Rated Current
160A

Rated Frequency
50/60Hz

Curves
Type C

Temperature Protection
Yes, with built-in thermal protection

Weight
Approx. 2.2 kg

Color
Gray/Black

Trip Unit Type
Thermal Magnetic

Operating Voltage Range
50V - 415V AC

Altitude Limit
Up to 2000m without derating

Terminal Connection
Box-type terminals

Mounting Position
Any

Utilization Category
A

Ambient Temperature Range
-5C to +40C

Service Breaking Capacity (Ics)
70% of Icu

Accessories Availability
Auxiliary contacts, undervoltage release, shunt release optional

Trip Indication
Yes, Visual indication

Degree of Protection
IP20

Insulation Voltage (Ui)
690V

SIEMENS (3VT2) 160A 3P MCCB Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About SIEMENS (3VT2) 160A 3P MCCB

SIEMENS (3VT2) 160A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Siemens

Ampere :- 160A

Pole :- 3P

Model :- 3VT2

Condition :- Refurbished

Breaking Capacity :- 50 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Protection and Reliability

With built-in thermal and magnetic protection and a service breaking capacity of 36kA, the SIEMENS 3VT2 160A MCCB ensures safety against electrical faults. Its reliable trip indication and IP20 protection class safeguard your installation and personnel.

Flexible Installation and Usage

Designed for panel mount or fixed installations, the 3VT2 accommodates any mounting position. Box-type terminals simplify wiring, and the breaker can operate efficiently up to 2000 meters altitude without derating, making it suitable for diverse environments.

Expandability with Optional Accessories

The MCCB supports auxiliary contacts, undervoltage release, and shunt release as optional accessories, allowing users to customize the unit for complex control or remote signaling requirements, enhancing system monitoring and operational ease.

FAQ's of SIEMENS (3VT2) 160A 3P MCCB:

Q: How does the SIEMENS (3VT2) 160A 3P MCCB provide protection in electrical systems?

A: The MCCB uses a thermal magnetic trip unit to detect and disconnect circuits during overload or short circuit events, offering robust protection for electrical equipment and wiring.

Q: What environments are suitable for installing the SIEMENS 3VT2 160A MCCB?

A: It is ideal for indoor installations in commercial and industrial settings, operating within an ambient temperature range of -5C to +40C, and can be used up to an altitude of 2000 meters without derating.

Q: When should I consider adding optional accessories to this MCCB?

A: You should consider auxiliary contacts, undervoltage release, or shunt release accessories if you require status signaling, remote tripping, or additional safety interlocks within your control system.

Q: Where can this MCCB be mounted within an electrical panel?

A: The SIEMENS 3VT2 160A MCCB supports any mounting position, offering flexibility for panel design and fixed installation requirements.

Q: What is the process for installing the SIEMENS 3VT2 160A MCCB?

A: Installation involves securely mounting the MCCB in a panel, connecting phase and neutral wires through the box-type terminals, and optionally fitting preferred accessories. Always follow safety protocols and manufacturer guidelines.

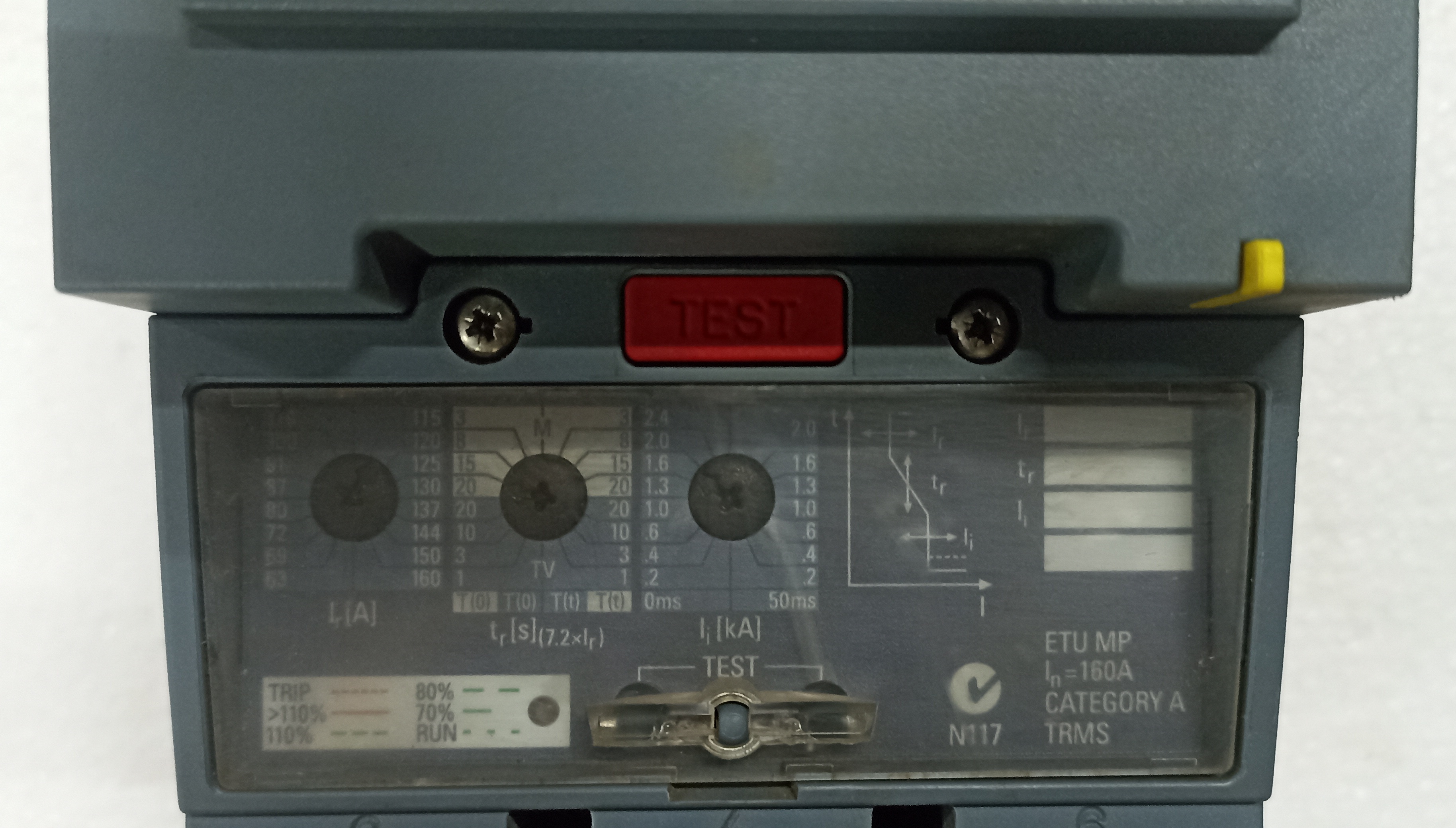

Q: How does trip indication work on this MCCB?

A: The MCCB provides a visual trip indication, allowing operators to quickly identify when the unit has tripped due to an overload or short circuit.

Q: What are the benefits of using SIEMENS (3VT2) 160A MCCB in my electrical system?

A: This MCCB offers high breaking capacity, customizable accessories, long mechanical life, and adaptability to varied environments-ensuring operational safety, reliability, and easy system integration.
