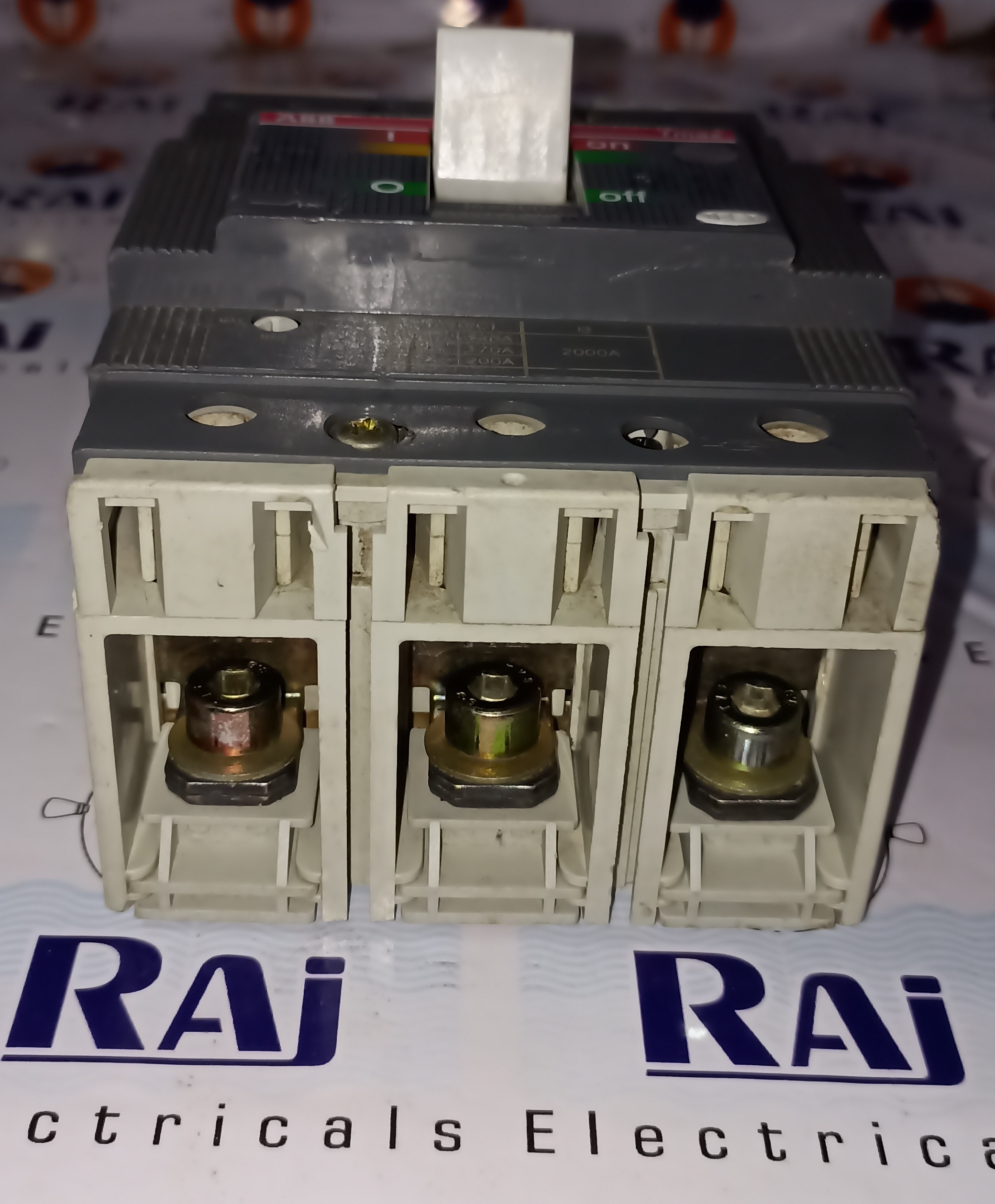

ABB SACE TMAX 200A 3P MCCB

Name: ABB SACE TMAX 200A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

ABB SACE TMAX 200A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Breaking Current
36 kA at 415V

Mechanical Life
20,000 Operations

Rated Short Circuit Making Current
72 kA Peak

Breaking Capacity
36 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed/Mountable

Function
Protection Against Overload and Short Circuit

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
200A

Rated Frequency
50/60 Hz

Curves
Thermal-Magnetic

Temperature Protection
Yes, Adjustable

Weight
Approximately 3.6 kg

Color
Grey/Black

Protection Degree
IP20

Mounting Type
Panel Mount

Connection Type
Screw Terminals

Operating Temperature
-25C to +70C

Auxiliary Contacts Option
Available (optional)

Trip Unit Type
TMD (Thermal Magnetic) Trip Unit

ABB SACE TMAX 200A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 200A 3P MCCB

ABB SACE TMAX 200A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 200A

Pole :- 3P

Model :- SACE TMAX

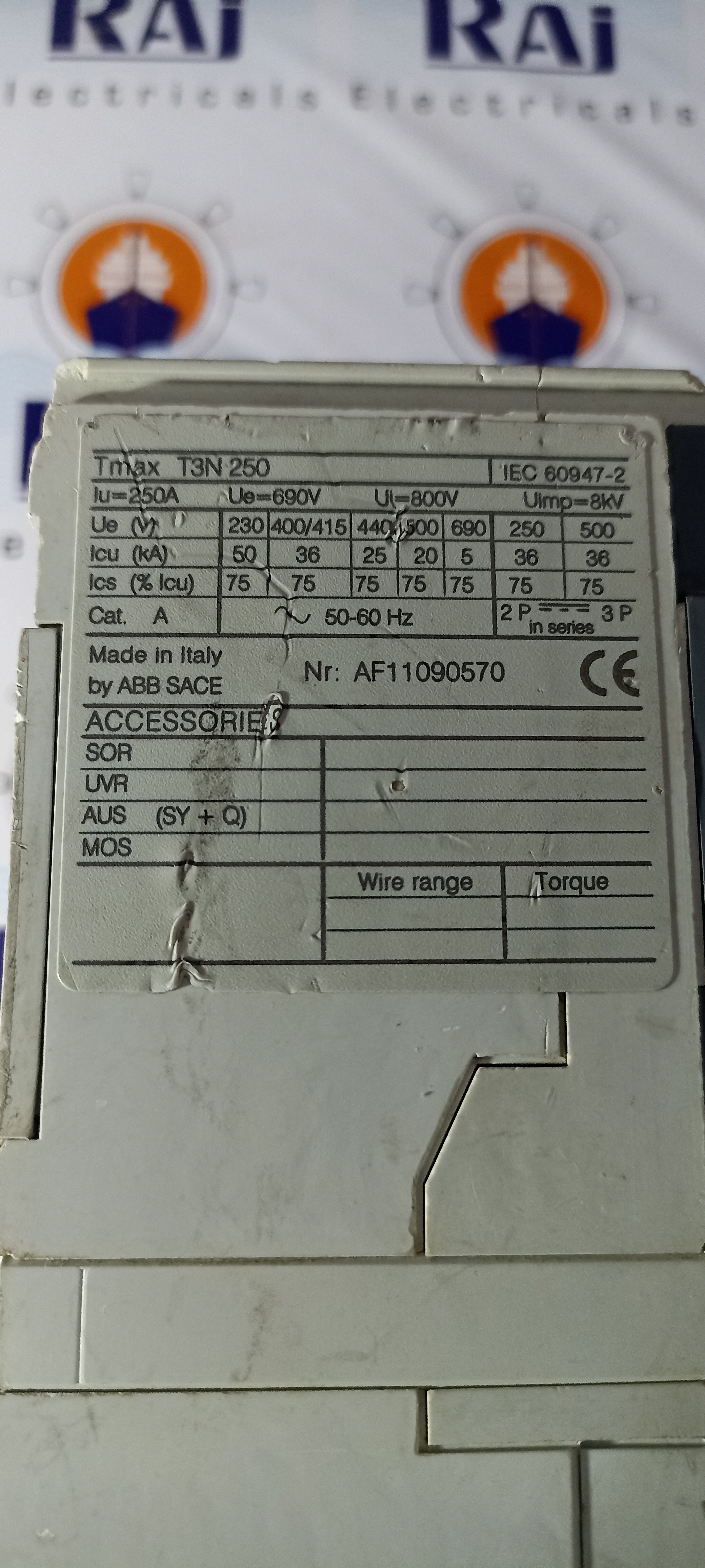

Model Number :- Tmax T3N 250

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Protection with Flexible Usage

This MCCB is engineered to shield electrical circuits from overloads and short circuits, thanks to its dependable TMD Trip Unit. Adjustable thermal and magnetic settings give you tailored protection for various applications, keeping your systems secure under demanding conditions.

User-Friendly Installation and Versatility

With both fixed and panel mounting options and screw terminal connections, the ABB SACE TMAX MCCB ensures straightforward installation. Its compact design and three-pole configuration are ideal for integration into control panels, switchgear, and distribution boards.

Durability and Reliability for Harsh Environments

Operating smoothly in temperatures from -25C to +70C and built to a mechanical life of 20,000 operations, this breaker suits harsh industrial settings. The IP20 protection degree and sturdy build make it a long-lasting solution for electrical safety needs.

FAQ's of ABB SACE TMAX 200A 3P MCCB:

Q: How does the TMD (Thermal Magnetic) Trip Unit function in the ABB SACE TMAX 200A MCCB?

A: The TMD Trip Unit combines thermal and magnetic protection. The thermal component guards against overload by responding to sustained overcurrents, while the magnetic element trips the breaker rapidly during short circuits, ensuring enhanced safety and equipment protection.

Q: What are the main benefits of choosing the ABB SACE TMAX 200A 3P MCCB for industrial applications?

A: Key benefits include high breaking capacity (36 kA), adjustable trip settings, reliable thermal-magnetic protection, wide operating temperature range, and easy installation. These features provide safety, flexibility, and longevity in demanding industrial conditions.

Q: When should I use auxiliary contacts with this MCCB?

A: Auxiliary contacts are optional and are used when remote monitoring or signaling of the breaker's status is needed. This is valuable for integration into automated control systems or for safety interlocks in industrial applications.

Q: Where can the ABB SACE TMAX 200A MCCB be installed?

A: This circuit breaker is suitable for panel mounting in power distribution boards, control panels, and machinery switchgear within industries, commercial buildings, and infrastructure projects, especially in three-phase systems up to 415V AC.

Q: What is the installation process for this MCCB?

A: Installation involves mounting the breaker onto a panel or fixed surface using the provided fittings. Connections are made via screw terminals, and, if needed, auxiliary contacts can be installed. Ensure proper tightening and compliance with the rated specifications during setup.

Q: How does adjustable temperature protection benefit the user?

A: Adjustable temperature protection allows users to fine-tune the breaker's response to specific loads, offering optimal protection against overheating and overcurrent conditions. This increases operational safety and minimizes downtime due to nuisance tripping.
