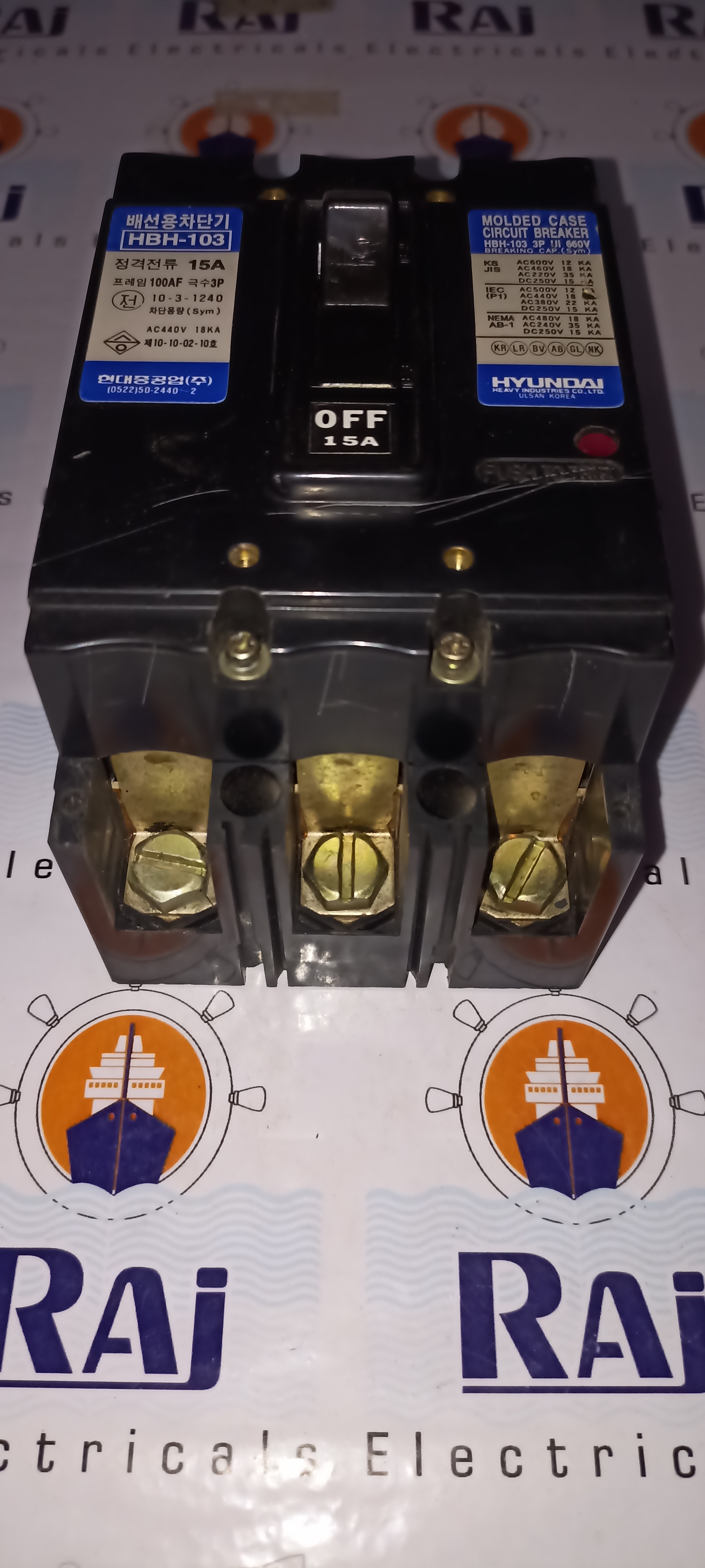

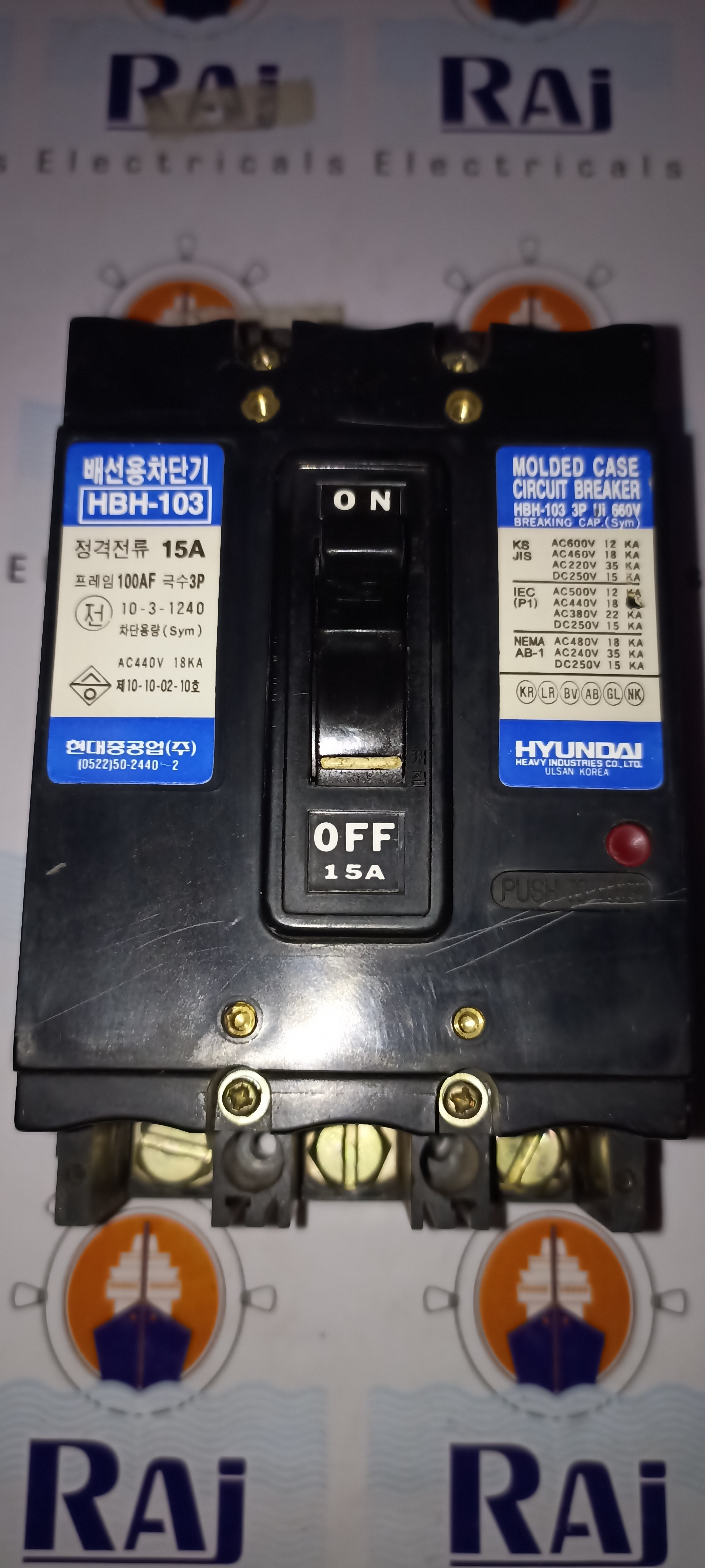

HYUNDAI (HBH 103) 15A 3P MCCB

Name: HYUNDAI (HBH 103) 15A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

HYUNDAI (HBH 103) 15A 3P MCCB Specification

Mechanical Life
10,000 Operations

Rated Short Circuit Making Current
35kA

Breaking Capacity
25kA

Phase
Three Phase

Rated Short Circuit Breaking Current
25kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail or Fixed Mounting

Function
Protection against overload and short-circuit

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
15A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Thermal and magnetic protection

Weight
Approx. 600g

Color
Grey

Mounting Orientation
Vertical/Horizontal

Ambient Temperature Range
-5C to +40C

Insulation Voltage
800V

Model Number
HBH 103

Degree of Protection
IP20

Rated Impulse Withstand Voltage (Uimp)
8kV

Connection Type
Screw Terminals

Trip Unit Type
Fixed, Thermal Magnetic

HYUNDAI (HBH 103) 15A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About HYUNDAI (HBH 103) 15A 3P MCCB

HYUNDAI (HBH 103) 15A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Hyundai

Ampere :- 15A

Pole :- 3P

Model :- HBH 103

Condition :- Refurbished

Breaking Capacity :- 18 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Comprehensive Electrical Protection

The HBH 103 MCCB delivers reliable protection against overload and short-circuit events in three-phase systems. Its advanced thermal and magnetic trip mechanisms make it ideal for diverse applications, ensuring equipment and personnel safety in challenging environments.

Flexible Installation & Design

Engineered with versatile mounting options, this breaker can be installed on DIN rails or via fixed mounting, supporting both vertical and horizontal orientations. Its compact, grey build and screw terminals facilitate easier integration into new and existing panels.

FAQ's of HYUNDAI (HBH 103) 15A 3P MCCB:

Q: How does the HYUNDAI HBH 103 MCCB protect electrical circuits?

A: The HBH 103 uses a fixed, thermal magnetic trip unit to automatically disconnect the circuit during overload or short-circuit conditions, preventing damage to equipment and minimizing fire risks.

Q: What are the installation options and how do I mount this MCCB?

A: This MCCB supports both DIN rail mounting and fixed mounting methods. It can be installed in either a vertical or horizontal orientation, offering flexibility for various panel designs.

Q: Where is the HYUNDAI HBH 103 MCCB commonly used?

A: This model is suited for protection in industrial, commercial, and institutional electrical systems, especially in three-phase networks requiring up to 15A protection with high breaking capacity.

Q: What is the process for wiring the HBH 103 MCCB?

A: Wiring is accomplished using screw terminals, ensuring a secure and reliable connection. Always disconnect power before installation, follow local electrical codes, and consult the product manual for proper procedures.

Q: When should this MCCB be used for optimal protection?

A: Use this MCCB when you need to protect three-phase electrical circuits from overloads and short circuits, particularly where breaking capacity up to 25kA and operational reliability at 50/60Hz are critical.

Q: What are the benefits of the HBH 103's degree of protection and mechanical life?

A: With an IP20 rating, the breaker is safeguarded from solid objects, and its mechanical life of 10,000 operations ensures longevity and consistent performance in demanding environments.

Q: What makes the thermal magnetic trip unit advantageous?

A: The thermal magnetic trip unit provides accurate and responsive protection, ensuring prompt disconnection under fault conditions, which helps in maintaining system stability and minimizing downtime.
